UBIQUITI UAP-In Wall ACCESS POINT

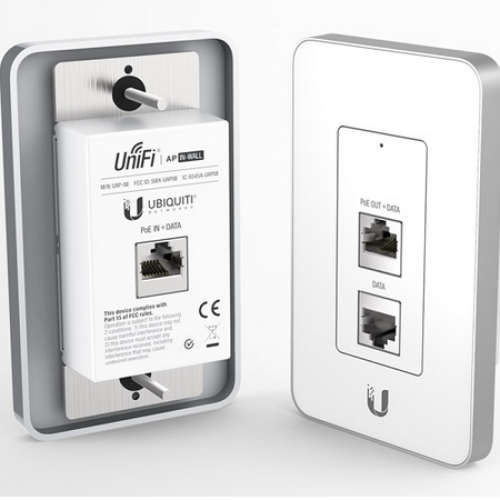

The UniFi In-Wall Wi-Fi AP is design to retrofit into existing single-gang ethernet outlet. They also support PoE Passthrough to power other device connected to it.

The UniFi In-Wall Wi-Fi AP is designed to be powered by an 802.3af/at Alternative-A POE supply (not included). Alternative-A means the power is delivered on pins 1,2,3,6.

It will work with:

• Ubiquiti UniFi Switches
• Ubiquiti EdgeSwitches
• Any other brand of 802.3af/at POE switch that uses Alternative-A. Most do, but not all.

It will not work with:

• Most simple 48V passive POE supplies, as these usually use Alternative-B (pins 4,5,7,8)
• Most 802.3af/at Mid-Span Injectors, as these usually use Alternative-B (pins 4,5,7,8)
• 802.3af/at POE Switches that only use Alternative-B. These are not common, but at least one brand make Alternative-B POE Switches: Allied Telesis
