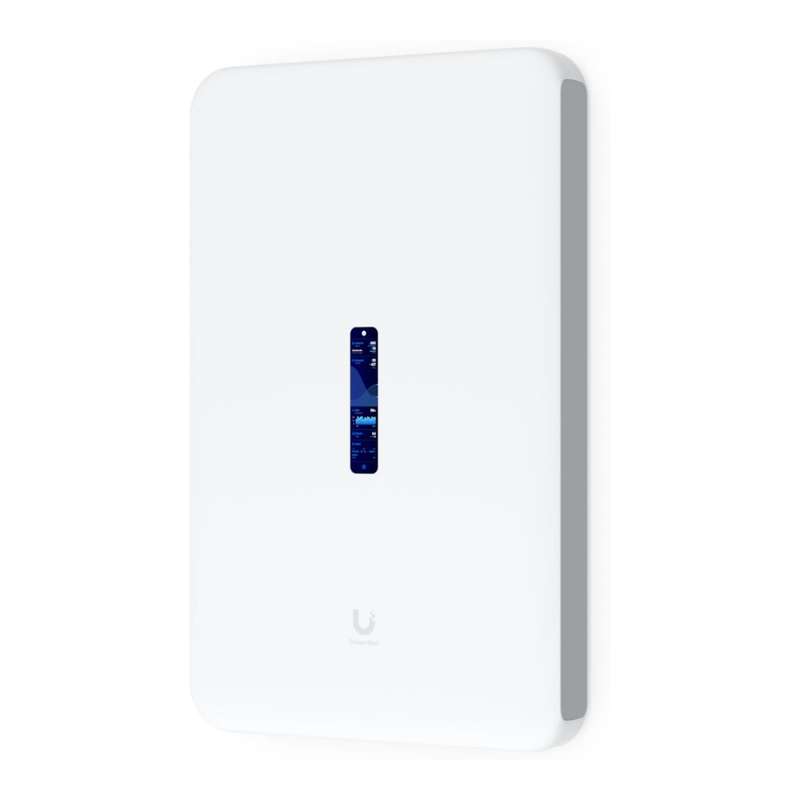

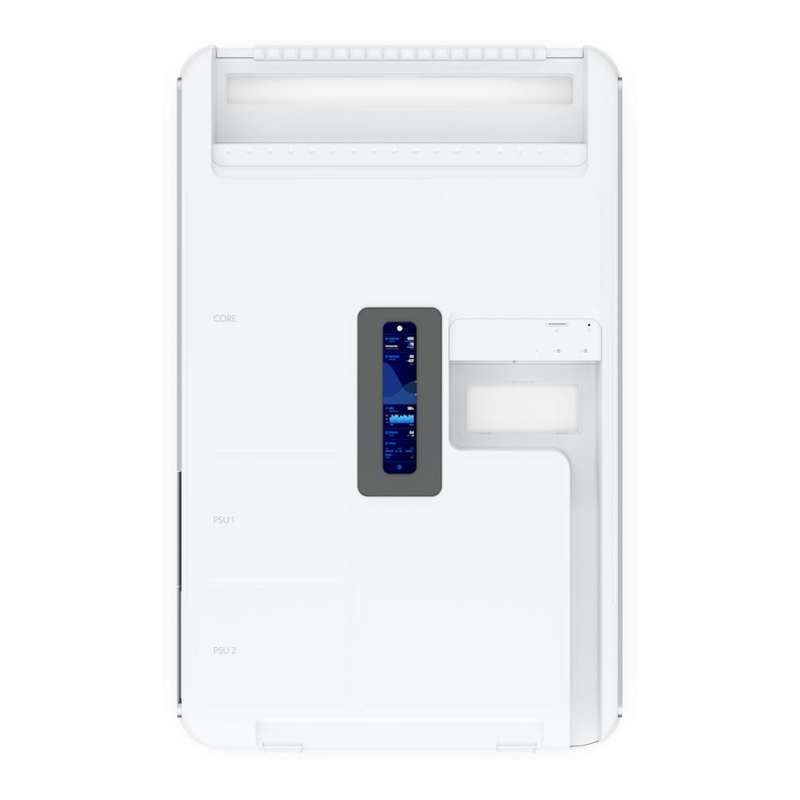

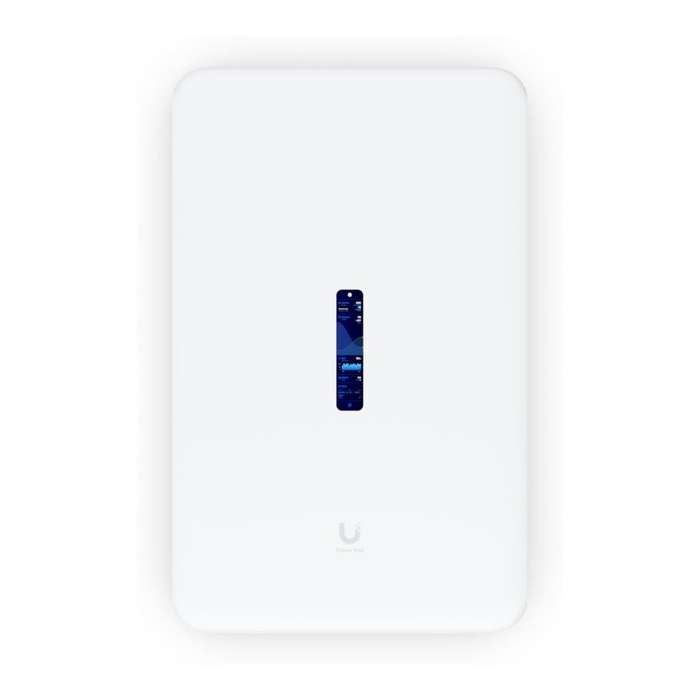

Ubiquiti UDW-A UniFi Dream Wall Cloud Gateway

Wall-mountable UniFi Cloud Gateway with a built-in WiFi 6 access point, PoE switching, and full UniFi application support.

Features

• Built-in WiFi 6 AP
• Includes full UniFi application suite for device management
• 3.5+ Gbps routing with IDS/IPS

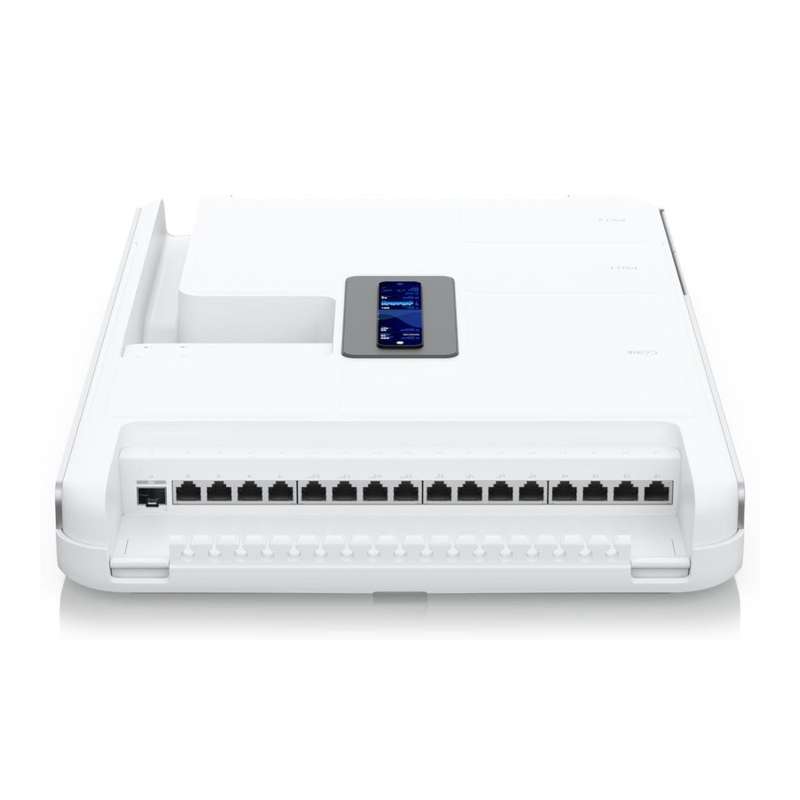

• 1x 10G SFP+*, 17x GbE RJ45 LAN ports including 4x PoE++, 4x PoE+, and 4x PoE ports
• 1x 10G SFP+*, 1x 2.5 GbE RJ45 WAN ports
• 4.7" touchscreen for management
• Integrated 128 GB SSD & pre-installed 512 GB microSD card

Technical Specification

Processor: Quad-core ARM Cortex-A57 at 1.7 GHz

System memory: 4 GB DDR4

On-board storage: 16 GB eMMC

Integrated: 128 GB SSD

Pre-installed: 512 GB microSD card

Interface LAN: 17x GbE RJ45 ports , 1x 10G SFP+ port

Interface WAN: 1x 2.5 GbE RJ45 port , 1x 10G SFP+ port

Management interface: Ethernet, Bluetooth, WiFi

PoE interface

• 4x PoE (Pair A 1, 2+; 3, 6-)
• 4x PoE+ (Pair A 1, 2+; 3, 6-)
• 4x PoE++ (Pair A 1, 2+; 3, 6-) (Pair B 4, 5+; 7, 8-)

Power method: Universal AC input 100—240V AC, 7A Max., 50/60Hz

Power supply: 1x 550W Hot-Swappable AC/DC PSU (Power cord included)

Max. power consumption: 532W (Including PoE output)

PoE budget: 420W

Max. PoE wattage per port by PSE

• PoE: 15.4W
• PoE+: 30W
• PoE++: 60W

Voltage range PoE mode

• PoE: 44—57V
• PoE+/PoE++: 50—57V

Max. TX power

• 2.4 GHz: 23 dBm
• 5 GHz: 26 dBm

MIMO

• 2.4 GHz: 2 x 2
• 5 GHz: 4 x 4

Throughput rate

• 2.4 GHz: 300 Mbps
• 5 GHz: 2.4 Gbps

Antenna gain

• 2.4 GHz: 5.9 dBi
• 5 GHz: 6 dBi

ESD/EMP protection: Air: ± 8kV, contact: ± 4kV

LCM display: 1x 4.7" touchscreen

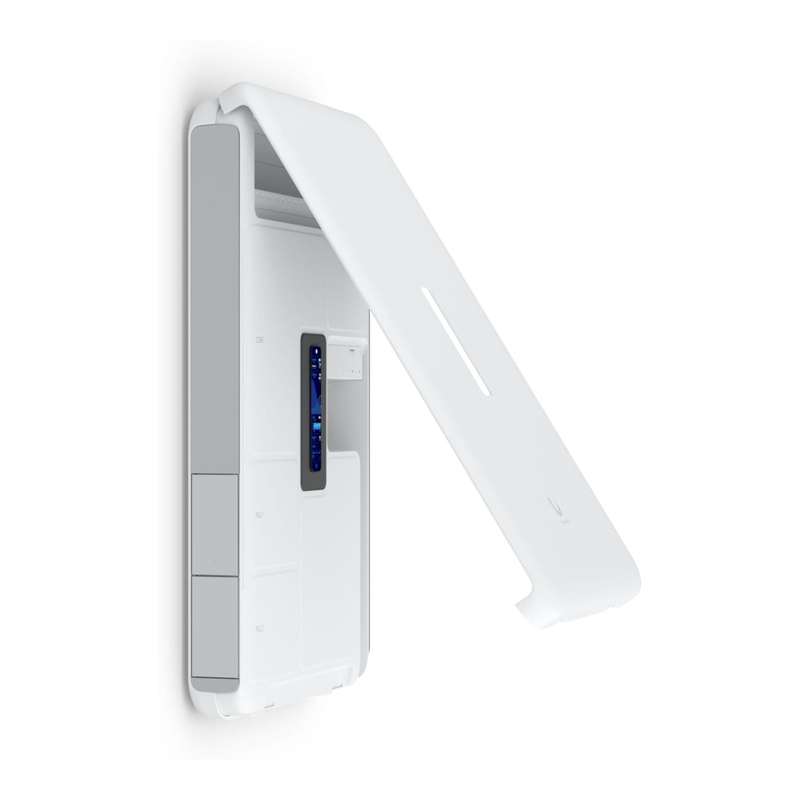

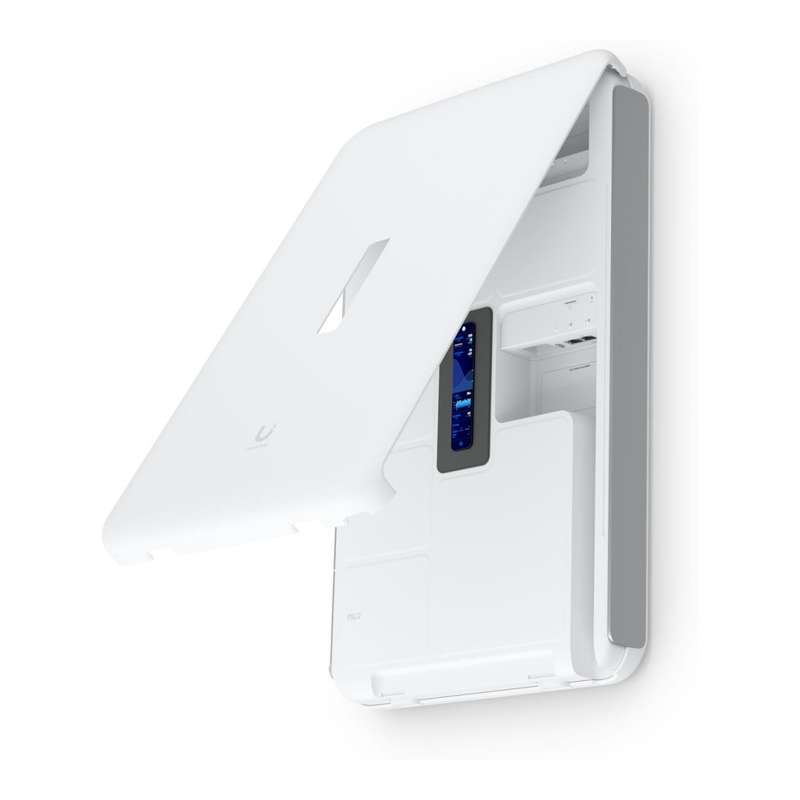

Mounting: Wall mount (included)

WiFi standards: 802.11a/b/g/n/ac/ax

Concurrent clients: 300+
