Ubiquiti UFiber loco GPON CPE gateway/controller 10 100 1000 Mbit/s

Ubiquiti UFiber loco GPON CPE gateway/controller 10 100 1000 Mbit/s

Low-Cost GPON Optical Network Unit

Sporting a sleek industrial design, the U?Fiber loco is a robust, high-performance GPON CPE that features extremely low power consumption and two power options.

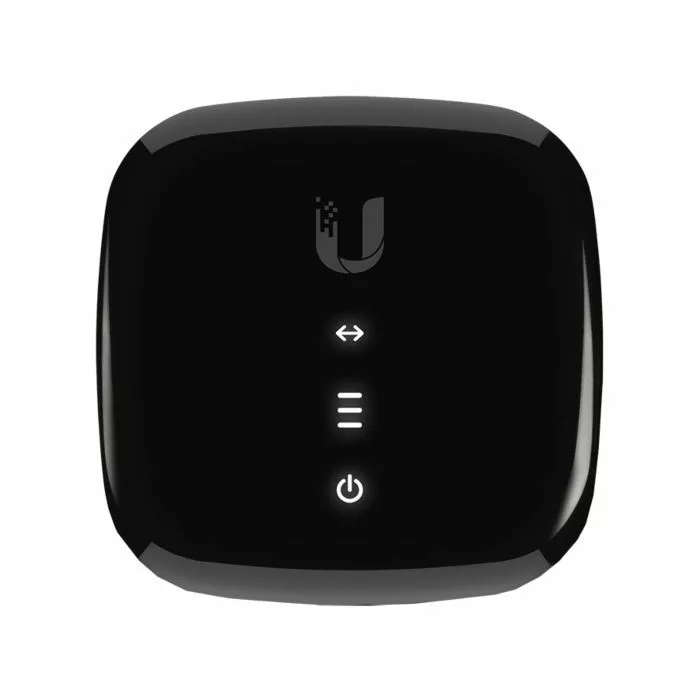

Status LEDs

The easy-to-read LEDs provide status information: Ethernet connection, signal strength, and power.

Versatile Power

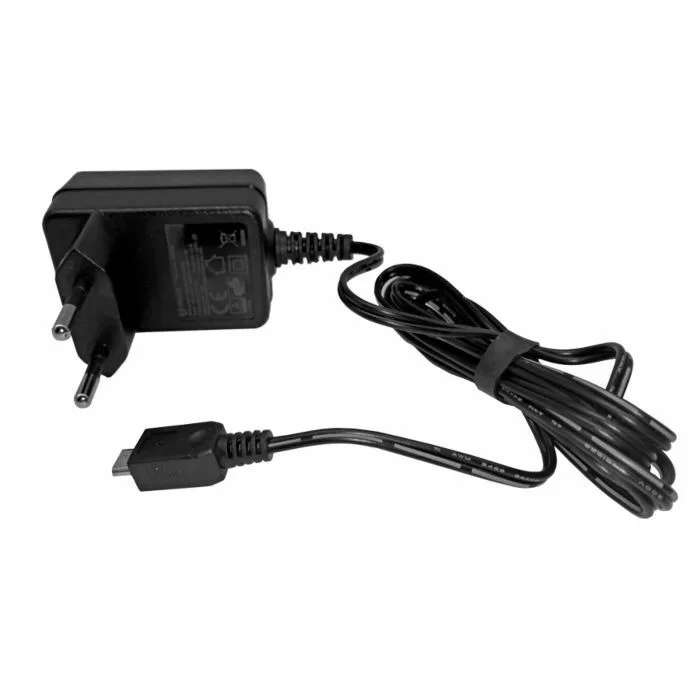

The UFiber loco can be powered by a Micro-USB Power Adapter (included) or 24V passive PoE.

Designed for Integration

Up to 128 UFiber loco devices can be connected to a single GPON port. Supporting GPON links of up to 20 km, the UFiber loco integrates with the UFiber OLT and third-party OLT devices

Specifications:

• Ubiquiti Networks UFiber Loco
• Ethernet LAN data rates: 10,100,1000 Mbit/s
• Data transfer rate: 2.488 Gbit/s
• Weight: 77 g
• Dimensions (WxDxH): 76.5 x 76.5 x 26.4 mm
• Power consumption (typical): 3.5 W
• Input current: 1 A
• Input voltage: 24 V
• LED indicators: Network, Power, Signal strength
• Certification: CE, FCC, IC
