Ubiquiti UFiber WiFi6 GPON ONU UF-WIFI6

Ubiquiti's UF-WIFI6 is a Dual Band, 802.11ax (WiFi 6) GPON CPE featuring an LED display, 4x Gigabit Ethernet Ports and 1xSC APC GPON WAN port. The unit is capable of distances up to 20km with speeds of up to 2.4Gbps downstream and 1.2Gbps upstream. The UF-WIFI6 can be powered by either the included 5V 3A USB-C or 24V Passive PoE.

Features:

• 2x2, high-efficiency WiFi 6

• 2.4 GHz band (2x2 MIMO) with a 300 Mbps radio rate

• 5 GHz band (2x2 MU-MIMO and OFDMA) with a 1.2 Gbps radio rate

• 2.4 Gbps max downstream line rate

• 1.2 Gbps max upstream line rate

• Establishes GPON links up to 20 km

• Powerful Layer 2/3 management features

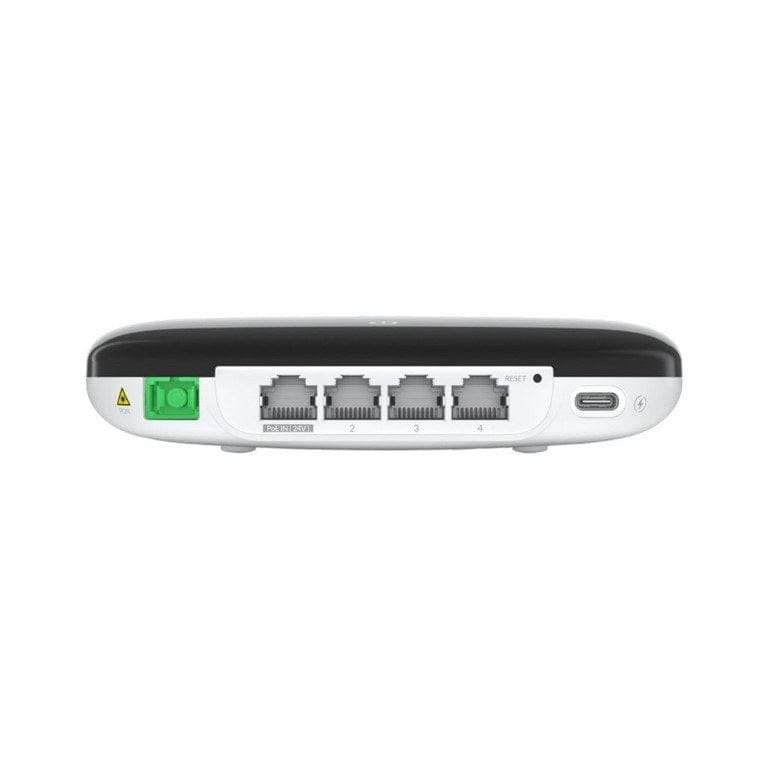

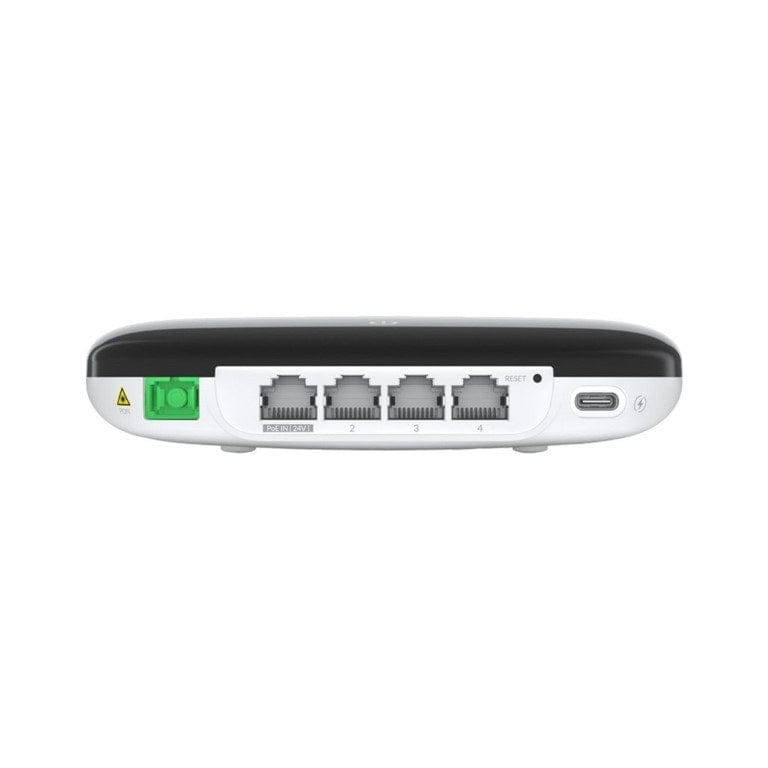

• (1) GPON WAN port

• (4) GbE RJ45 LAN ports

• Powered with the included power adapter or passive PoE

• Internal WiFi 6 (802.11ax) antennas

Technical Specification

Antenna Gain: 2.4GHz: 1dBi ; 5.8GHz: 3dBi

Beam-width: 360°

Data Rate: 2.4GHz: 300Mbps ; 5.8GHz: 1.2Gbps

Ethernet Ports: 4x 10/100/1000

Hardware Button: Reset

Max. Power Consumption: 11W

Mounting: Desktop

Operating System: UFiber

Operating Temperature: -15°C to 45°C

PoE Input: 24V Passive PoE

PoE Output: None

Power Input: 5V 3A USB-C (Included)

Serial Interface: None

SIM Slots: None

Supported Voltage Range: 10-30V Passive PoE ; 5VDC USB-C

USB Ports: None

Other: 1x 2.5/1.25Gbps SC APC GPON

Dimensions: 140.8 x 141.5 x 31.65 mm

Weight: 415g
