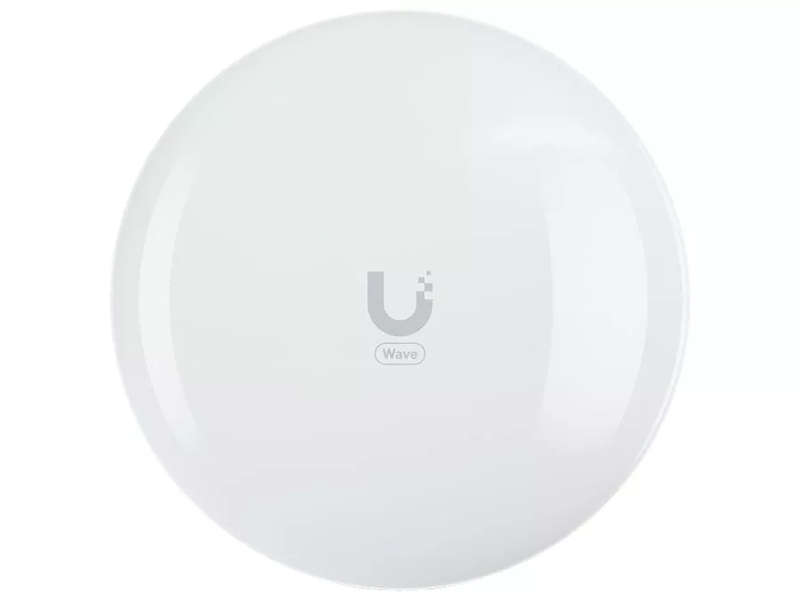

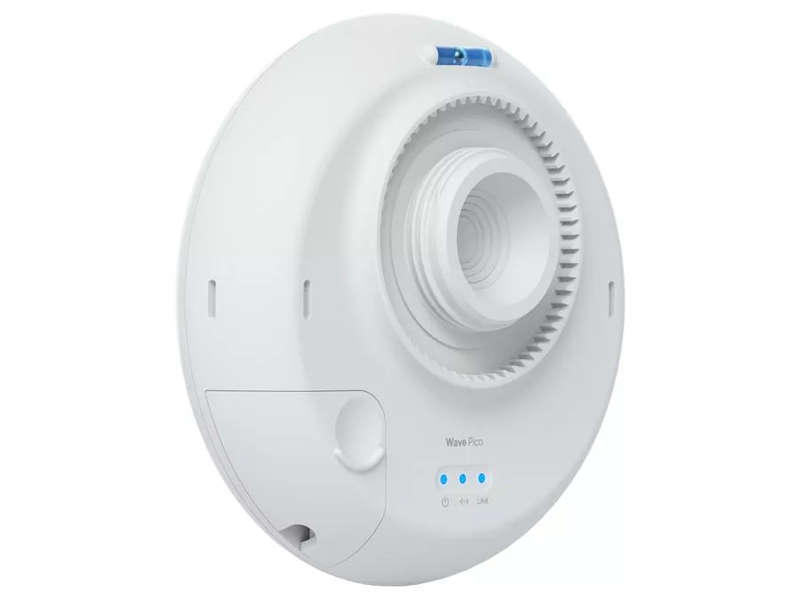

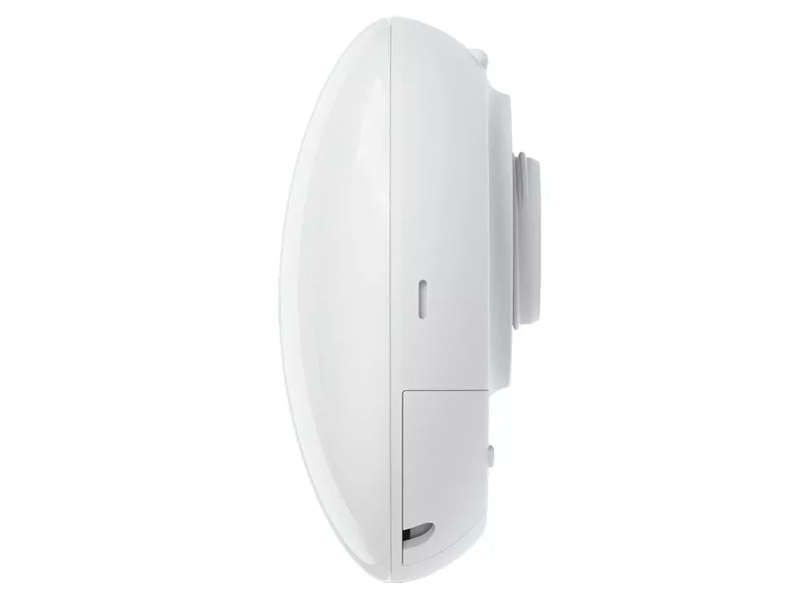

Ubiquiti UISP 60GHz/5GHz Wave Pico Radio | Wave-Pico

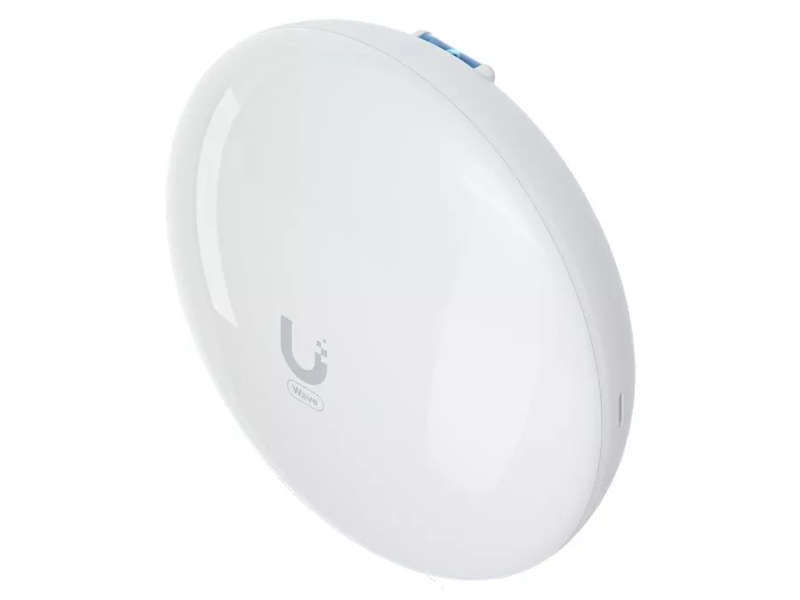

Ubiquiti's WAVE-PICO is a 60GHz radio system with an integrated high-gain antenna, and a WiFi 6, 5GHz backup radio. It features Wave technology with true duplex gigabit performance PtP links up to 3km. In PtMP mode, it can be used as a CPE and paired with the WAVE-AP (up to 1.3km) or WAVE-APM (900m) with a total throughput of up to 2Gbps.

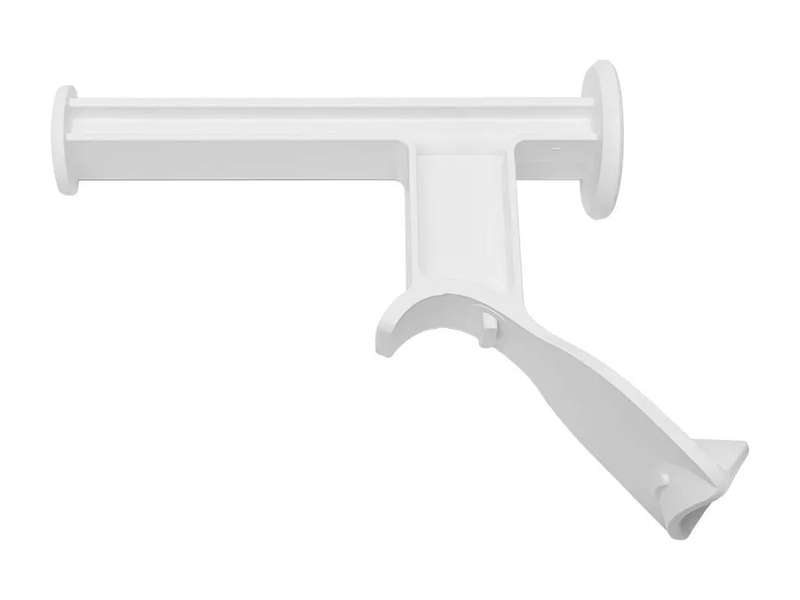

Also included is a built-in Bluetooth management radio for easy setup via the UISP network management platform. An alignment tool is included with the unit to assist with accurate and reliable aligning of the antennas.

*Note: For PtP links, firmware v.3.2.0 or later is required.

Specifications:

Antenna Gain: 60GHz: 27.7dBi ; 5.8GHz: 9dBi
Beamwidth: 60GHz: 6° ; 5GHz: 50°
Data Rate: 60GHz: Up to 2Gbps ; 5.8GHz: 800Mbps

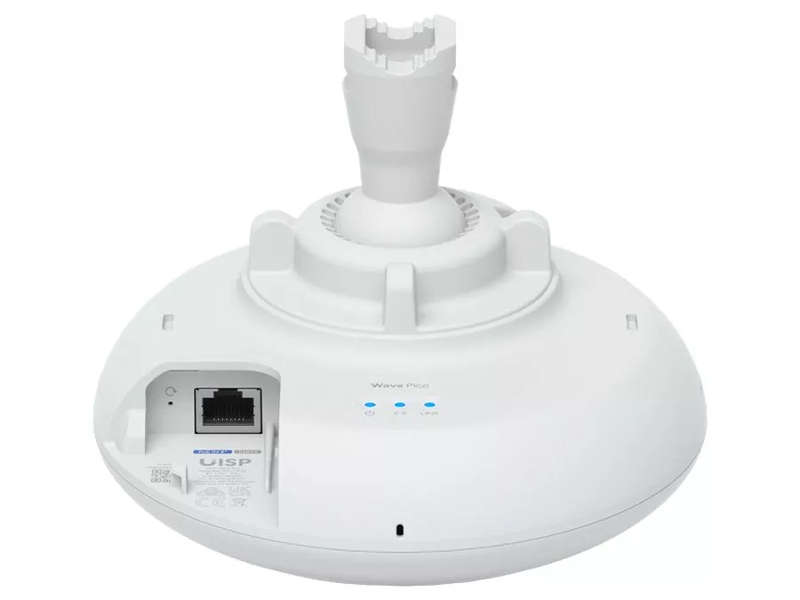

Ethernet Ports: 1x 10/100/1000
Hardware Button: Reset
Max. Power Consumption: 10W

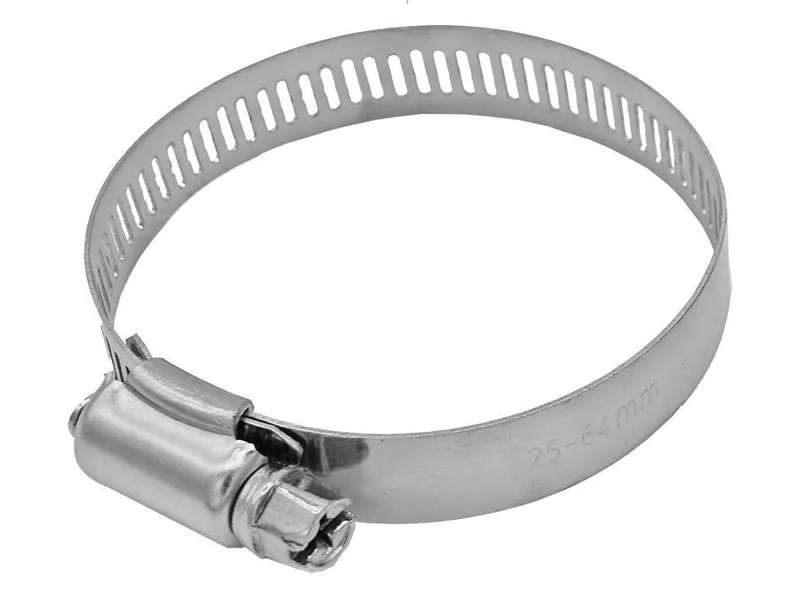

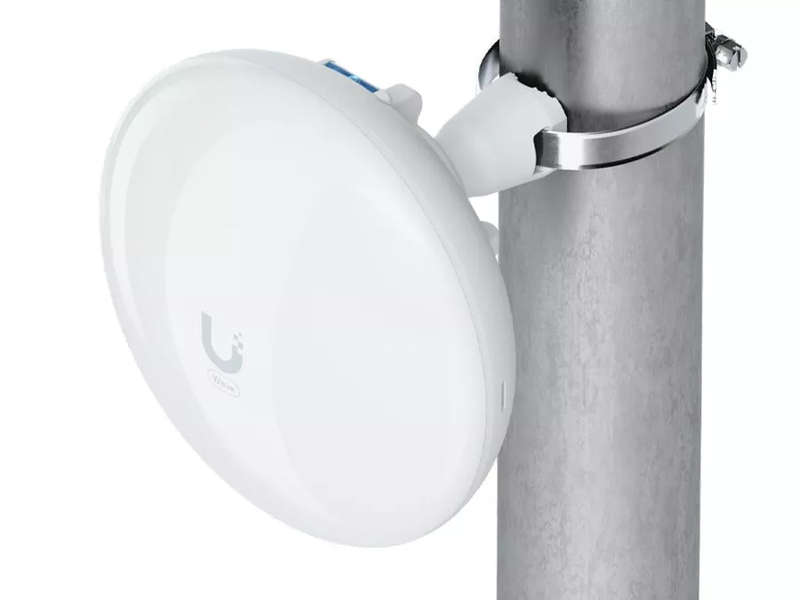

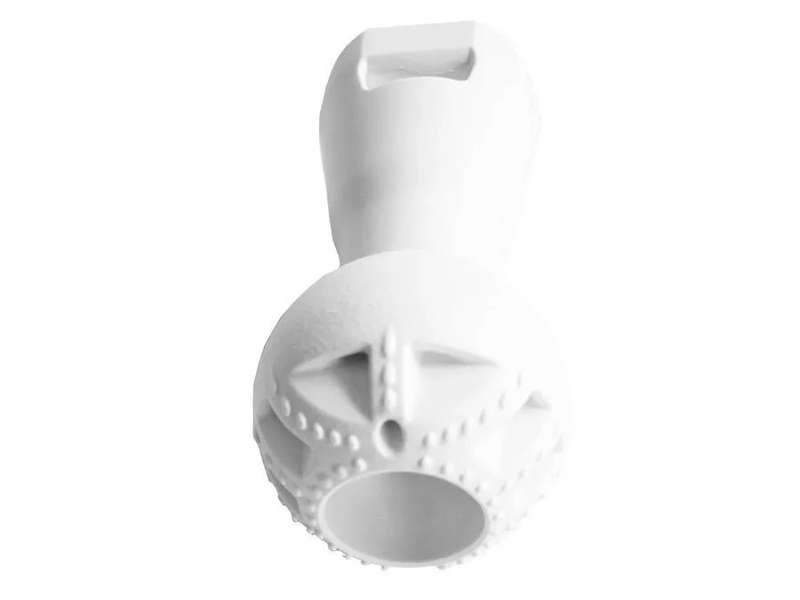

Mounting: Pole-Mount
Operating System: airOS
Operating Temperature: -40°C to 60°C
PoE Input: 24V or 48V Passive PoE
PoE Output: None

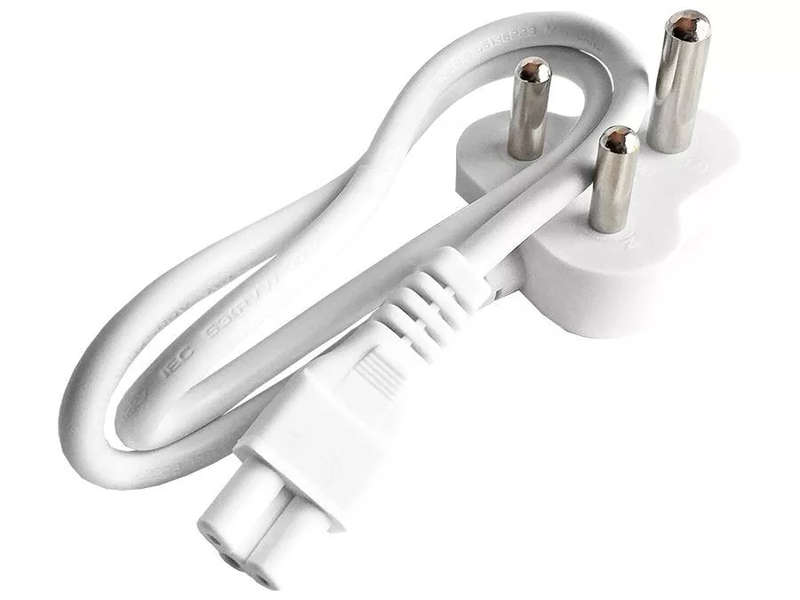

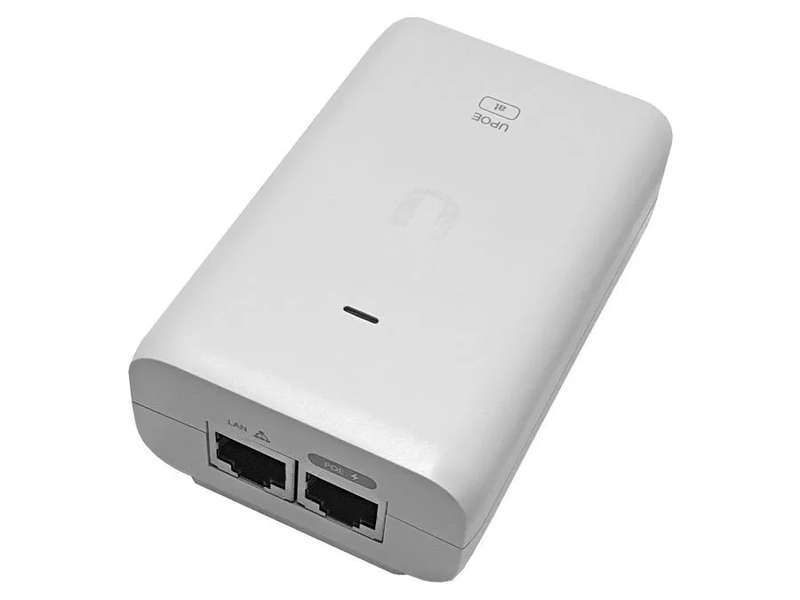

Power Input: 48V 0.5A, Gigabit PoE Injector (Included)
Serial Interface: None
SFP Ports: None
SIM Slots: None
Supported Voltage Range: 4454V or 2227V Passive PoE
USB Ports: None

Dimensions: Ø152.1 x 55.8 mm
Weight: 347g
