Ubiquiti UISP 60GHz/5GHz Wave Professional Radio | WAVE-PRO

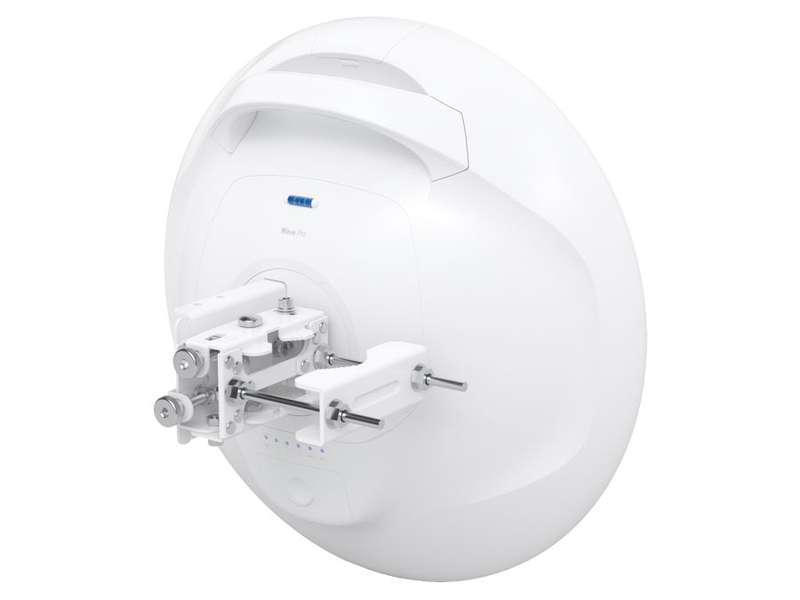

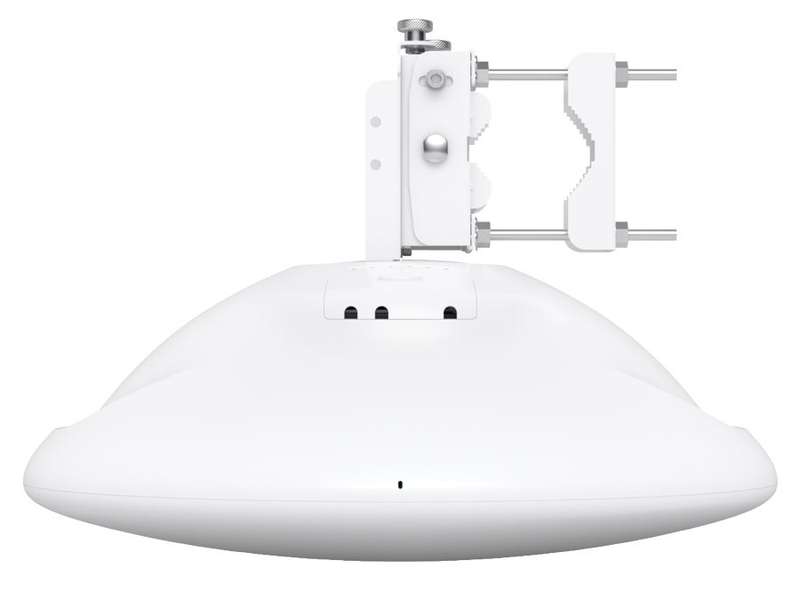

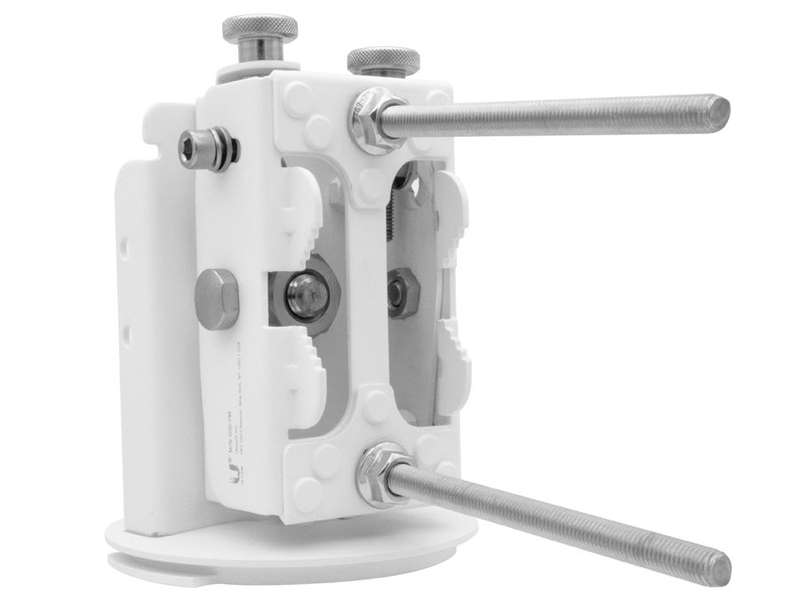

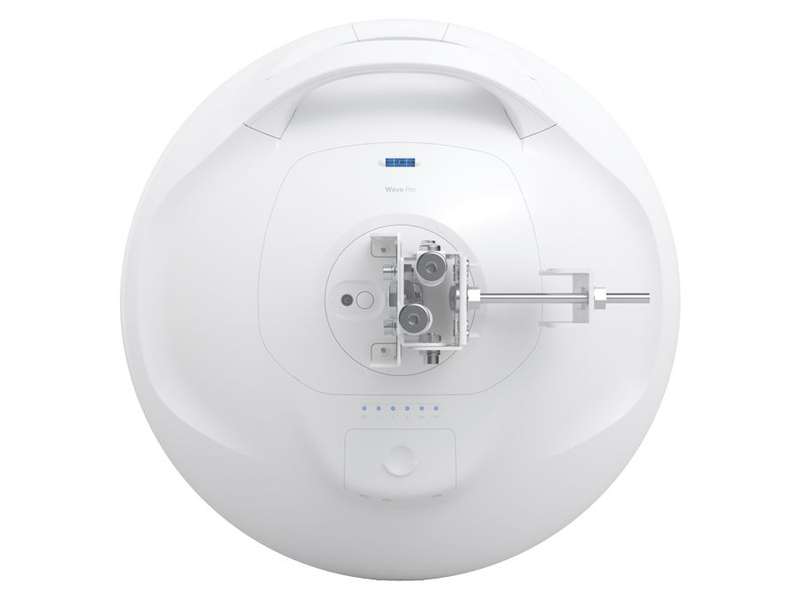

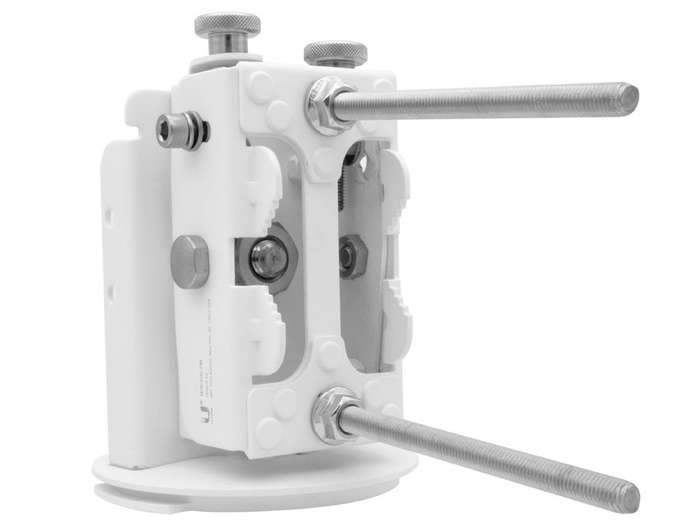

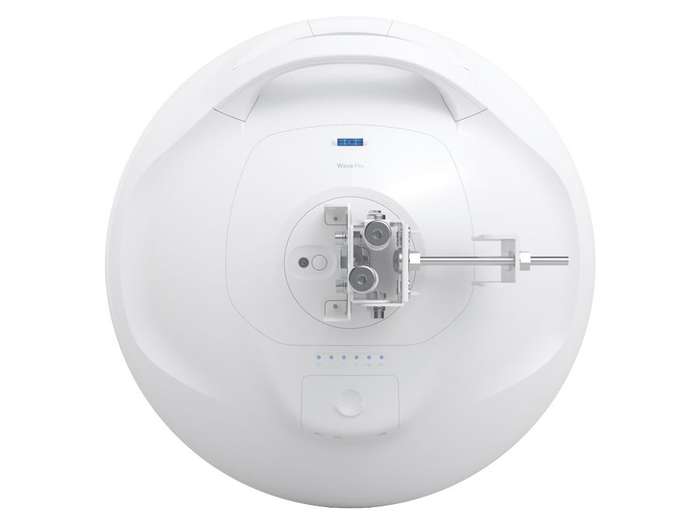

Ubiquiti's WAVE-PRO is a high-capacity 60GHz radio system with 5GHz backup radio, an integrated high-gain antenna, 2x 2.5Gbps Ethernet Ports, 1x 10Gbps SFP+ as well as integrated GPS and precision mount bracket. It features Wave technology with true duplex gigabit performance PtP links up to 15 km. In PtMP mode, it can be used as a CPE and paired with the WAVE-AP (up to 8km) or WAVE-APM (6km) with a total throughput of up to 5.4Gbps.

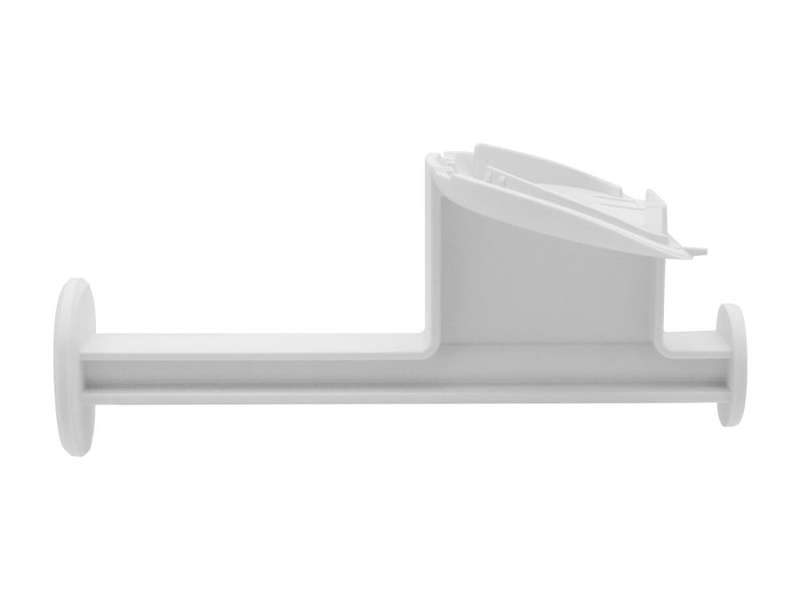

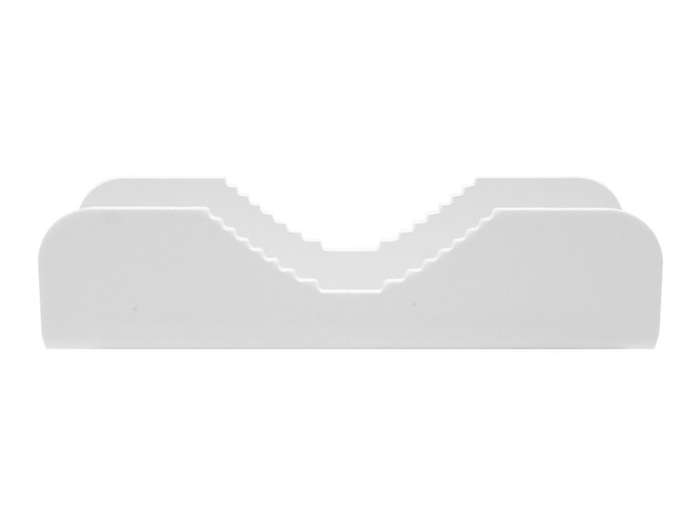

Also included is a built-in Bluetooth management radio for easy setup via the UISP mobile app and network management platform. An alignment tool is included with the unit to assist with accurate and reliable aligning of the antennas.

*Note: For PtP links, firmware v.3.2.0 or later is required.

Antenna Gain: 60GHz: 46dBi ; 5.8GHz: 22dBi
Beamwidth: 60GHz: 1.3° ; 5GHz: 8°
Data Rate: 60GHz: Up to 5.4Gbps ; 5.8GHz: 1200Mbps
Ethernet Ports: 2x 10/100/1000/2500
Hardware Button: Reset
Max. Power Consumption: 26W
Mounting: Pole-Mount
Operating System: airOS
Operating Temperature: -40°C to 60°C
PoE Input: 4454V or 2227V Passive PoE
PoE Output: None

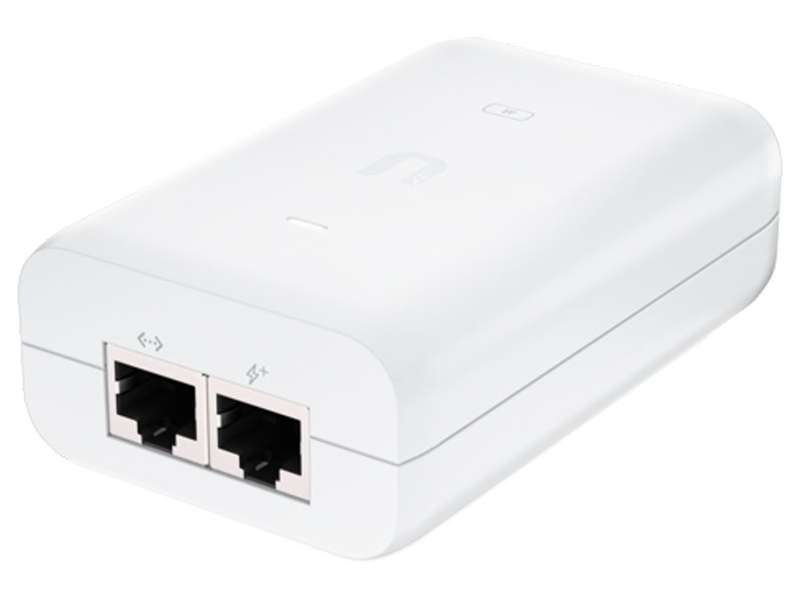

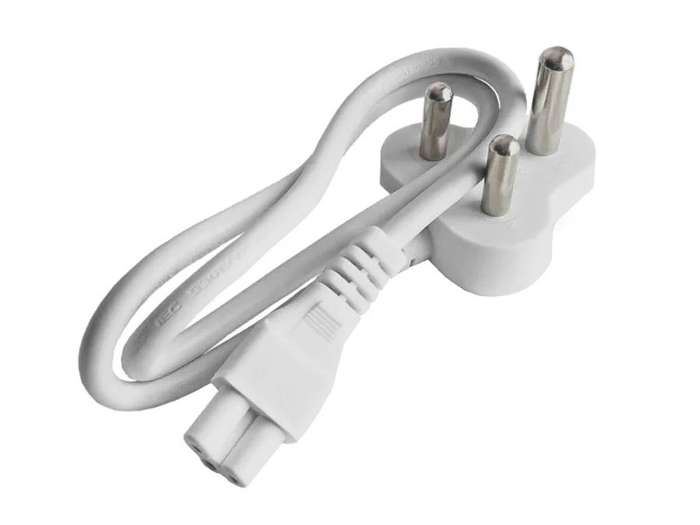

Power Input: 48V 0.65A Gigabit PoE Injector (included)
Serial Interface: None
SIM Slots: None
Supported Voltage Range: 4454V or 2227V
USB Ports: None
Other: 1x SFP+

Dimensions: Ø424.4 x 166.2mm
Weight: 4kg
