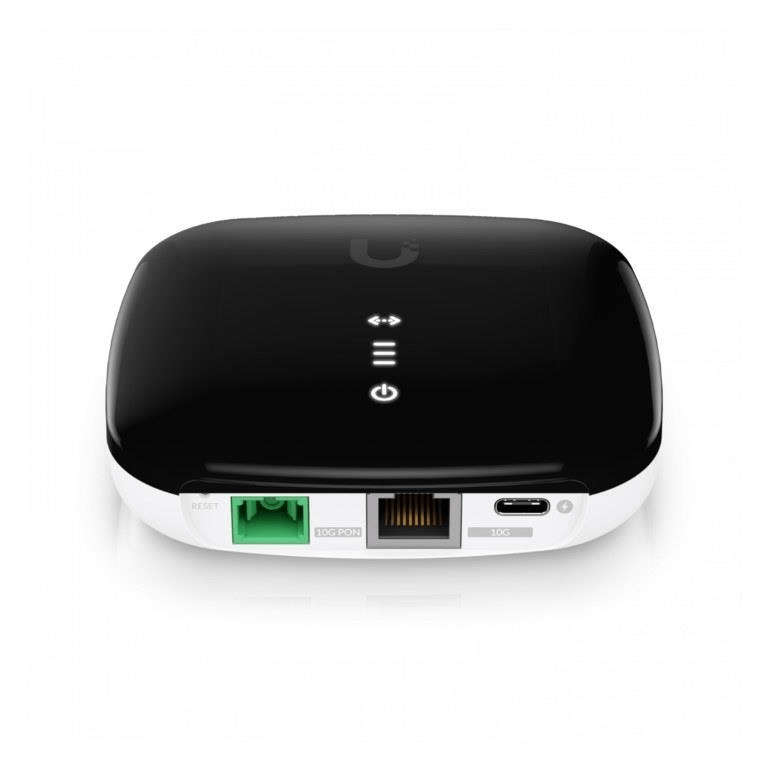

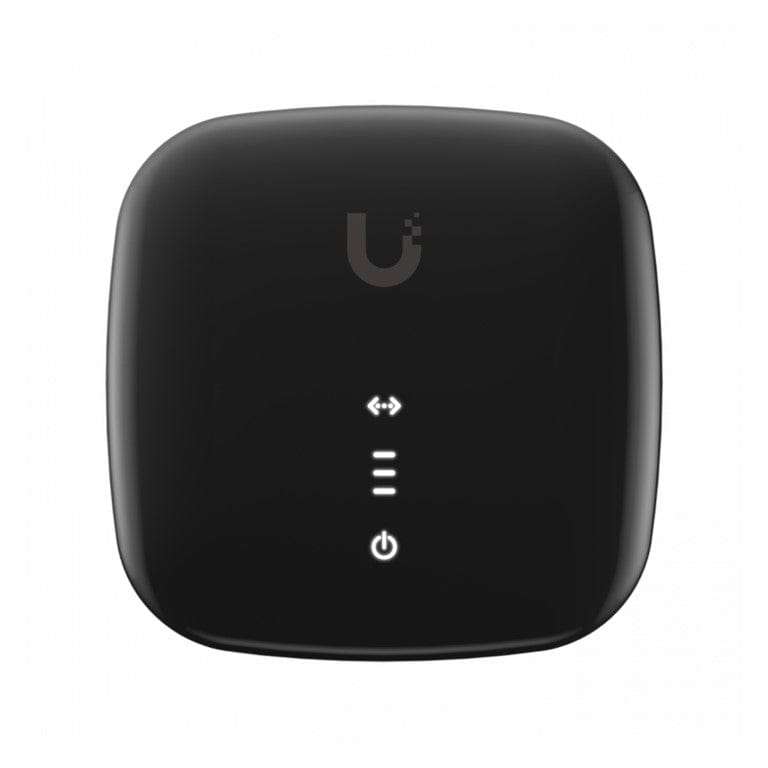

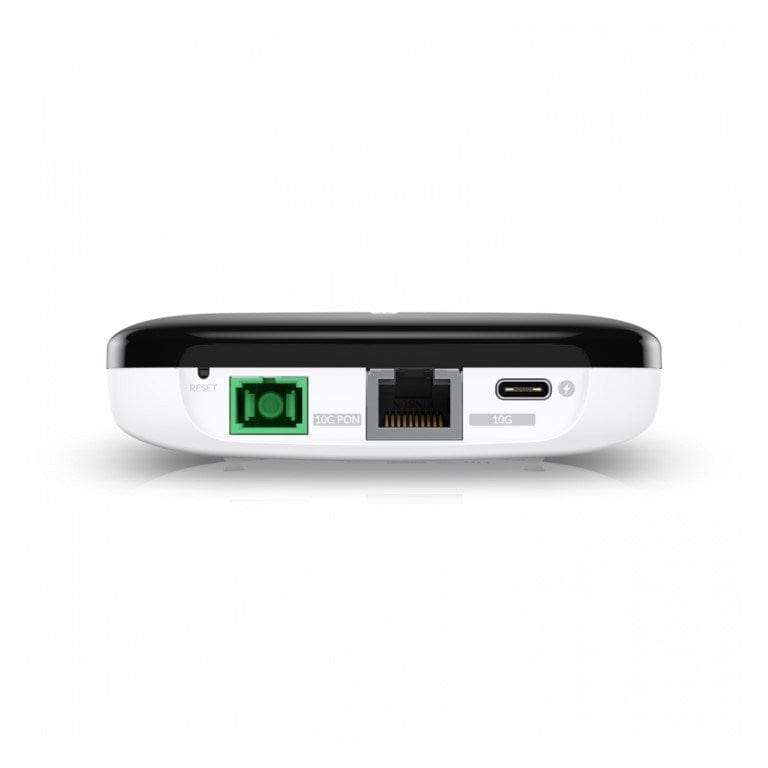

Ubiquiti UISP Fiber XGS Optical Network Unit UISP-FIBER-XGS

An optical network unit that can deliver 10 Gbps uplink/downlink speeds over distances up to 20 km.

Features

• 1x XGS-PON port
• 1x 10GbE RJ45 LAN port
• Note: This device is only compatible with the Fiber XGS OLT. It cannot be used with third-party OLTs.

Technical Specification

Networking interface

• 1x SC/APC, ITU-G.9807 XGS PON WAN port
• 1x 100/1000/2500/5000/10000 Mb Ethernet RJ45 LAN ports

Management interface: Ethernet in-band, PON
Memory: 256 MB DDR
Onboard flash storage: 32 MB NOR
Max. power consumption: 8W
Power method: USB-C 5V DC, 3A
Power supply: 5V DC, 3A power adapter
Supported voltage range: 5V DC power adapter
Total non-blocking line rate

• Downstream: 9.95 Gbit/s
• Upstream: 9.95 Gbit/s

Normal TX range of optical module: 4 to 9dBm
Normal RX range of optical module: -9 to -26dBm
Button: 1x Factory reset
Fiber Operating wavelength

• TX: 1270 nm
• RX: 1577 nm

Line code: Scrambled NRZ
Physical reach: 20 km
