Brand New & Sealed with Manufacturer Warranty

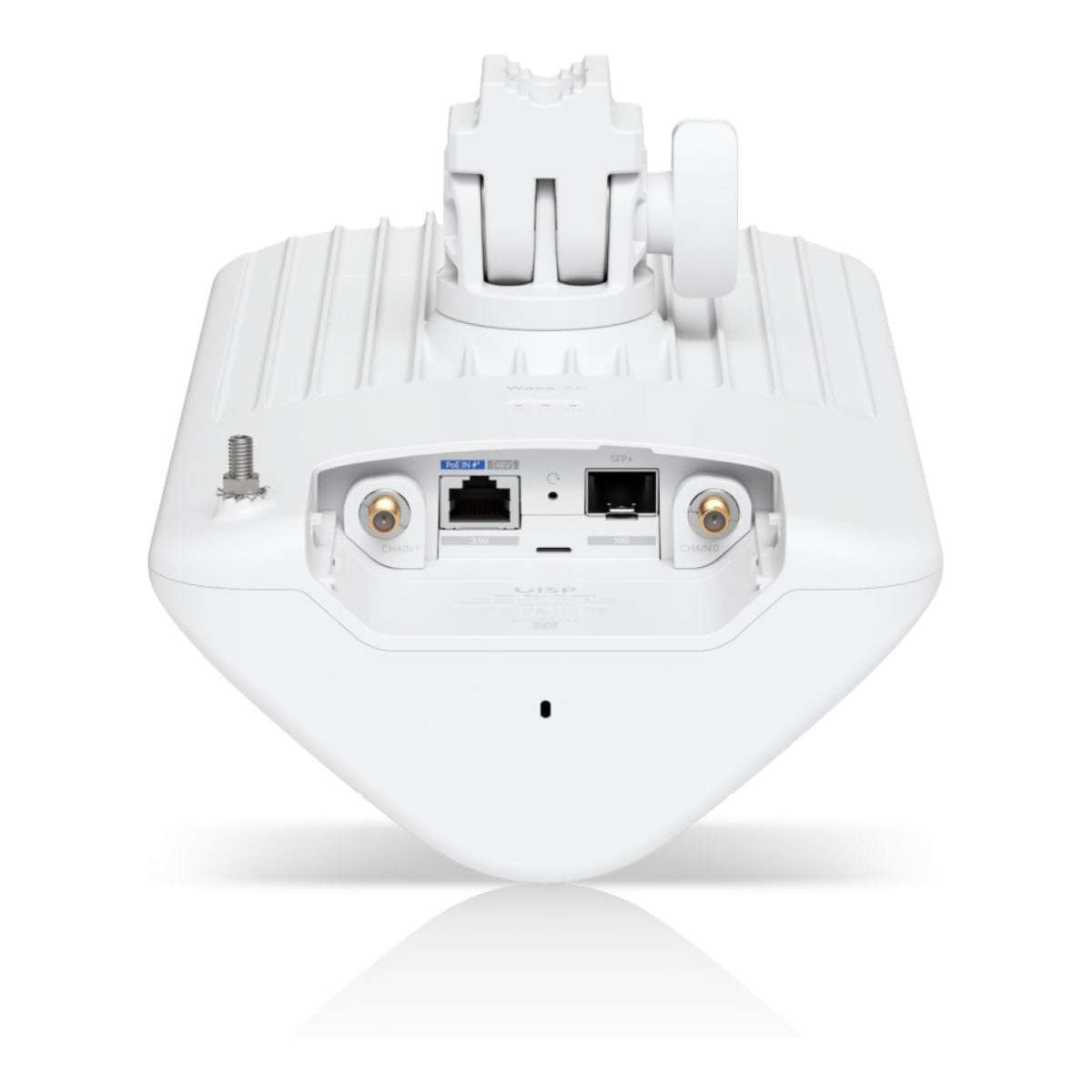

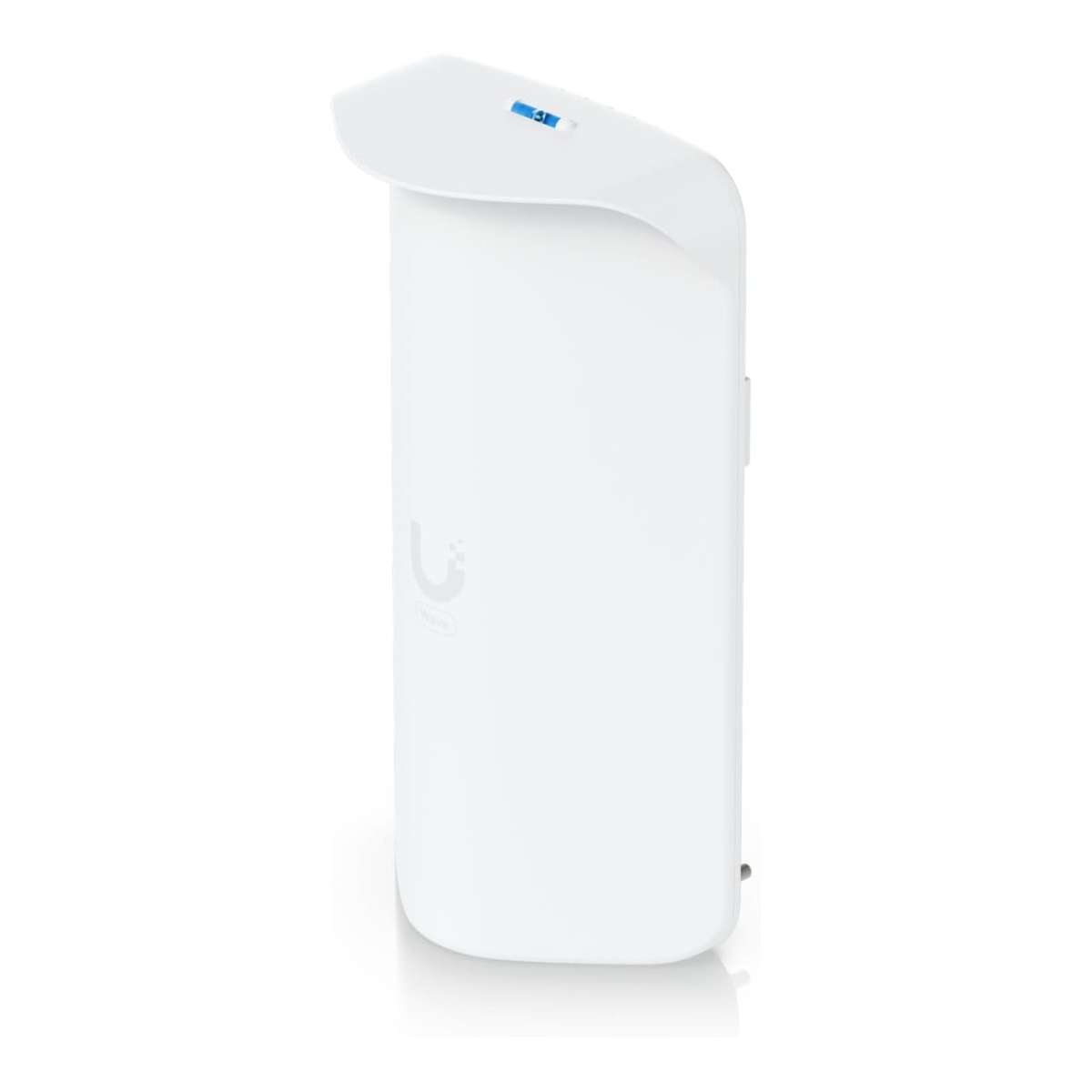

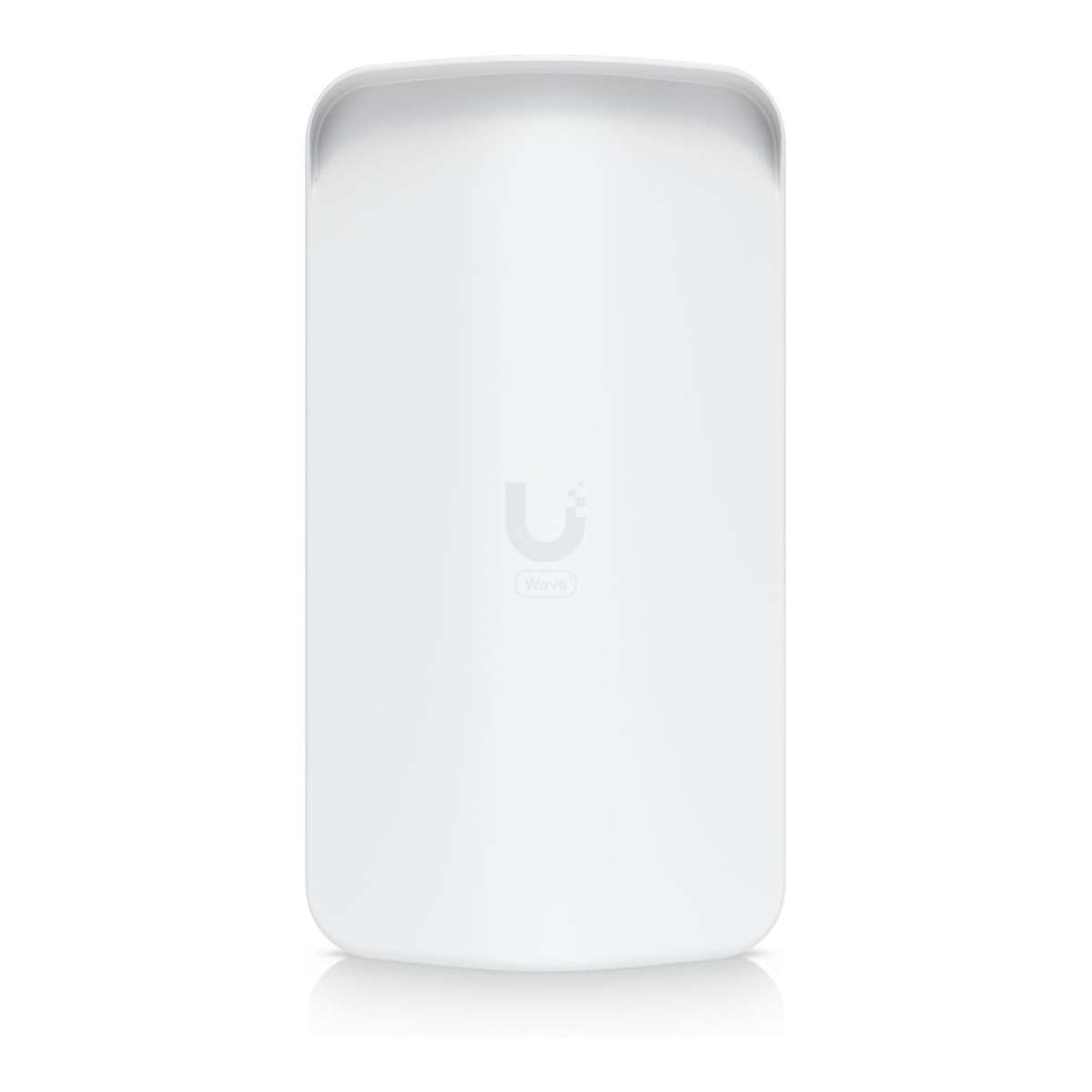

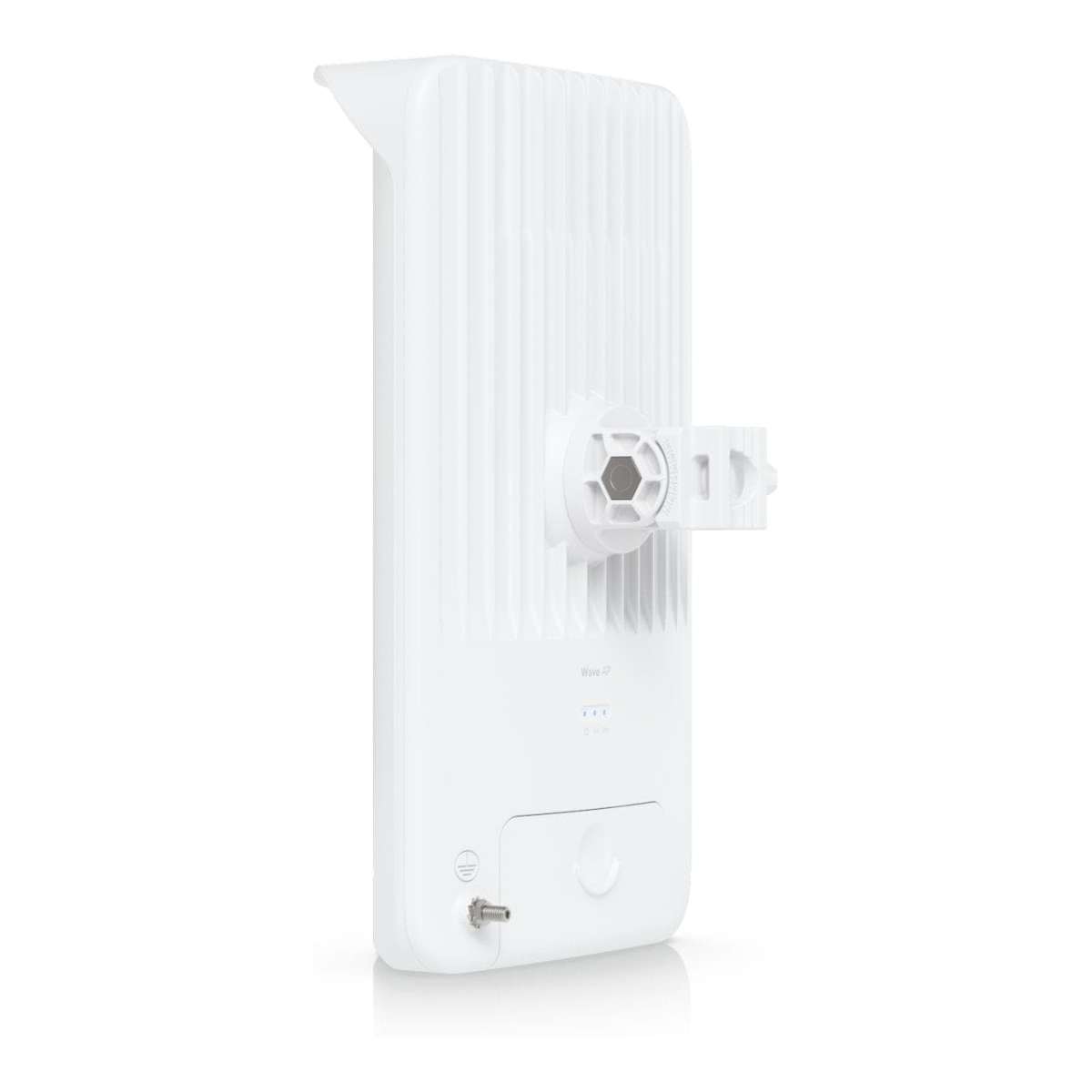

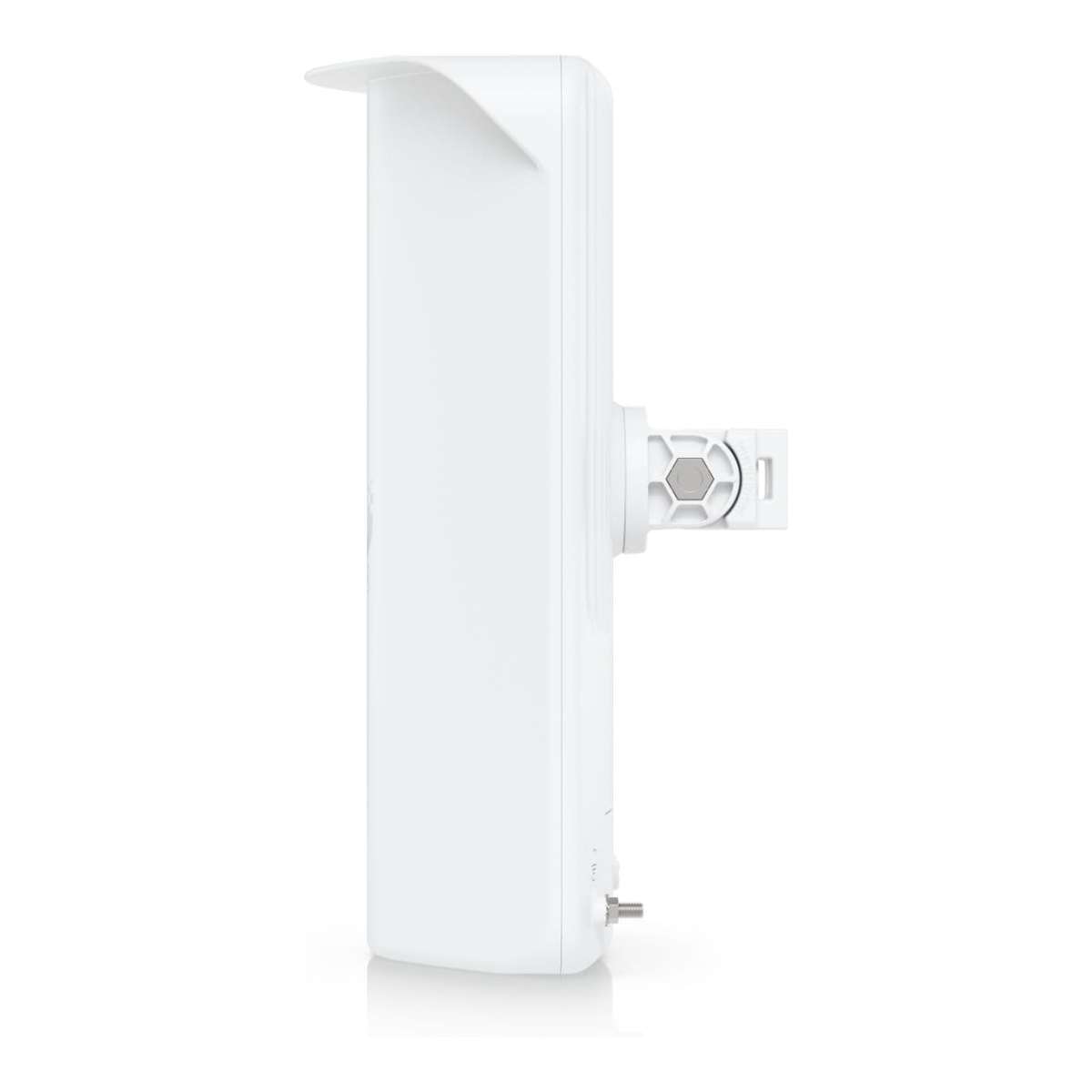

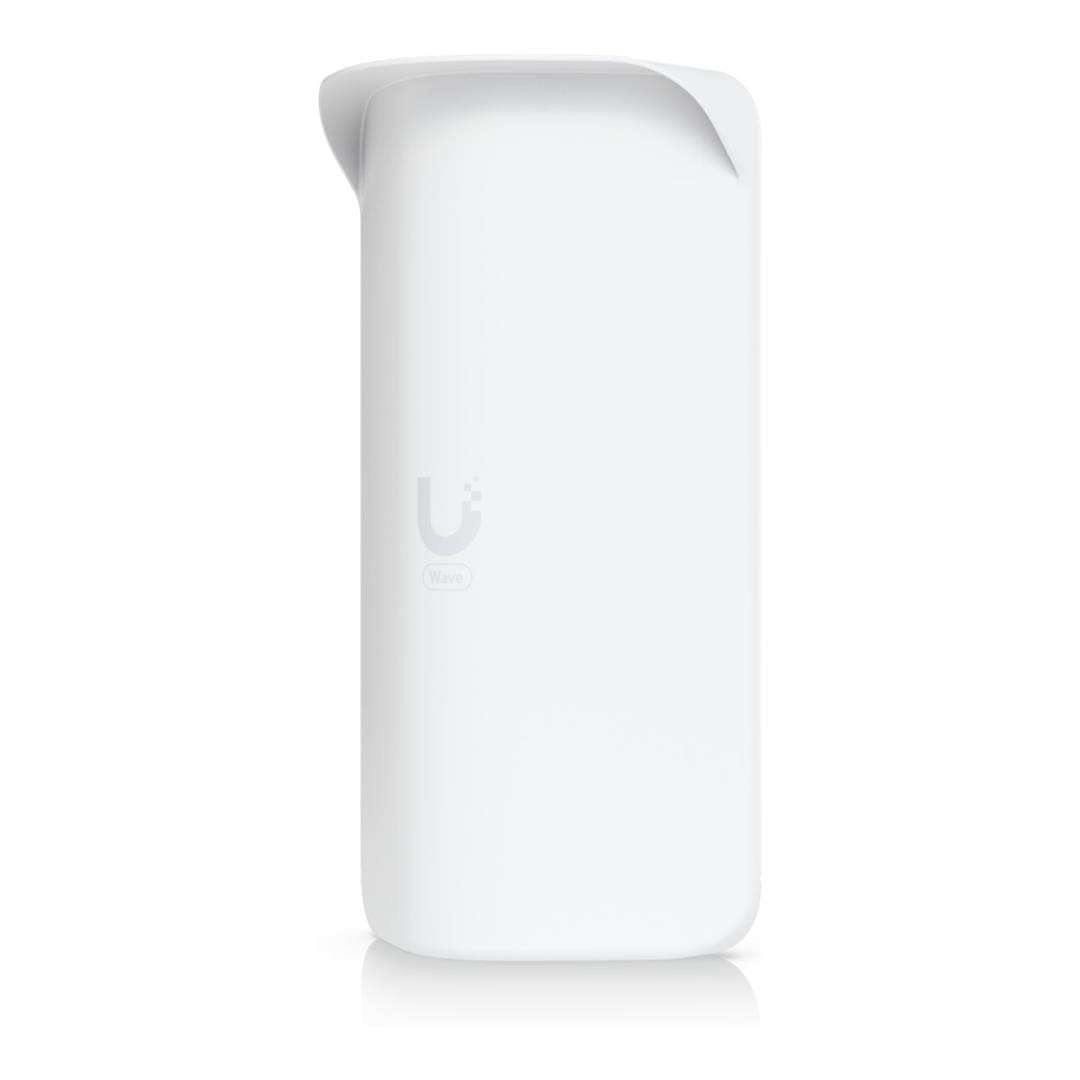

Ubiquiti UISP Gen2 60GHz/5GHz 90-degree PtMP Wave Antenna Wave-AP-Gen2
60 GHz + 5 GHz multipoint base station featuring 90-degree sectoral coverage, 31-client capacity, 2.7 Gbps symmetrical speed, and antenna connectors for 5 GHz range extension.
Technical Specifications:
Mechanical
Dimensions: 158.3 × 286.8 × 100.2 mm (6.2 × 11.3 × 3.9")
Weight: 1.5 kg (3.3 lb)
Enclosure Material: UV stabilized polycarbonate, aluminum alloy
Pole Mount Diameter: 25.4 to 60 mm (1 to 2.4") on pipe outer diameter
Wind Loading: 109.8 N at 200 km/h (25 lbf at 125 mph)
Weatherproofing: IPX6
Hardware
Processor: Quad-core ARM® Cortex®-A53 at 1.4 GHz
Memory: DDR3L 512 MB
Networking Interface: 1 × 2.5 GbE RJ45 port, 1 × 10G SFP+ port
Max Power Consumption: 24 W
Power Method: Passive PoE 4-pairs (1,2+;3,6-) (4,5+;7,8-), Passive PoE 2-pairs (4,5+;7,8-) for 44—54V DC only
Power Supply: 48V DC, 0.65A 2.5 GbE PoE adapter (Included)
Supported Voltage Range: 44—54V DC, 22—27V DC
GPS: Yes
Button: Factory Reset
LEDs: Power, Ethernet, GPS
Ambient Operating Temperature: -40 to 60 °C (-40 to 140 °F)
Ambient Operating Humidity: 5 to 95% non-condensing
Certifications: FCC, IC, CE
Software
Operating Mode: PtMP Access Point
Ubiquiti Specific Features: Wave AI, discovery protocol
Services: UISP, ping watchdog, NTP client, SNMP
Tools: Antenna alignment, discovery utility, ping, trace route, speed test, cable test, site survey
Network: Bridge Mode
Application Requirements: UISP Version 2.4.205 and later
System
Total Throughput: 5.4 Gbps
Supported Clients Count: 31
Max Range: Connecting to a Wave Pro up to 6 km, Wave Long-Range up to 6 km, Wave Nano up to 4 km, Wave Pico up to 0.9 km
Encryption: WPA2-PSK (AES)
RF
Operating Frequency*: 57—71 GHz (Depends on regulatory region)
Channel Bandwidth: 2160, 1080, 540 MHz
Operating Channels: 58320, 59400, 60480, 61560, 62640, 63720, 64800, 65880, 66960, 68040, 69120, 70200, 70560 MHz
Modulation: 16QAM, QPSK
Antenna Gain: 20 dBi
Polarization: Vertically linear
Beamwidth: Azimuth 3 dB 90°, Elevation 3 dB 7°
Electrical Downtilt: 0°
Back-Up RF
WiFi Standard: 802.11ax (WiFi 6)
Operating Frequency*: US/CA 5150—5250 MHz, 5250—5350 MHz, 5470—5725 MHz, 5725—5850 MHz; Worldwide 5150—5875 MHz
Channel Bandwidth: 20, 40, 80 MHz
Modulation: BPSK (1/2), QPSK (1/2), QPSK (3/4), 16QAM (1/2), 16QAM (3/4), 64QAM (2/3), 64QAM (3/4), 64QAM (5/6), 256QAM (3/4), 256QAM (5/6), 1024QAM (3/4), 1024QAM (5/6)
Antenna Gain: 13 dBi
Cross-Pol Isolation: 18 dB
Polarization: Dual-linear
Beamwidth: Azimuth 6 dB 95°, Elevation 6 dB 25°
Electrical Downtilt: 0°
LEDs
Power: Flashing white bootup in progress, White not connected to UISP application, Blue connected to UISP application, Flashing blue locate in progress, Blue/white firmware upgrade in progress
Ethernet: Flashing white Ethernet traffic detected, Flashing blue SFP+ traffic detected
GPS: Blue receiving at least 4 GPS satellite signals
