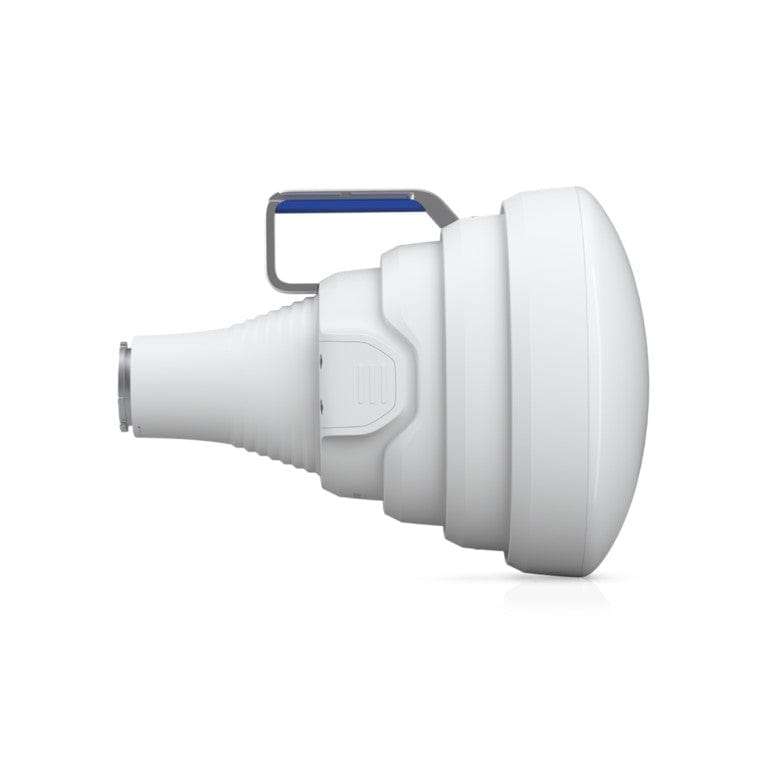

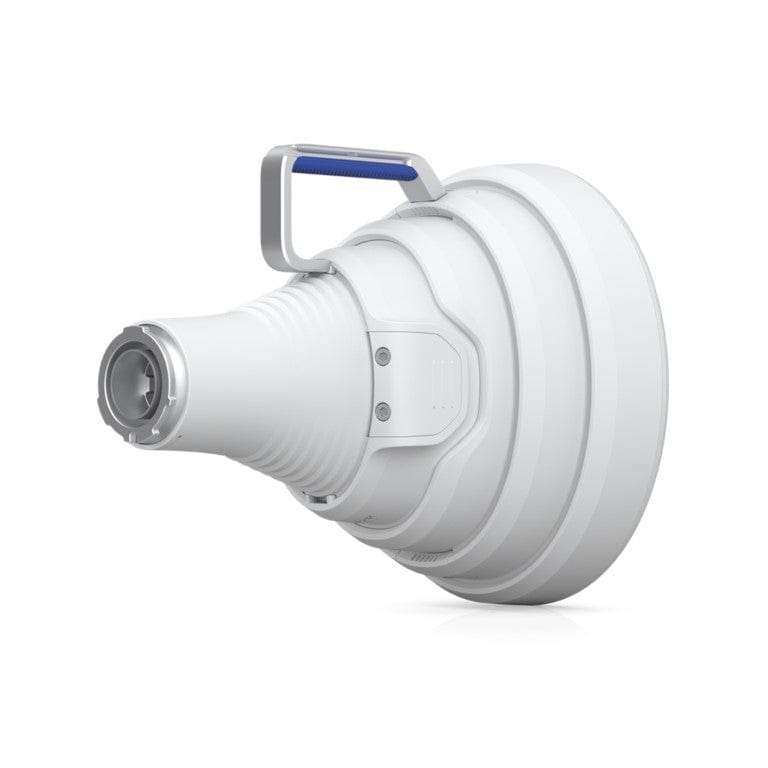

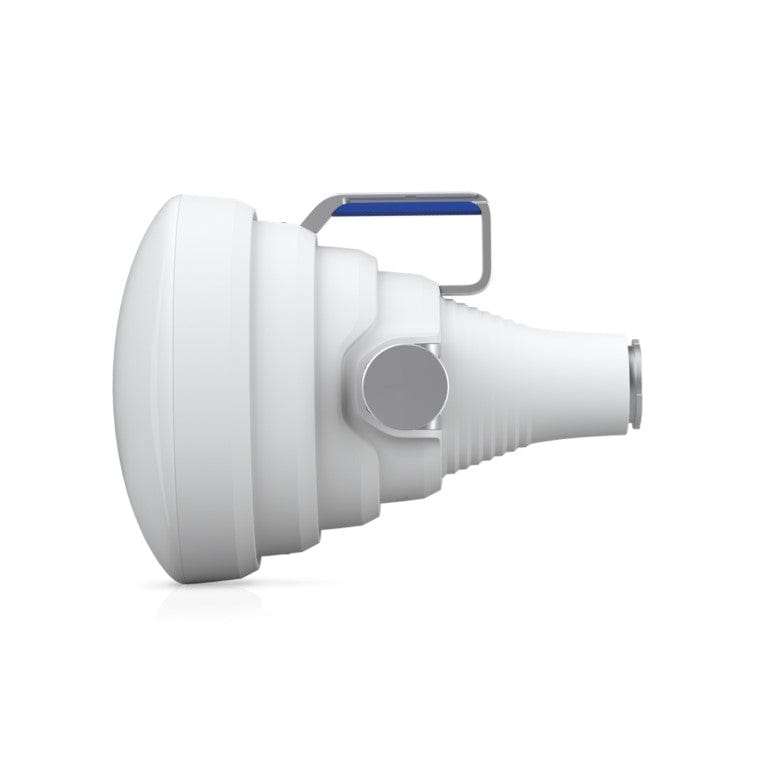

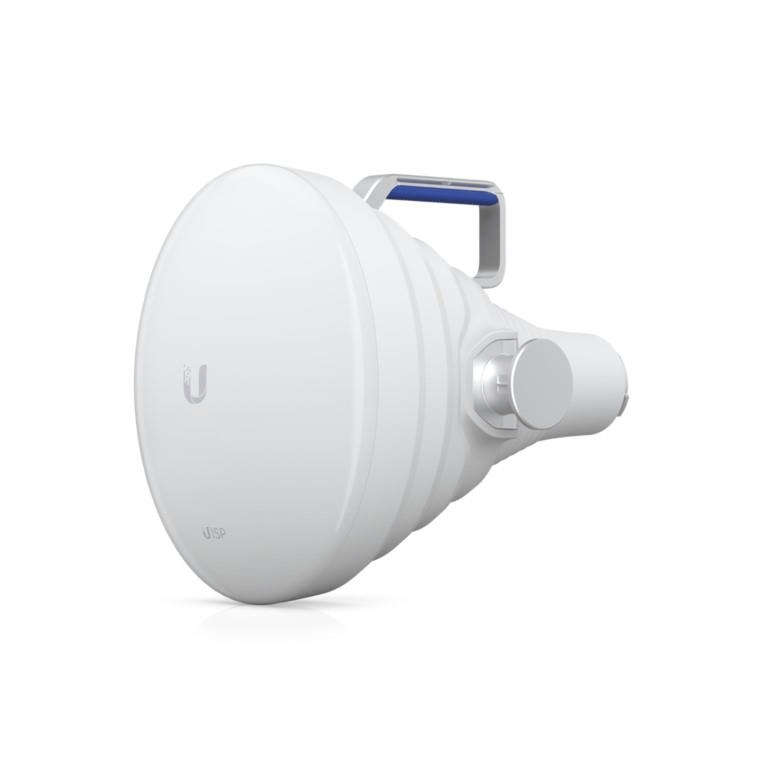

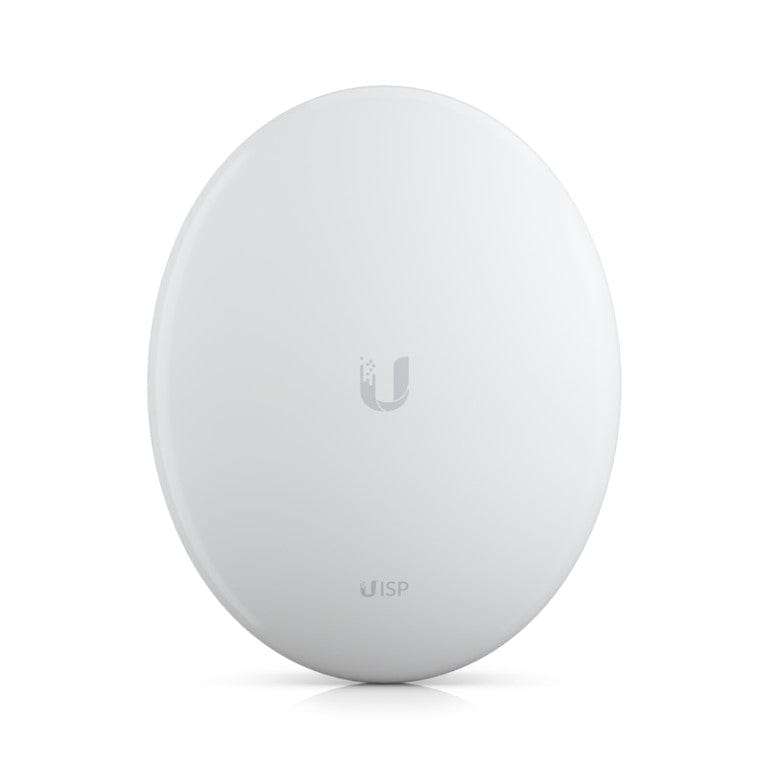

Ubiquiti UISP Point-to-Multipoint Horn Antenna UISP-HORN

Ubiquiti's UISP-HORN is a high isolation 30° 19dBi Horn Antenna covering a wide frequency range with low back lobes, ideal for co-location deployments. The included WaveGuide adapter makes provision for the AF-5XHD, R5AC-PRISMG2 or LTU-ROCKET which are secured with latches on each side for a secure, snap-in radio connection.

*Note: Radio not Included

Features

• High-isolation 30° horn antenna that covers a wide operating frequency range (5.15 - 6.875 GHz)

• Low backlobes for device co-location

• 15+ km PtMP link range

• Die-cast, UV-stabilized polycarbonate enclosure for enhanced durability and weatherproofing

• Pole-mountable antenna with a metal carrying handle

• Two side latches for secure, snap-in radio connection

Technical Specification

Antenna Gain: 19.5dBi

Beam-width: 30°

Connector: WaveGuide Adapter (Included)

Frequency Range: 5.15 - 6.875GHz

Polarization: Vertical & Horizontal

Wind Loading: 90N - 200km/h

Dimensions: 282 x 224 x 380 mm

Weight: 3.98kg
