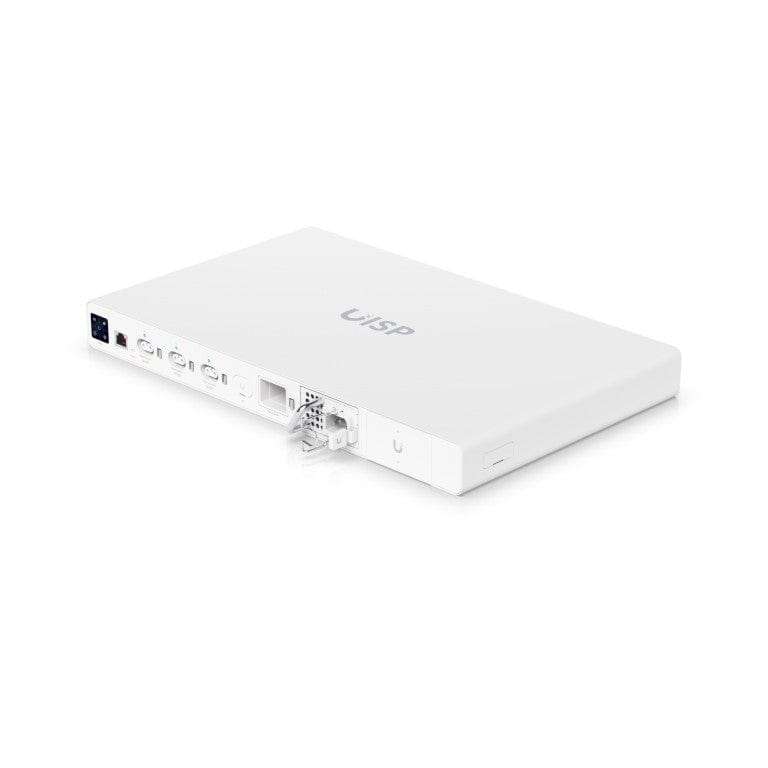

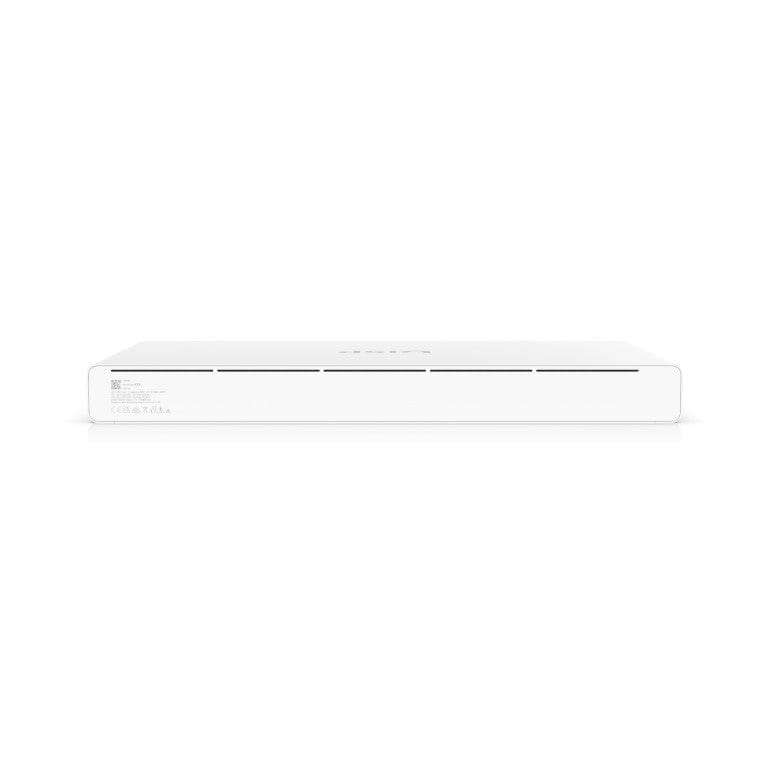

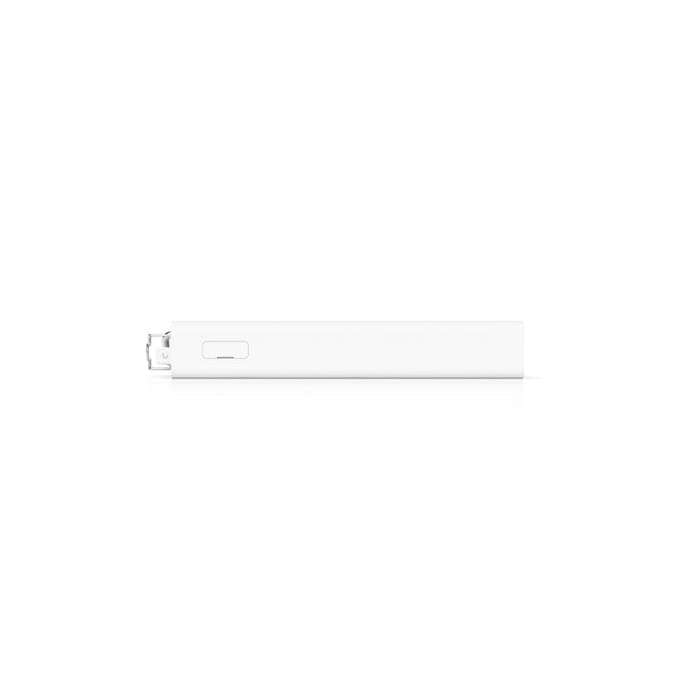

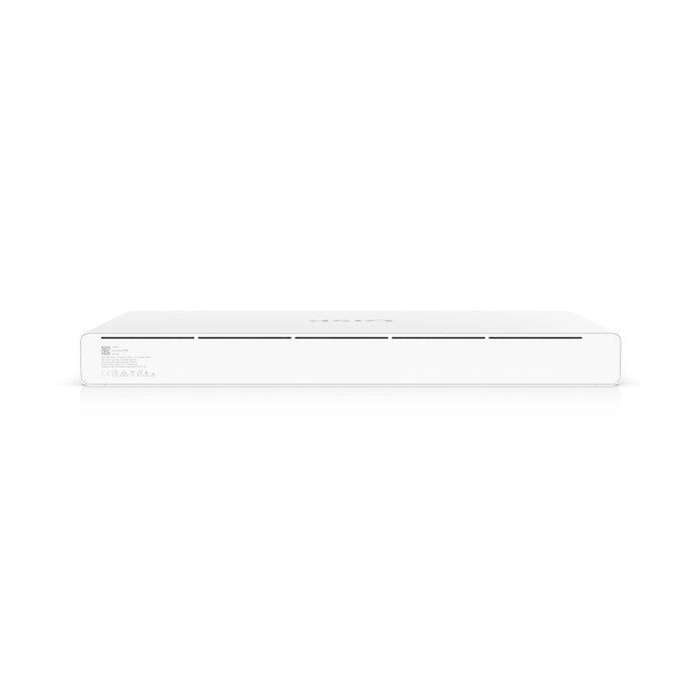

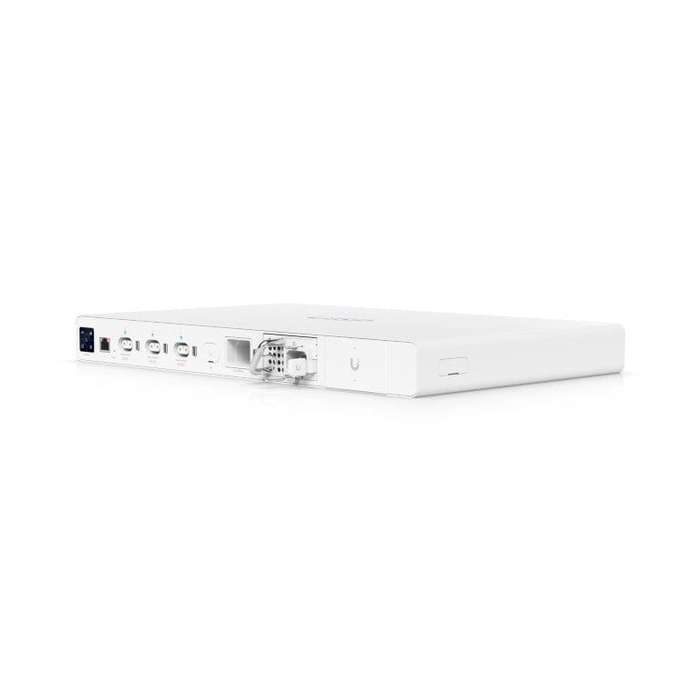

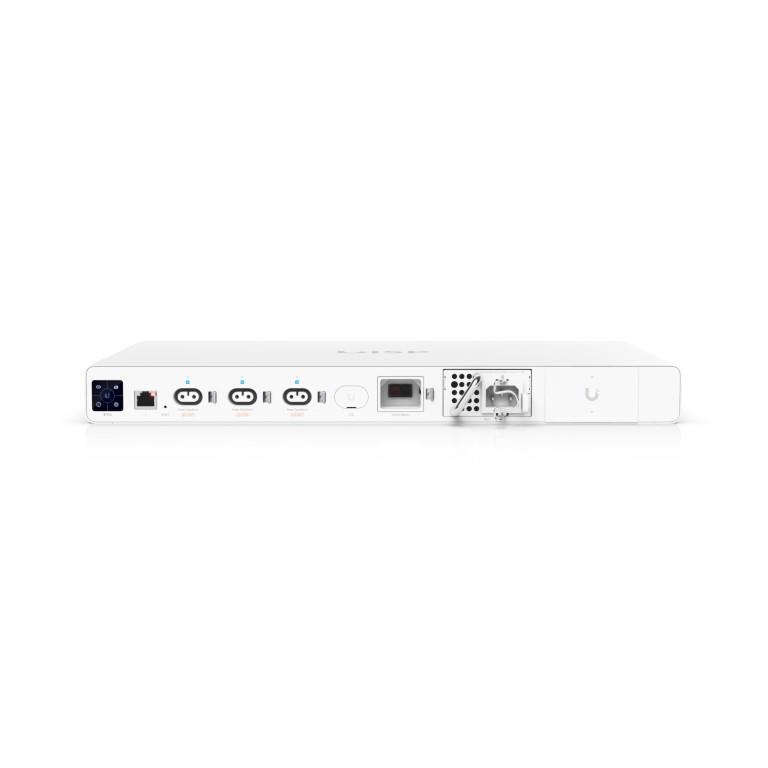

Ubiquiti UISP Power Pro Uninterruptible Power Management System UISP-P-PRO

The UISP Power Professional has an uninterruptible power management system designed to support high capacity WISP deployment sites.

Features

• 3x Power TransPort outputs
• Delivers up to 480W* (27V DC) to supported UISP devices
• 2x PSU bays with 1x 250W AC/DC Power Supply included
• 1x DC battery port for an external 24V lead-acid battery (not included)
• Supports SMS-over-LTE (Cat M1) notification**

Technical Specification

Networking interface: 1x 10/100 Mb Ethernet RJ45 LAN port
Management interface: Ethernet In-Band ; Bluetooth
Power TransPort interface

• 3x Power TransPort ports [up to 250W (27V DC) output each]
• Total output: 240W (27V DC) with 1 PSU / 480W (27V DC) with 2 PSUs

Primary power

• 2x Universal AC inputs (100—240V AC, 3.5A Max., 50/60Hz)
• 1x PSU included (Additional modules sold separately.)

Backup power

• 1x 24V DC, 20.83A lead-acid battery input* (Battery not included.)
• *Connect to a lead-acid battery only. Using another battery type could be hazardous.

Supported voltage range: 100 to 240V AC
Max. power consumption: 3W (Excludes Power TransPort output and battery charger.)
ESD/EMP protection: Air: ±15 kV / Contact: ± 8 kV
LCM: display 1.3" touchscreen

LTE
Antenna: External (included)
SIM: Nano-SIM
Category: Cat M1
Bands: FDD-LTE Bands 1, 3, 8, 20, 28
Notification type: SMS (Requires a nano-SIM card from a Cat M1 SMS provider.)
Input rating: 5V DC, 0.5A

Compatible Supported Models

• UISP Console
• UISP Router (installed with UISP Box)
• UISP Router Pro
• UISP Switch (installed with UISP Box)
• UISP Switch Pro
