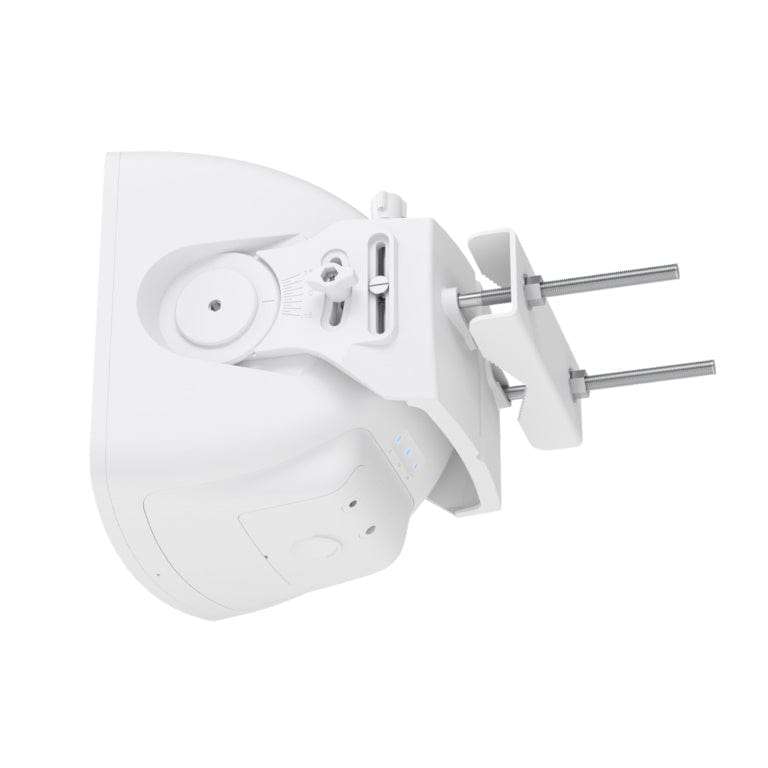

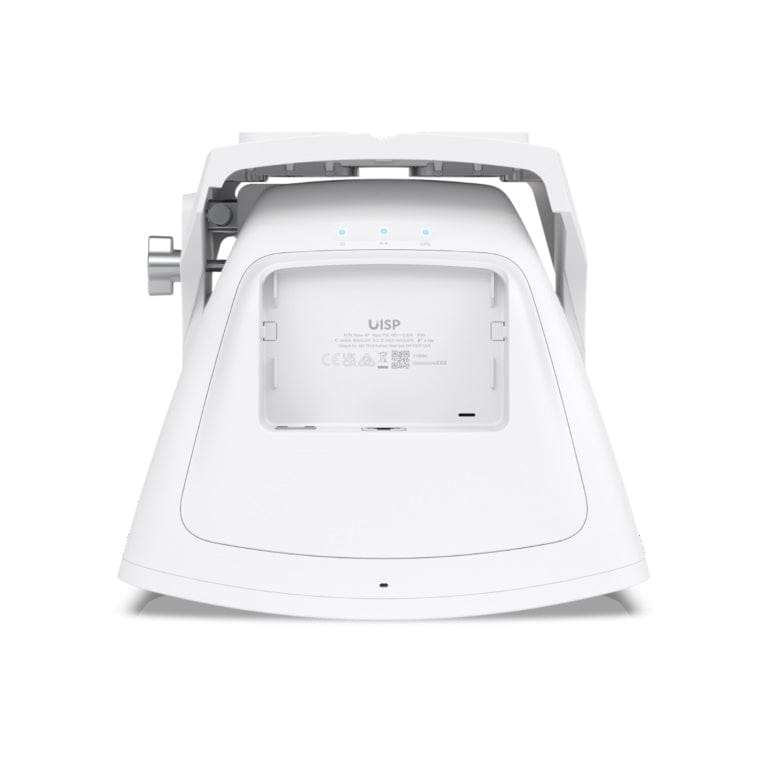

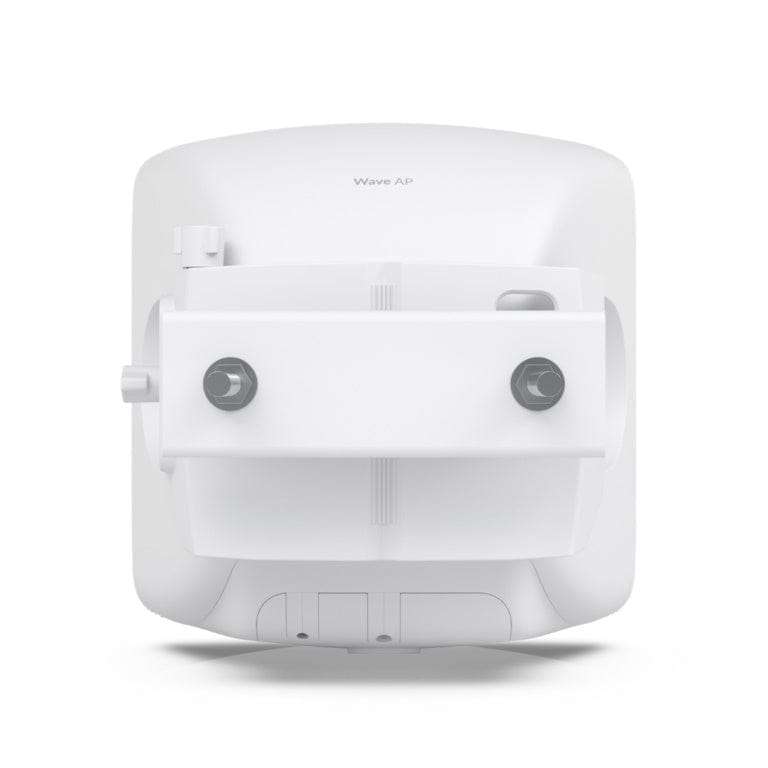

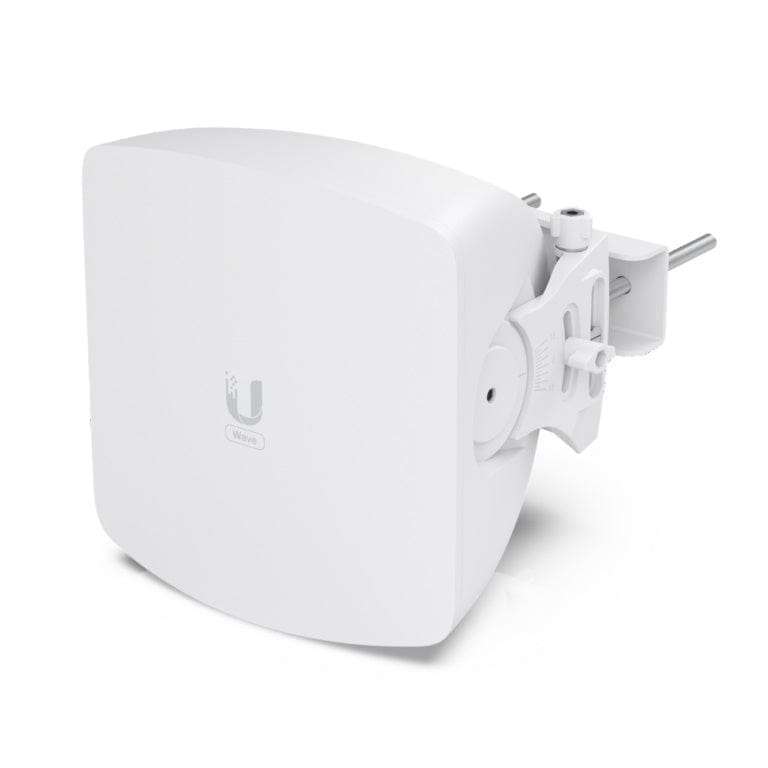

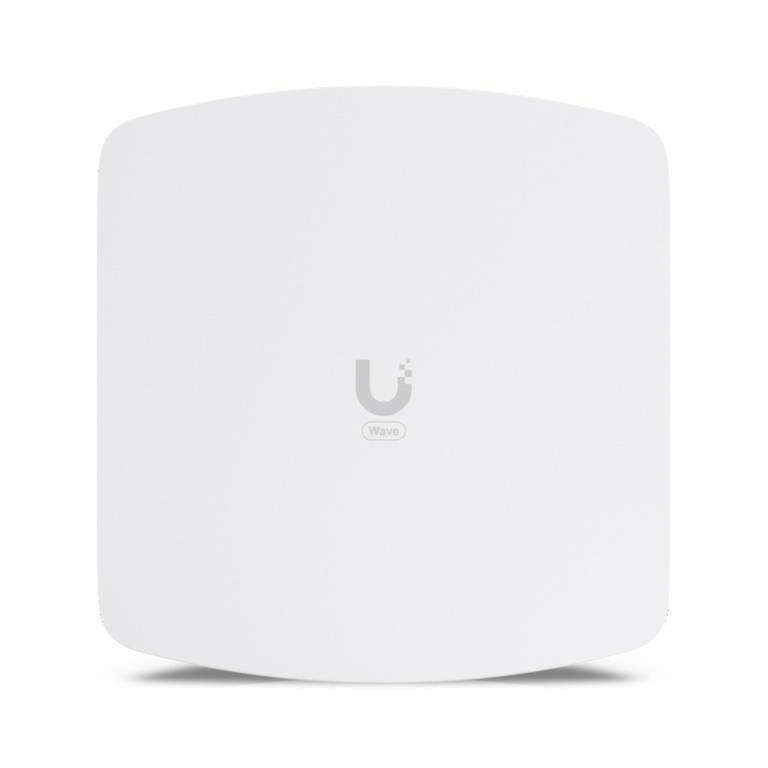

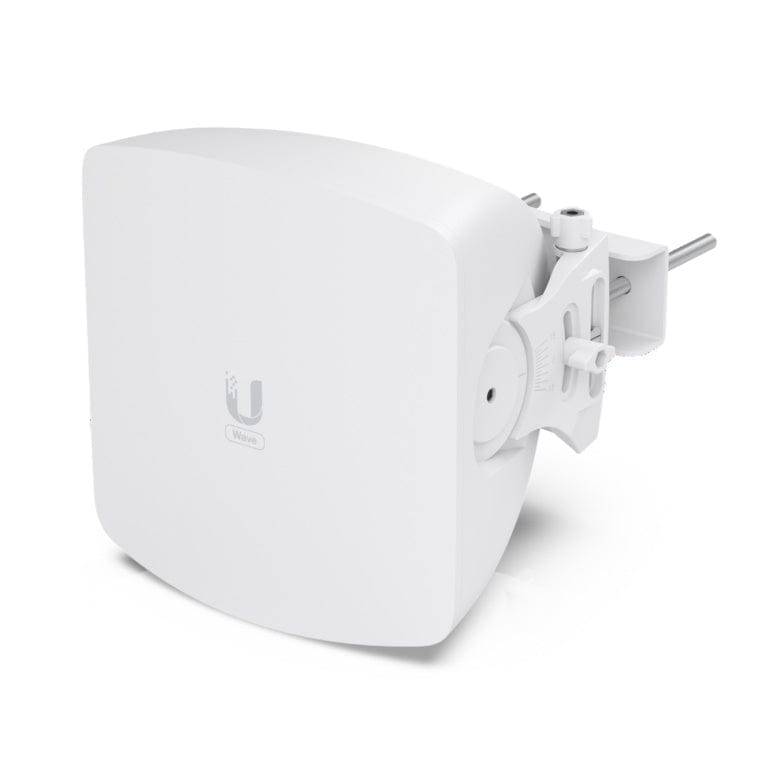

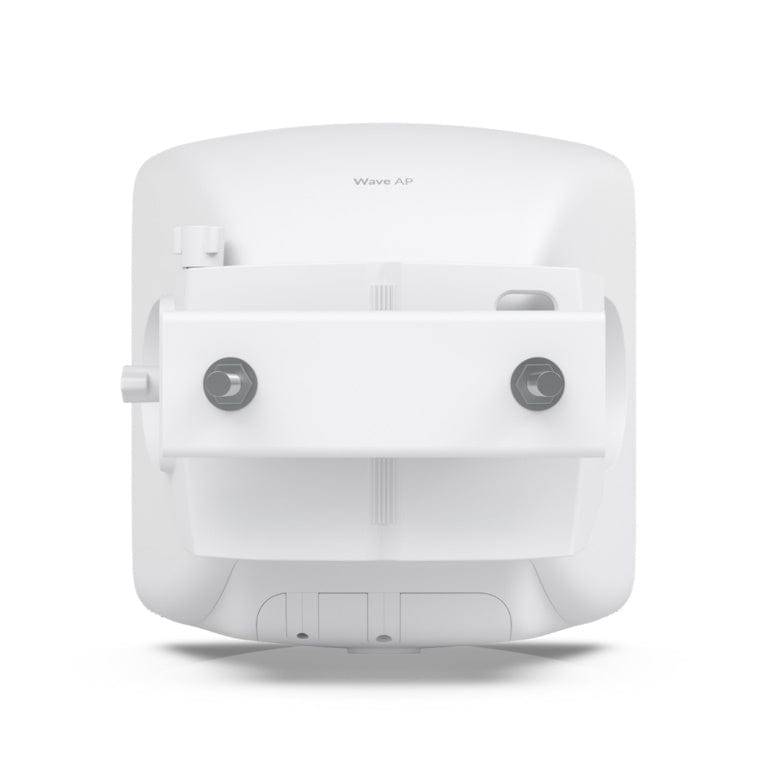

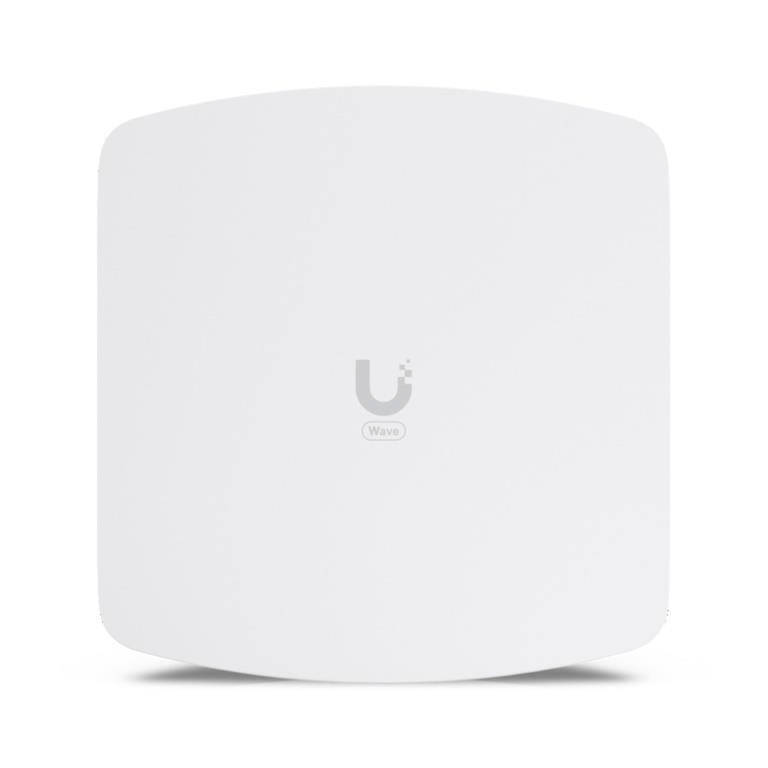

Ubiquiti UISP Wave 60GHz Point-to-MultiPoint Access Point WAVE-AP
Ubiquiti's WAVE-AP is a UISP 60GHz Point-to-MultiPoint Access Point featuring 5GHz failover, 1x 10Gbps SFP+ Port, 1x 2.5Gbps Ethernet Port and an integrated GPS antenna. Utilizing 60GHz point-to-multipoint technology, it can connect up to 15 stations with a total throughput of 5.4Gbps at distances of up to 1.3km when paired with the WAVE-PICO, 5km when paired with the WAVE-NANO, and 8km when paired with the WAVE-LR.
Technical Specification
Processor: Quad-core ARM Cortex-A53 at 1.4 GHz
Memory: DDR3L 512 MB
Networking interface
Max. power consumption: 24W
Power method
-
Passive PoE 4-pairs (1, 2+; 3, 6-) (4, 5+; 7, 8-)
-
Passive PoE 2-pairs (4, 5+; 7, 8-), for 44—54V DC only
Power supply: 48V DC, 0.65A 2.5GbE PoE adapter (Included)
Supported voltage range: 44—54V DC / 22—27V DC
GPS: Yes
Operating mode: PtMP access point
Ubiquiti specific features: Wave technology
Network: Bridge mode
Total throughput: 5.4 Gbps (2.7 Gbps duplex)
Max. range
-
Connecting to a Wave Pro: up to 8 km
-
Connecting to a Wave Long-Range: up to 8 km
-
Connecting to a Wave Nano: up to 5 km
-
Connecting to a Wave Pico: up to 1.3 km
RF Operating frequency*: 57 - 71 GHz (*Depends on regulatory region.)
Modulation: 16QAM, QPSK
Antenna gain: 24 dBi
Polarization: Vertically linear
Beamwidth
-
Azimuth: 3 dB 30°
-
Elevation: 3 dB 3°
Electrical downtilt: 0°
Back-Up RF
WiFi standard: 802.11ax (WiFi 6)
Antenna gain: 12 dBi
Cross-pol isolation: 10 dB
Polarization: Dual-linear
Beamwidth
-
Azimuth: 3 dB 35°
-
Elevation: 3 dB 60°
Electric downtilt: 0°
Enclosure material: Aluminum alloy, UV stabilized polycarbonate
Pole mount diameter: 25 to 76 mm (1 to 3") on pipe outer diameter
Wind loading: 98 N at 200 km/h
Weatherproofing: IPX6
Weight: 2.3 kg
