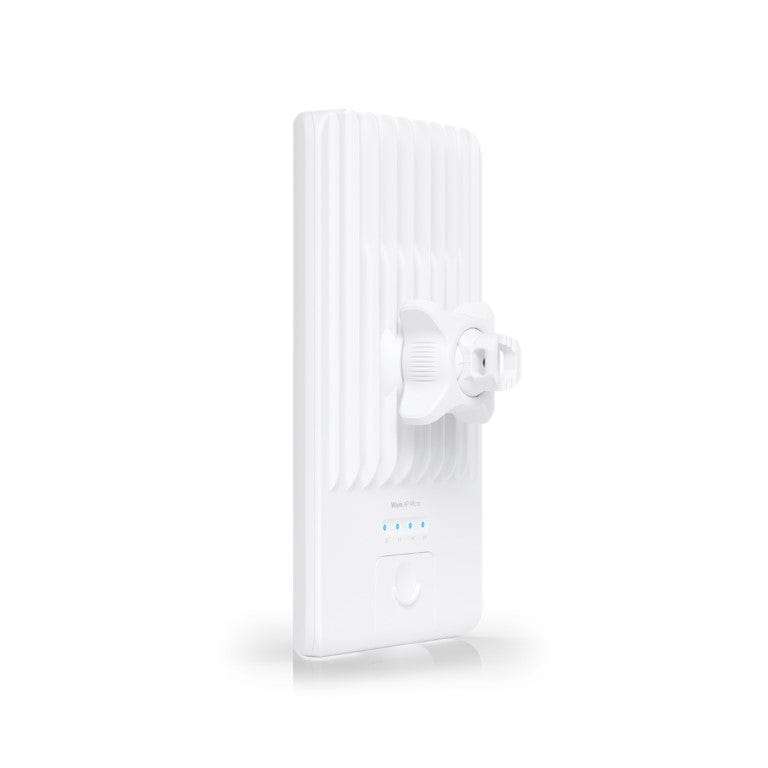

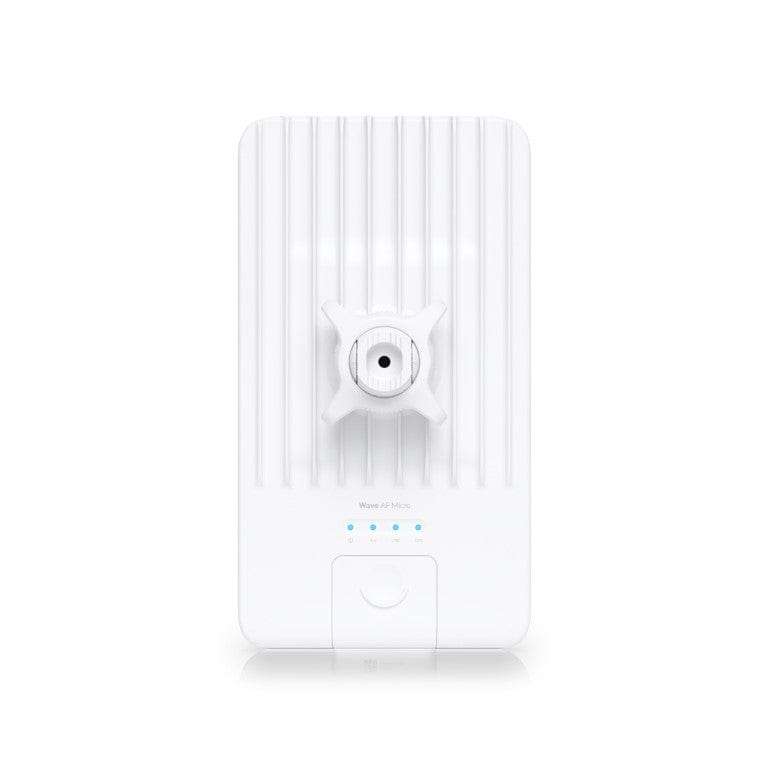

Ubiquiti UISP Wave Micro 60GHz Wi-Fi Access Point WAVE-AP-MICRO

The Wave Access Point Micro is a 60GHz Point-to-Multipoint (PtMP) ideal for ISPs. The Wave AP Micro delivers 5 Gbps total trhoughput (2.5 Gbps duplex) and can connect up to 15 stations. It is equipped with a built-in 5 GHz backup (Wi-Fi 6 - 802.11ax) radio to ensure uninterrupted connectivity and a Bluetooth radio to simplify setup via the UISP Mobile app.

Technical Specification

Processor: Quad-core ARM Cortex-A53 at 1.4 GHz
Memory: DDR3L 512 MB
Networking interface: 1x 1/2.5 GbE RJ45 port
Max. power consumption: 24W
Power method Passive PoE: 4-pairs (1, 2+; 3, 6-) (4, 5+; 7, 8-)
Power method Passive PoE: 2-pairs (4, 5+; 7, 8-), for 44—54V DC only
Power supply: 48V DC, 0.65A, 2.5 GbE PoE adapter (Included)
Supported voltage range: 44—54V DC ; 22—27V DC
GPS: Yes
Button: Factory reset
LEDs: Power, Ethernet, GPS, Link

Software
Operating mode: PtMP access point
Ubiquiti specific features: Wave AI, discovery protocol
Services: UISP, ping watchdog, NTP client, SNMP
Tools: Antenna alignment, discovery utility, ping, trace route, speed test, cable test*, site survey* (*FW version 3.3.0 and later.)
Network: Bridge mode
Application requirements

• UISP web: Version 2.2.11 and later
• UISP mobile iOS: Version 2.25.1 and later
• UISP mobile Android: Version 2.27.5 and later

System
Total throughput: 5 Gbps (2.5 Gbps duplex)
Supported clients count: 24* (*FW version 3.3.0 and later.)
Max. range

• Connecting to a Wave Pro: up to 6 km
• Connecting to a Wave Long-Range: up to 6 km
• Connecting to a Wave Nano: up to 4 km
• Connecting to a Wave Pico: up to 0.9 km

Encryption: WPA2-PSK (AES)

RF
Operating frequency: 57—71 GHz (*Depends on regulatory region.)
Channel bandwidth: 2160, 1080, 540* MHz (*FW version 3.3.0 and later.)
Operating channels: 58320, 59400, 60480, 61560, 62640, 63720, 64800, 65880, 66960, 68040, 69120, 70200 MHz (*Depends on regulatory region.)
Modulation: 16QAM, QPSK
Antenna gain: 20 dBi
Polarization: Vertically linear
Beamwidth Azimuth: 3 dB 90°
Beamwidth Elevation: 3 dB 7°
Electrical downtilt: 0°

Back-Up RF
WiFi standard: 802.11ax (WiFi 6)
Operating frequency Worldwide: 5150 - 5875 MHz (*Depends on regulatory region.)
Channel bandwidth: 20, 40, 80 MHz
Modulation BPSK (12), QPSK (12), QPSK (34), 16QAM (12), 16QAM (34), 64QAM (23), 64QAM (34), 64QAM (56), 256QAM (34), 256QAM (56), 1024QAM (34), 1024QAM (56)
Antenna gain: 13.5 dBi
Polarization: Dual-linear
Beamwidth Azimuth: 6 dB 90°
Beamwidth Elevation: 6 dB 25°
Cross-pol isolation: 10 dB
Electric downtilt: 0°
