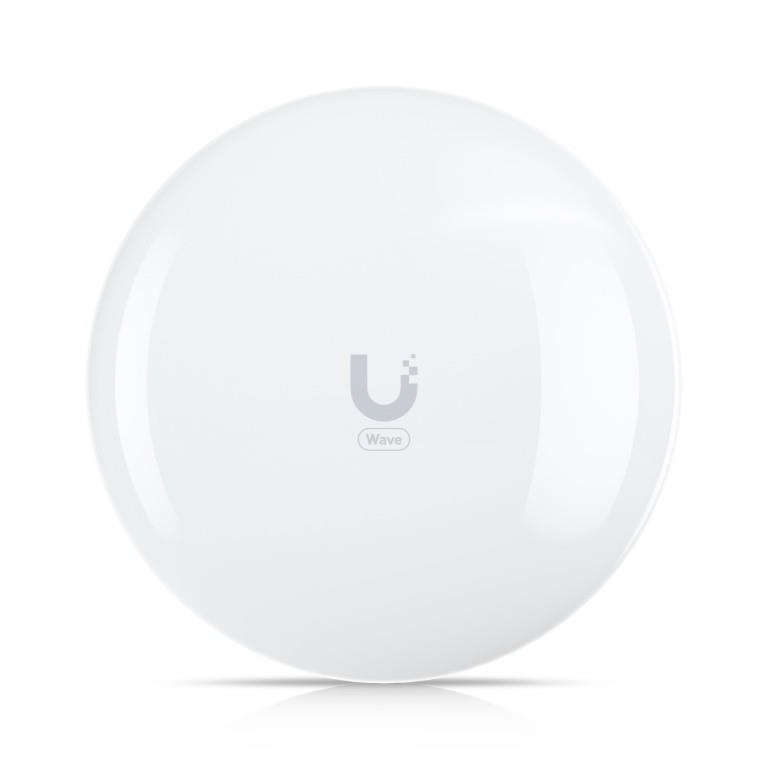

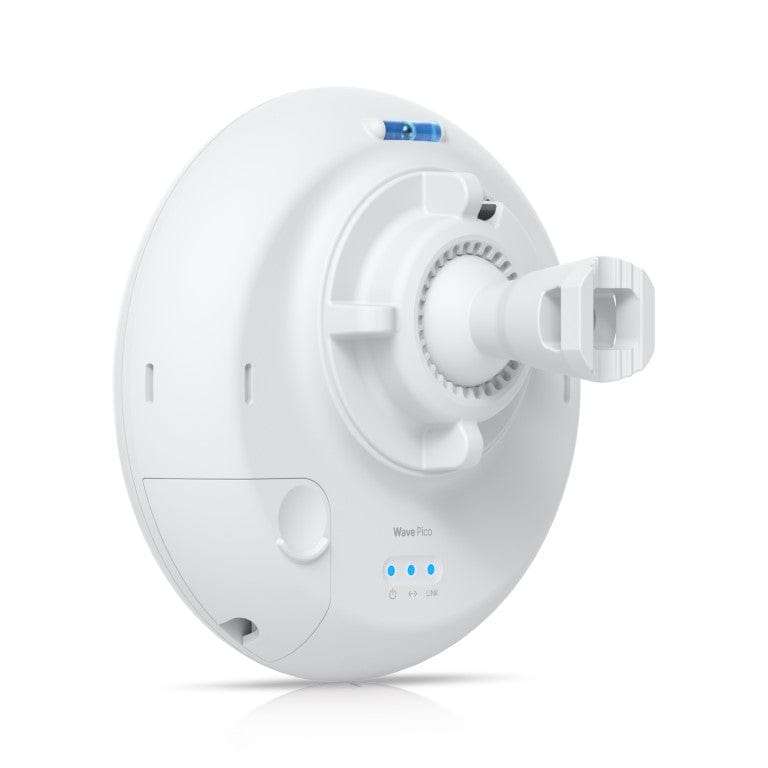

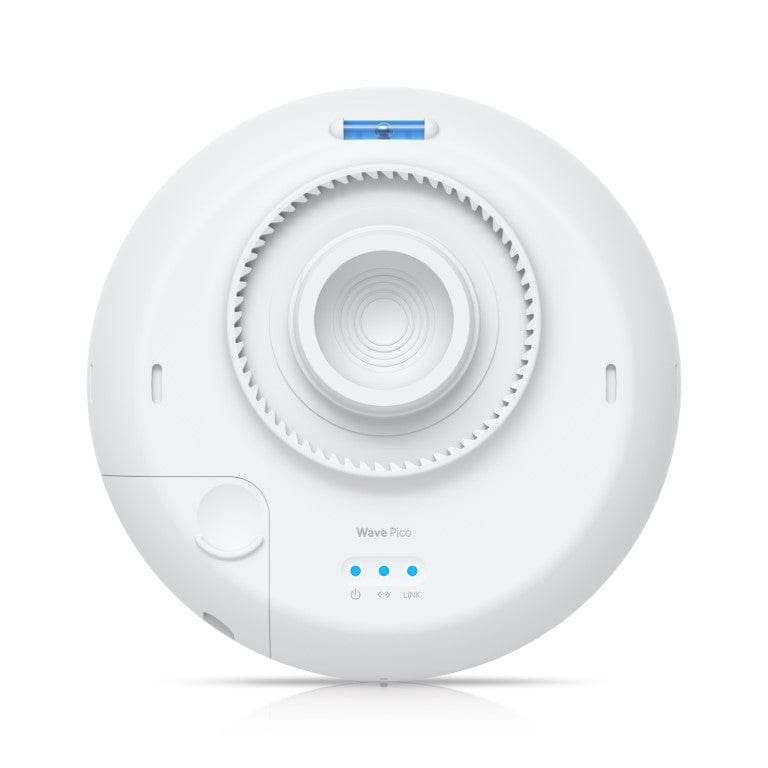

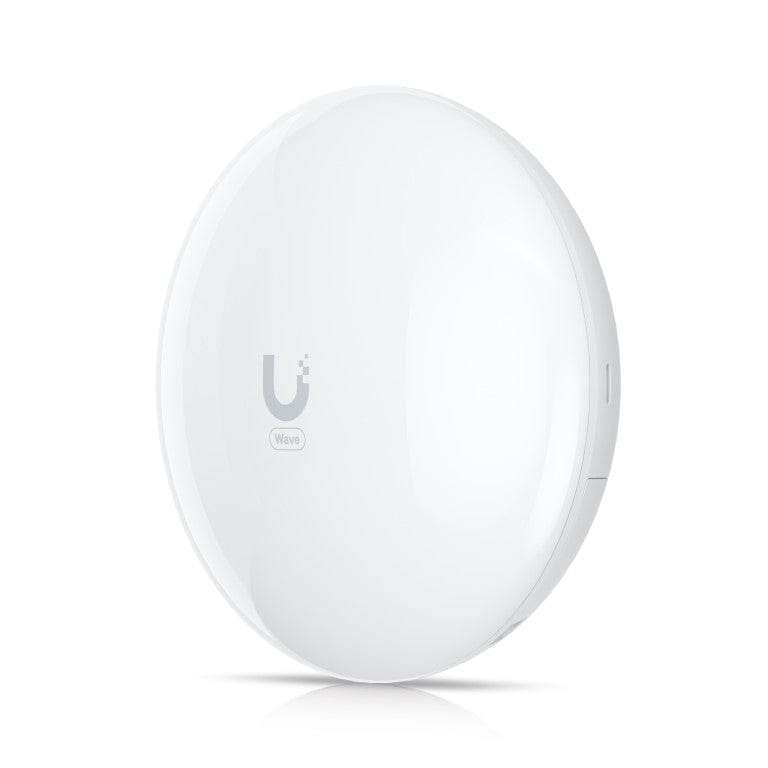

Ubiquiti UISP Wave Pico 60GHz Wi-Fi PtMP Station WAVE-PICO
The Ubiquiti UISP Wave-Pico is a versatile wireless communication device designed for dense urban deployments. It operates as a 60GHz PtMP (Point-to-Multipoint) station and includes a 5GHz failover feature for added reliability. Additionally, the device can be configured for PtP (Point-to-Point) operation, providing flexibility for various network setups.
Technical Specification
Processor: Dual-core ARM Cortex-A53 at 1 GHz
Memory: DDR3L 512 MB
Networking interface: 1x GbE RJ45 port
Max. power consumption: 10W
Power method Passive PoE: 4-pairs (1, 2+; 3, 6-) (4, 5+; 7, 8 -)
Power method Passive PoE: 2-pairs (4, 5+; 7, 8 -), for 44—54V DC only
Power supply
- 48V DC, 0.5A gigabit PoE adapter (Included)
- Can be powered by a UISP Router or UISP Switch
Supported voltage range: 44-54V DC ; 22-27V DC
GPS: No
Button: Factory reset
LEDs: Power, Ethernet, link
Software
Operating mode: PtMP station, PtP
Ubiquiti specific features: Wave AI, discovery protocol
Services: UISP, ping watchdog, NTP client, SNMP
Tools: Antenna alignment, discovery utility, ping, trace route, speed test, cable test*, site survey*
*FW version 3.3.0 and later.
Network: Bridge/Router* mode (*Router is available in PtMP station mode only.)
Application requirements
- UISP web: Version 2.4.61 and later
- UISP mobile iOS: Version 2.32.0 and later
- UISP mobile Android: Version 2.31.9 and later
System
Total throughput: 2 Gbps (1 Gbps duplex)
Max. range: Up to 1.3 km (Wave AP) ; Up to 0.9 km (Wave AP Micro)
Encryption: WPA2-PSK (AES)
RF
Operating frequency*: 57—71 GHz (*Depends on regulatory region.)
Channel bandwidth: 2160, 1080, 540* MHz (*FW version 3.3.0 and later.)
Operating channels*: 58320, 59400, 60480, 61560, 62640, 63720, 64800, 65880, 66960, 68040, 69120, 70200 MHz (*Depends on regulatory region.)
Modulation 16QAM, QPSK
Antenna gain 27.7 dBi
Polarization: Vertically linear
Beamwidth Azimuth: 3 dB 6°
Beamwidth Elevation: 3 dB 6°
Back-Up RF
WiFi standard: 802.11ax (WiFi 6)
Operating frequency Worldwide: 5180 - 5875 MHz (*Depends on regulatory region.)
Channel bandwidth: 20, 40, 80 MHz
Modulation: BPSK (12), QPSK (12), QPSK (34), 16QAM (12), 16QAM (34), 64QAM (23), 64QAM (34), 64QAM (56), 256QAM (34), 256QAM (56), 1024QAM (34), 1024QAM (56)
Antenna gain: 9 dBi
Polarization: Dual-linear
Beamwidth Azimuth: 3 dB 50°
Beamwidth Elevation: 3 dB 50°
Cross-pol isolation: 15 dB
Mechanical
Dimensions: Ø152.1 x 55.8 mm
Weight without mount: 347 g
Weight with mount: 409 g
Enclosure material: UV stabilized polycarbonate
Mount material: UV stabilized polycarbonate
Pole mount diameter: 20 to 53.1 mm on pipe outer diameter
Wind loading: 31.3 N at 200 km/h
Weatherproofing: IPX6
