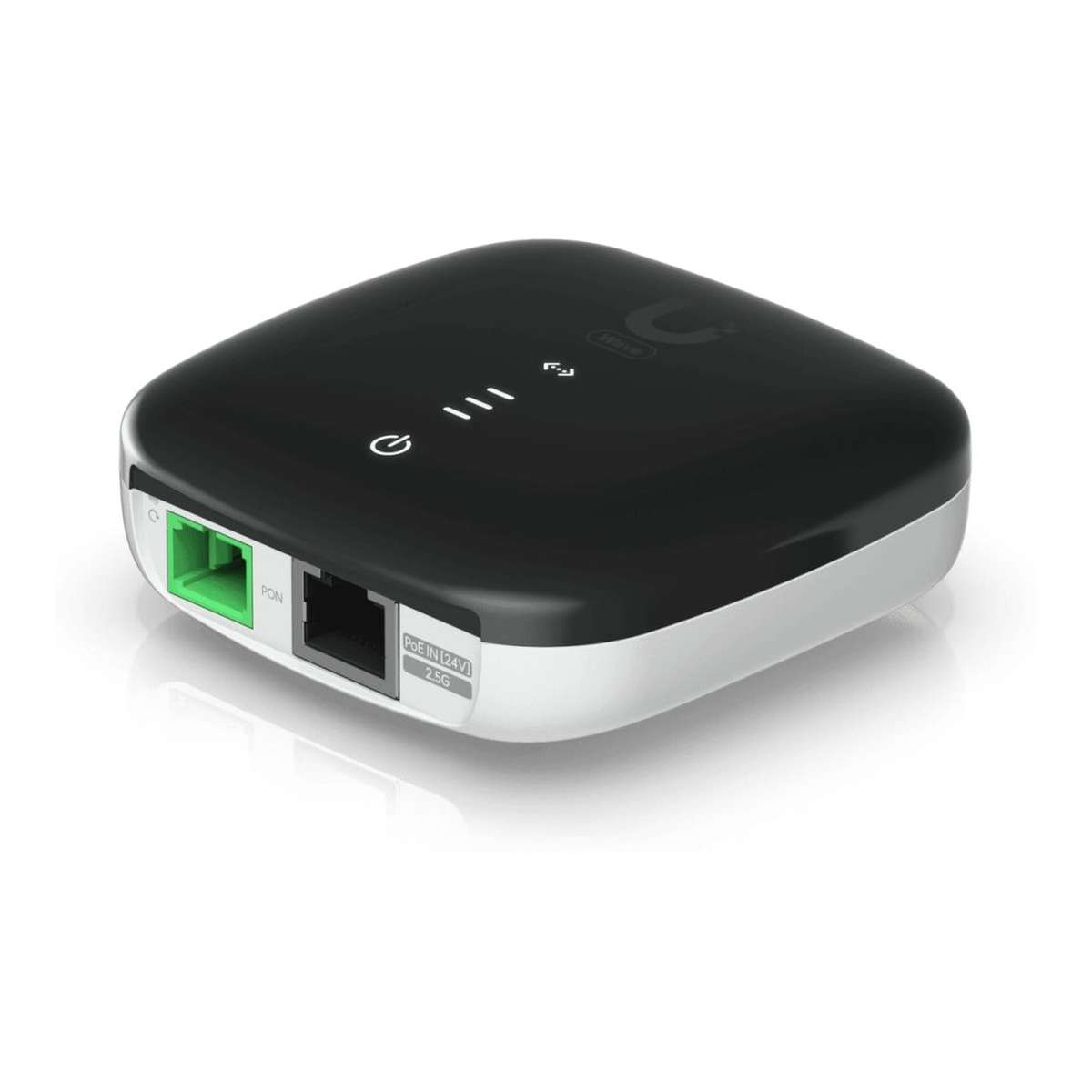

Ubiquiti UISP WaveFiber ONU SC/APC 2.5Gbps Ethernet GPON Optical Network Media Converter 20-pack Wave-Fiber-ONU-20

A GPON optical network unit with a 2.5 GbE port that delivers 1.2 Gbps uplink / 2.5 Gbps downlink speeds at distances up to 20 km.

Note: A PoE adapter is included only with single-unit purchases.

Technical Specifications:

General
Dimensions: 76.5 × 76.5 × 26.4 mm
Weight: 78 g
Enclosure Material: Polycarbonate
Mounting: Desktop, Wall Mount

Hardware
Networking Interface:

• (1) SC/APC ITU-G.984 GPON WAN Port
• (1) 1/2.5 GbE RJ45 LAN Port

Management Interface: Ethernet In-Band
Button: (1) Factory Reset

Power
Power Method: PoE, 0.3 A
Power Supply: 24 V Passive PoE 2-Pair (4, 5+; 7, 8-)
Supported Voltage Range: 20 to 28 V DC
Maximum Power Consumption: 5 W

PON
Downstream Rate: 2.488 Gbps
Upstream Rate: 1.244 Gbps
Optical Module TX Range: 1.5 to 5 dBm
Optical Module RX Range: -8 to -28 dBm

Fiber
Operating Wavelength TX: 1310 nm
Operating Wavelength RX: 1490 nm
Line Code: Scrambled NRZ
Optical Interface Nominal Bit Rate Downstream: 2488.32 Mbit/s
Optical Interface Nominal Bit Rate Upstream: 1244.16 Mbit/s
Physical Reach: 20 km

Software
Mode: ONU/ONT Layer 2/3 Ethernet Switch
Services: Web Server, Telnet, NAT, Bridging and Routing, Firewall Features, Application Passthrough Features
Utilities: Dashboard, Monitoring, Alarms, Logs
Security: GEM Port Encryption
Other Features: Remote Reset, Remote Reboot, Remote Firmware Upgrade, VLAN Support

Environmental
Operating Temperature: -15°C to 45°C
Operating Humidity: 10% to 90% Non-Condensing

LED Indicators
PON Status:

• All Off: Bootup
• 1 × Red: Signal Too Low (< -28 dB)
• 1 × White: Signal Low ( -28 dB)
• 2 × White: Signal Good ( -25 dB)
• 3 × White: Signal Strong ( -11 dB)
• 1 × Red + 2 × White: Signal Too Strong ( -8 dB)
• 3 × Red: No Signal
• Alternating Red and Signal Strength Indicator: No Authority

Ethernet Status:

• Steady White: Link Up
• Blinking White: Activity
• Off: Link Down

Power Status:

• White: On

Certifications
Certifications: FCC, IC, CE
