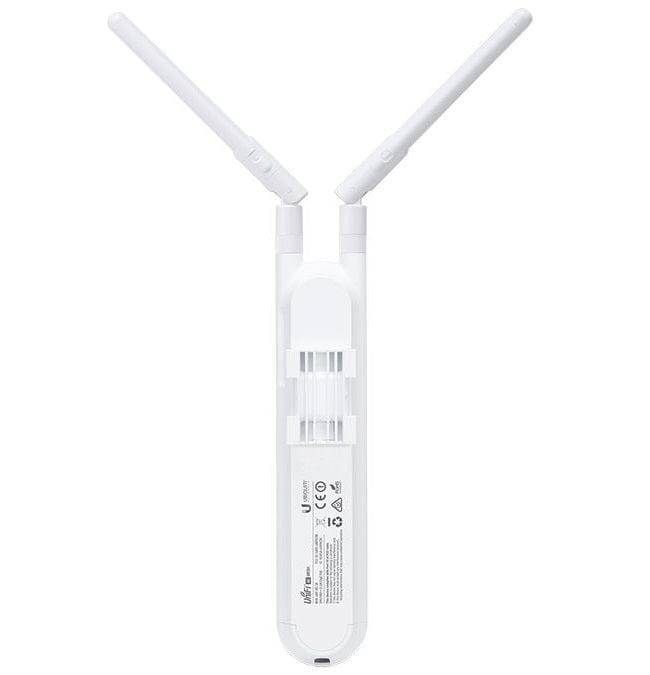

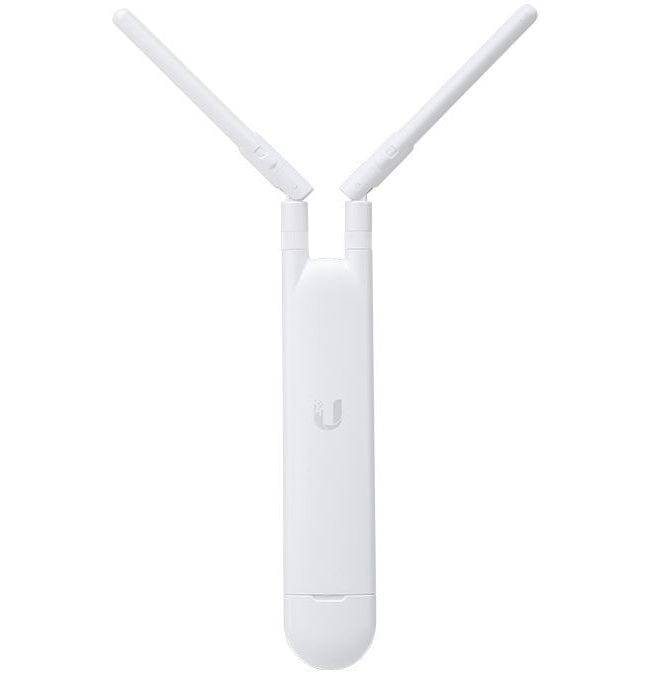

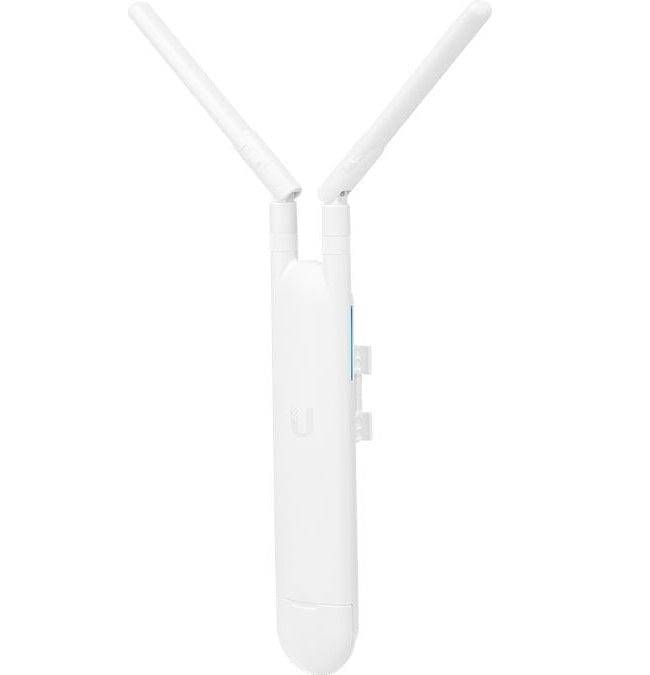

Ubiquiti Unifi AC Mesh 1167 Mbit/s PoE White

Compact, indoor/outdoor WiFi 5 AP with 4 spatial streams and optional external antenna support for directional coverage.

Technical Specifications:

Overview
Dimensions: 353 × 46 × 34.4 mm (13.9 × 1.8 × 1.4")
WiFi Standard: WiFi 5
Spatial Streams: 4
Coverage Area: 140 m² (1,500 ft²)
Max. Client Count: 200+
Uplink: GbE
Mounting: Wall, Pole (mounts included)
Weatherproofing: IPX4
Power Method: PoE

Performance
MIMO:

• 5 GHz: 2 × 2 (DL MU-MIMO)

• 2.4 GHz: 2 × 2 (DL MU-MIMO)
  Max. Data Rate:

• 5 GHz: 867 Mbps (BW80)

• 2.4 GHz: 300 Mbps (BW40)
  Antenna Gain:

• 5 GHz: 4 dBi

• 2.4 GHz: 3 dBi
  Max. TX Power:

• 5 GHz: 20 dBm

• 2.4 GHz: 20 dBm
  Max. BSSIDs: 8 per radio
  Supported Data Rates:

• 802.11ac (WiFi 5): 6.5 Mbps to 867 Mbps (MCS0—MCS9 NSS1/2, VHT 20/40/80)

• 802.11n: 6.5 Mbps to 300 Mbps (MCS0—MCS15, HT 20/40)

Features
Wireless Meshing: Yes
Band Steering: Yes
802.11v BSS Transition Management: Yes
802.11r Fast Roaming: Yes
802.11k Radio Resource Management (RRM): Yes
Advanced Radio Management: Yes
Passpoint (Hotspot 2.0): Yes
Captive Hotspot Portal: Custom Branding Landing Page: Yes
Voucher Authentication: Yes
Payment-Based Authentication: Yes
External Portal Server Support: Yes
Password Authentication: Yes
Guest Network Isolation: Yes
Private Pre-Shared Key (PPSK): Yes
WiFi Speed Limiting: Yes
Client Device Isolation: Yes
WiFi Schedules: Yes
RADIUS over TLS (RadSec): Yes
Dynamic RADIUS-assigned VLAN: Yes

Hardware
Max. Power Consumption: 8.5 W
Includes PoE Adapter: Yes
Supported Voltage Range: 44—57 V DC
Networking Interface: 1 × GbE RJ45 port
Weight: 152 g (5.4 oz)
Pole Mount Diameter: 1—3" (25—76 mm)
Ethernet: Yes
Bluetooth: Yes
Enclosure Material: Polycarbonate
Channel Bandwidth: HT 20/40, VHT 20/40/80 (MHz)
NDAA Compliant: Yes
Certifications: CE, FCC, IC, UKCA, Anatel: 01769-18-08356
Operating Frequency:

• US/CA: 2400—2472 MHz; U-NII-1: 5150—5250 MHz; U-NII-2A: 5250—5350 MHz; U-NII-2C: 5470—5725 MHz; U-NII-3: 5725—5850 MHz

• Worldwide: 2400—2483.5 MHz; 5150—5725 MHz
  Ambient Operating Temperature: -30 to 70° C (-22 to 158° F)
  Ambient Operating Humidity: 5—95% noncondensing

Software
Application Requirements: UniFi Network Version 6.0.45 and later

What's in the Box:

• UniFi Access Point
• Mounting Hardware
• Quick Start Guide
• Power over Ethernet (PoE) Adapter
• Ethernet Cable
