Use the RF map to monitor and analyze radio frequencies for optimal AP placement, configuration, and troubleshooting.
Powerful RF Performance Features
Advanced RF performance and configuration features include spectral analysis, airtime fairness, and band steering.
Detailed Analytics
Use the configurable reporting and analytics to manage large user populations and expedite troubleshooting.
Wireless Uplink
Wireless Uplink functionality enables wireless connectivity between APs for extended range. One wired UniFi AP uplink supports up to four wireless downlinks on a single operating band, allowing wireless adoption of devices in their default state
and real-time changes to network topology. For devices that support Plug & Play Mesh, this functionality is extended to allow multi-hop wireless uplink ? so wirelessly uplinked APs can support uplink to other wirelessly uplinked APs.
Guest Portal/Hotspot Support
Easy customization options for Guest Portals include authentication, Hotspot setup, and the ability to use your own external portal server. Use UniFi?s rate limiting for your Guest Portal/Hotspot package offerings. Apply different bandwidth rates
(download/upload), limit total data usage, and limit duration of use.
All UniFi APs include Hotspot functionality:
? Built-in support for billing integration using major credit cards.
? Built-in support for voucher-based authentication.
? Built-in Hotspot Manager for voucher creation, guest management, and payment refunds.
? Full customization and branding of Hotspot portal pages.
Multi-Site Management
A single cloud-based UniFi Controller can manage multiple sites: multiple, distributed deployments and multi-tenancy for managed service providers.
Each site is logically separated and has its own configuration, maps, statistics, guest portal, and admin read/write and read-only accounts.
WLAN Groups
Manage flexible configurations of large deployments. Create multiple WLAN groups and assign them to an AP?s radio.
Dashboard
UniFi provides a visual representation of your network?s status and delivers basic information about each network segment.
RF Map
Monitor UniFi APs and analyze the surrounding RF environment.
Statistics
UniFi visualizes network traffic in clear and easy?to?read graphs.
UniFi Mobile App
Manage your UniFi devices from your smartphone or tablet.
Use Cases
Mesh Multi-Hop : A large outdoor area, such as a park with minimal infrastructure, can take advantage of a mesh network comprised of the UniFi AC Mesh models.
Omnidirectional Coverage, Indoors or Outdoors : The UAP-AC-M includes adjustable dual-band omni antennas.
You have the option to use a 5 GHz omni antenna for spot-beam coverage in high-density locations with numerous APs and clients, like a conference hall or event center.
Directional Coverage, Outdoors The UAP-AC-M is versatile.
You have the option to use a 5 GHz sector antenna (wide beam in the azimuth plane and narrow in the elevation plane) for broad outdoor coverage.
Maximum Coverage, Outdoors : The UAP-AC-M-PRO is ideal for applications requiring 3x3 MIMO data rates for close-in omni coverage.
Temporary Installations : Deploy the UniFi AC Mesh models for outdoor installations requiring quick setup and takedown, such as a street fair, music festival, or concert venue.
Hardware Overview

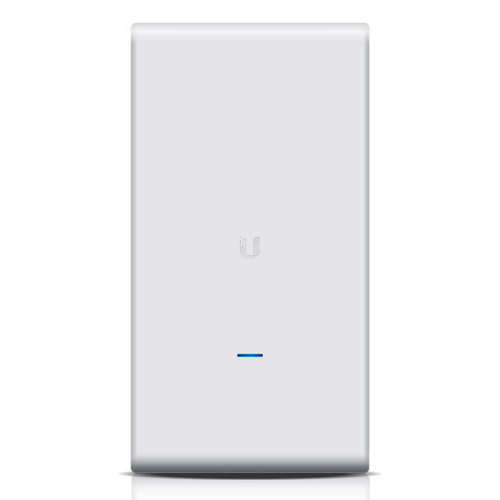

Model: UAP-AC-M-PRO
The UAP-AC-M-PRO provides simultaneous, dual-band, 3x3 MIMO technology.
Weather-Resistant Form Factor The enclosure of the UAP-AC-M-PRO is designed to withstand the elements, making it ideal for outdoor deployment.
Powerful Coverage Built-in dual-band omnidirectional antennas deliver expanded range coverage outdoors.
Mounting Flexibility The UAP-AC-M-PRO can be mounted on a wall or pole. (All accessories are included.)
Dual Gigabit Ethernet Ports The primary port is for data and PoE; the secondary port is for bridging.
Multiple Power Options You can power the UAP-AC-MPRO with an 802.3af compatible switch, UniFi PoE Switch, or the included Gigabit PoE adapter.
UAP-AC-M-PRO Specifications
Dimensions : 343.2 x 181.2 x 60.2 mm (13.51 x 7.13 x 2.37")
Weight : 633 g (1.40 lb)
Networking Interface : (2) 10/100/1000 Ethernet Ports
Buttons : Reset
Power Method: 802.3af PoE
(Supported Voltage Range: 44 to 57VDC)
Power Supply : 48V, 0.5A PoE Gigabit Adapter*
Power Save : Supported
Maximum Power Consumption : 9W
Maximum TX Power
2.4 GHz: 22 dBm
5 GHz : 22 dBm
Antennas : (3) Internal Dual-Band Antennas
8 dBi
Wi-Fi Standards : 802.11 a/b/g/n/r/k/v/ac
Wireless Security : WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES)
BSSID : Up to 8 per Radio
Mounting : Wall/Pole (Pole Kit Included)
Operating Temperature : -40 to 70° C (-40 to 158° F)
Operating Humidity : 5 to 95% Noncondensing
Certifications : CE, FCC, IC
VLAN : 802.1Q
Advanced QoS : Per-User Rate Limiting
Guest Traffic Isolation : Supported
WMM : Voice, Video, Best Effort, and Background
Concurrent Clients : 250+
Standard : Data Rates
802.11ac : 6.5 Mbps to 1300 Mbps (MCS0 - MCS9 NSS1/2/3, VHT 20/40/80)
802.11n : 6.5 Mbps to 450 Mbps (MCS0 - MCS23, HT 20/40)
802.11a : 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11g : 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11b : 1, 2, 5.5, 11 Mbps
What's in the box
UniFi AP Mesh Pro Mounting
Bracket
Pole Clamps (Qty. 2)
Carriage Bolts (Qty. 4)
Flange Nuts (Qty. 4)
Screws (Qty. 4)
Screw Anchors (Qty. 4)
Gigabit PoE Adapter (48V, 0.5A)
Power Cord
Quick Start Guide
