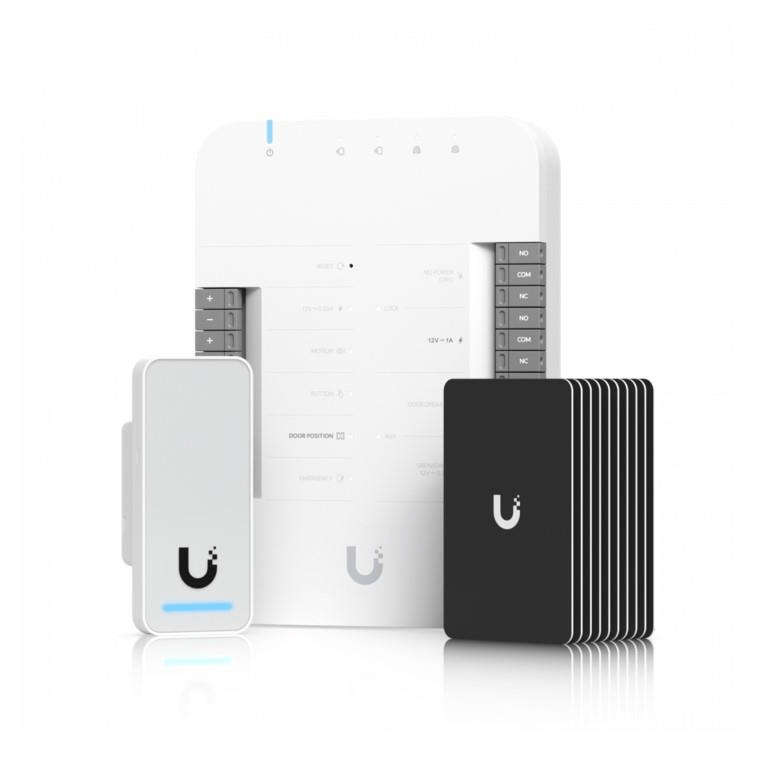

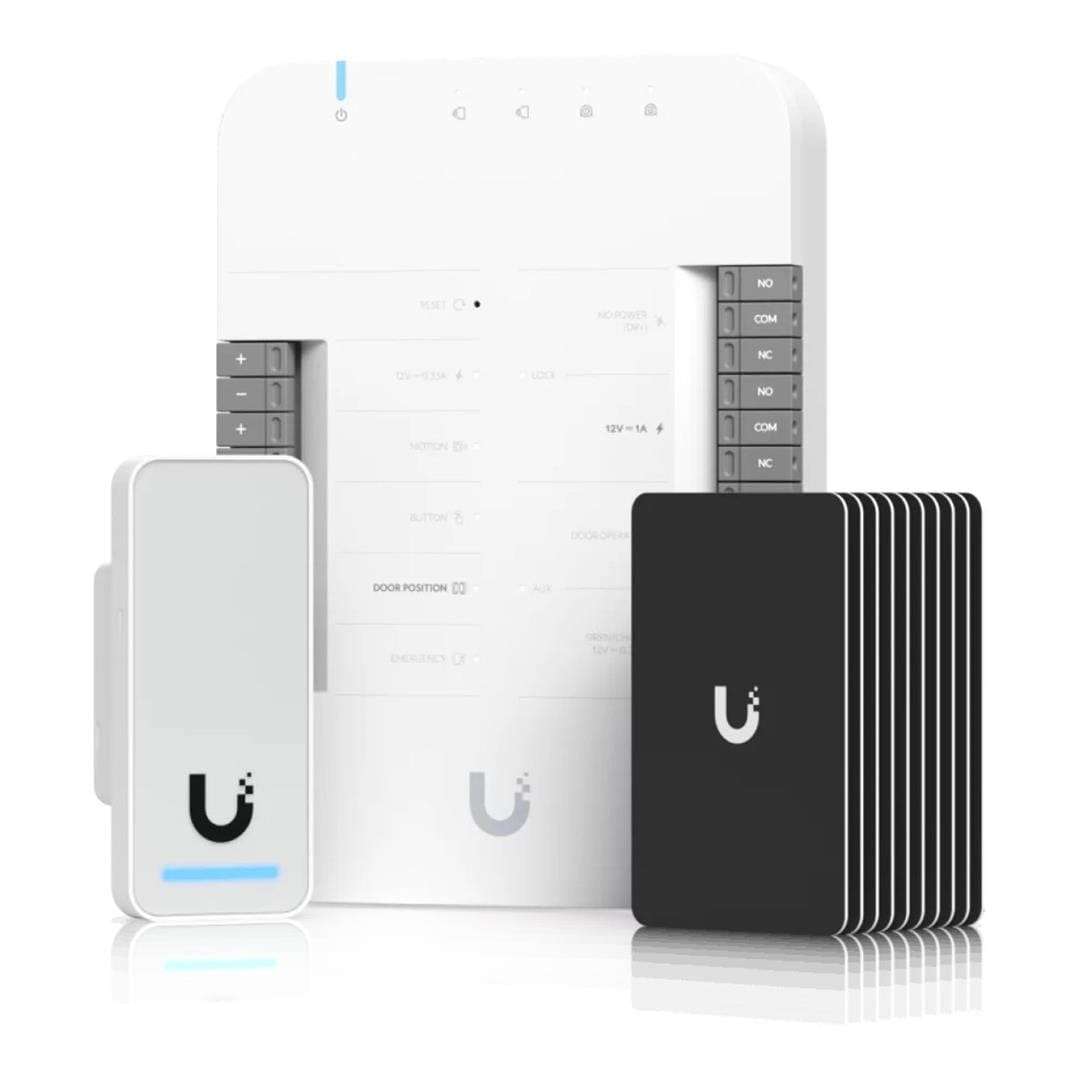

Ubiquiti UniFi Access G2 Door Access Starter Kit UA-G2-SK
A quick start for Access with all you need for one door with one reader.
Features
- 1x Door Hub
- 1x G2 Reader
- 10x Access Cards
Technical Specification
UA-Hub-Door - Mechanical
Dimensions: 174.9 x 126 x 32.9 mm
Weight: 363 g
Enclosure material: Polycarbonate
Mounting material: Polycarbonate
Hardware
Networking interface: 5x 10/100/1000 Base-T
Power method
- PoE++
- UL 294 Power-limited Class 2 PSU
- UL 60950/62368 LPS/PS2 PSU
Max. power consumption
- Without PoE output: 30W
- With PoE output: 50W
PoE input: 50V DC, 1A
PoE output: PoE passthrough, (4) PoE, 50V DC, total 20W
Button: 1x Factory-reset
LEDs System: white/blue
LEDs Output relays: white
Digital input: Request to exit/request to enter/remote release/door position sensor
Dry output relay
- Lock: 30V DC, 1A
- Aux: 30V DC, 1A
Powered output relay
- Lock: 12V DC, 1A
- Aux: 12V DC, 0.33A
- 12V DC, 0.33A
Operating environment: Indoor use only

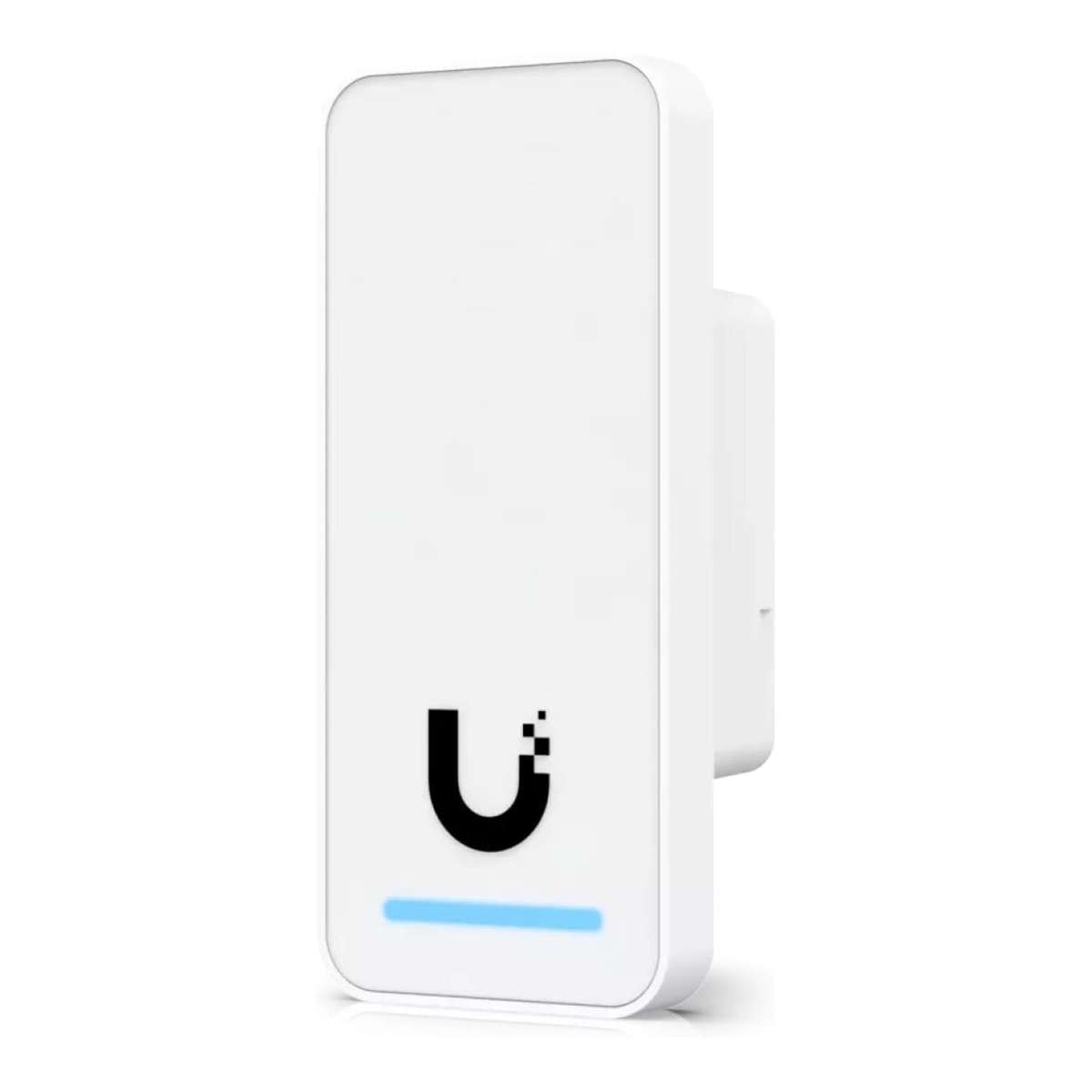

UA-G2 - Mechanical
Dimensions: 93 x 40 x 36.5 mm
Weight: 82 g
Enclosure material: Polycarbonate, glass
Mounting: In wall, gang box
Weatherproofing: IP55
Hardware
Networking interface: 1x 10/100 MbE RJ45 port
Connectivity: BLE 4.1
Power method
- PoE
- UL 294 Power-limited Class 2 PSU
- UL 60950-1/62368-1 LPS/PS2 PSU
Supported voltage range: 48V DC
Max. power consumption: 5W
ESD/EMP protection: Air: ±15kV, contact: ±8kV
Sensors: Proximity sensor
Speaker: 1x 8 ohm, 0.7W
LEDs: R/G/B/W
Button: 1x Factory-reset
NFC frequency: 13.56 MHz
NFC read range: < 30 mm
NFC standards: ISO 14443A, 14443B, 15693
NFC technology
- NFC Tag 1,2,3,4,5
- MIFARE Classic
- MIFAREPlus
- MIFARE Ultralight
- MIFARE DESFire
Operating environment: Outdoor use
UA-Card - Mechanical
Dimensions: 85.6 x 53.98 x 0.84 mm
Weight: 5 g
Format: ISO 7810 ID-1
NFC frequency: 13.56 MHz
NFC technology
- ISO/IEC 14443 Type A
- MIFARE DESFire
- UniFi Access Proprietary Security Protocol
