Brand New & Sealed with Manufacturer Warranty

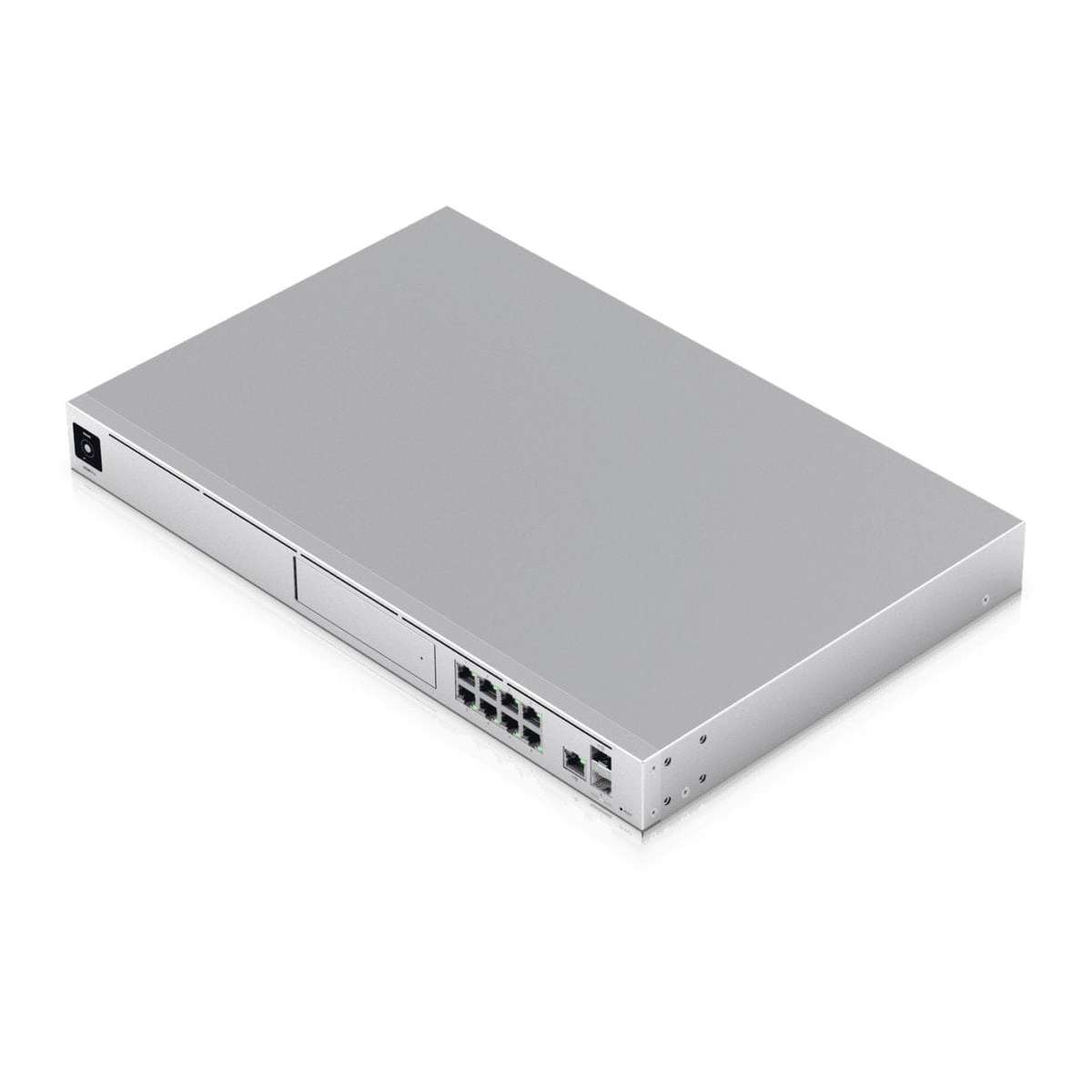

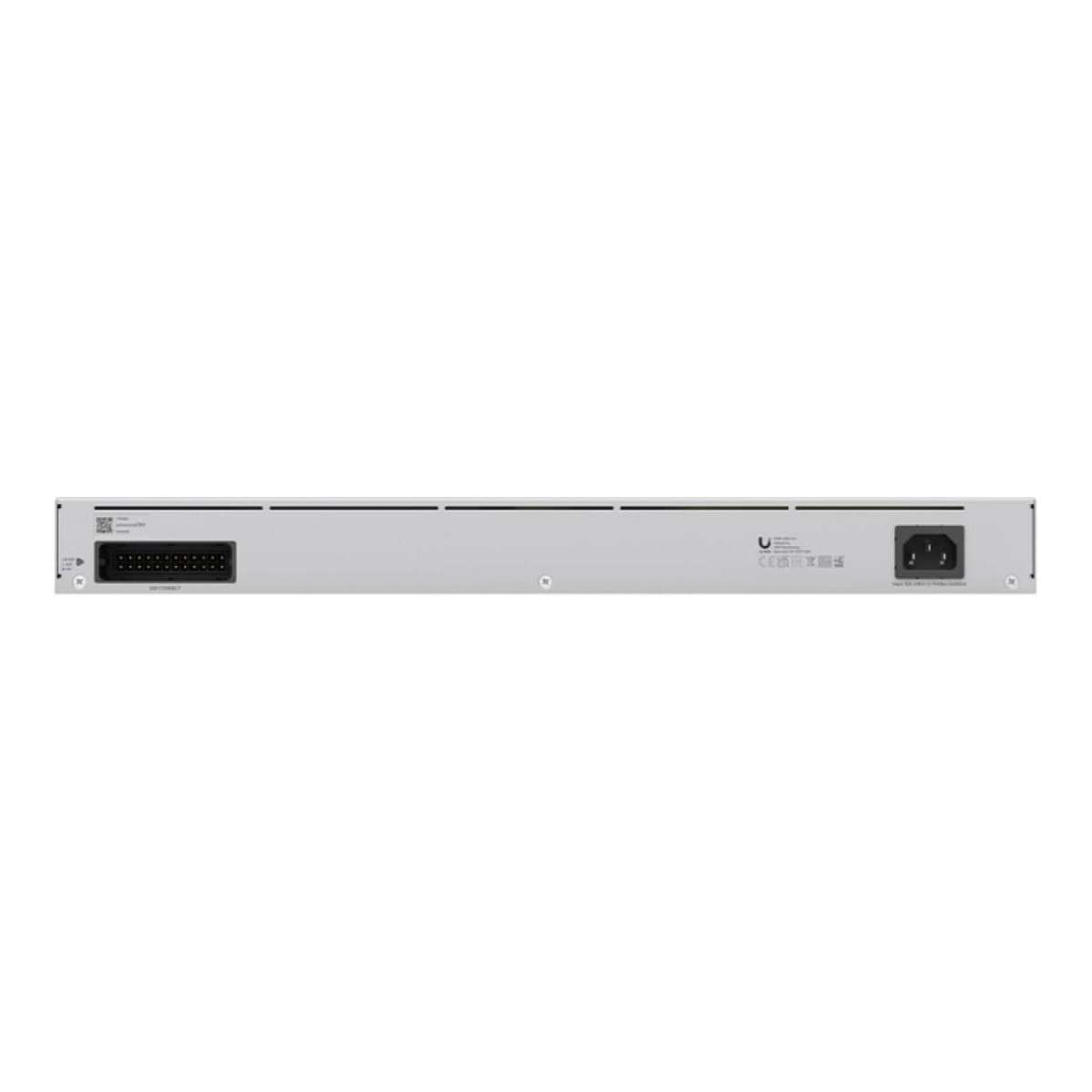

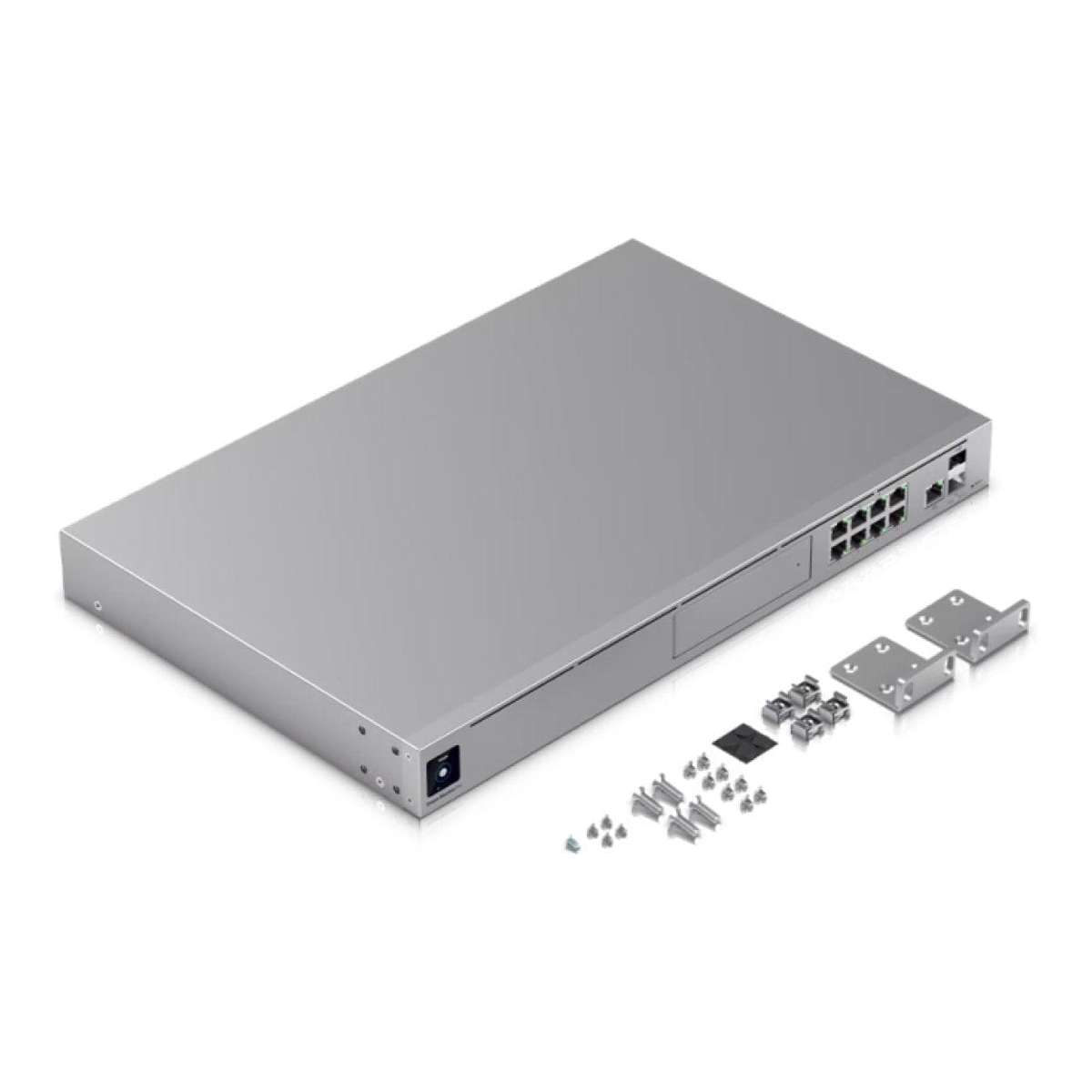

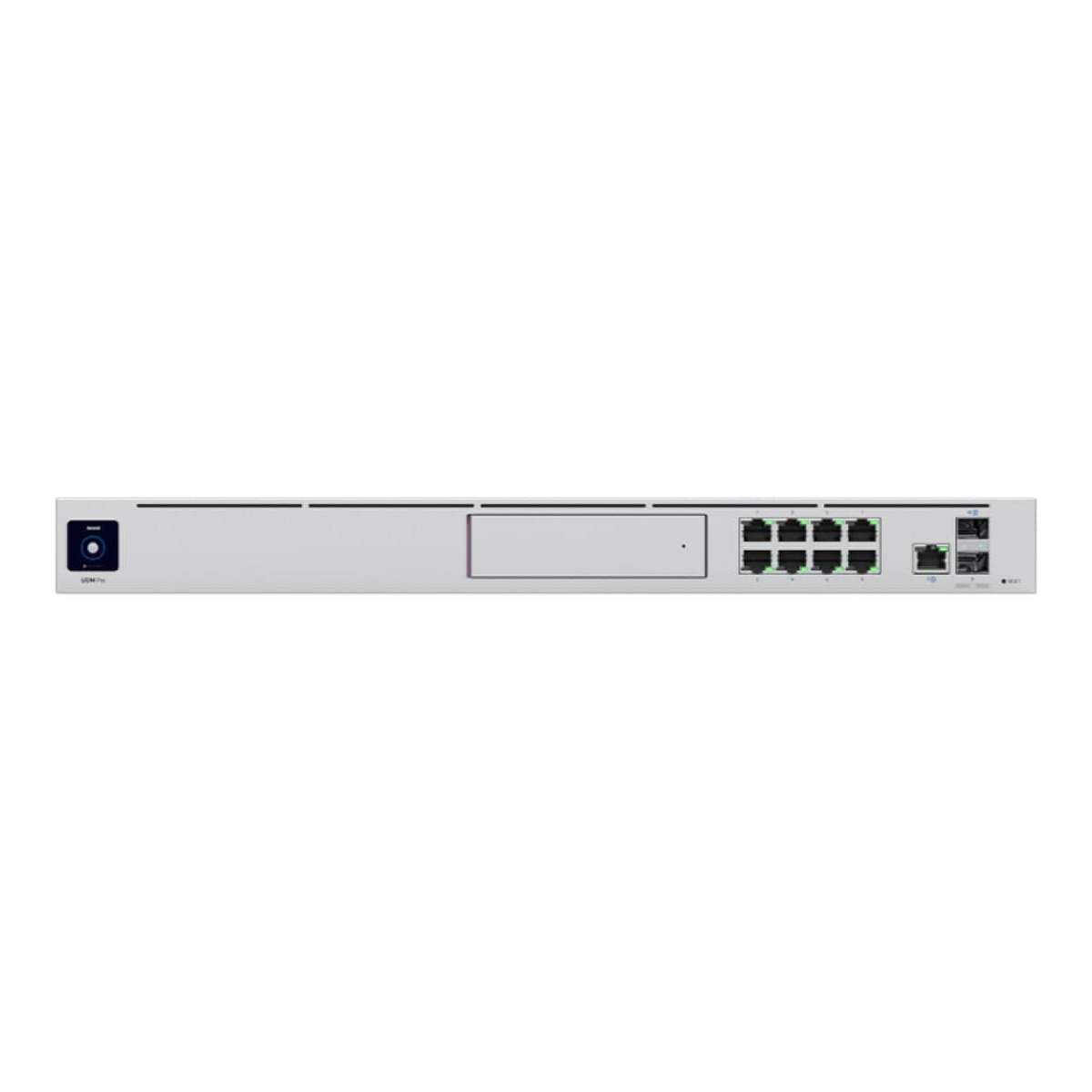

Ubiquiti UniFi Dream Machine Pro 8-port Gigabit Switch with 2SFP+ UDM-PRO
All-in-one enterprise security gateway & network appliance for small to medium-sized businesses. The optimal experience for larger networks UniFi Dream Machine Pro (UDM-Pro) is an all-in-one enterprise network appliance. UDM-Pro integrates all current and upcoming UniFi controllers with a security gateway.
10G Cloud Gateway with 100+ UniFi device / 1,000+ client support and 3.5 Gbps IPS routing.
Features:
Technical Specifications:
Hardware Features
Dimensions
442.4 × 43.7 × 285.6 mm (17.4 × 1.7 × 11.2")
UniFi Application Suite
Network: Yes
Protect: Yes
Access: Yes
Talk: Yes
Connect: Yes
Managed UniFi Devices: 100+
Managed Cameras: (24) HD, (14) 2K, (8) 4K
Managed Access Hubs: 150
Simultaneous Users Connected: 1,000+
Max. WAN Port Count: 8
Default WAN Ports: (1) 10G SFP+, (1) GbE RJ45
Port Layout
1 GbE RJ45: 9 (1G/100M/10M)
10G SFP+: 2 (10G/1G)
IDS/IPS Throughput
3.5 Gbps
Form Factor
Rack mount (1U)
Redundancy
Shadow Mode (VRRP) Gateway Failover
DC Power Backup
Security
Stateful Firewall: Yes
Application-Aware Layer 7 Firewall: Yes
DPI & Traffic Identification: Yes
Zone-Based Firewall Advanced Filtering (Regions, Domains, Apps): Yes
Content Filtering: Yes
Intrusion Prevention (IPS/IDS): Yes
Ad Blocking: Yes
IDS/IPS Signatures: 55,000+ with CyberSecure
VLAN/Subnet-based Traffic Segmentation: Yes
VPN & SD-WAN
License-Free SD-WAN: Yes
Site-to-Site VPN — Site Magic: Yes
IPsec: Yes
OpenVPN: Yes
VPN Server — Identity Endpoint One-Click VPN: Yes
Teleport Zero-Configuration VPN: Yes
WireGuard: Yes
OpenVPN: Yes
L2TP: Yes
VPN Client — OpenVPN: Yes
VPN Client — WireGuard: Yes
Networking
Multi-WAN Load Balancing: Yes
Shadow Mode (VRRP) High Availability: Yes
Dynamic Routing — OSPF: Yes
Dynamic Routing — BGP: Yes
Advanced QoS: Yes
Multicast DNS (mDNS): Yes
Advanced NAT (SNAT / DNAT / Masquerade / NAT Pooling / 1-to-1 NAT): Yes
Integrated RADIUS Server: Yes
RADIUS over TLS (RadSec): Yes
Additional Internet Failover with UniFi LTE Backup: Yes
Internet Quality and Outage Reporting: Yes
MAC Address Table Size: 4,000
Policy-based WAN and VPN Routing: Yes
Customizable DHCP Server: Yes
IPv6 ISP Support: Yes
IGMP Proxy: Yes
Hardware
NVR Storage: (1) 3.5" NVR HDD bay
Max. Power Consumption: 33W
Power Method: (1) Universal AC input 100—240V AC, 50/60 Hz; (1) USP-RPS DC input
Power Supply: AC/DC, internal, 50W
Supported Voltage Range: 100—240V AC
Heat Dissipation: 112 BTU/hr
Processor: Quad-core ARM® Cortex®-A57 at 1.7 GHz
System Memory: 4 GB
On-board Storage: 16 GB
Weight: 3.9 kg (8.6 lb)
Enclosure Material: Aluminium CNC, SGCC steel
Mount Material: SGCC steel
LCM Display: 1.3" touchscreen
Management
Ethernet
Bluetooth
LEDs
Ethernet: Yes
SFP+: Yes
RPS: Yes
PSU: Yes
HDD: Yes
Button
(1) Factory-reset
ESD/EMP Protection
Air: ±15kV
Contact: ±8kV
Environment
Operating Temperature: -10 to 40°C (14 to 104°F)
Operating Humidity: 5% to 95% noncondensing
NDAA Compliant
Yes
Certifications
CE, FCC, IC, Anatel: 01136-20-08356, SRRC
