Ubiquiti Unifi AC Dual - Radio Access Points
UAP-AC-Lite
Unlimited Indoor/Outdoor AP Scalability in a Unified Management System
Breakthrough Speeds up to 1300 Mbps in the 5 GHz Band
Intuitive UniFi Controller Software
Scalable Enterprise Wi-Fi Management UniFi® is the revolutionary Wi-Fi system that combines enterprise performance, unlimited scalability, and a central management controller. UniFi 802.11AC Dual?Radio Access Points (APs) have a refined industrial
design and can be easily installed using the included mounting hardware.
Easily accessible through any standard web browser and the UniFi mobile app (iOS or Android), the UniFi Controller software is a powerful software engine ideal for high?density client deployments requiring low latency and high uptime performance.
Use the UniFi Controller software to quickly configure and administer an enterprise Wi-Fi network no special training required. RF map and performance features, real-time status, automatic UAP device detection, and advanced security options are all seamlessly integrated.
Features
Hardware Overview

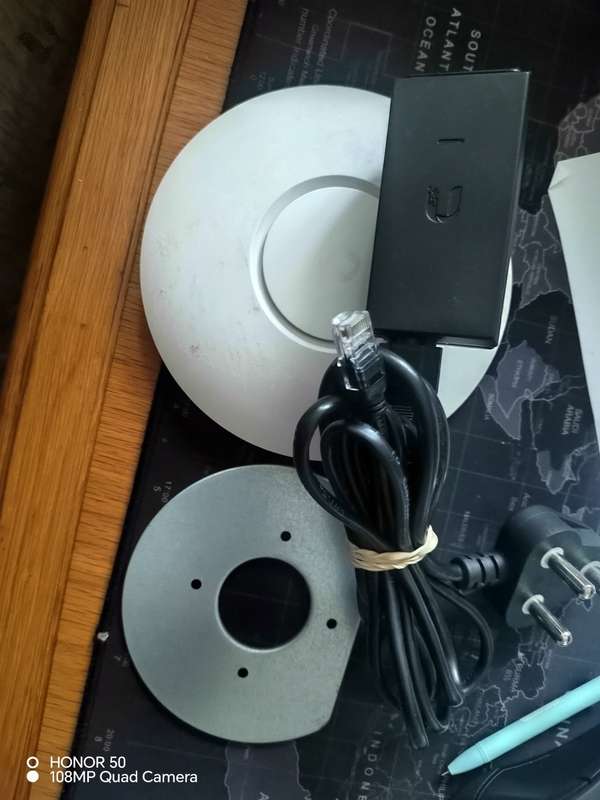

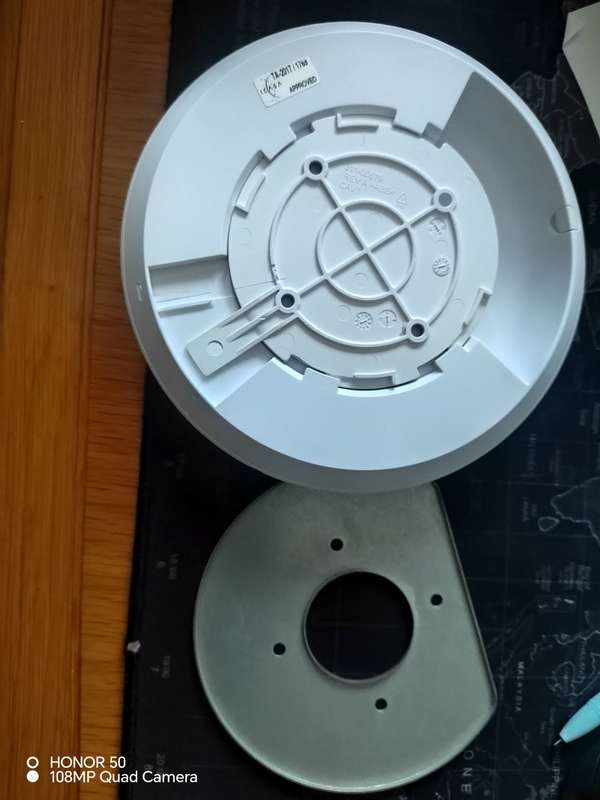

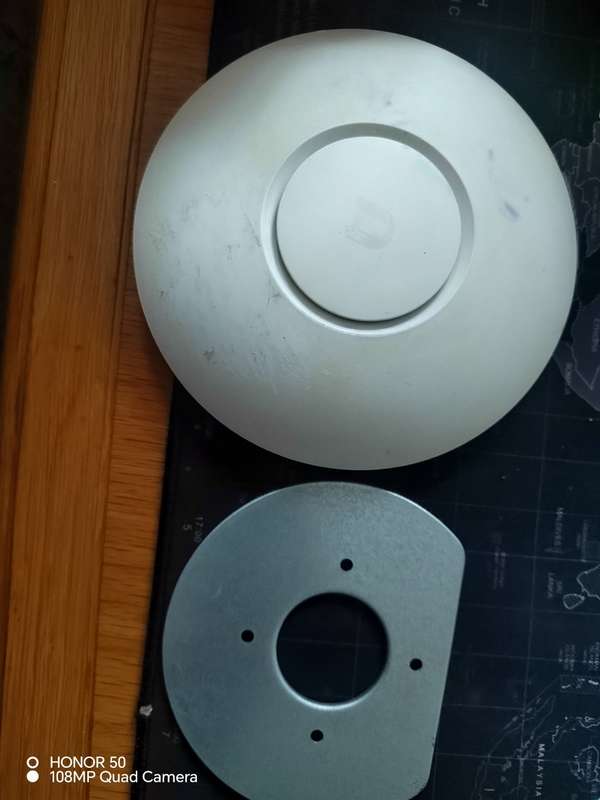

Easy Mounting Sleek design for seamless integration into any environment (all accessories included).

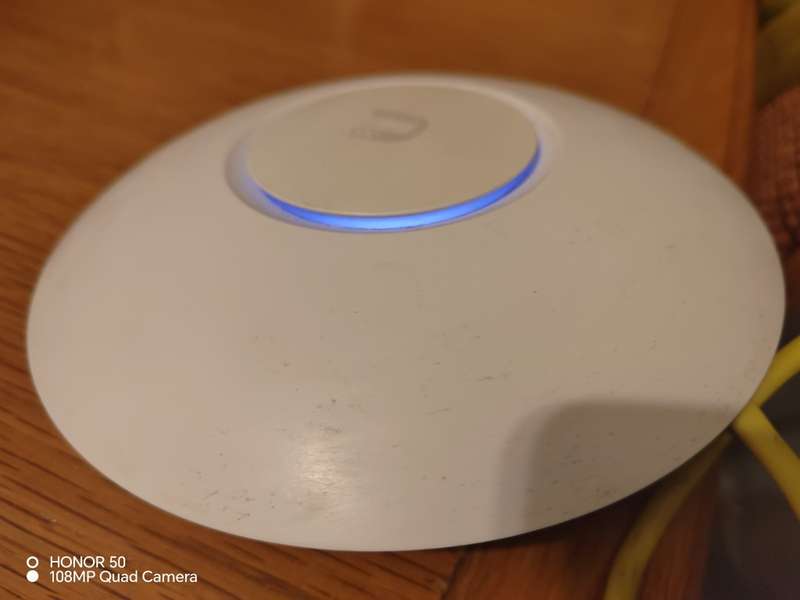

LED Unique provisioning and status LED provides administrator location tracking and alerts for each device.
Designed for the Great Outdoors The UniFi AC Pro features weatherproof casing designed specifically for outdoor applications.

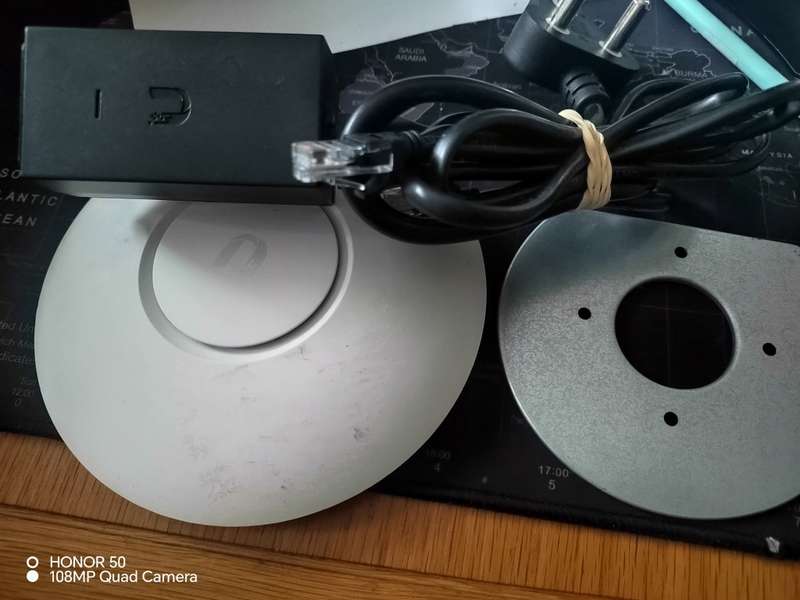

Power over Ethernet (PoE) Includes PoE functionality. Each single-pack except for the UniFi AC In-Wall AP,In?Wall Pro AP, and Pro AP includes a PoE adapter.
PoE Switching
UniFi Switch with PoE You can power your UniFi devices with a UniFi PoE Switch (sold separately). Available in 8, 16, 24, and 48?port versions with multiple power output options, the UniFi PoE Switch conveniently offers auto?sensing IEEE 802.3af PoE/802.3at PoE+.

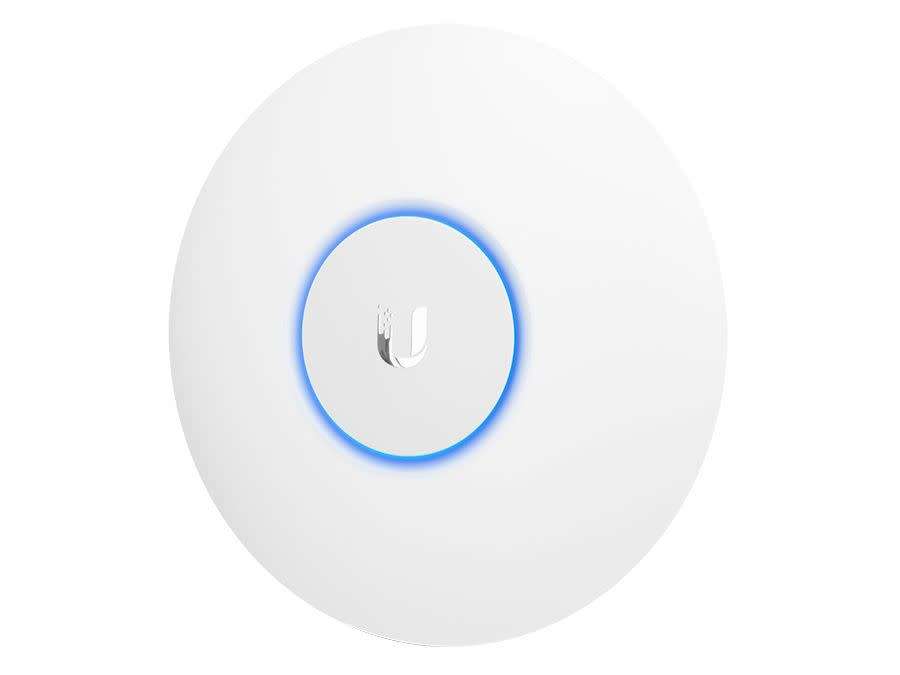

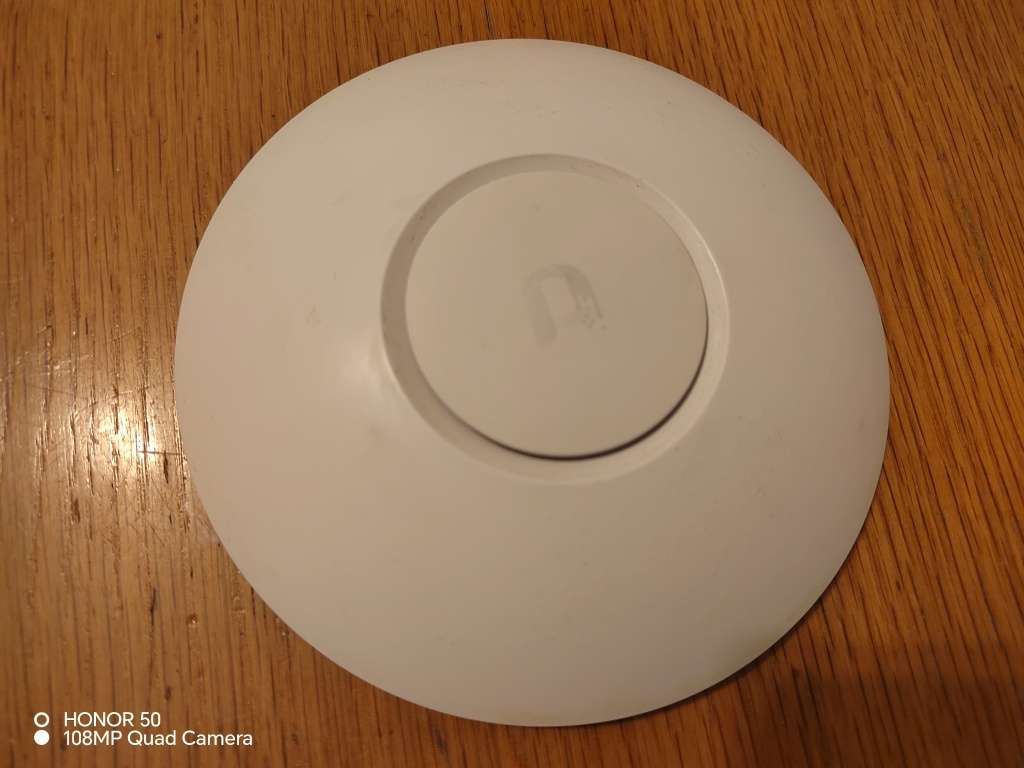

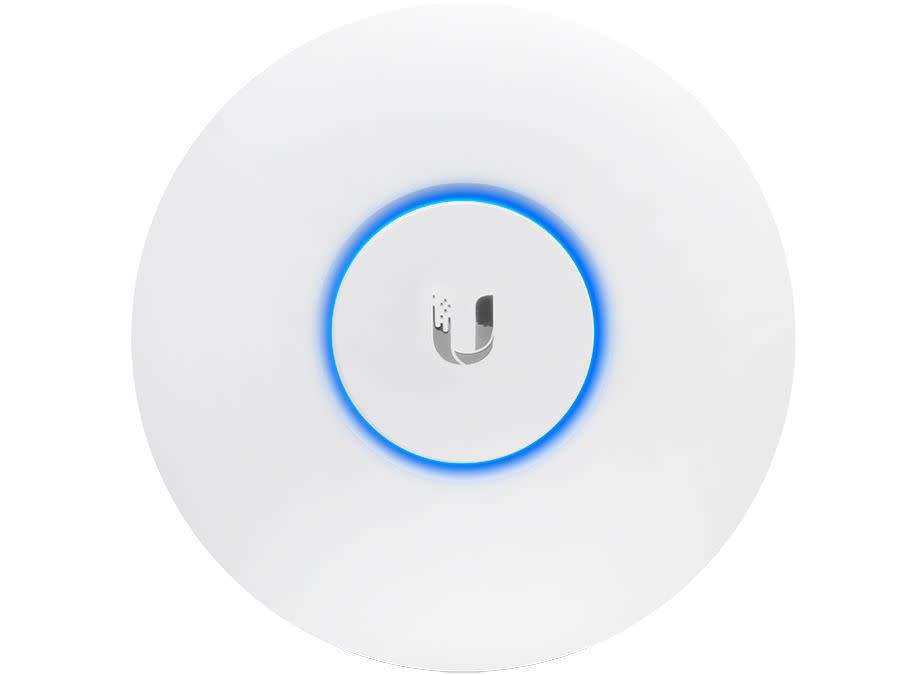

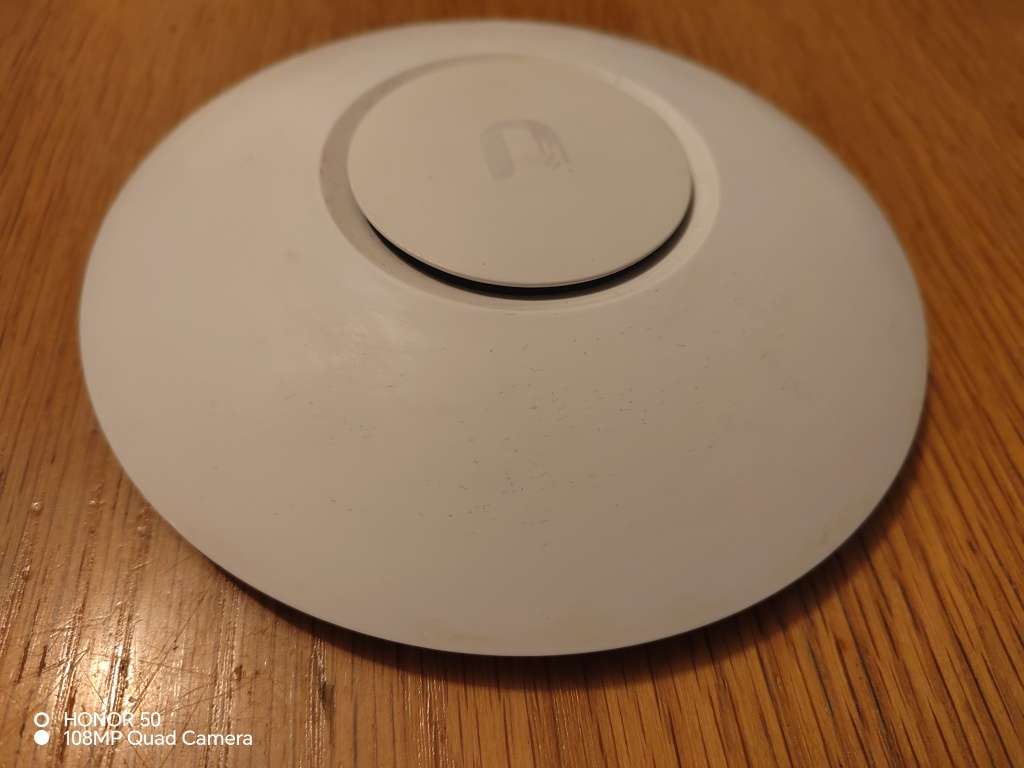

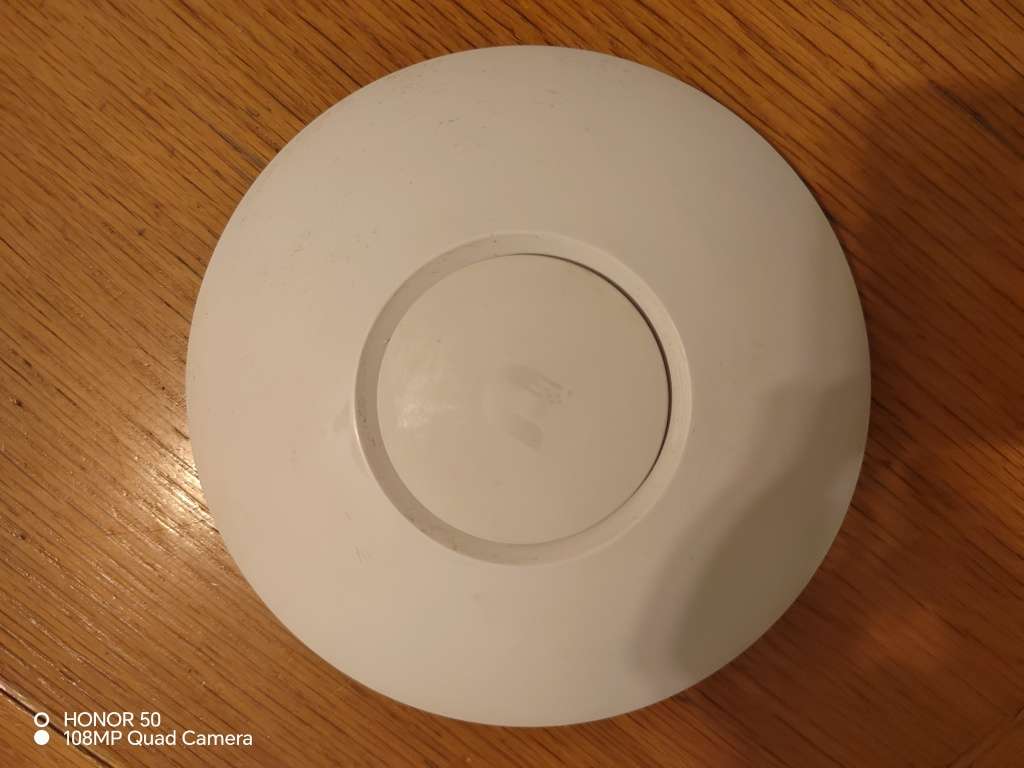

UAP-AC-LITE
Featuring an ultra-compact design, the UniFi AC Lite AP delivers a cost-effective combination of value and performance in a reduced footprint: 25% smaller than the standard UniFi AP. The UniFi AC Lite AP provides simultaneous, dual-band, 2x2 MIMO technology.
UAP-AC-LITE Specifications
Dimensions : 160 x 160 x 31.45 mm (6.30 x 6.30 x 1.24")
Weight : 170 g (6.0 oz)
With Mounting Kits : 185 g (6.5 oz)

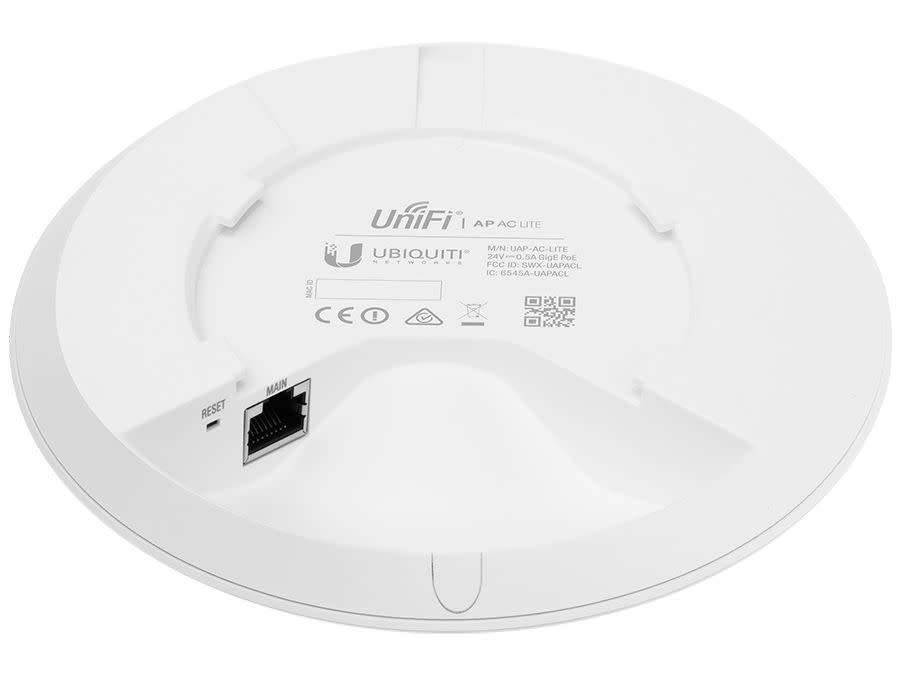

Networking Interface : (1) 10/100/1000 Ethernet Port
Buttons : Reset
Power Method : 802.3af/A PoE
: 24V Passive PoE (Pairs 4, 5+; 7, 8 Return)
Power Supply : 24V, 0.5A Gigabit PoE Adapter*
Power Save : Supported
Maximum Power Consumption : 6.5W
Maximum TX Power
2.4 GHz : 20 dBm
5 GHz : 20 dBm
Antennas : (2) Dual-Band Antennas, 3 dBi Each
Wi-Fi Standards : 802.11 a/b/g/n/r/k/v/ac
Wireless Security : WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES)
BSSID : Up to 8 per Radio
Mounting : Wall/Ceiling (Kits Included)
Operating Temperature : -10 to 70° C (14 to 158° F)
Operating Humidity : 5 to 95% Noncondensing
Certifications : CE, FCC, IC
VLAN : 802.1Q
Advanced QoS : Per-User Rate Limiting
Guest Traffic Isolation : Supported
WMM : Voice, Video, Best Effort, and Background
Concurrent Clients : 250+
Standard : Data Rates
802.11ac : 6.5 Mbps to 867 Mbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80)
802.11n : 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)
802.11a : 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11g : 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11b : 1, 2, 5.5, 11 Mbps
