Brand New & Sealed with Manufacturer Warranty

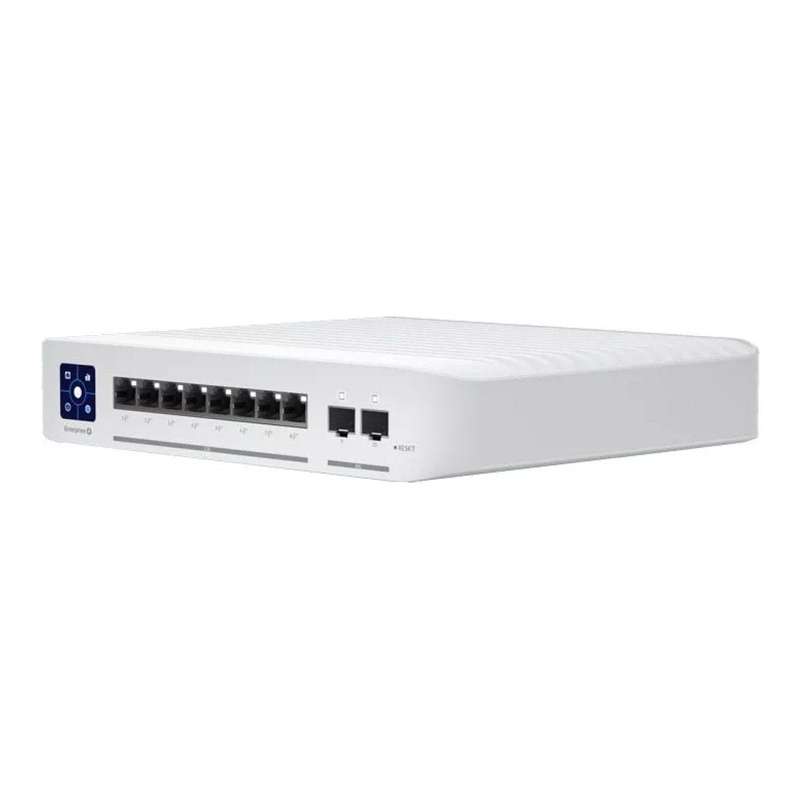

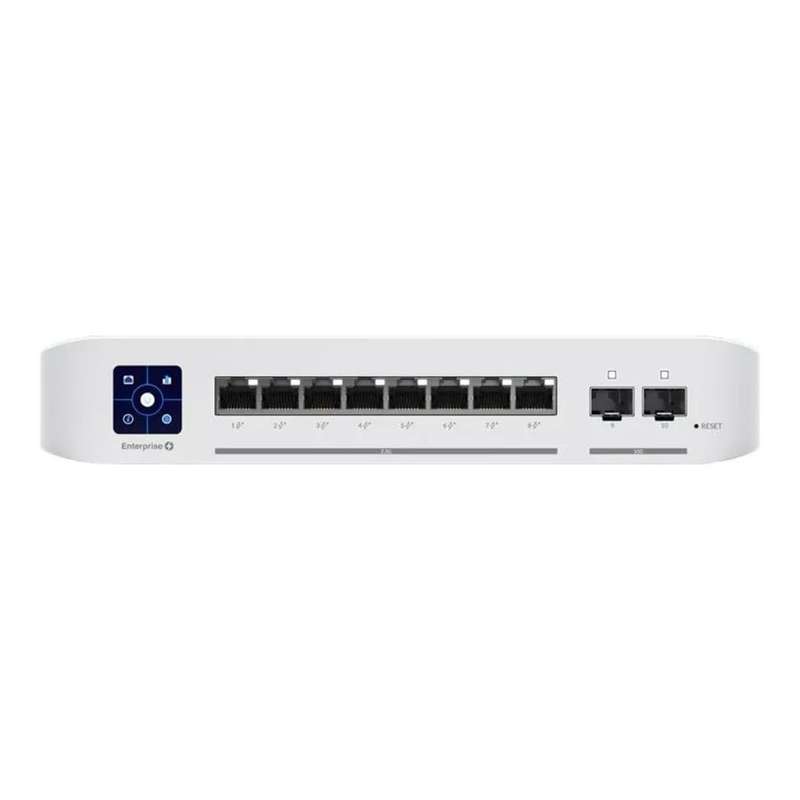

Ubiquiti UniFi Enterprise 8-port 120W PoE Network Switch
Ubiquiti's USW-E8P is an 8 port, fully managed Layer 3 switch with 8x 2.5GbE, 802.3at PoE+ ports, 2x 10Gbps SFP+ ports and a PoE budget of 120W. The switch includes a wall mount kit and features a 1.3" LCM colour touchscreen to display key system and connection information.
It can be configured and managed with the UniFi Network Application.
Technical Specifications:
Port Layout
2.5 GbE RJ45: 8 (All PoE+) (2.5G/1G/100M)
10G SFP+: 2 (10G/1G)
Max. PoE Output
Up to PoE+
Total PoE Availability: 120W
Layer 3
âœ"
Form Factor
Compact desktop
Performance
Switching Capacity: 80 Gbps
Total Non-Blocking Throughput: 40 Gbps
Forwarding Rate: 60 Mpps
Supported VLANs: 1,000
MAC Address Table Size: 16,000
L3 Table Size:
ARP Entries: 512
IPv4 Routes: 512
Packet Buffer Size: 1.5 MB
Access Lists: IPv4: 12, MAC: 10
Layer 3 Features
DHCP Server (Local Networks): âœ"
Inter-VLAN Routing (Local Networks): âœ"
Static Routing (Local Networks): âœ"
Layer 2 Features
LACP Port Aggregation: âœ"
STP & RSTP: âœ"
Advanced IGMP Configuration (Querier, Fast Leave, Router Port): âœ"
IGMP Snooping: âœ"
802.1X Control: âœ"
MAC-Based ACLs & Device Isolation: âœ"
DHCP Snooping & Guarding: âœ"
Egress Rate Limit: âœ"
Flow Control: âœ"
Storm Control: âœ"
Multicast & Broadcast Rate Limiting: âœ"
MAC Address Blocking: âœ"
IP-Based ACLs & Network Isolation: âœ"
MAC-Based Port Restriction: âœ"
Port Isolation: âœ"
Port Mirroring: âœ"
Jumbo Frames: âœ"
LLDP-MED: âœ"
Voice VLAN: âœ"
Loop Protection: âœ"
Hardware
PoE Ports: 8 (PoE+)
Max. PoE Wattage per Port by PSE: 32W
Max. Power Consumption: 30W (Excluding PoE Output), 150W (Including PoE Output)
Power Method: Universal input, 100—240V AC, 50/60 Hz
Power Input Method: AC input
Power Supply: AC/DC, internal, 150W
Supported Voltage Range: 100—240V AC
Management: Ethernet
Heat Dissipation (Excluding PoE Output): 102.36 BTU/hr
Weight: 2.4 kg (5.3 lb)
Enclosure Material: Polycarbonate
Mount Material: Polycarbonate
Supported Rack Depth: 400~1200 mm (15.7—47.2")
LCM Display: 1.3" touchscreen
ESD Protection: Air: ±16kV, Contact: ±12kV
Ambient Operating Temperature: -5 to 45°C (23 to 113°F)
Ambient Operating Humidity: 10 to 90% noncondensing
NDAA Compliant: âœ"
Certifications: CE, FCC, IC, Anatel
Dimensions
200 x 248 x 44 mm (7.9 x 9.8 x 1.7")
