Ubiquiti UniFi Outdoor Dual Band AC Mesh UAP-AC-M | UAP-ACM

Please check stock availability before placing order

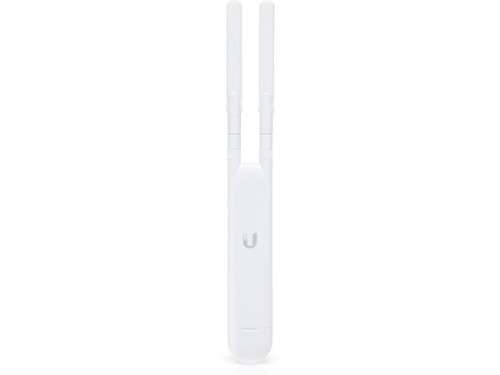

The UniFi AC Mesh AP can be used indoors or outdoors and can be mounted on a wall, pole, or fast-mount of a Ubiquiti high-gain antenna. The UniFi AC Mesh AP is compatible with 802.3af PoE Alternative A and 24V passive PoE. You can power it with an 802.3af Alternative A compatible switch, EdgePoint™ EP-R6, UniFi PoE Switch, or a Gigabit PoE adapter.

Use the included omni antennas, or use the included fast-mount adapter to install the AP on an optional connectorized antenna for expanded range coverage and customized pattern shaping.

Specifications:

Networking Interface: (1) 10/100/1000 Ethernet Port
Buttons: Reset
Power Method: 24V Passive PoE (Pairs 4, 5+; 7, 8 Return); 802.3af Alternative A (Pairs 1, 2+; 3, 6 Return), Supported Voltage Range: 44 to 57VDC
Power Supply: 24V, 0.5A Gigabit PoE Adapter
Power Save: Supported
Maximum Power Consumption: 8.5W
Antennas: (2) External Dual-Band Omni Antennas, 2.4 GHz -3 dBi and 5 GHz - 4 dBi
Wi-Fi Standards: 802.11 a/b/g/n/ac
Wireless Security: WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES)
BSSID: Up to Four per Radio
Mounting: Wall/Pole (Pole Kit Included)
Operating Temperature: -30 to 70° C
Operating Humidity: 5 to 95% Non-condensing
VLAN: 802.1Q
Advanced QoS: Per-User Rate Limiting
Guest Traffic Isolation: Supported
WMM: Voice, Video, Best Effort, and Background
Concurrent Clients: 250+
Dimensions: 353 x 46 x 34.4 mm
Weight: 152 g
