Brand New & Sealed with Manufacturer Warranty

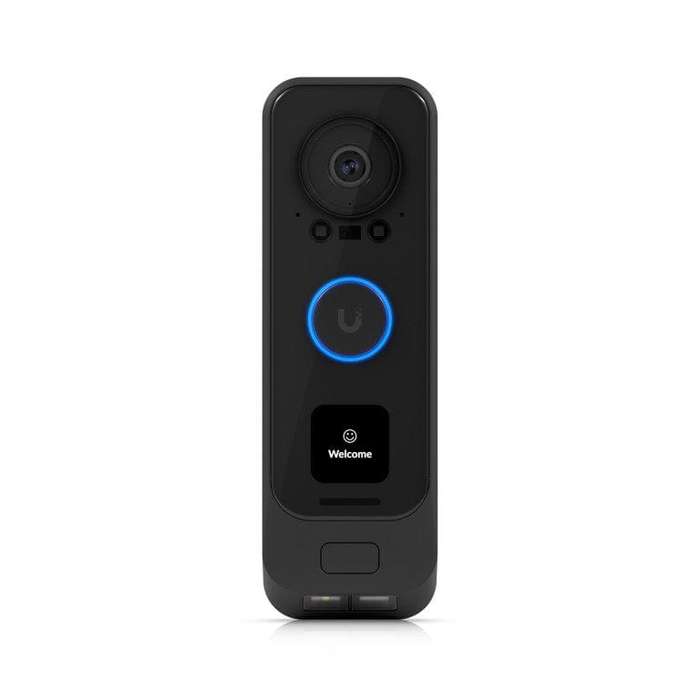

Ubiquiti UniFi Protect UVC-G4 Doorbell Pro PoE Kit
This is your premium UniFi doorbell with integrated PoE and included PoE chime for plug-and-play installation.
Features
Technical Specification
Optics
Sensor Main camera: 5MP CMOS
Package camera: 8MP CMOS
Lens: Fixed focal length
View angle Main camera: H: 138°, V: 114°, D: 155° (LDC On)
Main camera: H: 160°, V: 117°, D: 160° (LDC Off)
Package camera: H: 97.5°, V: 79.4°, D: 118.2°
Night mode: Built-in IR LED illumination and IR cut filter
Video
Resolution Main camera: 2MP 1600 x 1200 (4:3)
Package camera: 2MP 1600 x 1200 (4:3)
Max. frame rate: 30 FPS
System
Processor: Quad-core Arm Cortex-A53 based chip
Networking interface UVC-G4 Doorbell Pro: GbE RJ45 port
UP-Chime PoE: 10/100 Mb Ethernet port
Power method: PoE
Supported voltage range UVC-G4 Doorbell Pro: 37—57V DC
UP-Chime PoE: 44—57V DC
Max. power consumption UVC-G4 Doorbell Pro: 7W
UP-Chime PoE: 3.5W
LED: Link/activity
Buttons: 1x Ring button, 1x Factory reset
Audio
Microphone: Yes (Can be disabled for the Doorbell)
Speaker: Yes
Buzzer: Yes (UP-Chime PoE)
Mechanical - Dimensions
UVC-G4 Doorbell Pro
Device: 160.6 x 51.7 x 35.1 mm
Wall mount: 159.3 x 50.3 x 17.5 mm
Wedge: 161.1 x 52.1 x 25.7 mm
On-wall mount: 161.1 x 52.1 x 25.75 mm
UP-Chime PoE
Device: Ø62 x 54 mm
In-wall mount: Ø89 x 63.1 mm
On-wall mount: Ø62 x 20.2 mm
UP-Chime PoE
Device: 158 g
In-wall mount: 91 g
On-wall mount: 28 g
Enclosure material: Aluminum alloy, polycarbonate
Mount material
Weatherproofing: IPX4 (UVC-G4 Doorbell Pro)
Colour: Black, White
