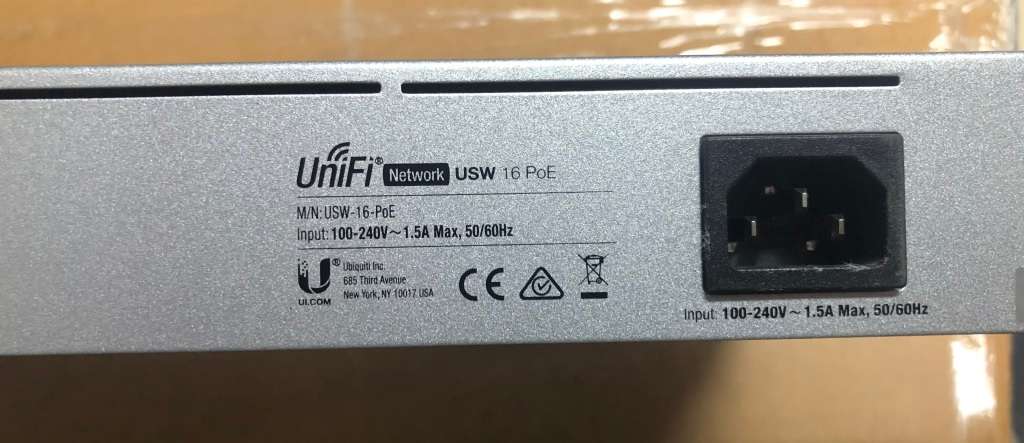

Ubiquiti - Unifi USW-16-POE (42w)

Very good condition just a mark or two from installation and use.

Technical Specifications

Mechanical

Dimensions    442 x 200 x 44 mm (17.4 x 7.9 x 1.7")

Weight Without mounting brackets: 2.8 kg (6.2 lb)

With mounting brackets: 2.9 kg (6.4 lb)

Enclosure material     SGCC steel

Hardware

Management interface           Ethernet In-Band

Networking interface (16) GbE RJ45 ports

(2) 1G SFP ports

PoE interface (8) PoE/PoE+ (Pins 1, 2+; 3, 6-)

Total non-blocking throughput           18 Gbps

Switching capacity     36 Gbps

Forwarding rate            26.78 Mpps

Power method              Universal input, 100240V AC, 50/60 Hz

Power supply  AC/DC, internal, 60W

Supported voltage range        100240V AC

Max. power consumption      18W (Excluding PoE output)

Total available PoE     42W

Max. PoE wattage per port by PSE    PoE+: 32W

Voltage range PoE mode        PoE: 4457V

PoE+: 5057V

ESD/EMP protection  Air: ± 16kV, contact: ± 12kV

LCM display    (1) 1.3" touchscreen

Button Factory reset

Shock and vibration   ETSI300-019-1.4 Standard

Ambient operating temperature        -5 to 40° C (23 to 104° F)

Ambient operating humidity 10 to 90% noncondensing

Certifications CE, FCC, IC

Switching Features

Layer 2 features           IGMP snooping

STP / RSTP with priorities and port-level disable

Port isolation

Storm control

Voice VLAN

Port mirroring

LACP port aggregation

Multicast / broadcast rate limiting

MAC address blocking

Flow control

802.1X control

Jumbo frames

Proprietary loop protection

DHCP snooping / guarding

Egress rate limit

LLDP-MED

Port restricted by MAC

Device isolation with ACLs

Layer 3 features

LEDs

System              Status

Ethernet            PoE

Speed/link/activity

SFP       Link/activity
