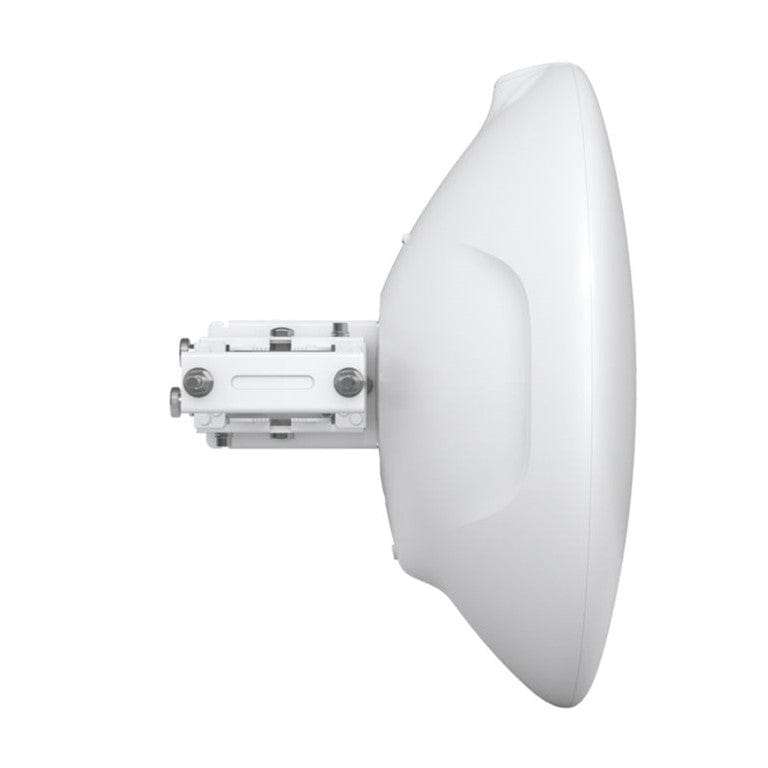

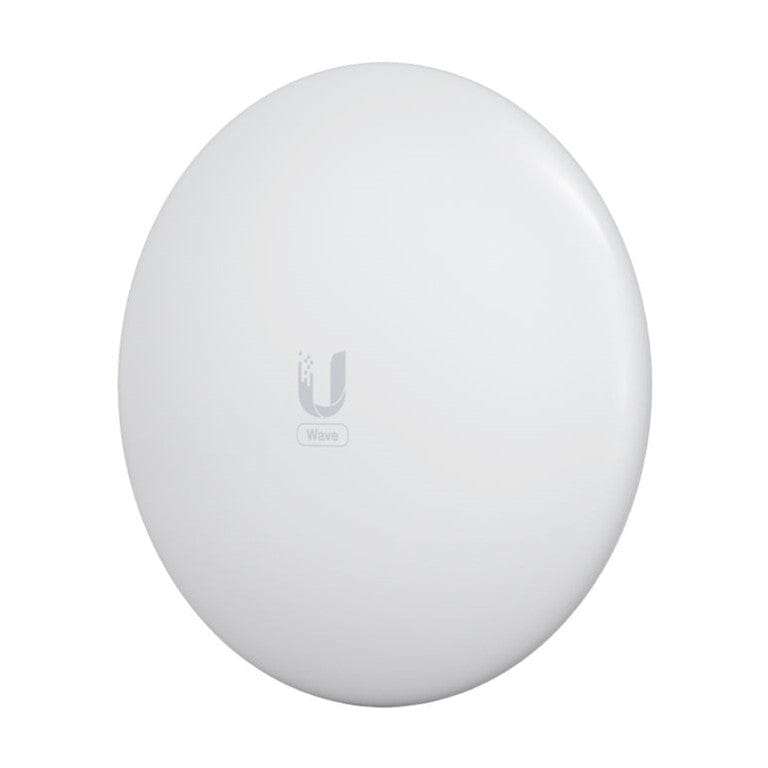

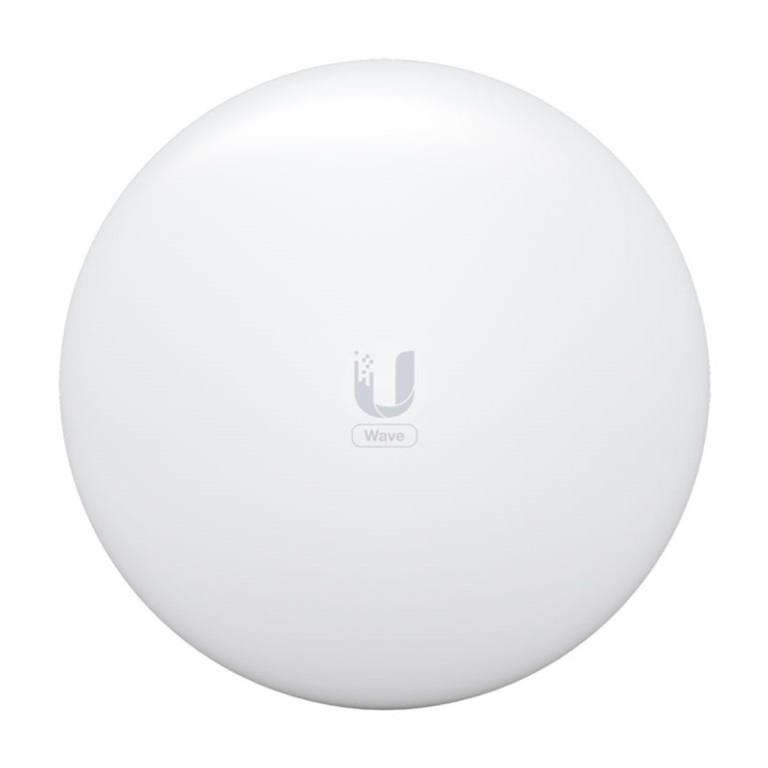

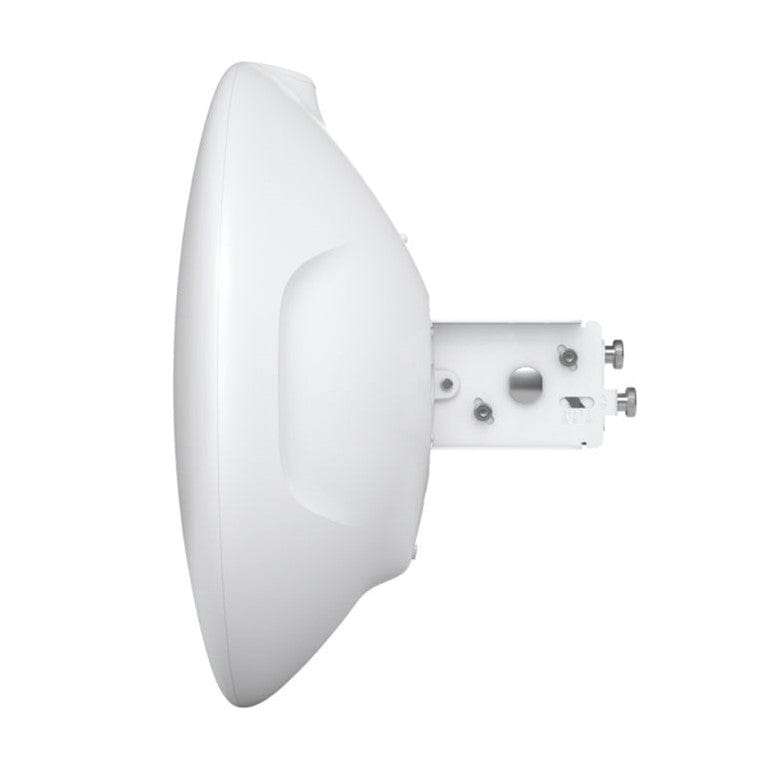

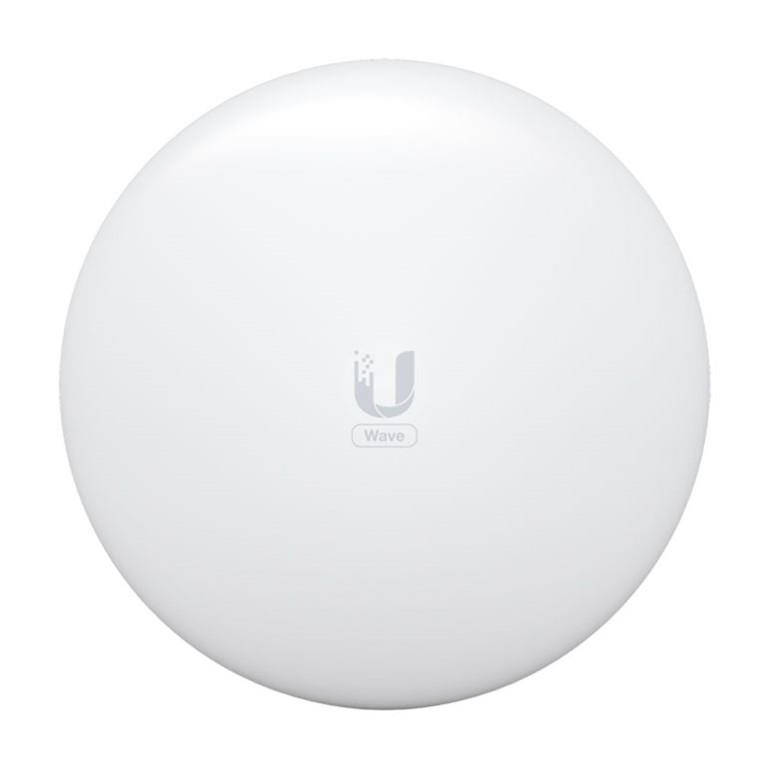

Ubiquiti Wave Long-Range 60GHz PtMP Client Radio Station WAVE-LR
60GHz PtMP station powered by Wave Technology.
Features
- Max. link range: Wave AP: 8 km
- Max. link range: Wave AP Micro: 6 km
- Max. throughput: 2 Gbps (1 Gbps duplex)
- 5GHz weatherproof backup radio (Max. throughput: 800 Mbps)
- 1x GbE RJ45 port
- Precision alignment mount
- Integrated GPS & Bluetooth
Technical Specification
Enclosure material: UV stabilized plastic
Mount material: Stainless steel
Pole mount diameter: 25 to 76.2 mm (1 to 3") on pipe outer diameter
Wind loading: 286 N at 200 km/h (64.3 lbf at 125 mph)
Weatherproofing: IPX6
Processor: Dual-core ARM® Cortex®-A53 at 1 GHz
Memory: DDR3L 512 MB
Networking interface: 1x GbE RJ45 port
Max. power consumption: 20W
Power method
-
Passive PoE 4-pairs (1, 2+; 3, 6-) (4, 5+; 7, 8-)
-
Passive PoE 2-pairs (4, 5+; 7, 8-), for 44—54V DC only
Power supply
Supported voltage range
GPS: Yes
Operating mode
Tools: Antenna alignment, discovery utility, ping, trace route, speed test
Network
Total throughput: 2 Gbps (1 Gbps duplex)
Max. range: 8+ km
RF
Operating frequency*: 57-71 GHz (*Depends on regulatory region.)
Channel bandwidth: 2160, 1080 MHz
Operating channels*: 58320, 59400, 60480, 61560, 62640, 63720, 64800, 65880, 66960, 68040, 69120, 70200 MHz (*Depends on regulatory region.)
Modulation: 16QAM, QPSK
Antenna gain: 46 dBi
Polarization: Vertically linear
Beamwidth
-
Azimuth: 3 dB 1°
-
Elevation: 3 dB 1°
Back-Up RF
WiFi standard: 802.11ax (WiFi 6)
Operating frequency*: 5150 - 5875 MHz (*Depends on regulatory region.)
Channel bandwidth: 20, 40, 80 MHz
Modulation: BPSK (12), QPSK (12), QPSK (34), 16QAM (12), 16QAM (34), 64QAM (23), 64QAM (34), 64QAM (56), 256QAM (34), 256QAM (56), 1024QAM (34), 1024QAM (56)
Antenna gain 22 dBi
Polarization Dual-linear
Beamwidth
-
Azimuth: 3 dB 8°
-
Elevation: 3 dB 8°
Cross-pol isolation: 20 dB
