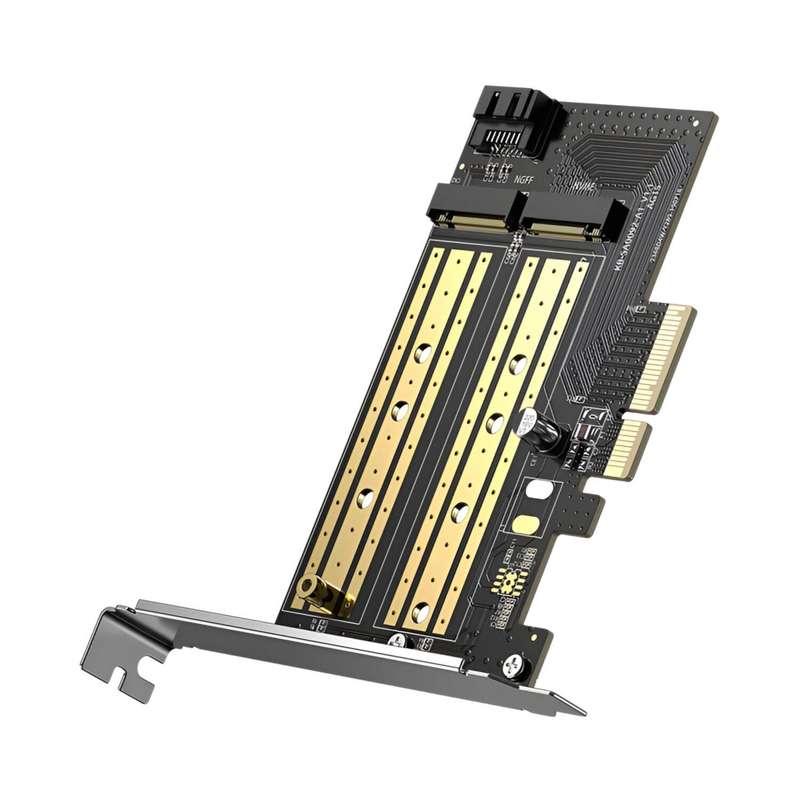

UGREEN CM302 M.2 M/B-Key to PCI-E 3.0 Expansion Card

FEATURES:

Dual SSD compatibility: Supports both NVMe (M-Key) and SATA (B-Key) M.2 SSDs

PCIe 3.0 x4 high-speed interface: Enables data transfer speeds up to 32Gbps (NVMe) and 6Gbps (SATA)

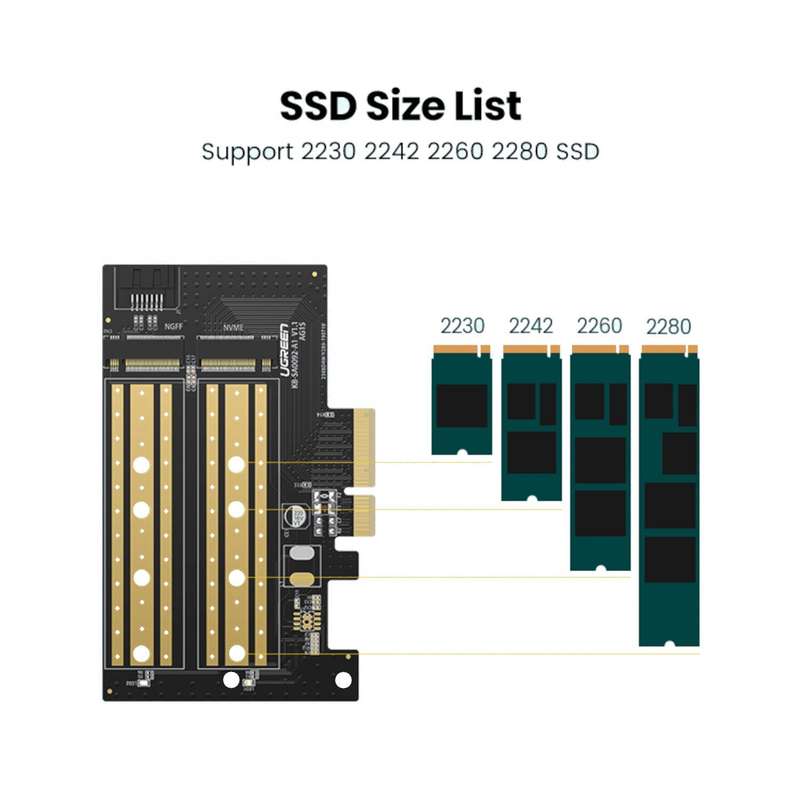

Broad SSD support: Compatible with M.2 SSD form factors 2230, 2242, 2260, and 2280, ensuring wide-ranging upgrade options.

Seamless system integration: Works with Windows and Linux operating systems

Premium Build Quality: Constructed with high-quality PCB materials

Enhanced cooling efficiency: Open-frame design allows for effective heat dissipation

Extended Compatibility: Works with PCIe 3.0 motherboards and is backward compatible with PCIe 2.0 and 1.0 slots

SATA Cable Included: Comes with a 0.5m SATA cable for easy SATA SSD integration

SPECIFICATIONS:

Input: M.2 M-Key (NVMe SSD), M.2 B-Key (SATA SSD)

Output: PCIe 3.0 x4, 7-Pin SATA Connector

Supported SSDs: M.2 NVMe & SATA SSDs (2230/2242/2260/2280)

Data Transfer Speeds:

PCIe NVMe: Up to 32Gbps

SATA: Up to 6Gbps

Compatibility: Windows, Linux

PCB Dimensions: L11.68 x W7.4 cm

Baffle Panel Length: 119mm

SATA Cable Length: 50cm

Power Requirements: Draws power directly from PCIe slot (no external power needed)

Build Material: High-quality PCB and metal components for durability

WHATS IN THE BOX:

UGREEN CM302 M.2 M/B-Key to PCI-E 3.0 Expansion Card x1
