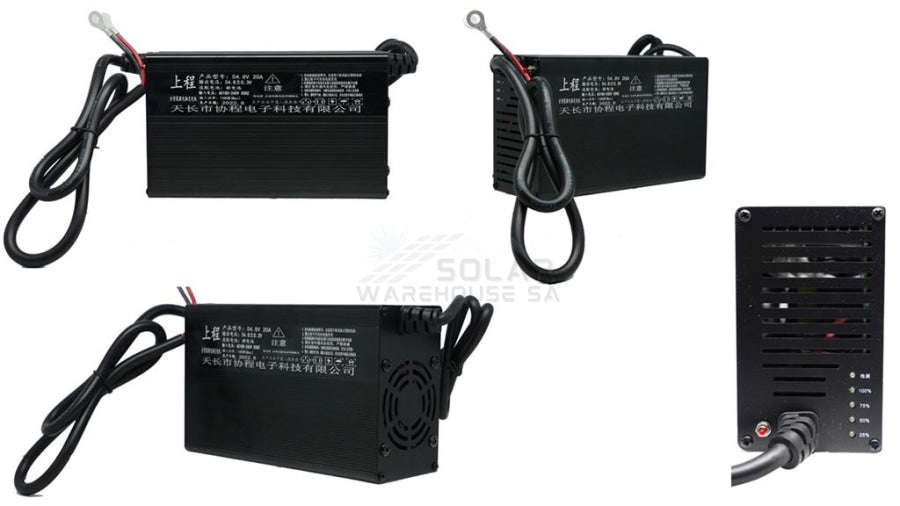

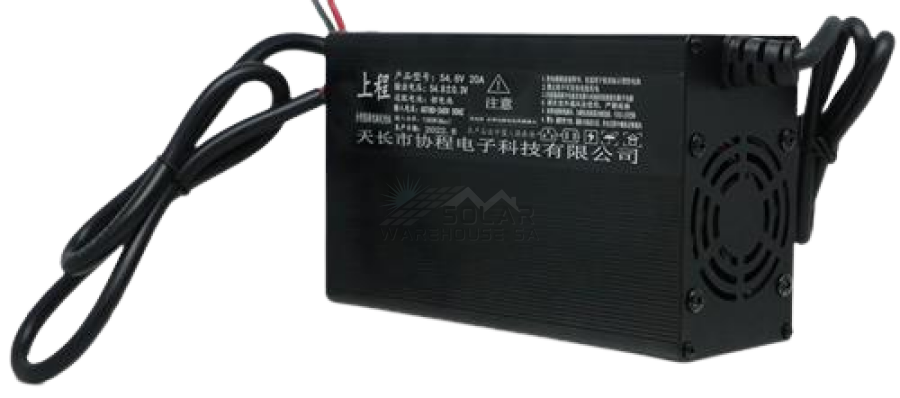

Ultra Power 24V 20A Lithium Ion Phosphate Battery Charger-4 Steps Charging, Maximum Charging Output Voltage (CV) 29.2V, Maximum Output Current (CC): 20 Amps, AC Input Voltage 220VAC, AC Input Frequency 50 Hz, Input Power 600W Maximum, Lightweight Aluminum Casing With Ventilation Fan, 2x Round 8.2mm Output Connector Lugs, Color Black, Retail Box, 1 Year Limited Warranty
Product Overview
The Ultra Power 24V 20 A Lithium Ion Phosphate Battery Charger is designed to optimize the performance and lifespan of Lithium Ion Phosphate (Lifepo4) batteries and can safely achieve a 100% State of Charge. This 24V 20 A battery charger operates from mains AC 220-240V as input, supplying up to 20A charging output suitable for nominal 24V LiFePO4 battery banks. The charger's built-in protection technology provides protection against Over Voltage and Over Current output, Short Circuit making it very safe to use. With energy efficiency > 85%, the charger produces less heat, delivers more energy and allows faster charging around 2 hours .The Lightweight Aluminum Casing is equipped with active ventilation fan system that allows the charger to be used in harsh environments or hot climates
Highlights
Ultra Power Lithium Ion Phosphate Battery Charger
4 Steps Charging
Maximum Charging Output Voltage(CV) 29.2V
Maximum Constant Output Current (CC): 20 Amps
AC Input Voltage 220VAC Max 240VAC
AC Input Frequency 50 Hz
Power Efficiency >85% At Full Load
Output Power 600W Maximum Output
Lightweight Aluminium Casing With Ventilation Fan
2x Round 8.2mm Output Connector Lugs
Specifications
Stock Code SOLUPLIBC
Description Ultra Power Lithium Ion Phosphate Battery Charger
Product Type 4 Steps Charging System
Input Voltage Min 220VAC to Max 240VAC
Output Power 600W Maximum Output
Constant Charge Voltage Max 29.2VDC
Constant Current 20A
Charge Complete Current VDC Min 1.2A to Max 1.8A
Power Efficiency >85% At Full Load
Colour Black
Dimensions Length 150mm x W-80mm x H-70mm
Weight 2.0Kg
