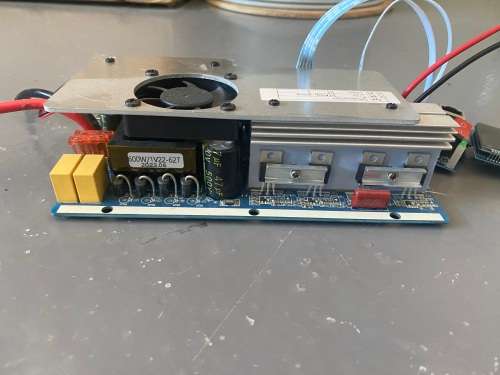

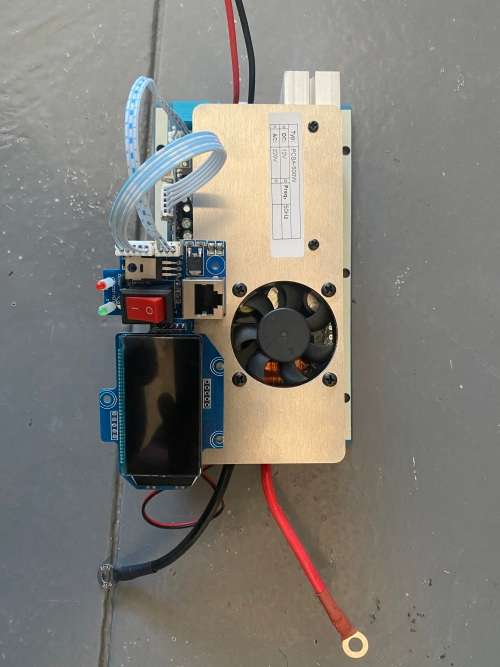

Model:PCBA-500W PCBA-500W Inverter Board | FEATURES: Pure sine wave output (THD < 3%) R Load Rated power:500W Peak power:1000W Output: AC 220V / 110V Frequency: 50Hz / 60Hz Efficiency:88%-92% No load power consumption 6.9W High conversion efficiency technology IC intelligent protection function Smart Fan Protection System Explosion-proof capacitors Original imported MOS tube Buzzer reminder device Fully automatic patch | ||||
SPECIFICATION | |||||
Output | Rated Power | 500W | |||
Peak Power | 1000W | ||||
Output Voltage adjustment | 100 ~120V | 200 ~ 240V | |||
Frequency | 50/60Hz ± 0.05% | ||||
Output Waveform | R Load Pure Sine Wave < 3% THD | ||||
Output protection | Overload, Overheat, Short circuit | ||||
Efficiency (full load) | 88% | 88% | 90% | 90% | |
No-load power consumption | 6.9W | ||||
Input | Input Voltage | 12V | 24V | 12V | 24V |
Input Voltage Range | 10-16 VDC | 20-32 VDC | 10-16 VDC | 20-32 VDC | |
DC Input over voltage alarm | 15.5VDC | 31VDC | 15.5VDC | 31VDC | |
DC Input over voltage shut-down | 16.0VDC | 32.0VDC | 16.0VDC | 32.0VDC | |
DC Input under voltage alarm | 10.5VDC | 21.0VDC | 10.5VDC | 21.0VDC | |
DC Input under voltage shut-down | 10.0VDC | 20.0VDC | 10.0VDC | 20.0VDC | |
Input Protection | Undervoltage, Overvoltage, Reverse connection | ||||
Others | Battery compatible | Complies with CE/IEC62109-1-2 | |||
Operating Temperature Range | -20 to 50 | ||||
Storage Temperature Range | -20 to 60 | ||||
Cooling | Loading and Temperature controlled cooling fan | ||||
Size of product | 18.2cm ×10.5cm × 4.7cm | ||||
Net weight of product | 0.65kgs | ||||
Gross weight of product | 0.8kgs | ||||

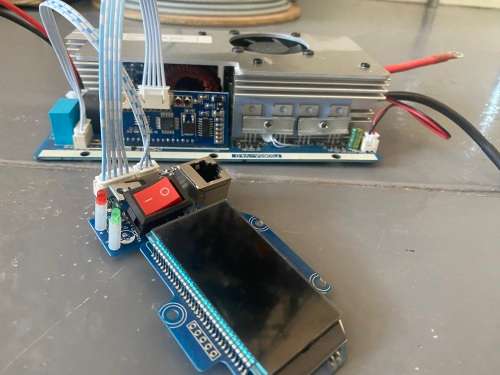

LCD screen Included | |||||
