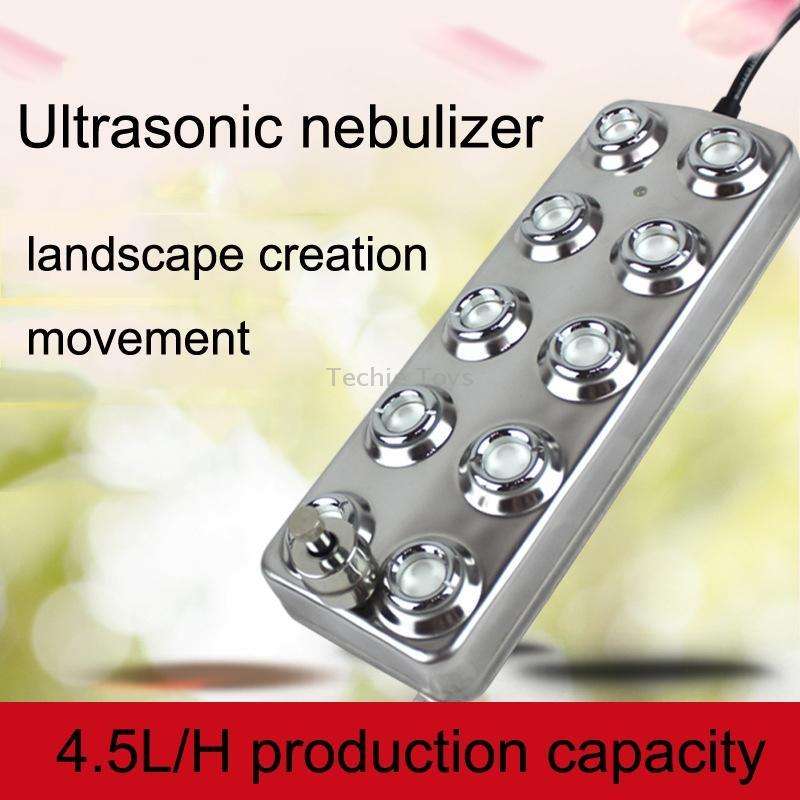

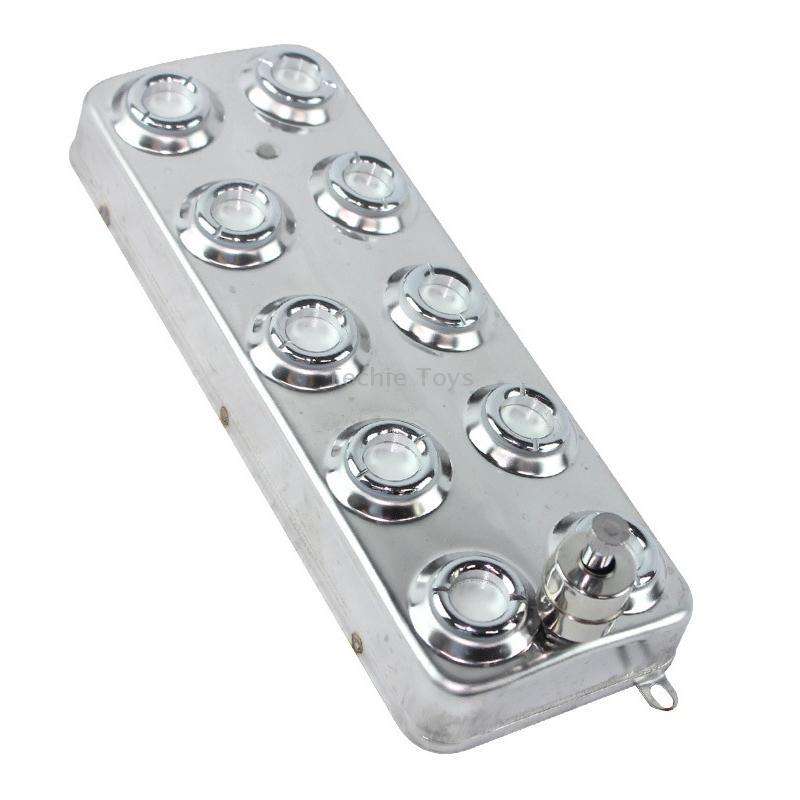

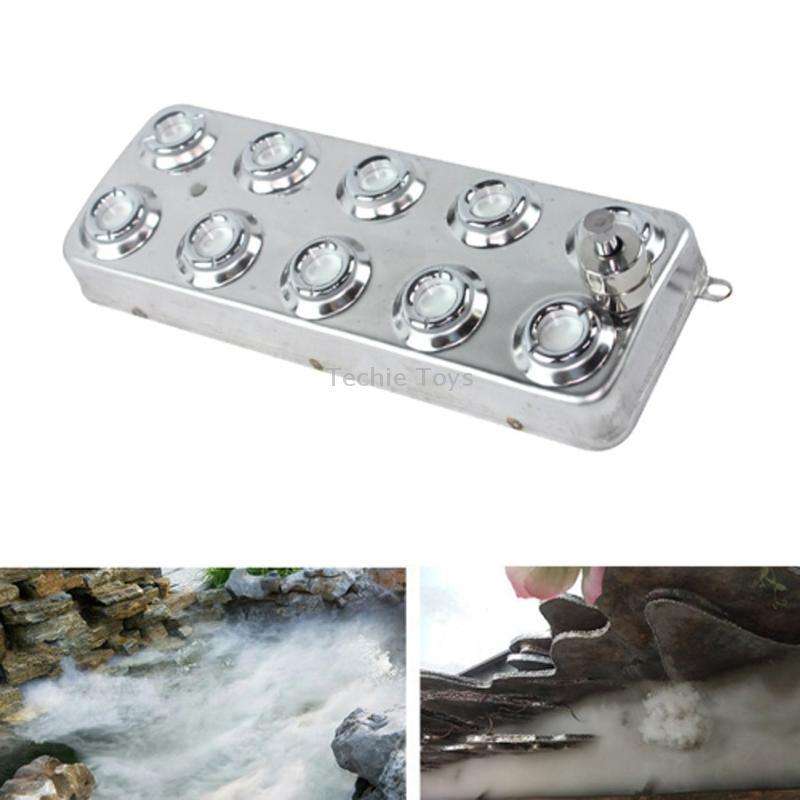

Ultrasonic Atomization Accessories 10 Heads Fog Maker Landscape Large Fog Volume Humidifier Atomization Plate

1. Application: Humidification
2. Number of coils: 10
3. Working temperature: 1-55 degrees Celsius
4. Atomization volume: 4.5L/H
5. Function: over temperature protection
6. Life of atomizing sheet: 5000 hours
7. Input voltage: DC 48V
8. Input current: 4.6-5A
9. Input power: 250W
10. Working water level: 60-80MM
11. Cable length: 1.4-2M

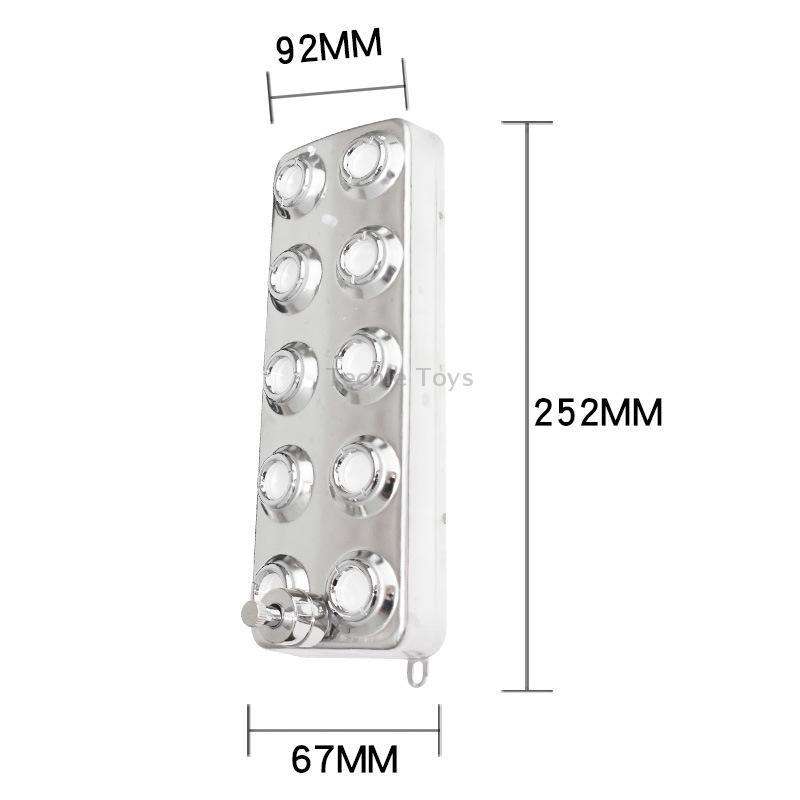

12. Size: 25.2 x 6.7 x 9.2CM
13. Weight: 1.65KG

Equipped with power parameters:
1. Input voltage: AC 220V/50HZ 110V/60HZ
2. Output power: 350W/3.7A
3. Output voltage: DC 48V

Features:
1. White epoxy glue, one-time glue filling waterproof penetration

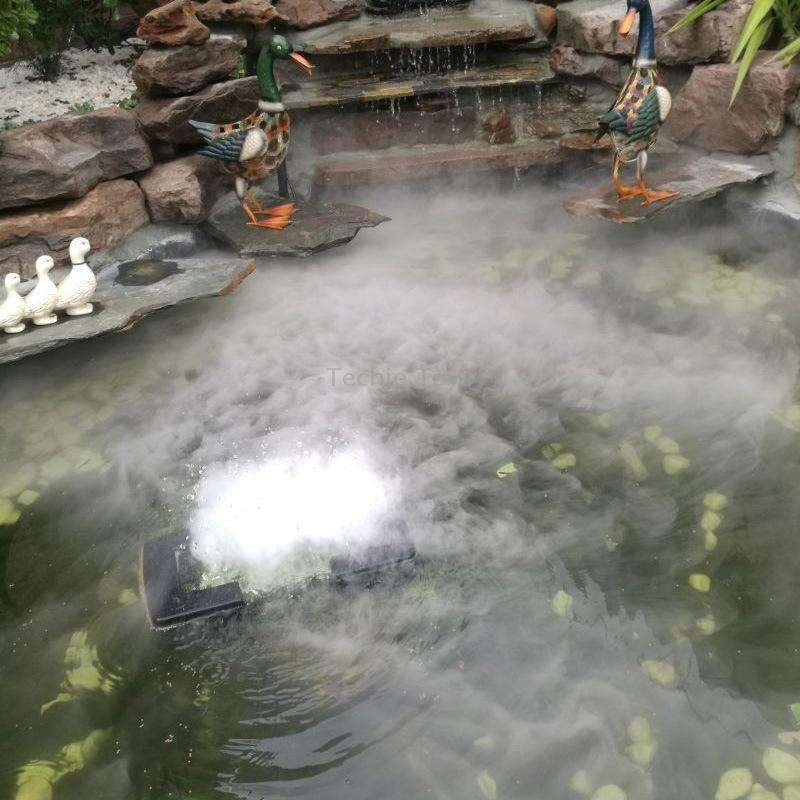

2. Suitable for rockery landscaping, pond atomization, industrial humidifiers, and other humidification equipment

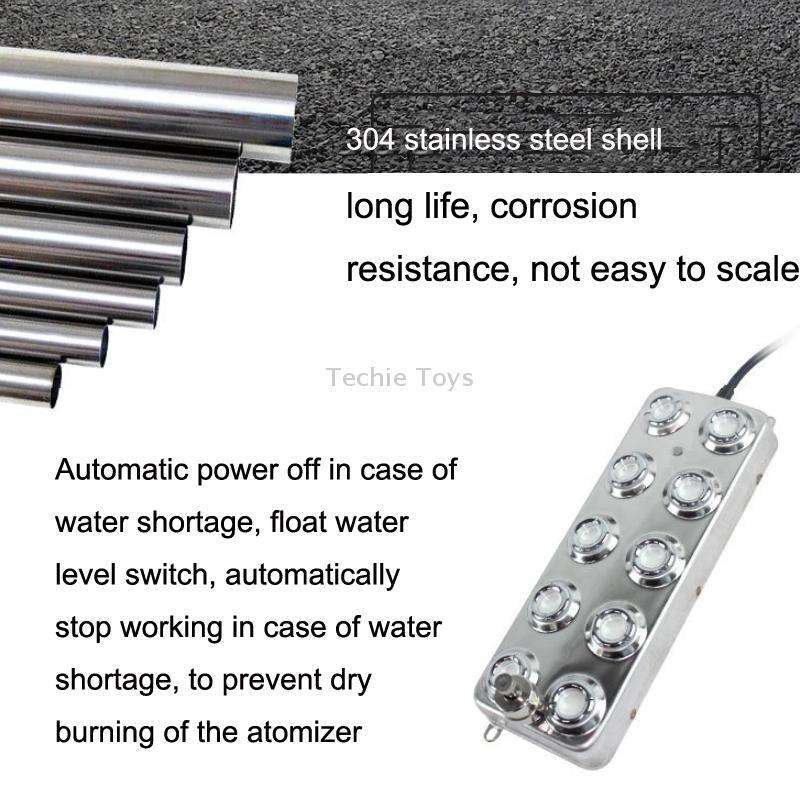

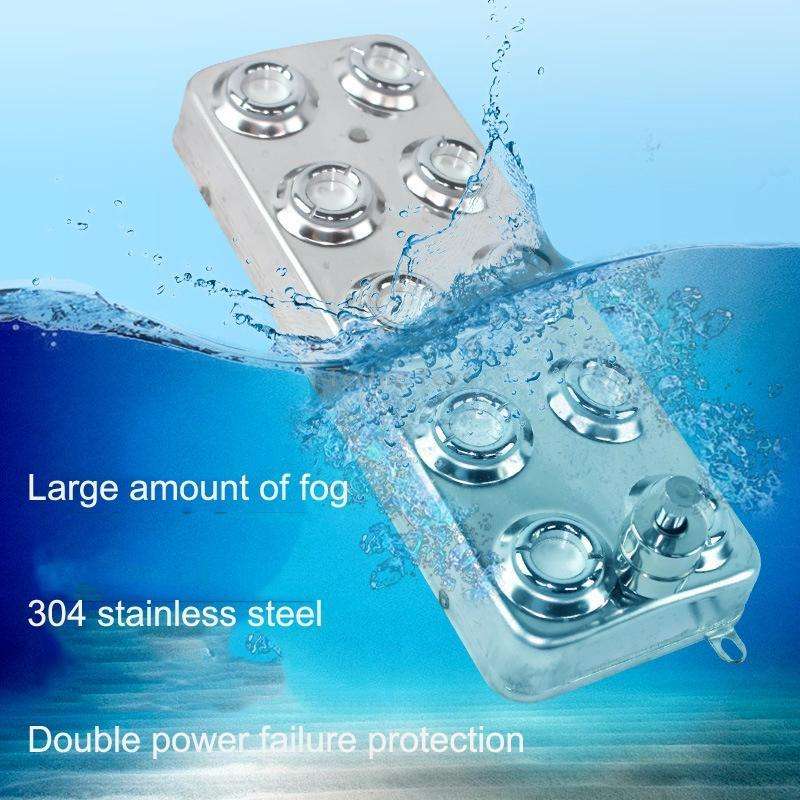

3. 304 stainless steel shell, long life, corrosion resistance, not easy to scale
4. Automatic power off in case of water shortage, float water level switch, automatically stop working in case of water shortage, to prevent dry burning of the atomizer

Instructions to use:
1. Connect the atomizer and switching power supply well
2. Put the nebulizer into the water and turn it on to work normally
3. The water surface is 1cm above the sensor
