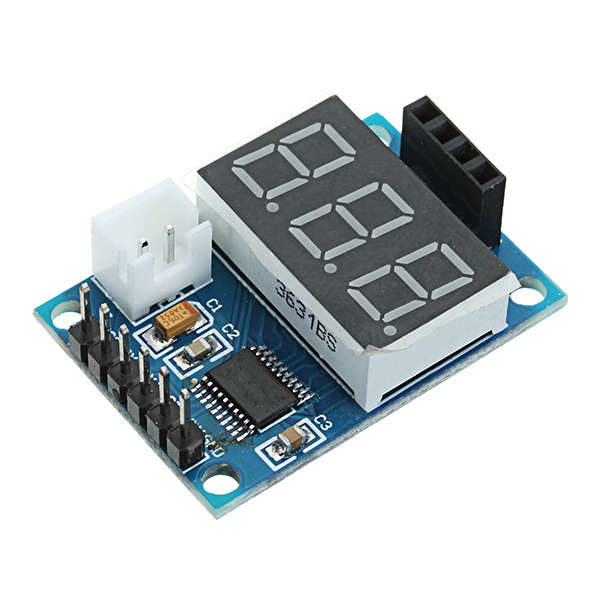

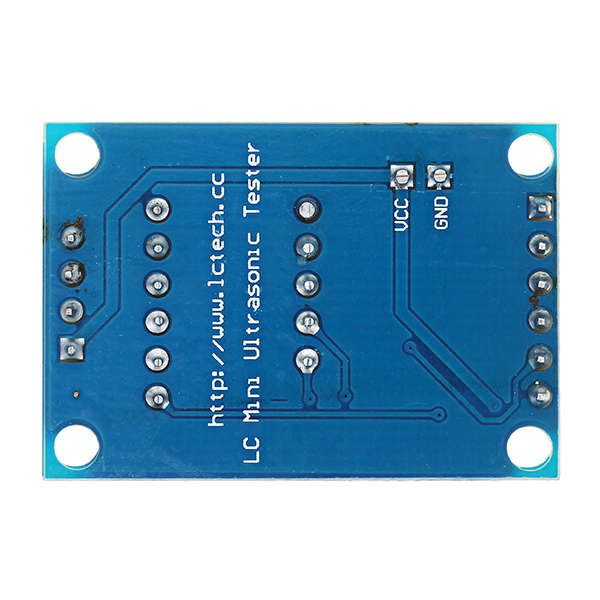

Ultrasonic Distance Measurement Control Board HC-SR04 Test Board Rangefinder Digital Display Serial

Features:

Onboard STM8S103 high-performance microprocessor
With digital display
Data can be output through the serial port
Effective measuring distance: 3cm - 400cm
Display unit: cm
The biggest error: about 1%
Working voltage: 5V
Test Board size: 24.2x35.1mm

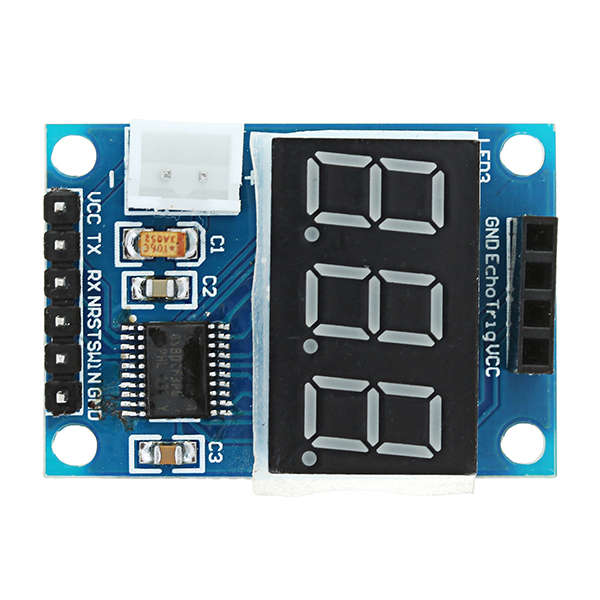

Interface Description:

VCC, GND: 5V power interface
2.54mm white socket: 5V power supply interface
TX: module serial port to send foot
RX: module serial port receive pin
NRST, SWIN: reserved STM8 program download port

Instructions for use:

Measurement distance can be displayed simultaneously through the digital tube and serial port
Digital display, directly plug in the ultrasonic module, access 5V power supply
Serial port output: plug in the ultrasonic module, the module`s VCC, TX, RX, GND are connected to USB to TTL module 5V, RX, TX, GND, serial communication baud rate 9600, the output format: D: XXX r n , Where XXX represents the distance, the unit is CM

Precautions:

Ranging, the measured object area of not less than 0.5 square meters and should be as flat as possible and slightly stronger reflective ability, otherwise it will affect the test results.
Effective measuring distance 3cm-400cm, beyond this range may result in data is not allowed or display 000

Package included:

1 x Ultrasonic Distance Measurement Control Board
