SELECTED OPTION:
VOLTAGE: 12V
Features: ? 1. The CB-001-V2 ultrasonic ranging three-in-one module is designed using non-contact test ultrasonic detection technology. The product can accurately detect the distance from a flat?object in the range of 1cm to 600cm, and can accurately measure people in the range of 1cm to 230cm. 2. This product can match a variety of ultrasonic ranging modules with serial port output, can customize the actual practical measurement range (with digital tube display) and realize the relay normally open and closed dual output.
Specifications: ?
| Parameter | specification | Unit ? | remark |
| ? | Minimum value | Typical value | Maximum |
| Input voltage | 10 | 12/24 | 30 | V | DC |
| Input Current | ? | 35 | ? | MA | At 24V |
| output voltage | ? | 5 | ? | V | ? |
| Data port level | ? | 5 | ? | V | TTL |
| Relay drive voltage | - | 110 | 220 | V | AC |
| Relay drive current | ? | 5 | 6 | A | ? |
| Digital tube display range | 20 | 100/200 | 600 | CM | (1) |
| Precision | ? | 1 | 2 | cm | (2) |
| Measuring angle | ? | ? | 8 | ? | (3) |
Remarks:
(1) Adjustable range is 22cm-600cm
(2) The farther the measurement distance is, the larger the error is, which basically conforms to the linear proportional relationship.
(3) Measuring angle characteristics such as the following wave speed map
?
Applications: ? 1. Horizontal ranging; 2. Obstacle avoidance and automatic control; 3. The object is close, there is awareness; 4. Traffic control; 5. Security and industrial control; 6. Artificial intelligence, teaching and research. ?
Instructions for Use: ? This product can customize the? trigger range, such as the ultrasonic module detection range 0-800cm, the actual application scenario needs 0-200cm trigger relay output, other measured values are not triggered, can be freely set by the product button. ? The specific Operation is as Following: ? 1. long press the a??Settingsa?? button to flash the digital tube display, enter the upper limit setting mode, and the value displayed by the test digital tube is the upper limit value of the relay trigger.? 2. the setting values are modified by the a??+a?? and a??-a?? keys. Short press the default increase/decrease by 1cm. Long press to continuously increase or decrease. Note that the upper limit of the setting needs to be larger than the dead zone value of the matching module and smaller than the maximum range of the ranging module. ?
Note: ? Detect the starting point, the default is the surface of the probe, and the plane of the bell mouth needs to be reduced by 33mm ?

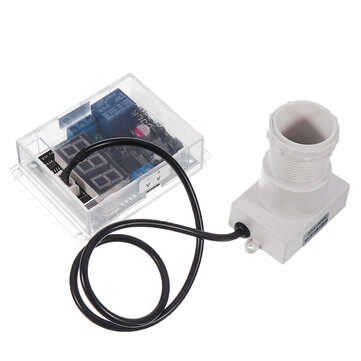

Package Included: ? 1 x 12V/24V DC Ultrasonic Sensor Module 1 x Ultrasonic Sensor Probe
