Elevate your display capabilities with the professional-grade UltraHD 1x4 HDMI Splitter. This powerful device seamlessly transmits a single HDMI signal to up to four HDMI-compatible displays, unlocking a world of enhanced visual possibilities.

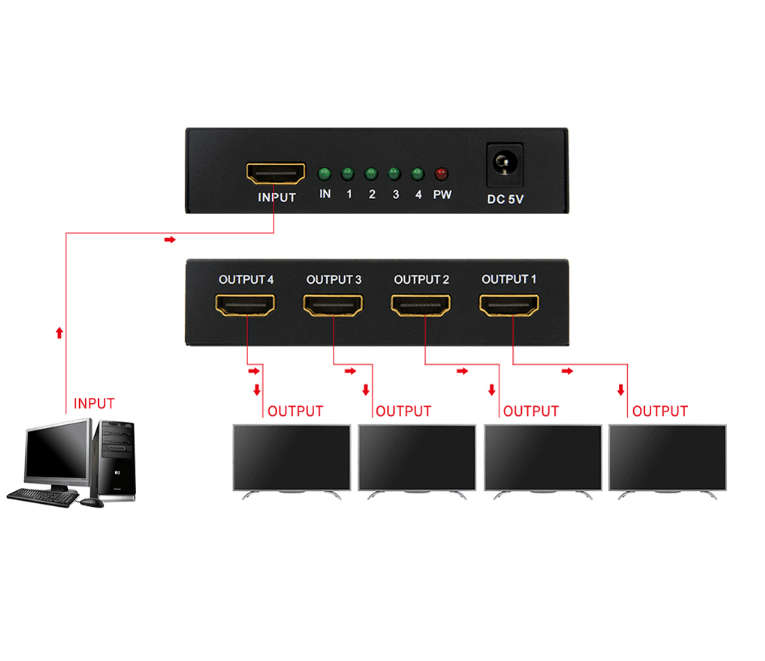

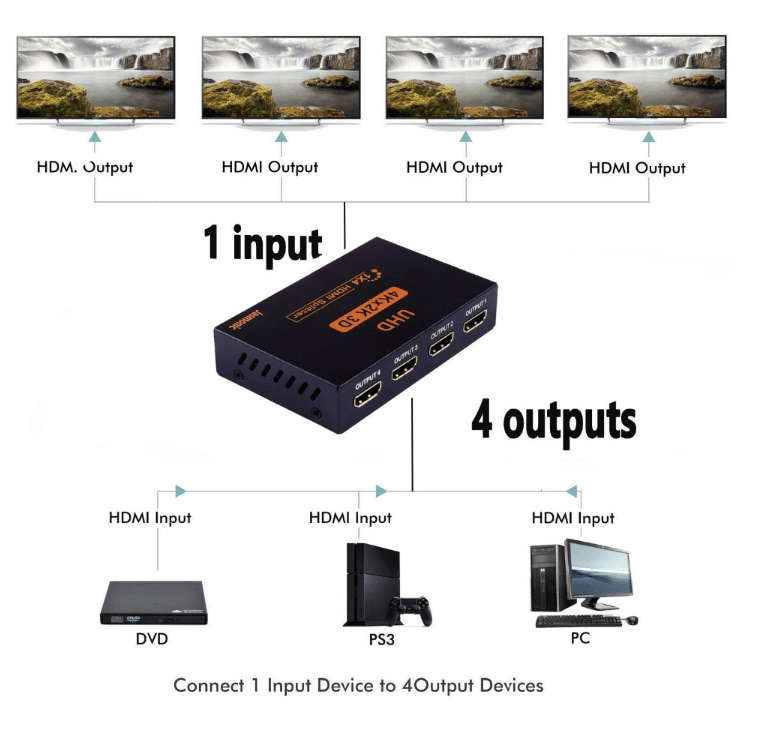

This 1x4 HDMI splitter use a single HDMI source, accessing to multiple HDMI sinks .It allows one HDMI device to be split easily to four HDMI compatible monitors or projectors. In addition, It can also be placed at the end of a long HDMI cable to regenerate the HDMI signal. The resolution of this HDMI splitter can be up to 3840X2160/30HZ.
Create immersive digital signage experiences in retail stores, conference rooms, or event spaces. Share stunning UltraHD content across numerous displays with perfect synchronization. Immerse yourself in cinematic surround with the ability to connect your Blu-ray player, gaming console, or streaming device to multiple TVs or projectors.
FEATURES:
- 1) Support HDMI 1.4b 2.0 version
- 2) Support 3D video format
- 3) Support high resolution up to 4196X2160/30HZ
- 4) Support highest rate of 3.2 G and TMDS clock can be up to 320 MHz
- 5) Support 8/10/12 bit deep color
- 6) Support AWG26 HDMI standard cable: input up to 15 meters,output up to 25 meters.
- (when the resolution is 4K, input up to 12 meters, output up to 15 meters.)

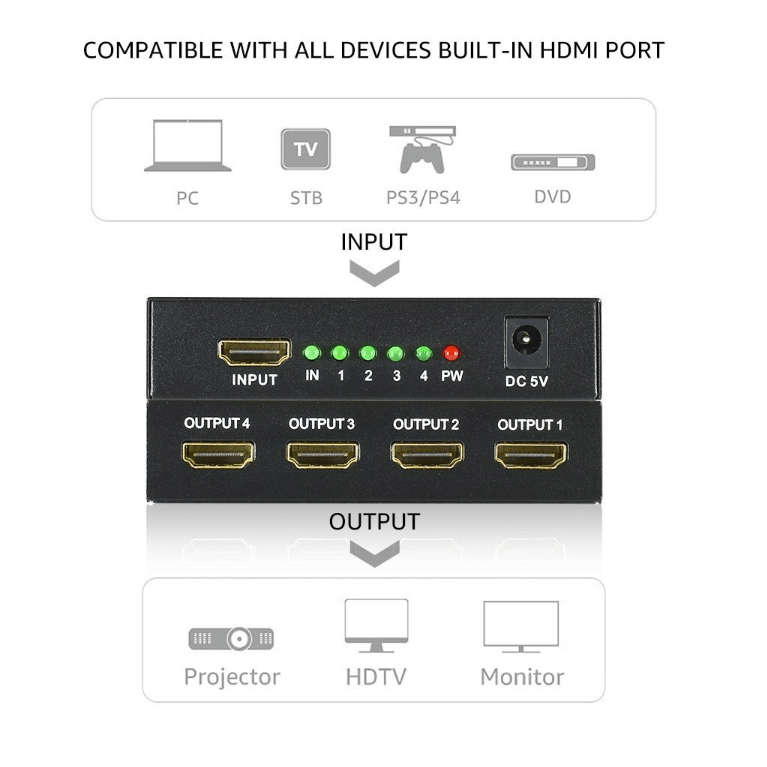

- 7) Support one single HDMI source, accessing to multiple HDMI sinks, the source can be DVD player, A/V receiver, set top box and ect.

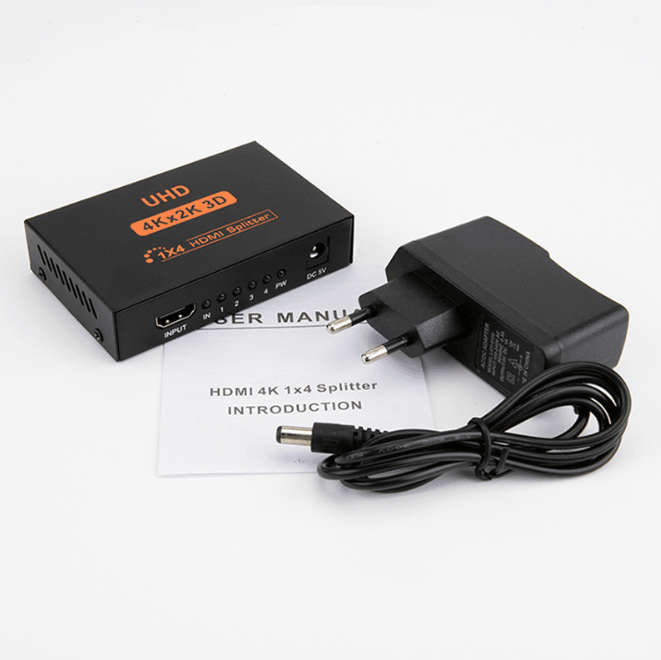

- 8) 5V/1A power adapter
SPECIFICATIONS:
- HDMI version - HDMI 1.4b
- HDMI resolution up to 3840*2160/30Hz
- Support video color format - deep color 8/10/12bit
- Support audio format - DTS-HD/Doby-TRUE-HD/DTS/Dby-AC3/DSD
- Max bandwidth - 320MHz
- Max transmission bandwidth - 3.2Gbps
- Input cable distance - (1080p resolution) 15m,(4K resolution)12m AWG26 HDMI standard cable
- Output cable distance - (1080p resolution) 25m,(4K resolution)15m AWG26 HDMI standard cable
- HDMI input - 1
- HDMI output - 4
- Max working current - 500mA
- Power adapter format Input: AC (50HZ, 60HZ) 100V-240V; Output: DC12V/5A
- Operating Temperature range - (-15 to +55)
- Operating Humidity range - 5 to 90%RH (No Condensation)
- Dimension (L x W x H) - 230x155x60 (mm)
- Weight - 0.54kg
