UNI-T UT123 3999 Counts Residential Multimeter HD ENTB Color Screen AC/DC Current and Voltage Test R

Features:

The UT123 is a pocket-size residential multimeter specially designed for home use. The compact structure makes it easy to hold in one hand, and the EBTN screen allows users to obtain clear readings at maximum angle. The multimeter is designed according to EN61010-1:2010,EN61010-2-030:2010, and EN61326-1:2013 safety standards and is able to safely operate within the CAT III 600V environment.

aThe battery status detection is automatically completed at the moment of booting: The green light indicates the normal state; the yellow light indicates low battery; the red light indicates very low battery, and there is acousto-optic indication at this time. aAutomatic identification of ACV/DCV measurement aIntelligent non-contact electric field detection, which distinguishes the weak electric field by green light, the strong electric field by yellow light, and the super strong electric field by red light aFull featured protection a AC/DC Current and Voltage Resistance/Continuty/NVC/Temperature(C/F) Measure

Specification:

Function	Range	Resolution	Accuracy	Max measured value	Bandwidth	Overload protection	Input impedance
DC voltage	4.000V	0.001V	± (0.5%+2)	±600V		600Vrms	10MQ
	40.00V	0.01V
	400.0V	0.1V
	600V	1V	± (0. 7%+3)
AC voltage	4.000V	0.001V	±(1.0%+3)	600V	40Hza400Hz	600Vrms	10MQ
	40.00V	0.01V
	400.0V	0.1V
	600V	1V
Resistance	400.0Q	0.10	±(1.0%+2)	21 MQ		600Vrms
	4.000kn	0.001 kQ	±(0.8%+2)
	40.00kn	0.01 kQ
	400.0kn	0.1 kQ
	4.000MO	0.001 MQ	±(1.2%+3)
	20.00MQ	0.01 MQ	±(1.2%+3)
Centigrade	-40 4-C	rc	±4	350*C		600Vrms
	40 300 a0	rc	±(1.0%+5)
Fahrenheit	-40104ﾣF	1ﾣF	±6T	662T
	104572T	1ﾣF	± (2.0%+6)

Operating conditions
Operating temperature	0ﾣC~40ﾣC (32ﾣF~104ﾣF)
Storage temperature	-10ﾣC~50ﾣC (14ﾣF-122ﾣF)
Relative humidity	0 ﾣC~ below 30 ﾣC; <75% 30ﾣC~40ﾣC: <50%
Altitude	0~2000m
Battery	AAA battery 1.5V x 2(not included)

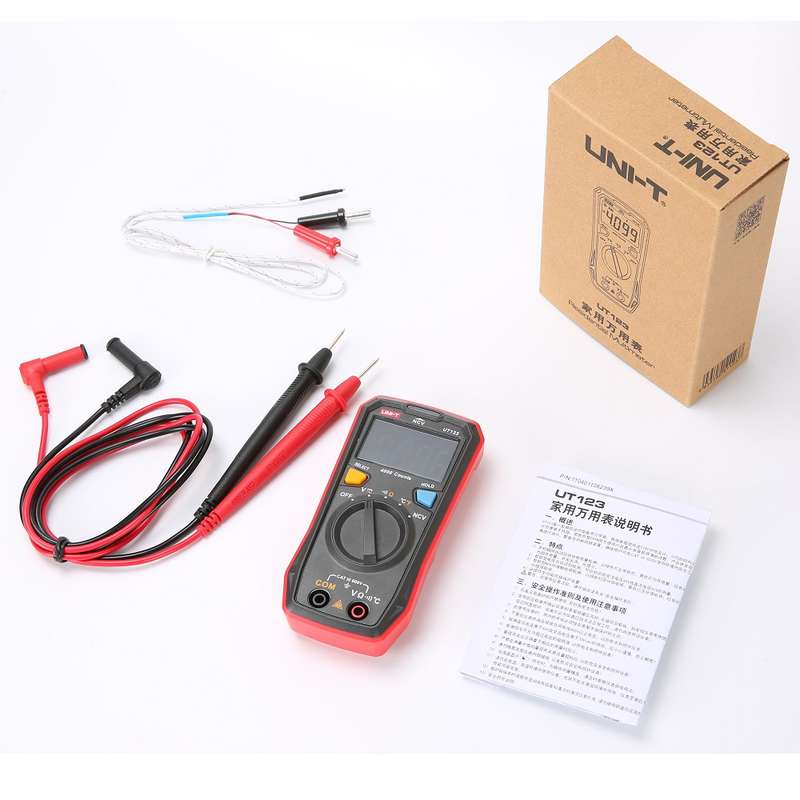

Package includes:

1 x Multimeter
1 x One Pair of Test Pens
1 x English User Manual
1 x Temperature Probe

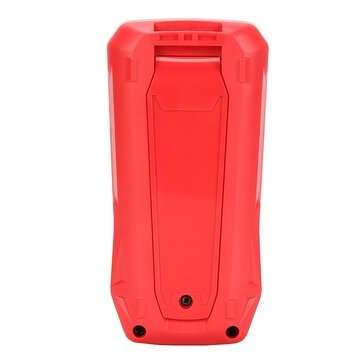

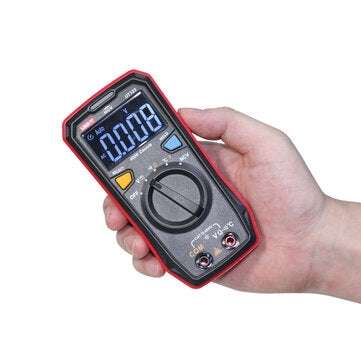

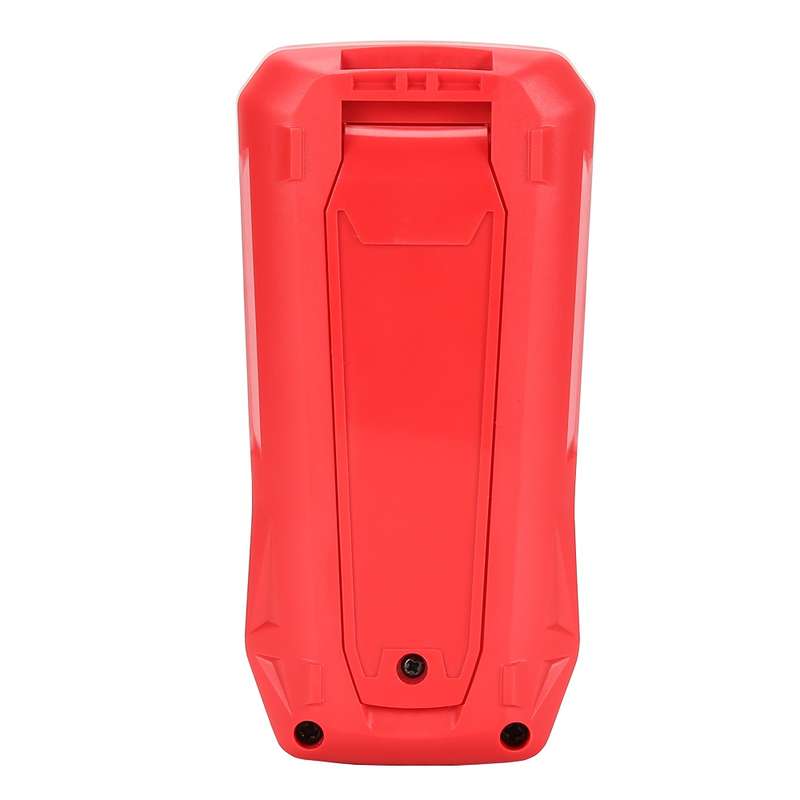

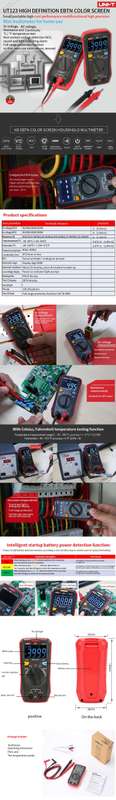

Details pictures:
