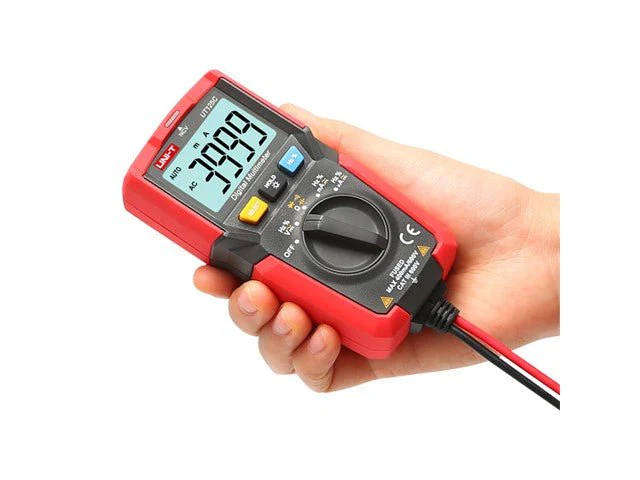

UNI-T UT125C Pocket Digital Multimeter (Resistor, Capacitor & Frequency Tester)

UNI-T UT125C Professional Pocket Digital Multimeter

The UNI-T UT125C is an ultra-compact, ergonomic pocket multimeter designed for electronics hobbyists, field technicians, and residential electrical testing. Despite its palmsized form factor, it features a comprehensive measuring rangeincluding capacitance and frequencymaking it an incredibly versatile, go-to diagnostic tool.

 Key Features:
* **All-In-One Pocket Design:** Compact frame with integrated test lead slots keeps your workspace tidy and protects your probes during transit.
* **Extended Testing Functions:** Measures AC/DC Voltage up to 600V, AC/DC Current up to 400mA, Resistance, Capacitance, and Frequency.
* **Smart Safety Interface:** Built-in Non-Contact Voltage (NCV) detection allows for rapid, safe scanning of live wires without contact.
* **User-Friendly Mechanics:** Features a high-visibility 4000-count back-lit LCD display, data hold function, continuity buzzer, and diode testing interface.
* **Rugged & Secure:** Overload protected up to CAT III 600V with an automated power-save feature to maximize battery life.

 Technical Specifications:
* **DC Voltage:** 400mV / 4V / 40V / 400V / 600V ±(0.5%+5)
* **AC Voltage:** 4V / 40V / 400V / 600V ±(1.2%+5)
* **DC Current:** 400A / 4mA / 40mA / 400mA ±(1.8%+5)
* **AC Current:** 400A / 4mA / 40mA / 400mA ±(2.0%+5)
* **Resistance:** 400 ~ 40M ±(1.0%+5)
* **Capacitance:** 50nF ~ 100F ±(4.0%+10)
* **Frequency Range:** 9.999Hz ~ 60kHz ±(0.1%+5)
* **Display Max Count:** 4000
* **Safety Rating:** CAT III 600V
* **Power Supply:** 2 x 1.5V AAA Batteries (R03)

What's in the Box:
* 1 x UNI-T UT125C Pocket Multimeter (with Integrated Test Leads)
* 1 x User Manual
