Description :
UNI-T UT203 Digital Clamp Multimeter DC AC Current Voltmeter Tester
Specification :
Basic Functions | Range | Best Accuracy |
DC Voltage | 400mV/4V/40V/400V/600V | ± (0.8%+1) |
AC Voltage | 4V/40V/400V/600V | ± (1%+5) |
DC Current | 40A/400A | ± (2%+3) |
AC Current | 40A/400A | ± (2.5%+5) |
Resistance | 400Ω/4kΩ/40kΩ/400kΩ/4MΩ/40MΩ | ± (1%+2) |
Frequency | 10Hz~1MHz | ± (0.1%+3) |
Duty Cycle | 0.1%~99.9% | √ |
Special Functions | ||
Auto Ranging | √ | |
Diode | √ | |
Continuity Buzzer | √ | |
Relative Mode | √ | |
Data Hold | √ | |
Sleep Mode | √ | |
Low Battery Display | √ | |
Input Impedance for DC Voltage Measurement | ≥10MΩ | √ |
Max. Display | 3999 | √ |
Power : 9V Battery (6F22)
LCD Size : 36 x 18mm
Product Colour : Red and Grey
Product Net Weight : 200g
Product Size : 210 x 76 x 30mm

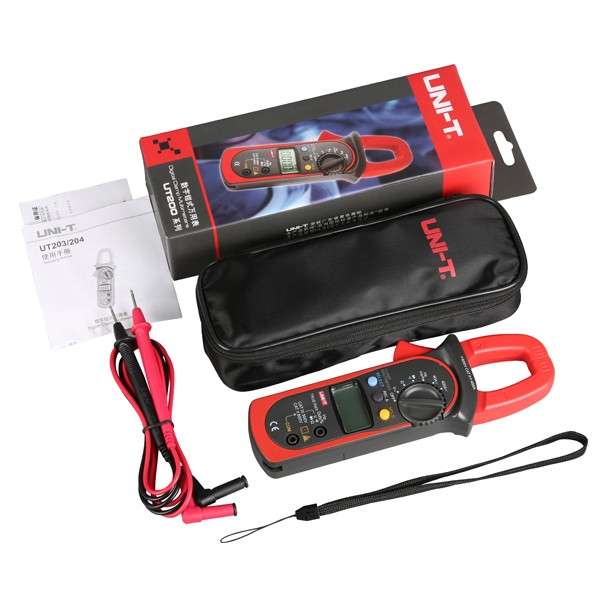

Package included :
1 x UNI-T UT203 Digital Clamp Multimeter
2 x Test leads (105cm-cable)
1 x Carrying bag
1 x Strap
1 x 9V 6F22 battery ( Included )

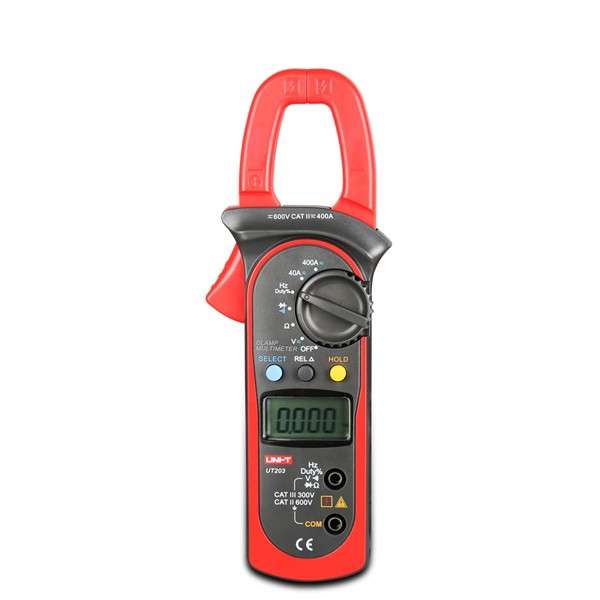

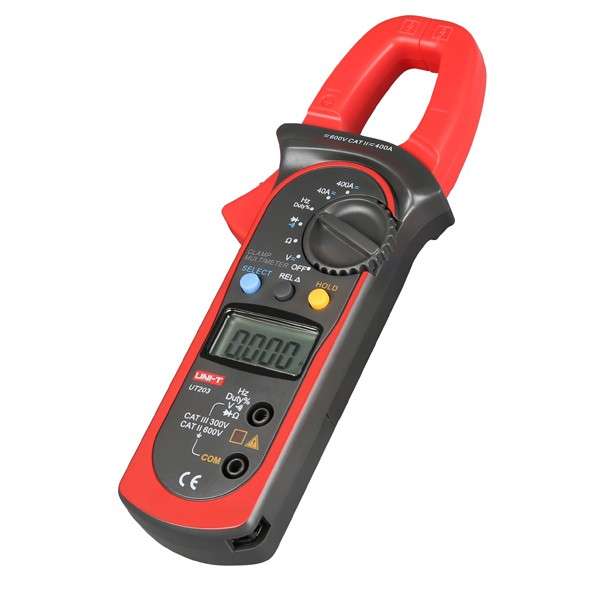

Details pictures :
