Features:
Multifunctional Clamp Meter: can be used to measure AC/DC current, AC/DC voltage, resistance, capacitance, frequency, duty cycle, relative value, Max/Min value, temperature, LIVE test, continuity test, and diode test.
Measuring Range: 600A AC/DC current, 600V AC/DC voltage, 60Mￎﾩ resistance, 60mF capacitance, 10Hz~10MHz frequency, 0.1%~99% duty cycle, and -40~1000￢ﾄﾃ temperature.
Data Hold: hold the measured data for conveniently checking or observing data.
Backlight Function: 1.6-inch LCD screen with backlight ON/OFF switchable for display data clearly.
28mm Jaw Opening: jaw opening of 28mm to measure current without touching or interrupting the circuit.

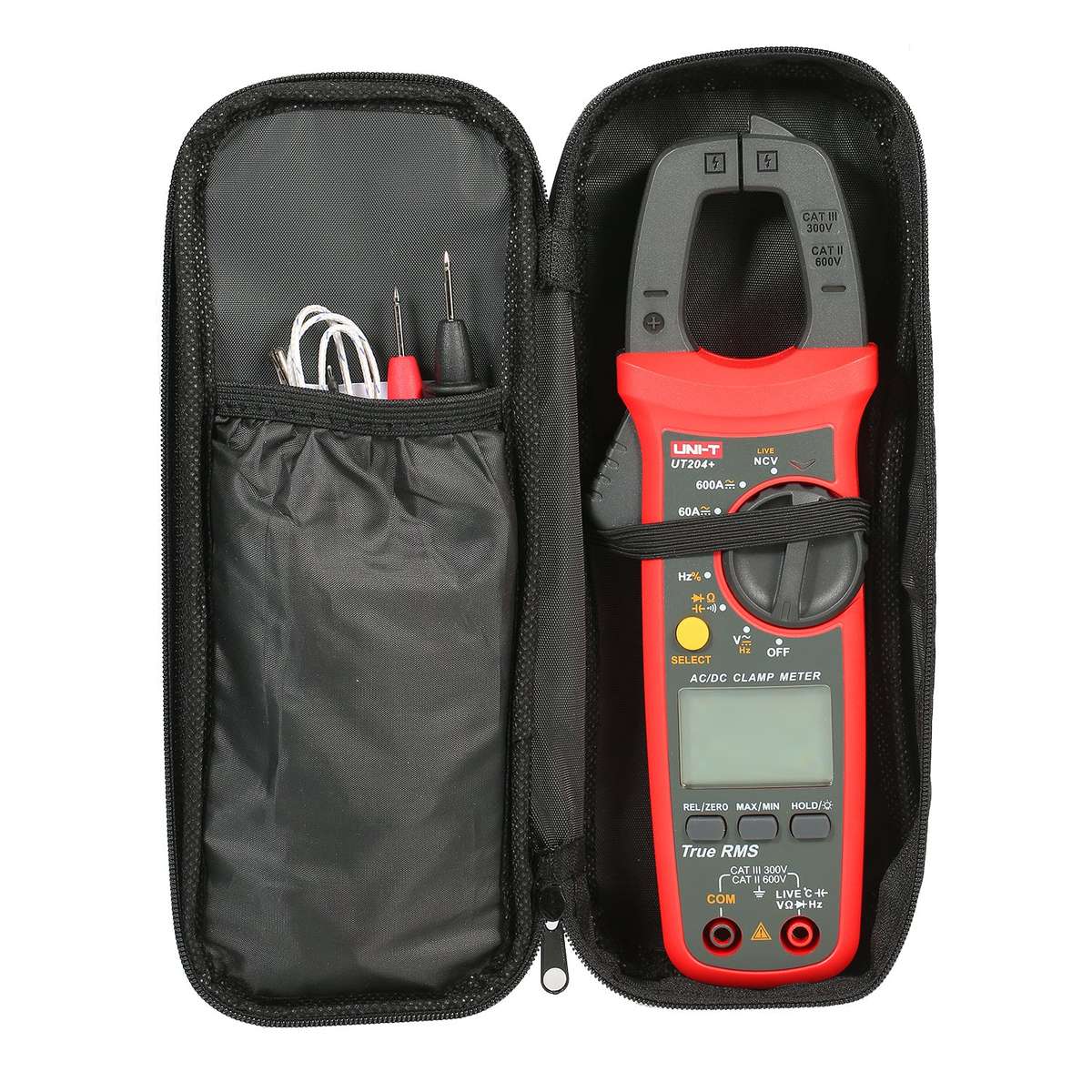

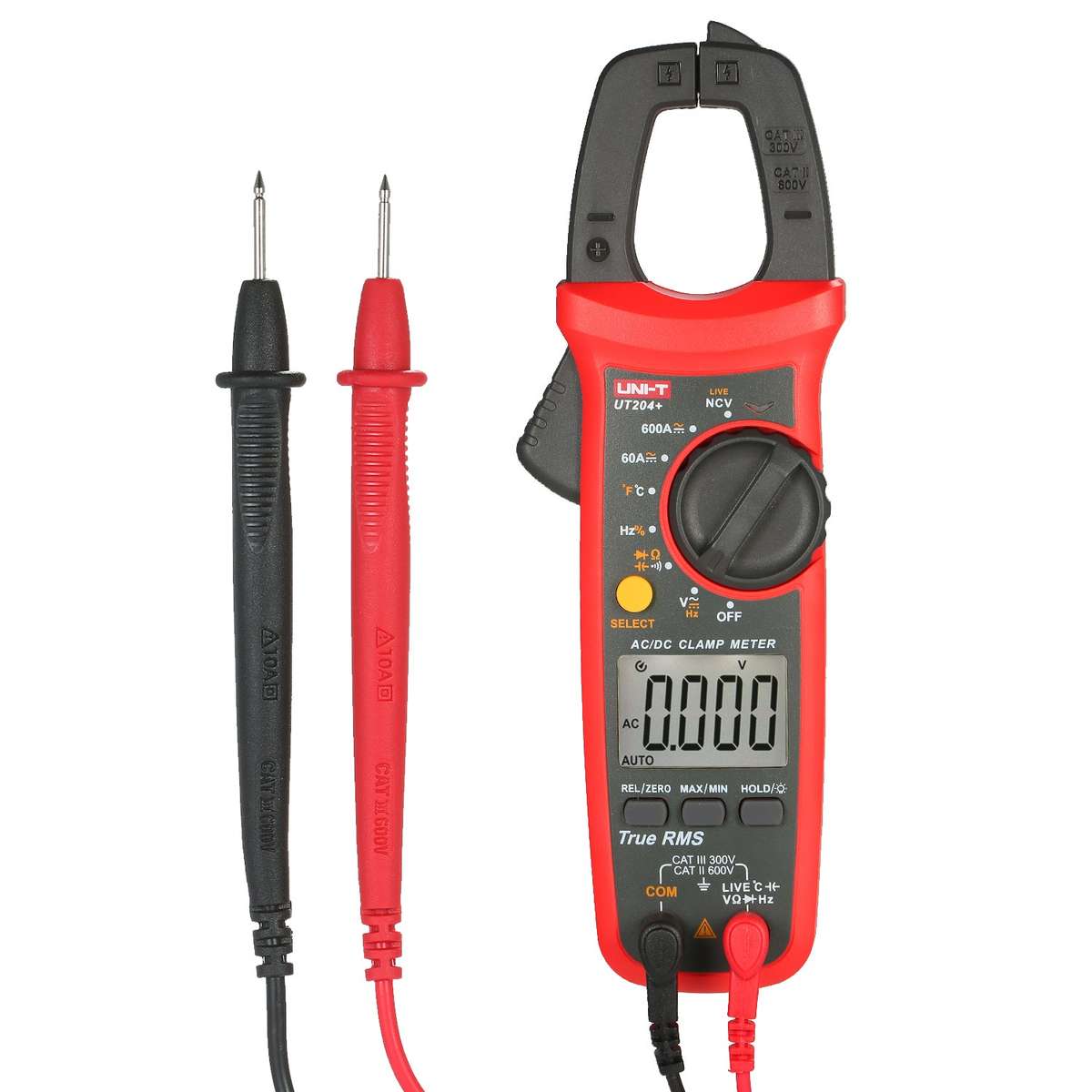

Accessories: comes with a pair of test probes for convenient measurement, and a black zipper pouch for storing the clamp meter.
Power Supply: powered by 2*1.5V AAA battery (NOT included), convenient to operate.
Reliable & Functional: with good reliability and high precision, really practical for electrical equipment testing and maintenance.
Specifications:
Material: ABS
Safety Rating: CAT II 600V, CAT III 300V ￂﾠ
Display Count: Max. 6000
Jaw Opening: 28mm
Auto off: 15 minutes
Range: Auto
AC Current Range: 60.00A/600.0A
AC Current Resolution: 0.01A/0.1A
DC Current Range: 60.00A/600.0A
DC Current Resolution: 0.01A/0.1A
AC Voltage Range: 6.000V/60.00V/600.0V
AC Voltage Resolution: 0.001V/0.01V/0.1V
AC Voltage Frequency: 10Hz~60kHz
AC Voltage Frequency Resolution: 0.01Hz~0.01kHz
DC Voltage Range: 600.0mV/6.000V/60.00V/600.0V
DC Voltage Resolution: 0.1mV/0.001V/0.01V/0.1V
Resistance Range: 600.0ￎﾩ/6.000kￎﾩ/60.00kￎﾩ/600.0kￎﾩ/6.000Mￎﾩ/60.00Mￎﾩ
Resistance Resolution: 0.1ￎﾩ/0.001kￎﾩ/0.01kￎﾩ/0.1kￎﾩ/0.001Mￎﾩ/0.01Mￎﾩ
Capacitance Range: 60.00nF/600.0nF/6.000uF/60.00uF/600.0uF/6.000mF/60.00mF
Capacitance Resolution: 0.01nF/0.1nF/0.001uF/0.01uF/0.1uF/0.001mF/0.01mF
Temperature Range: -40~40￢ﾄﾃ/40~500￢ﾄﾃ/500~1000￢ﾄﾃ (-40~104￢ﾄﾉ/104~932￢ﾄﾉ/932~1832￢ﾄﾉ)
Temperature Resolution: 1￢ﾄﾃ(1￢ﾄﾉ)
Frequency Range: 10Hz~10MHz
Frequency Resolution: 0.01Hz~0.01MHz
Duty Cycle Range: 0.1%~99%
Duty Cycle Resolution: 0.1%
Continuity Range: 600.0ￎﾩ
Continuity Resolution: 0.1ￎﾩ
Diode Range: 6.000V
Diode Resolution: 0.001V
Operating Temperature: 0~30￢ﾄﾃ(humidity ￢ﾉﾤ 80%RH), 30~40￢ﾄﾃ(humidity ￢ﾉﾤ 75%RH), 40~50￢ﾄﾃ(humidity ￢ﾉﾤ 45%RH)
Storage Temperature & Humidity: -20~60￢ﾄﾃ, ￢ﾉﾤ 80%RH
Altitude: 2,000 meters
Power Supply: 2 * 1.5V AAA battery (NOT included)
Item Size: 215 * 63.5 * 36mm / 8.46 * 2.5 * 1.41in
Item Weight: 278g / 9.82oz
Package Weight: 371g / 13.11oz
Package Size: 23.5 * 9.2 * 5.3cm / 9.25 * 3.62 * 2.09in
Package List:
1 * Clamp Meter
2 * Test Lead
1 * Temperature Probe
1 * Storage Bag
1 * Manual (English)
