Unichip 486WB Intel 486 DX2-66Mhz Overdrive 4MB RAM

Motherboard Specs:

• Model: Unichip 486WB 4407 Version 1.0
• 8 SIMM Memory Slots
• 3 VESA Local Bus Slots
• 7 ISA 16-Bit Slots (3 shared slots for VESA)
• 128KB Cache (supports up to 256KB)
• Supports 5V CPUs only

Manufacture Date: 1992

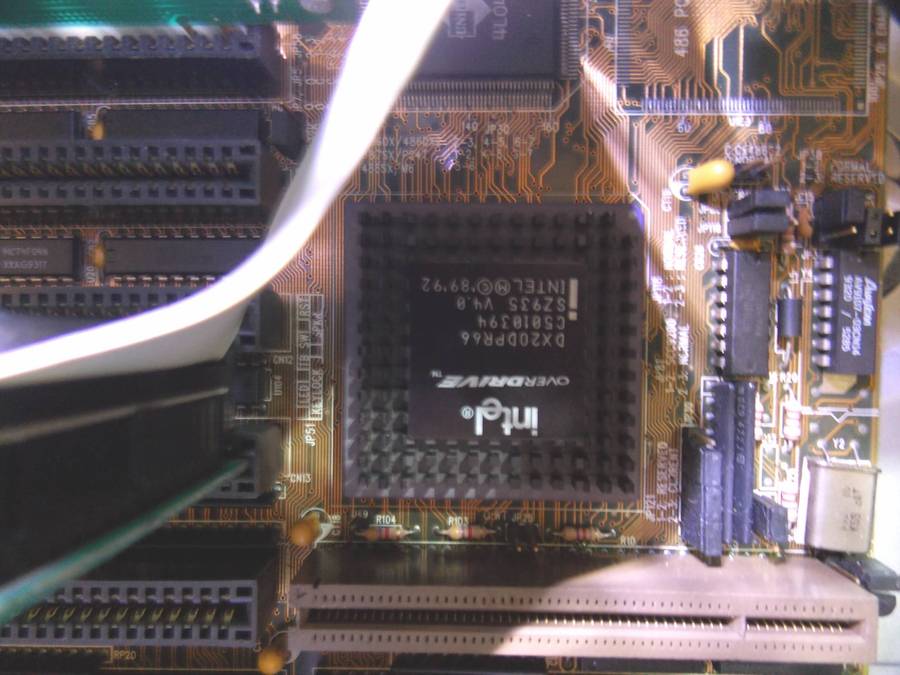

CPU Specs:

• Intel 486 DX2-66Mhz Overdrive
• Model: DX2ODPR66

Memory Specs:

• 1mb 30-Pin SIMM x4 = Total Memory 4MB

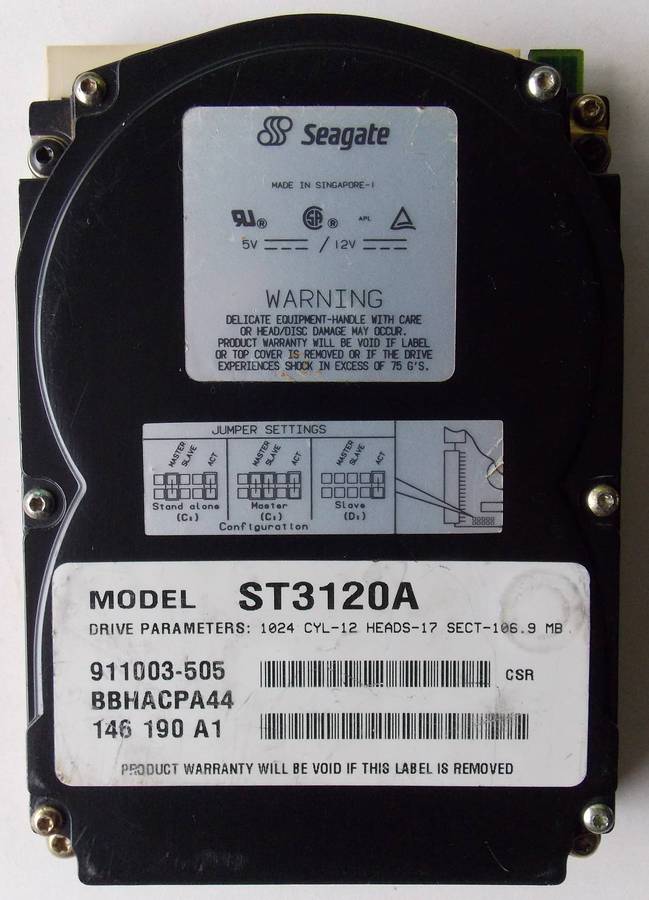

Hard Drive Specs:

• Seagate Model: ST3120A
• Capacity: 102MB
• Perfect working order no bad sectors

CD Drive Specs:

• LG Model: GCR-8523B CD Reader 52x Max

Floppy Drive Specs:

• Samsung 1.44mb 3.5 inch floppy drive

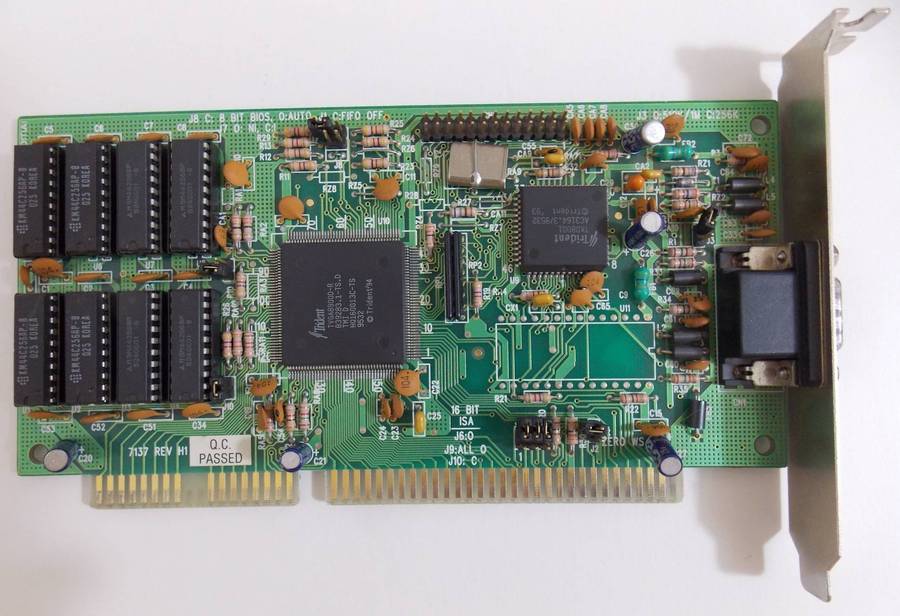

Video Card Specs:

• Trident 7137 Rev H1 ISA 16-Bit
• Chipset: Trident TVGA8900D-R
• Memory 1MB

Controller Card Specs:

• DTK UN-1075G 16-Bit ISA
• 1 HDD 1 Floppy 2 Serial 1 Game 1 LPT (LPT is disabled)

Sound Card Specs:

• Topstar TM-863
• Chipset: CMI 8330A
• Wavetable board supported (not included)
• ISA 16-Bit, full Sound Blaster Compatible

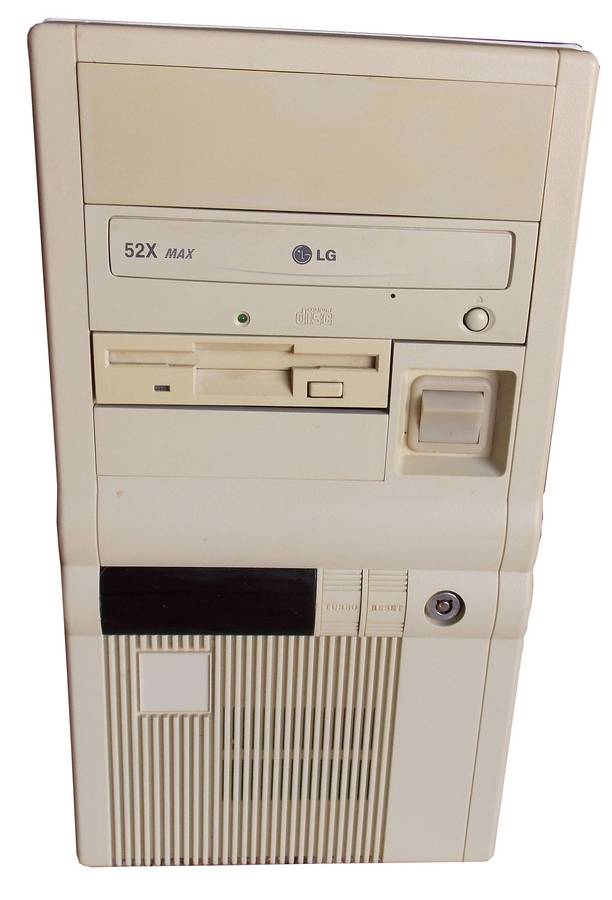

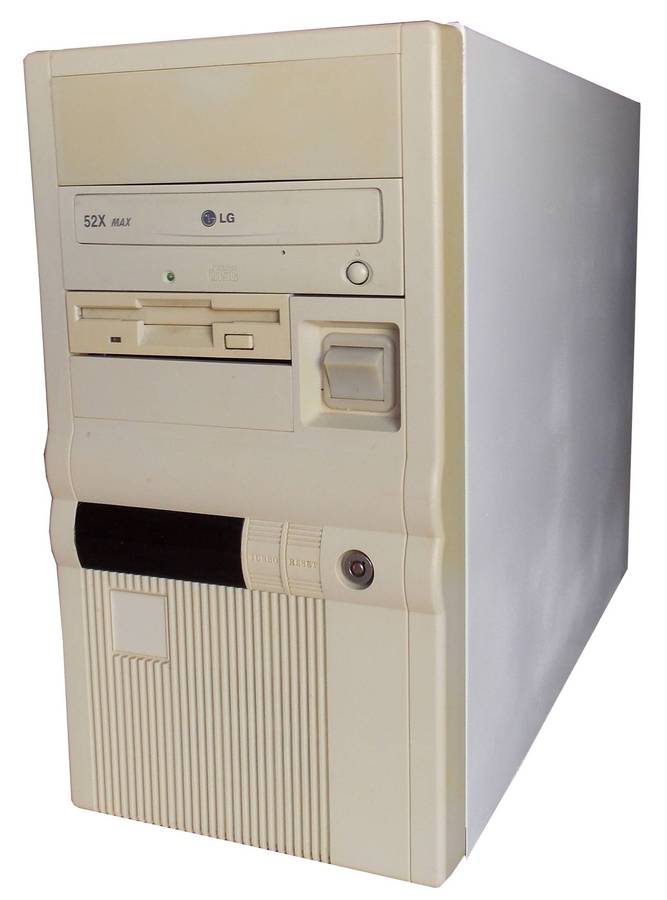

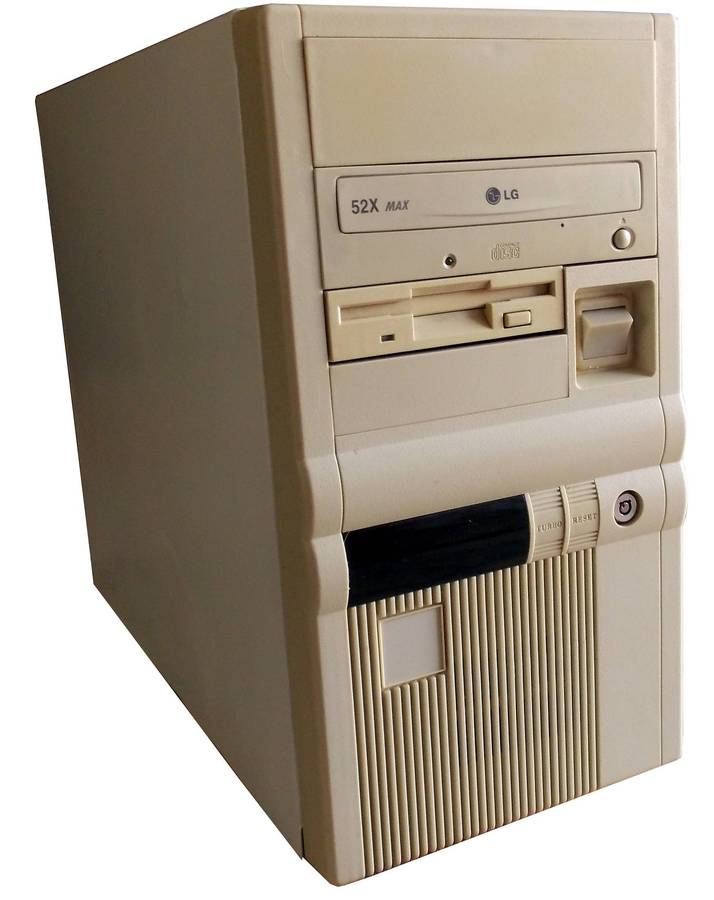

Case Specs:

• Mini Tower 2x 5.25 Inch bays, 2x 3.5 inch bays, 1 Internal Bay for HDD
• Turbo Switch, Reset Switch, Turbo LED, Reset LED, Power LED, Keylock

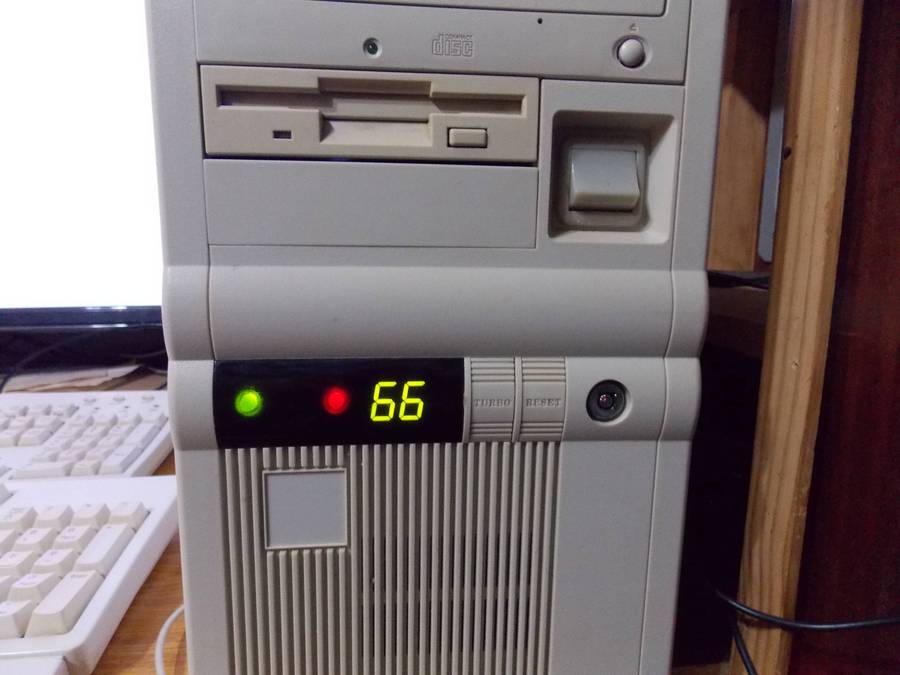

• 2 Digit Cathode Display
• Power Supply: 200W AT Power Supply 3 Molex , one Floppy
• 80mm Case fan Installed

In Perfect Working Order

• Mouse Not Included
• Keyboard Not Included
• Monitor Not Included

NOTES:

• HDD Indicator LED only lights up when the system is powered on and disabled when the system boots, the connector is on the IO card, am unsure how to correct this
• Turbo LED does not light on but the system is in full turbo mode
• Overdrive CPUs get very hot, I have mounted a fan on the heatsink with sealed wiring in order to not damage the heatsink with screws, the buyer may want to modify this to their liking
• Case fan and CPU fan are high RPM and very loud, this ensures the system is properly vented
• Battery compartment is mounted to the empty motherboard space with cable ties in order not to damage the case with glue or tape, the BIOS requires 6 Volts (4x 1.5V batteries)

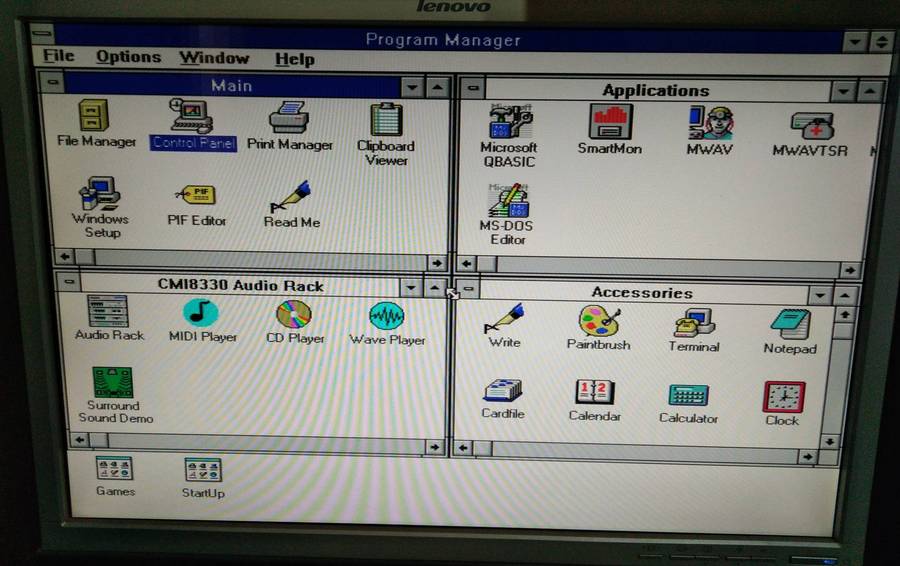

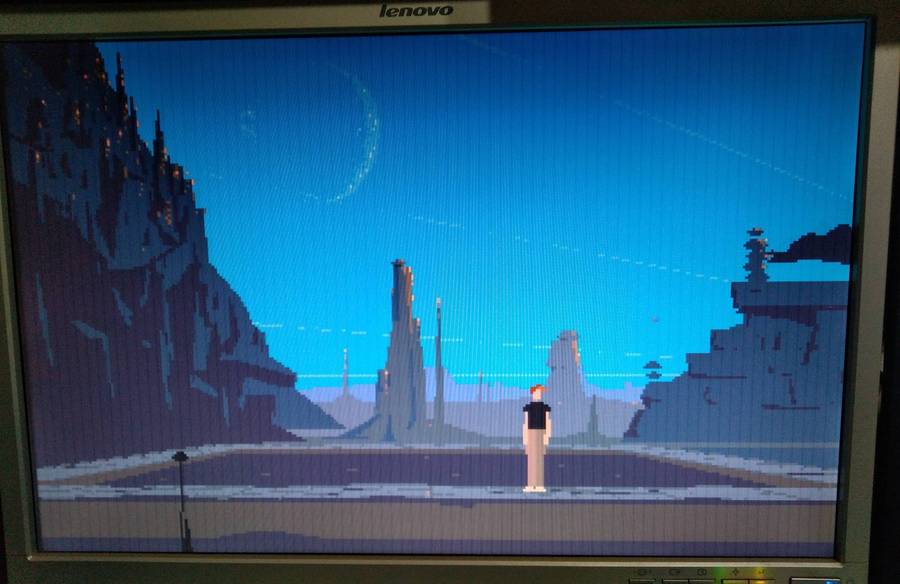

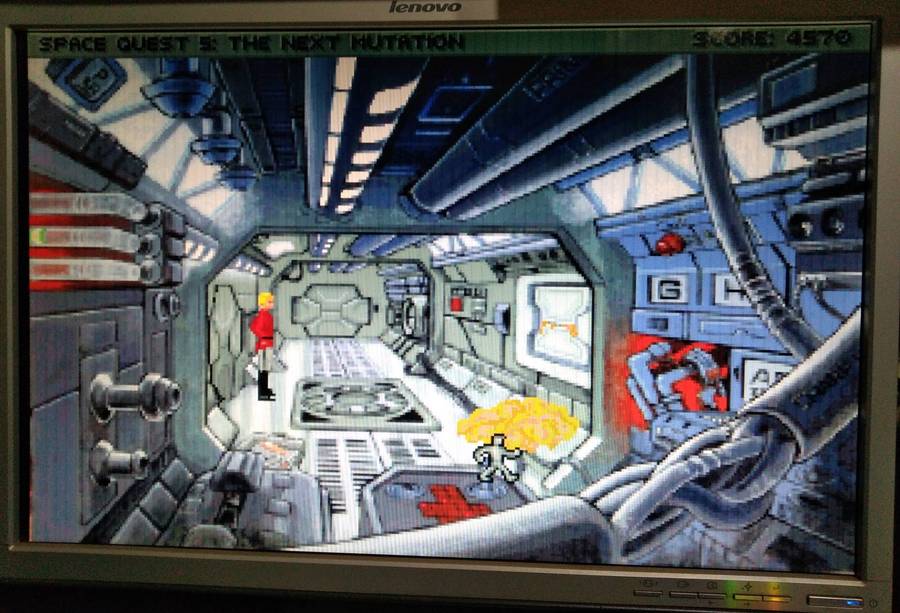

• Some games are included, Windows 3.1 and MS-DOS 6.22, PC Magazine Benchmarking software, Norton Commander
• Drivers are in the Drivers folder on the hard drive
• Printed Motherboard complete manual included
