Name: Uniformation GK3 Resin Printer
SKU: 9956045
Price: 22478.63 ZAR
Availability: InStock

Uniformation GK3 Resin Printer

15 available / new

R22,478.63

Shipping

R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate

The seller has indicated that they will usually have this item ready to ship within 15 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery

Main centres:	1-3 business days
Regional areas:	3-4 business days
Remote areas:	3-5 business days

Seller

ZERSE 3D(no ratings)

Returns

Warranty Type: Replacement We have a 14-day return policy, which means you have 14 days after receiving your item to request a return.To be eligible for a return, you must provide proof of purchase.

Get it now, pay later

Condition

New

Location

South Africa

Product code

9956045

Bob Shop ID

640841873

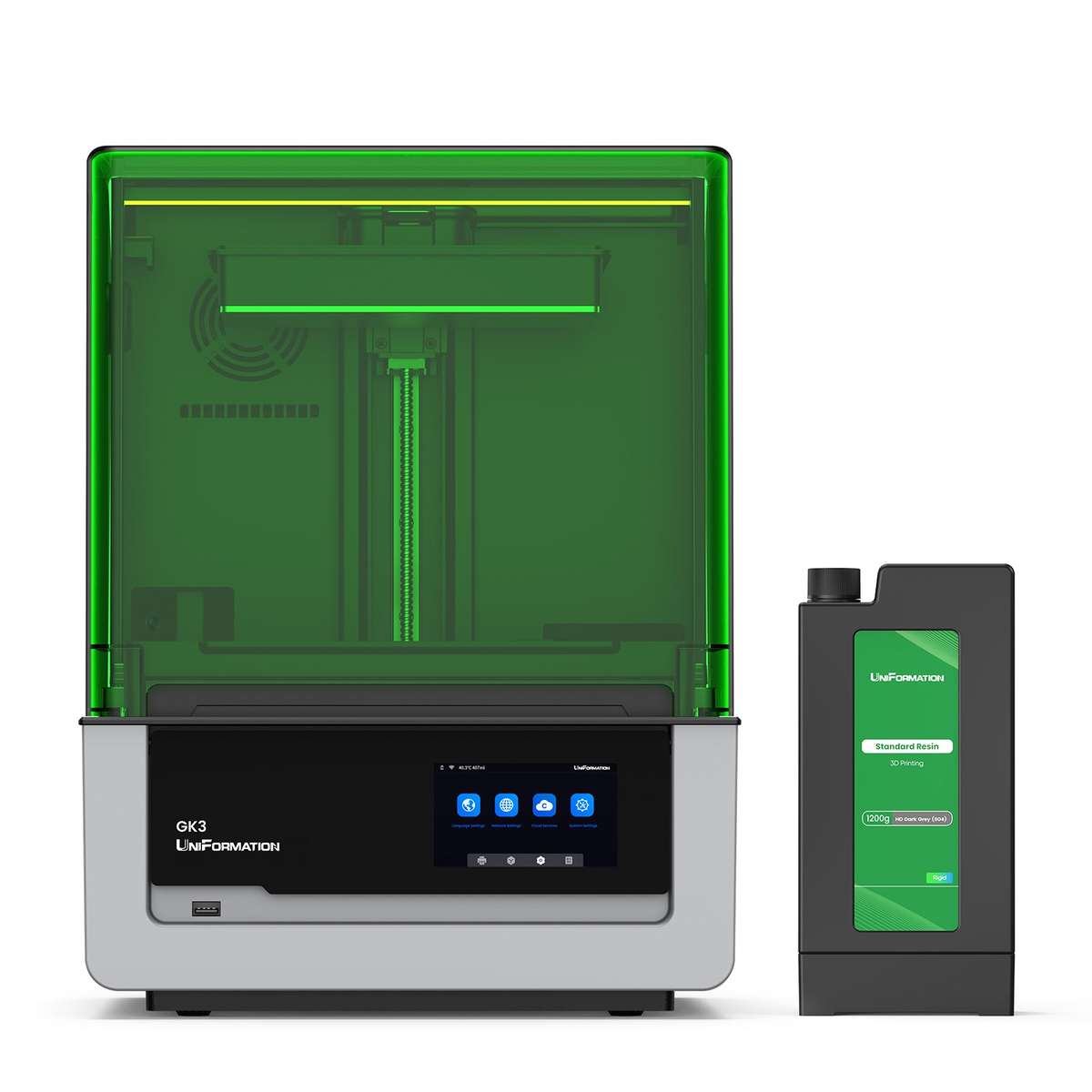

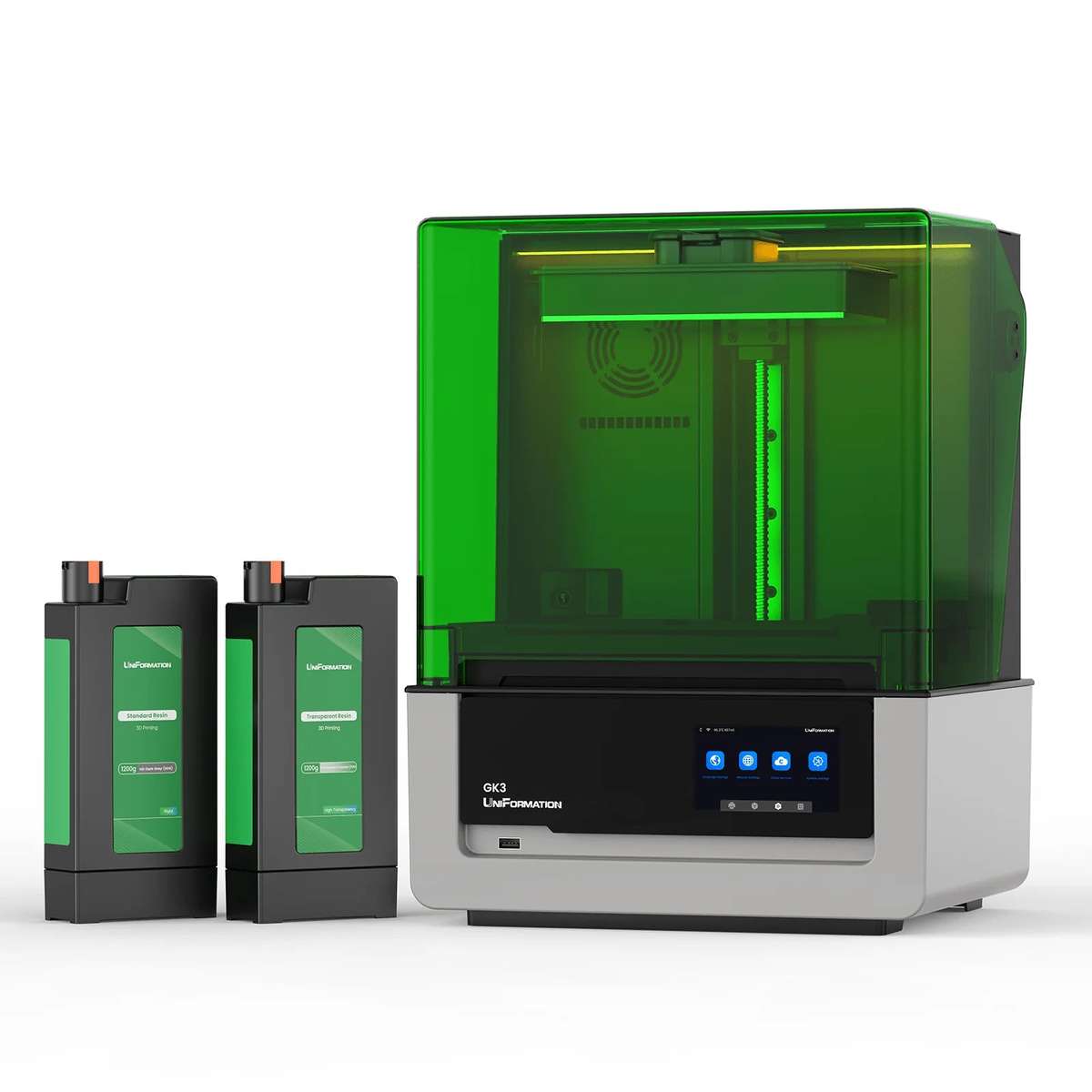

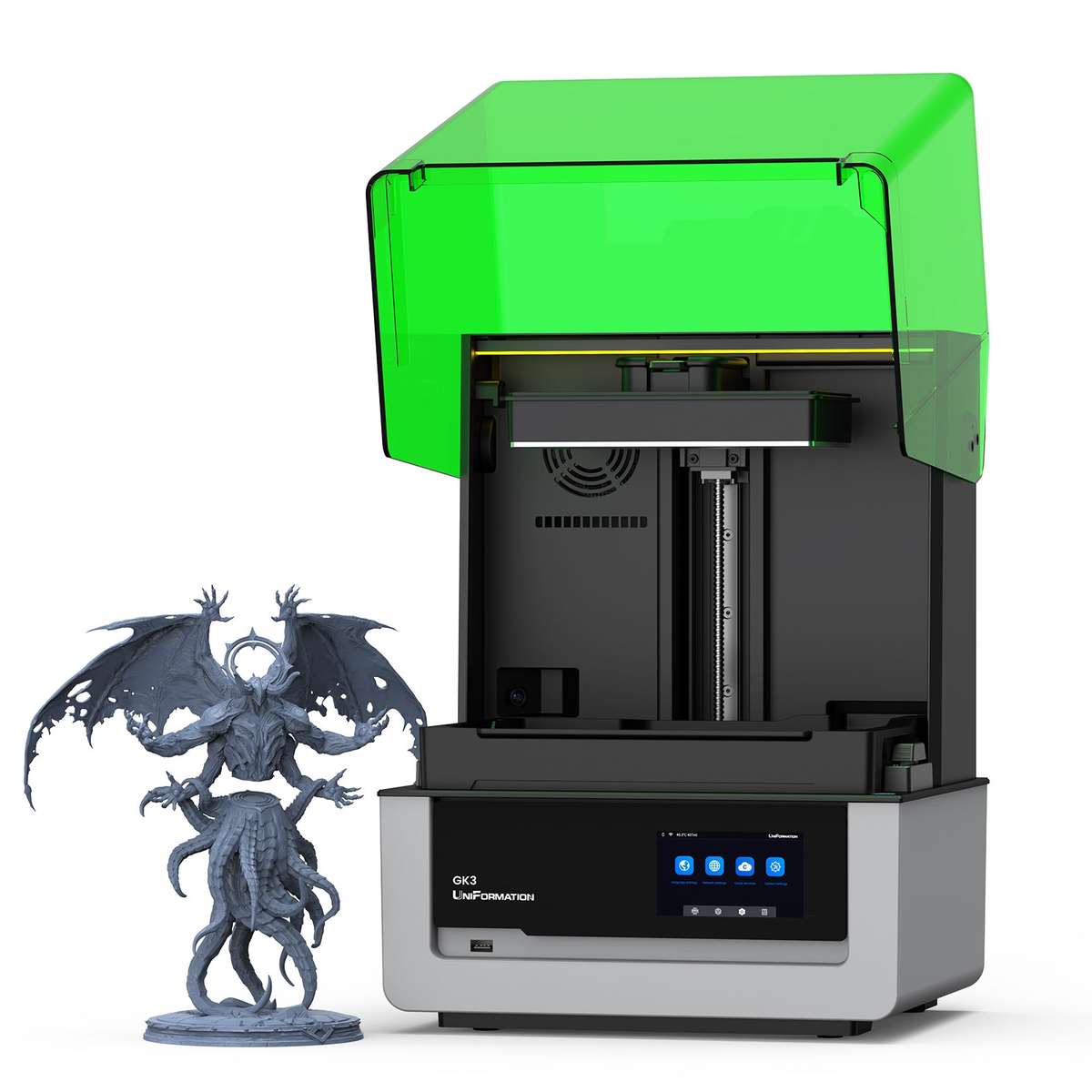

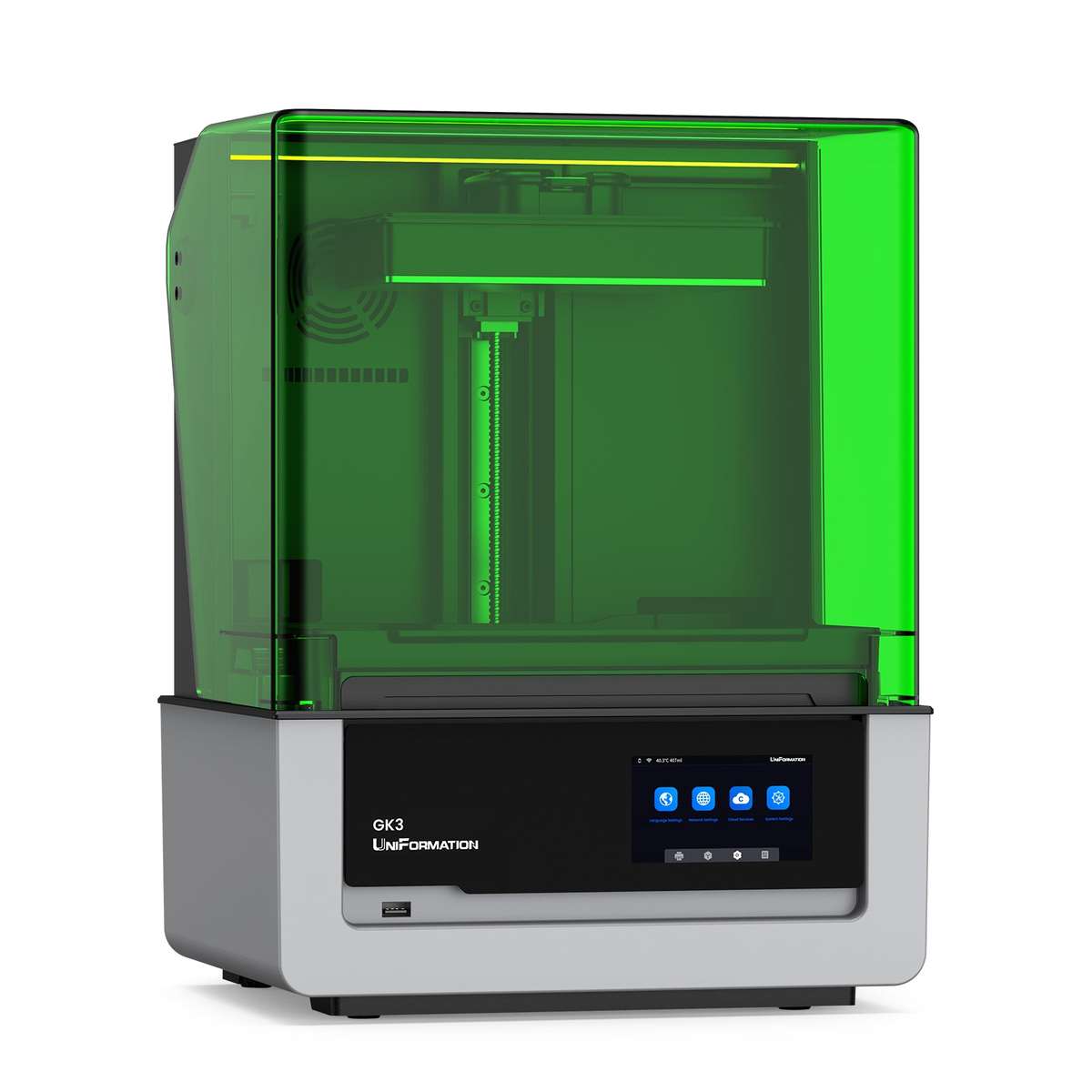

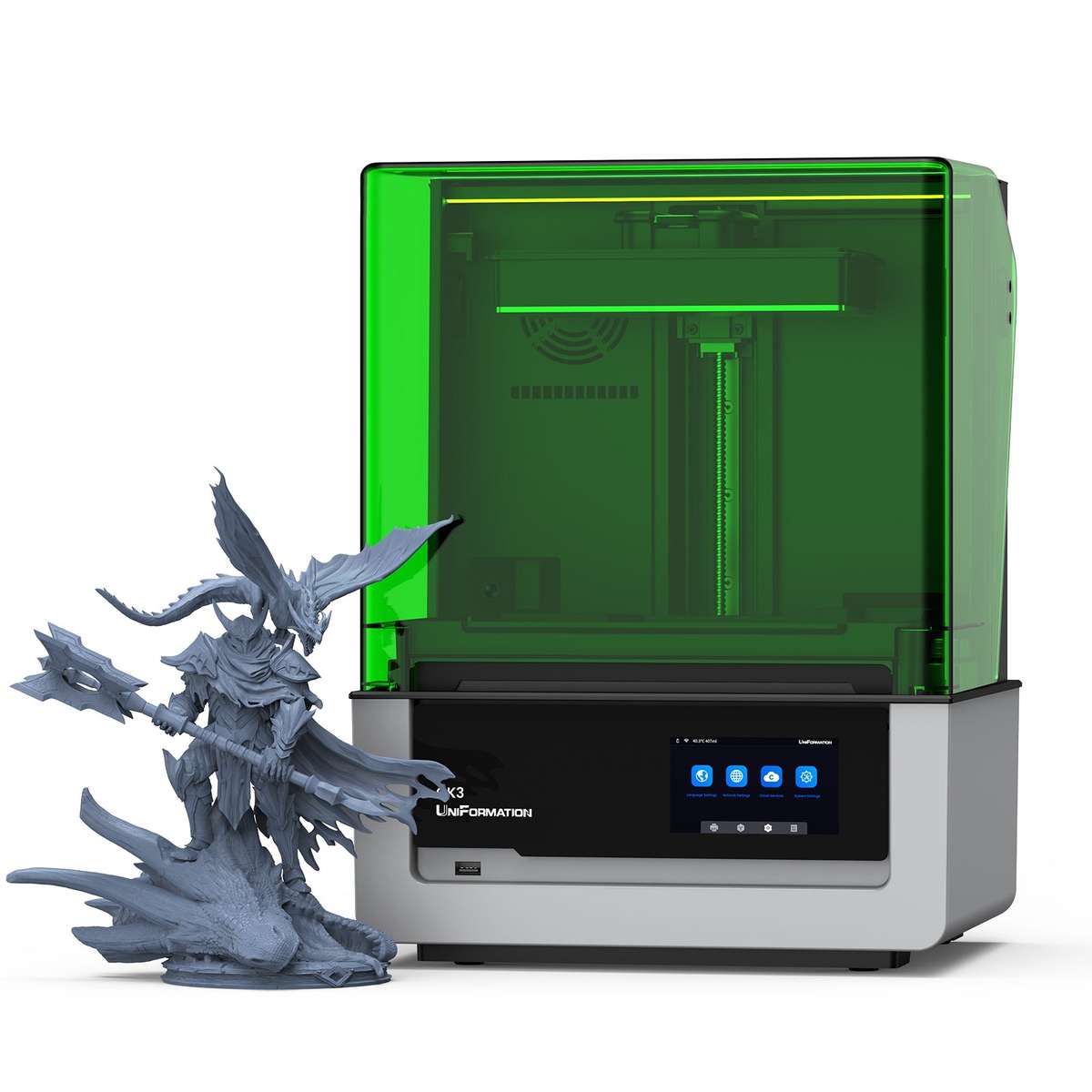

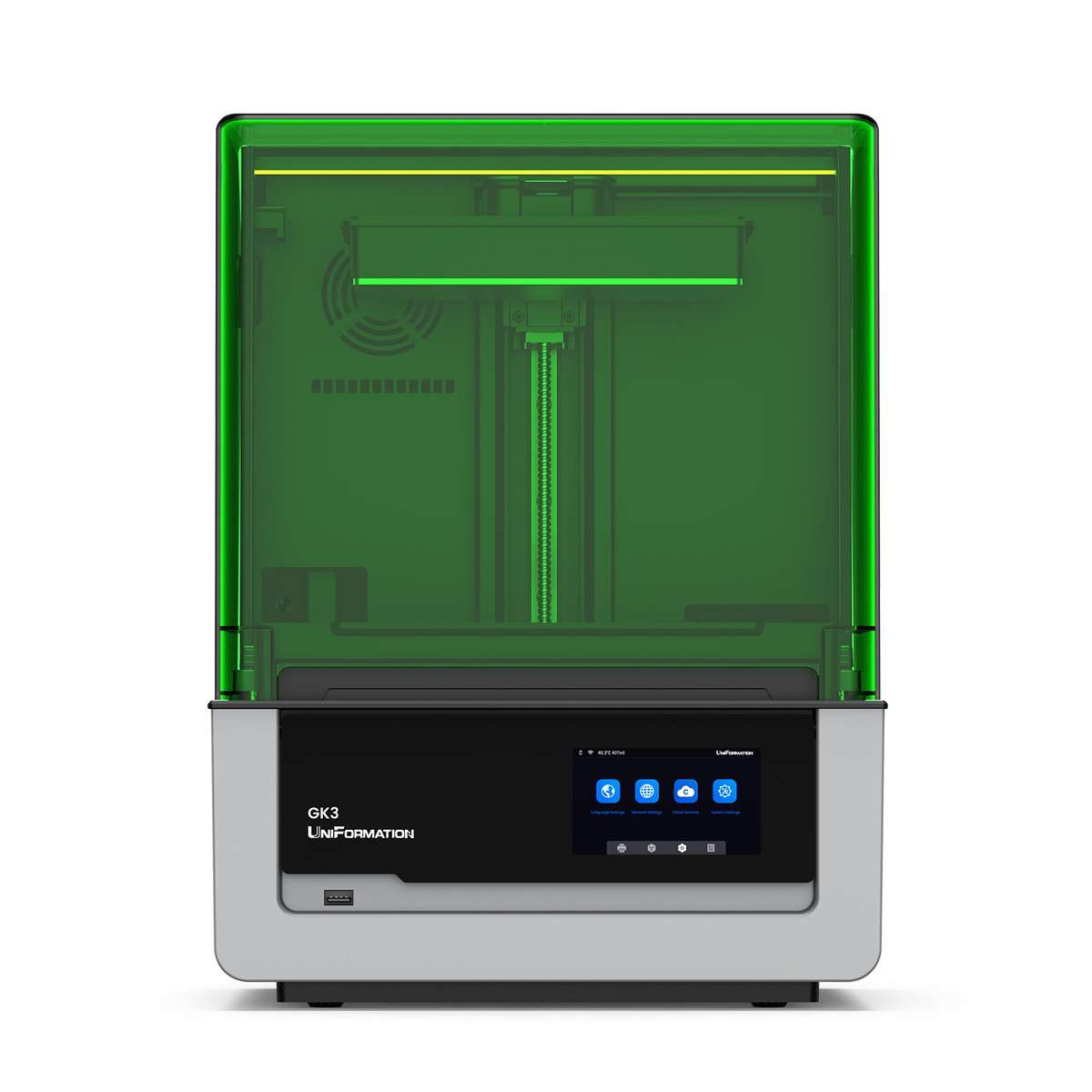

Introducing the GK3 resin printer from Uniformation with an amazing screen resolution, great build volume size, an auto-resin refill system and a heated chamber to ensure the best print quality.

16K screen, 9.6 inch size screen
15 120 x 6 230 resolution
14 x 19 µm XY Axis Pixels
COB & Fresnel Collimating lens

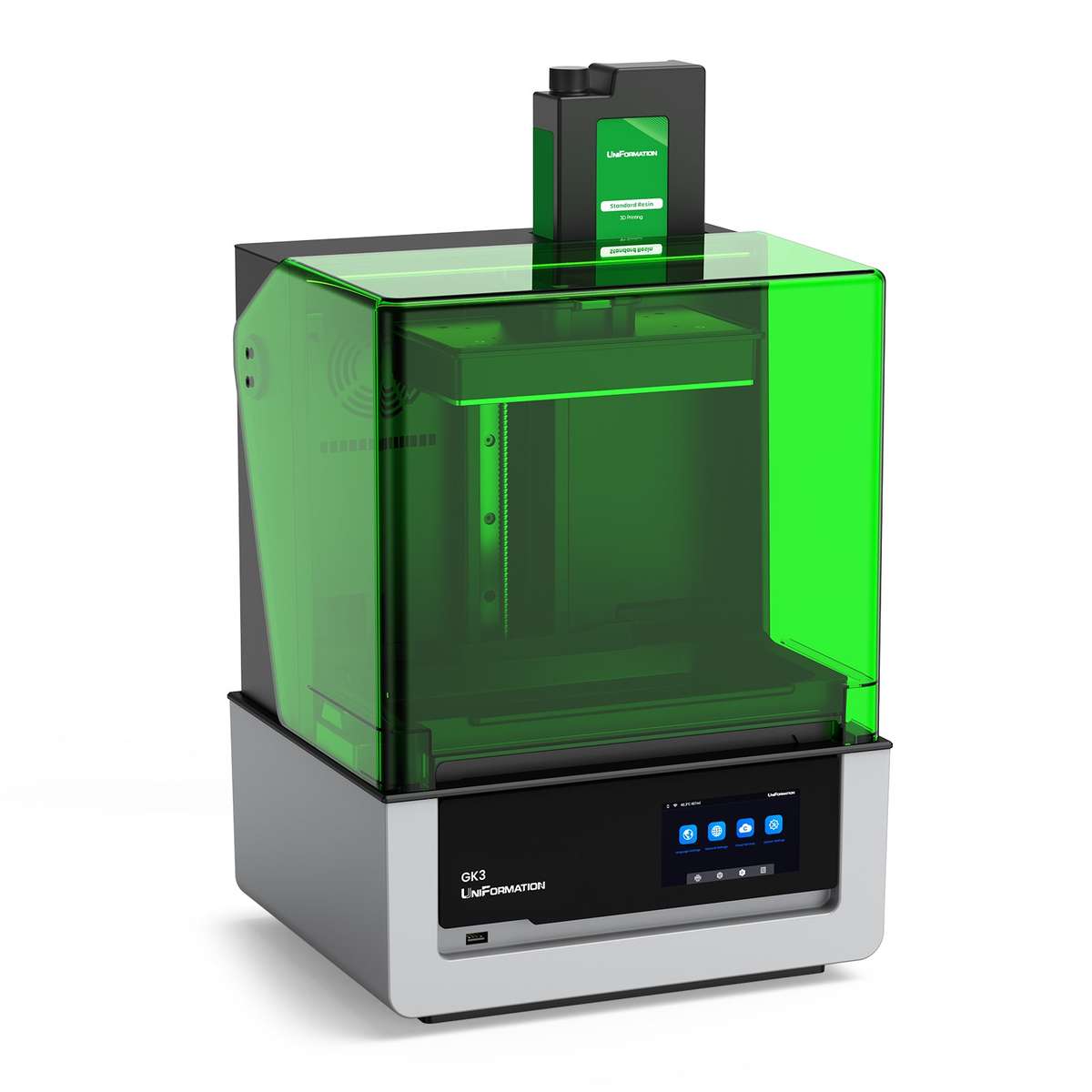

Smart Resin feeding system
Automatic heating system
Built-in camera for smart monitoring
Uniformation Smart App
Quick-Release Design for the build plate and resin vat
Resin Drip Hanger Design
90° Rotational Touchscreen

Technical Parameters

Maximum Print Volume	211 x 118 x H240 mm
Resin Vat Capacity	800ml
Auto Feeding Resin Cartridge Capacity	1200 ml
Machine Leveling	Manual Leveling
Product Dimensions	392 x 332 x 520 mm
Heating Power Consumption	120 W
Printing Power Consumption	120W
Input Voltage	110/220V
Slicing Software	UniFormation Slicer, Chitubox, Lychee Slicer
File Transfer	USB Flash Drive, WiFi File Sharing, Ethernet
File Formats Supported	JXS, CTB
Package Size	480 x 42 x 660 mm
Package Weight	24 kg

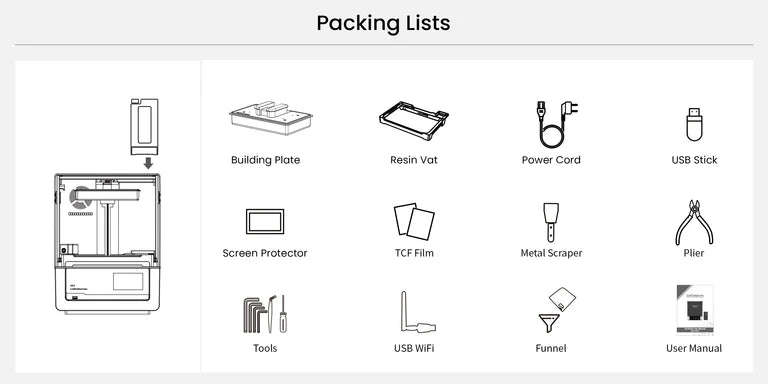

Package includes:

Uniformation GK3 resin printer
Build plate
Resin vat
Power cord
Screen protector
TCF Film
Metal Scraper
USB stick
Tools
USB Wi-Fi
Funnel
User Manual

Product Comparison:

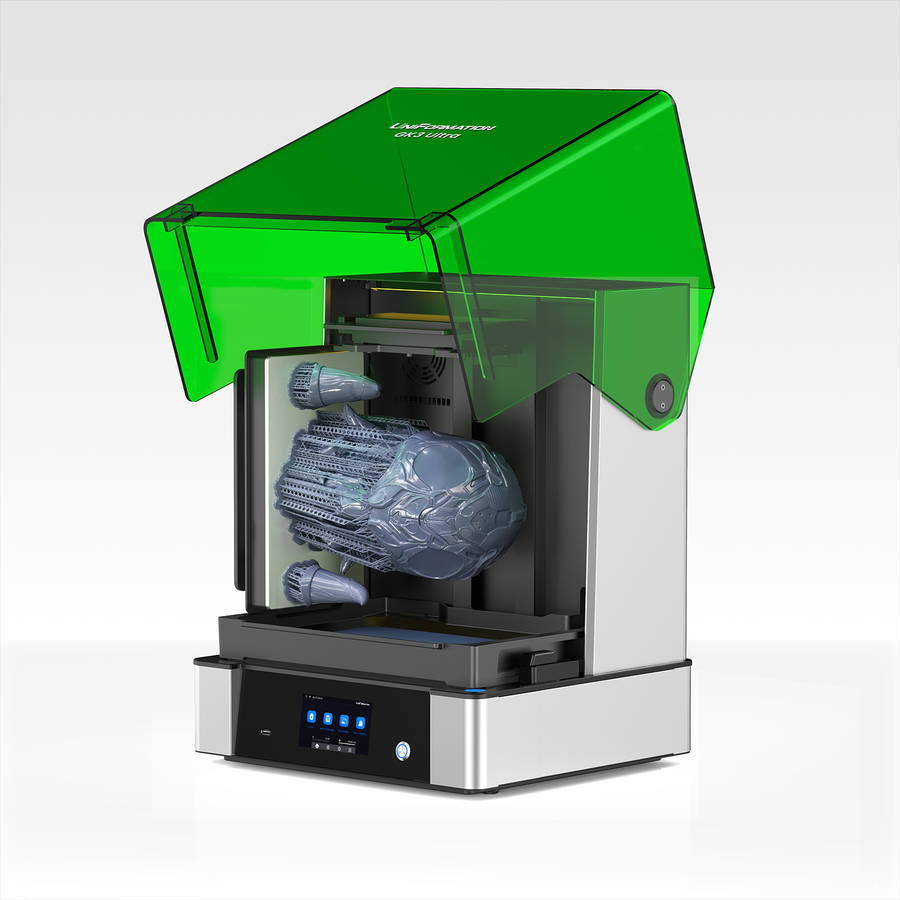

Product name	GK3	GK3 pro	GK3 Ultra

Build Volume	211 x 118 x H240 mm	211 x 118 x H240 mm	300 x 160 x H300(mm)
LCD Screen	16K 9.6-Inch Mono LCD Screen	16K 9.6-Inch High Transmittance Screen	13.6-inch Mono LCD
LCD Resolution	15120 x 6230	15120 x 6230	15120 x 6230
X/Y Axis Resolution	14 x 19 m	14 x 19 m	14 x 19 m
Release Film	nFEP Film	CPFA Film	ACF/nfep Film
Light Source	405 nm COB Light Source + Fresnel Collimating Lens	385 nm COB Light Source + Fresnel Collimating Lens	UV-LED 405nm
Printing Power Consumption	120W	Resin vat capacity	1100ml
Input Voltage	110/220V	Printing power consumption	200W
Slicing Software	UniFormation Slicer, Chitubox, Lychee Slicer	UniFormation Slicer, Chitubox, Lychee Slicer	UniFormation Slicer, Chitubox, Lychee Slicer
Display Screen	5-inch rotating capacitive touch screen ( 90° rotation)	5-inch rotating capacitive touch screen ( 90° rotation)	5-inch capacitive touch screen
Printing Speed	Precision Mode: 22 mm/h for 0.05 mm layer 42 mm/h for 0.l mm layer Speed Mode: 30 mm/h for 0.05 mm layer 55 mm/h for 0.l mm layer Ultra Speed: 108 mm/h for l mm layer thickness (requires custom settings)	Precision Mode: 22 mm/h for 0.05 mm layer 42 mm/h for 0.l mm layer Speed Mode: 30 mm/h for 0.05 mm layer 55 mm/h for 0.l mm layer Ultra Speed: 108 mm/h for l mm layer thickness (requires custom settings)	2-3s/layer(0.05mm)
Package Size	480 x 420 x 660 mm	480 x 420x 660 mm	550 x 495x 670 mm
Package Weight	24 kg	24 kg	35 kg

<...
