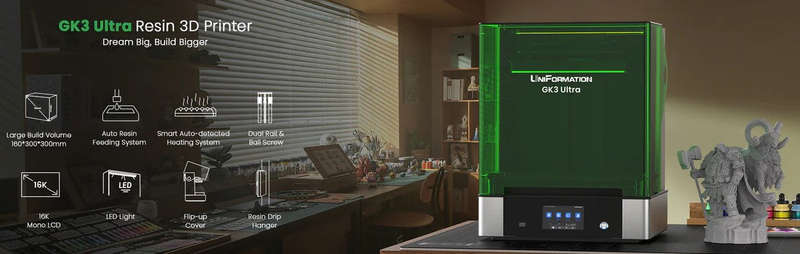

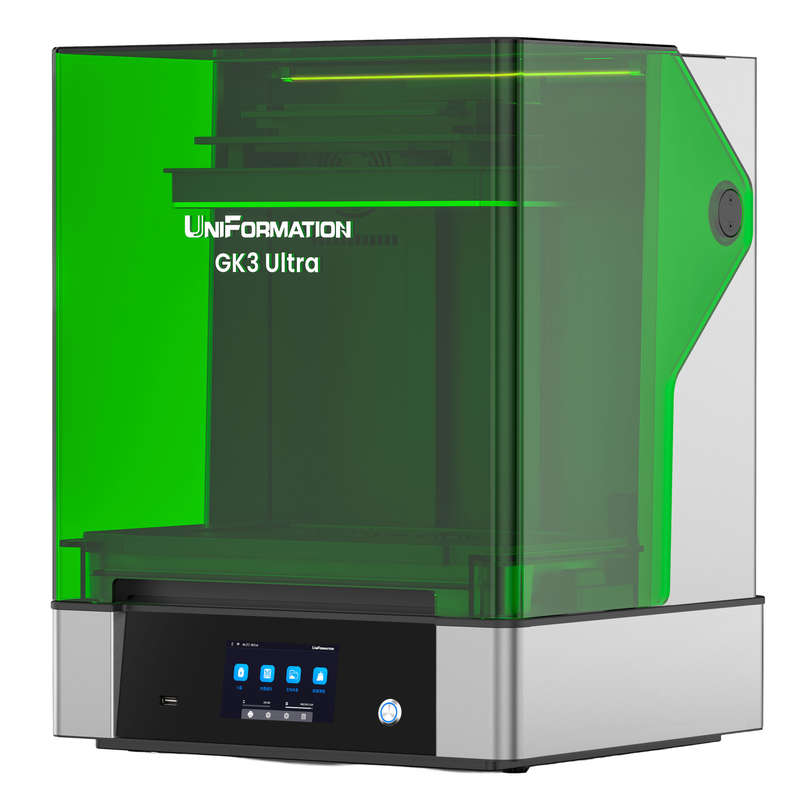

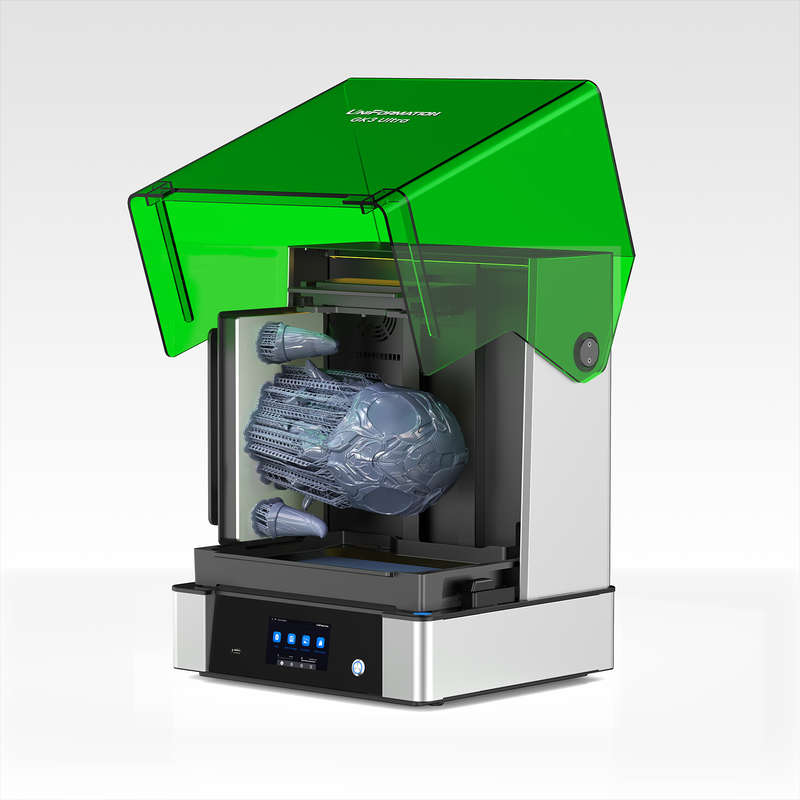

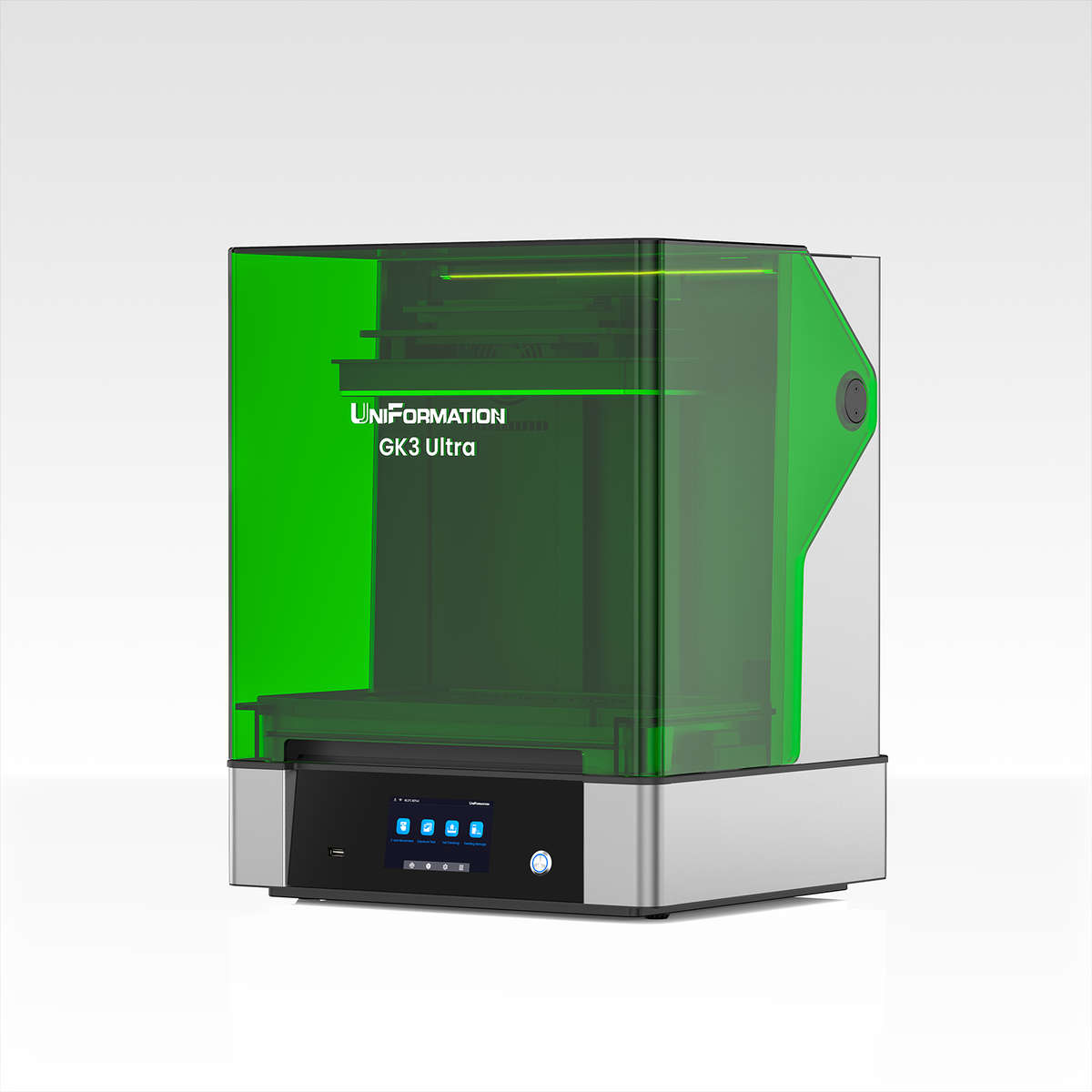

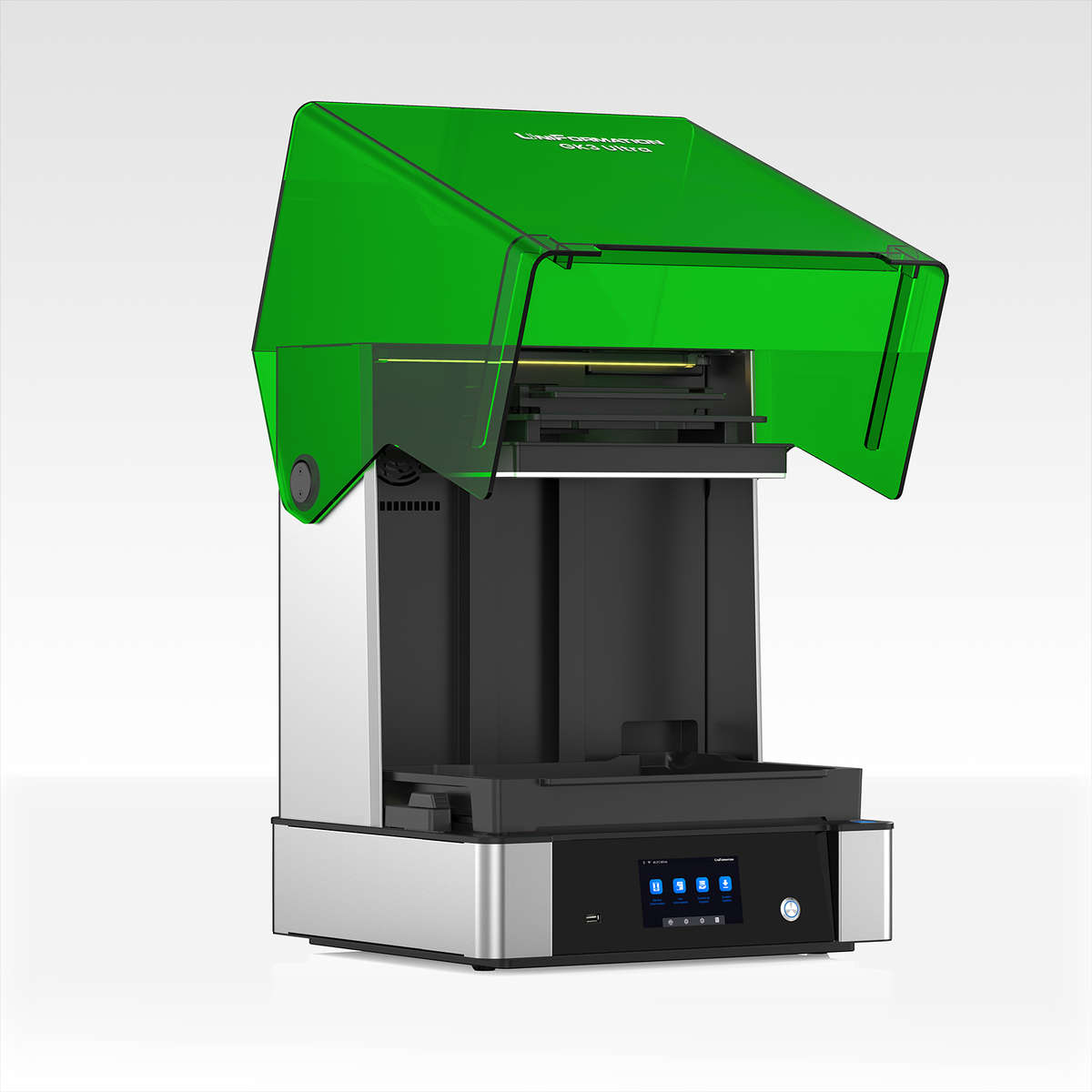

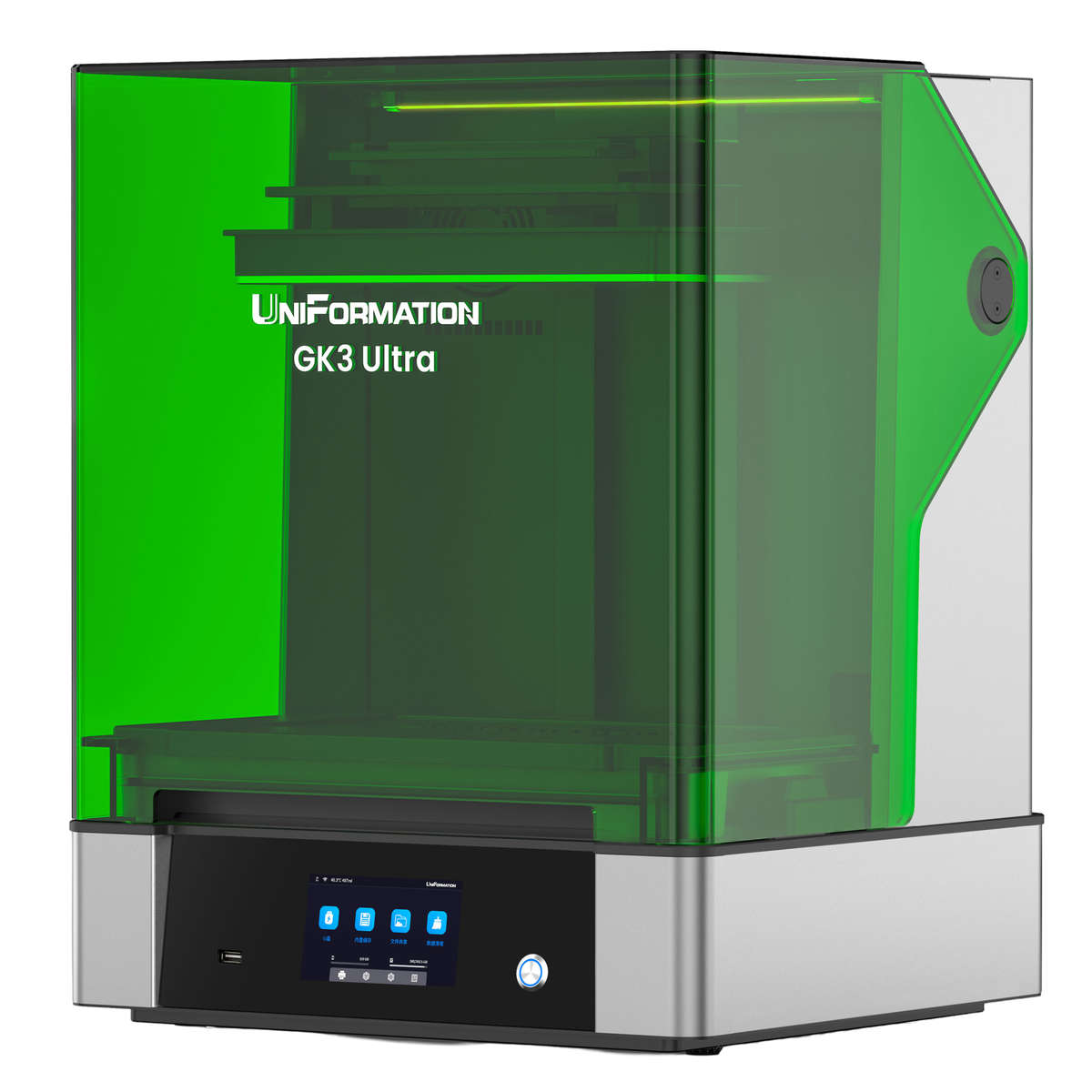

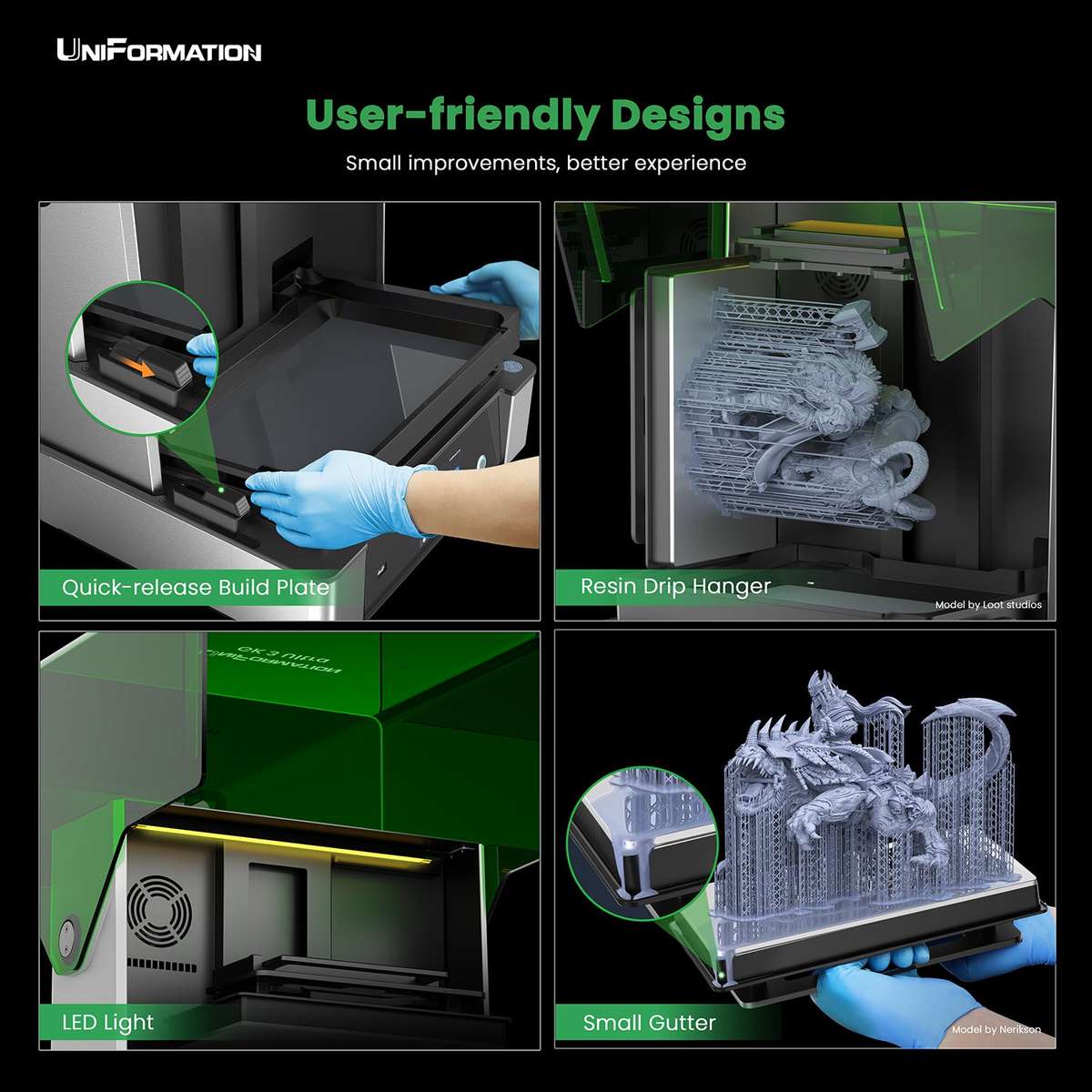

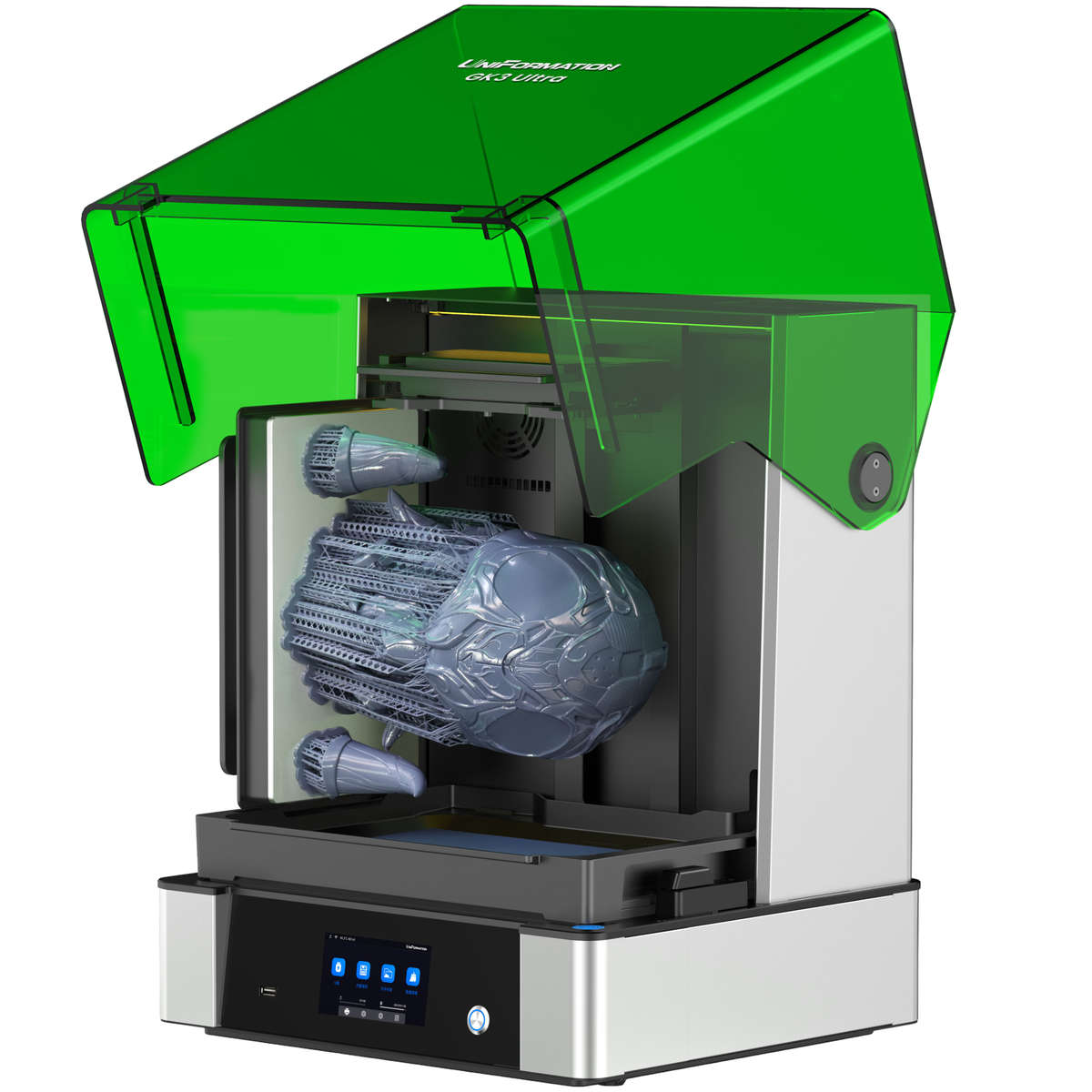

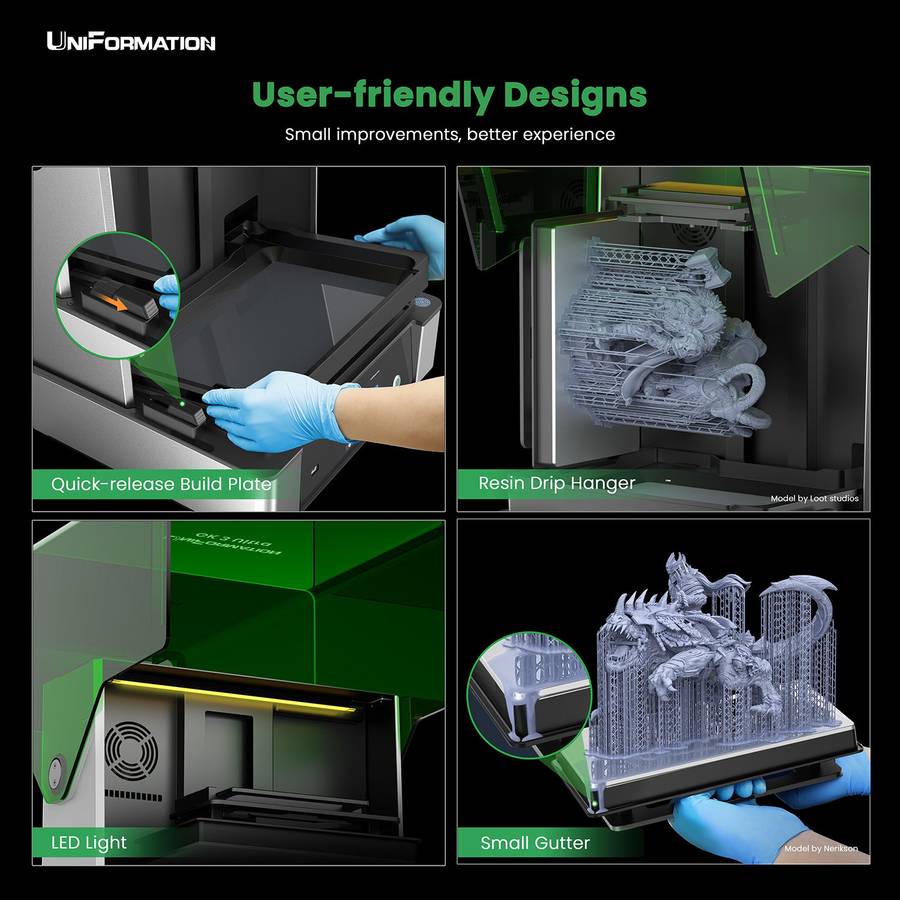

Introducing the GK3 Ultra Resin printer from Uniformation with a bigger build volume, an auto-resin refill system and a heated chamber to ensure the best print quality.

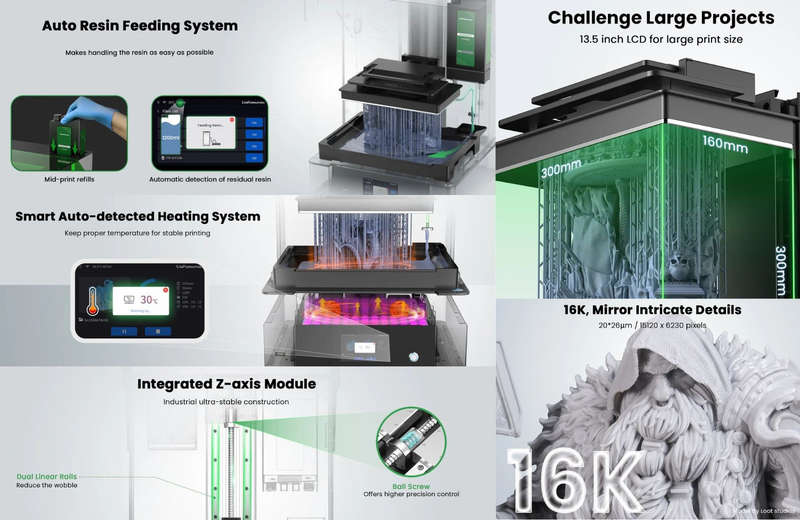

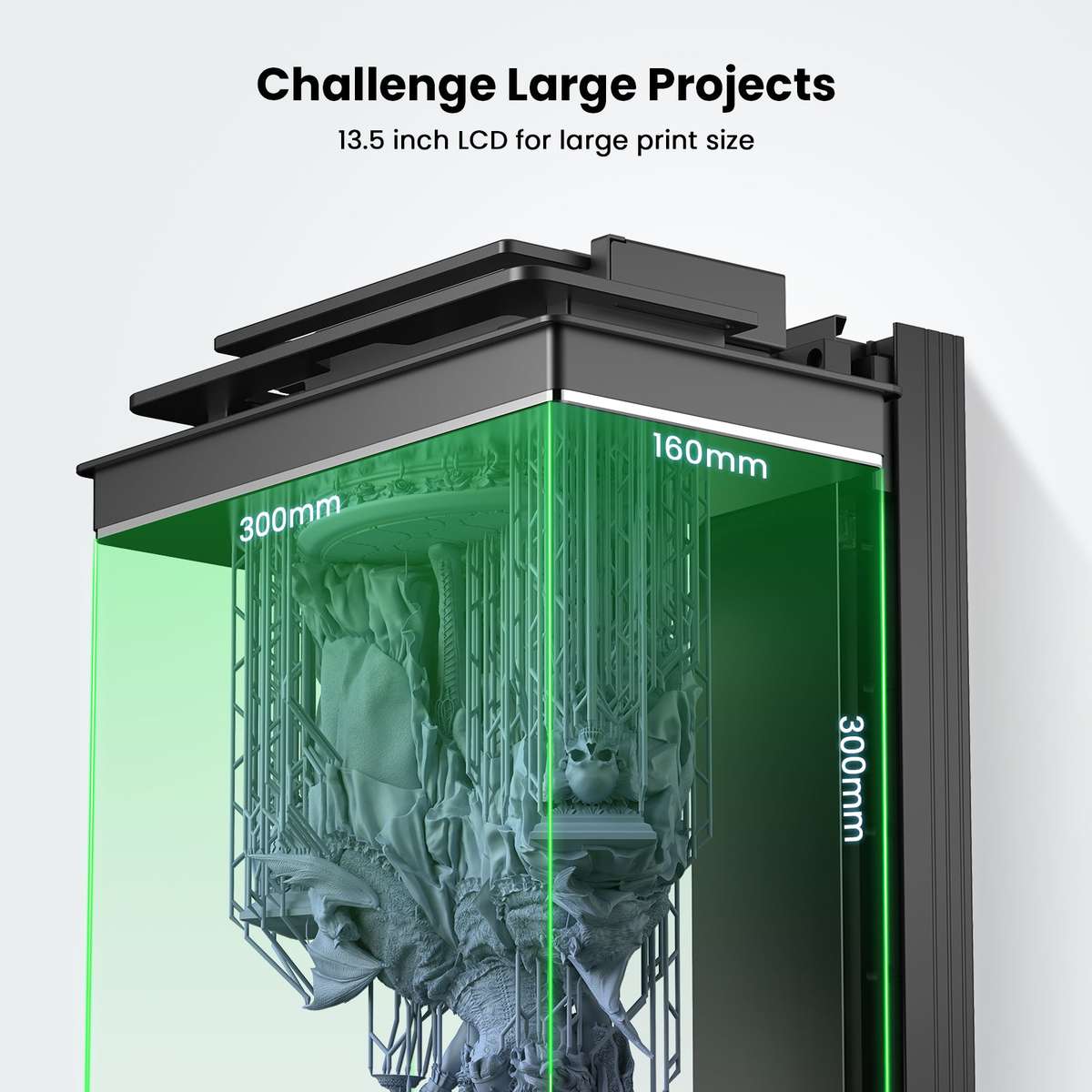

13.5 inch LCD screen for large prints
16K, 20 x 26 um/ 15 120 x 6 230 pixels to mirror intricate details

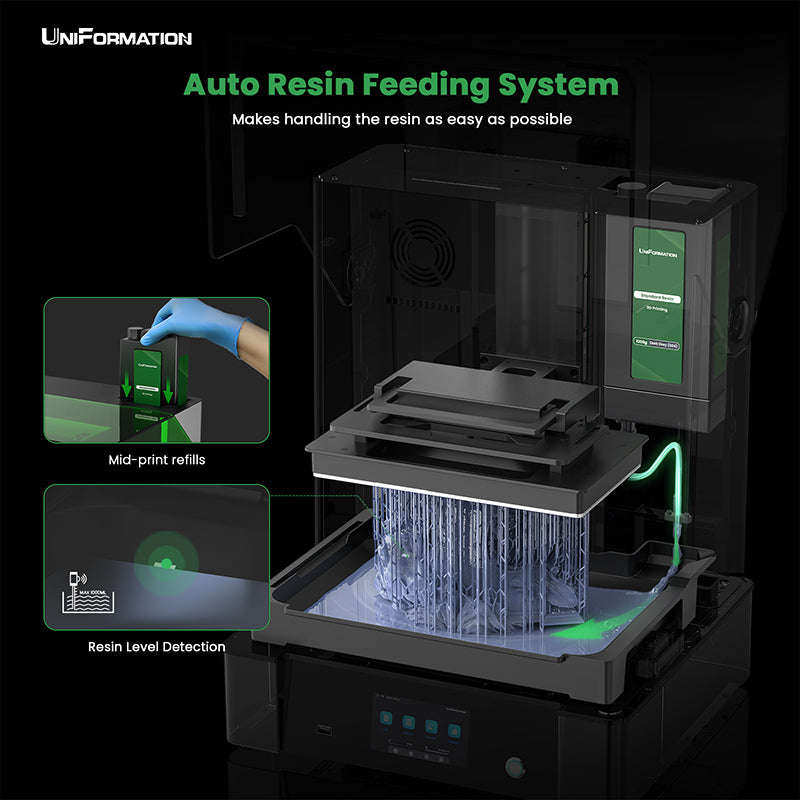

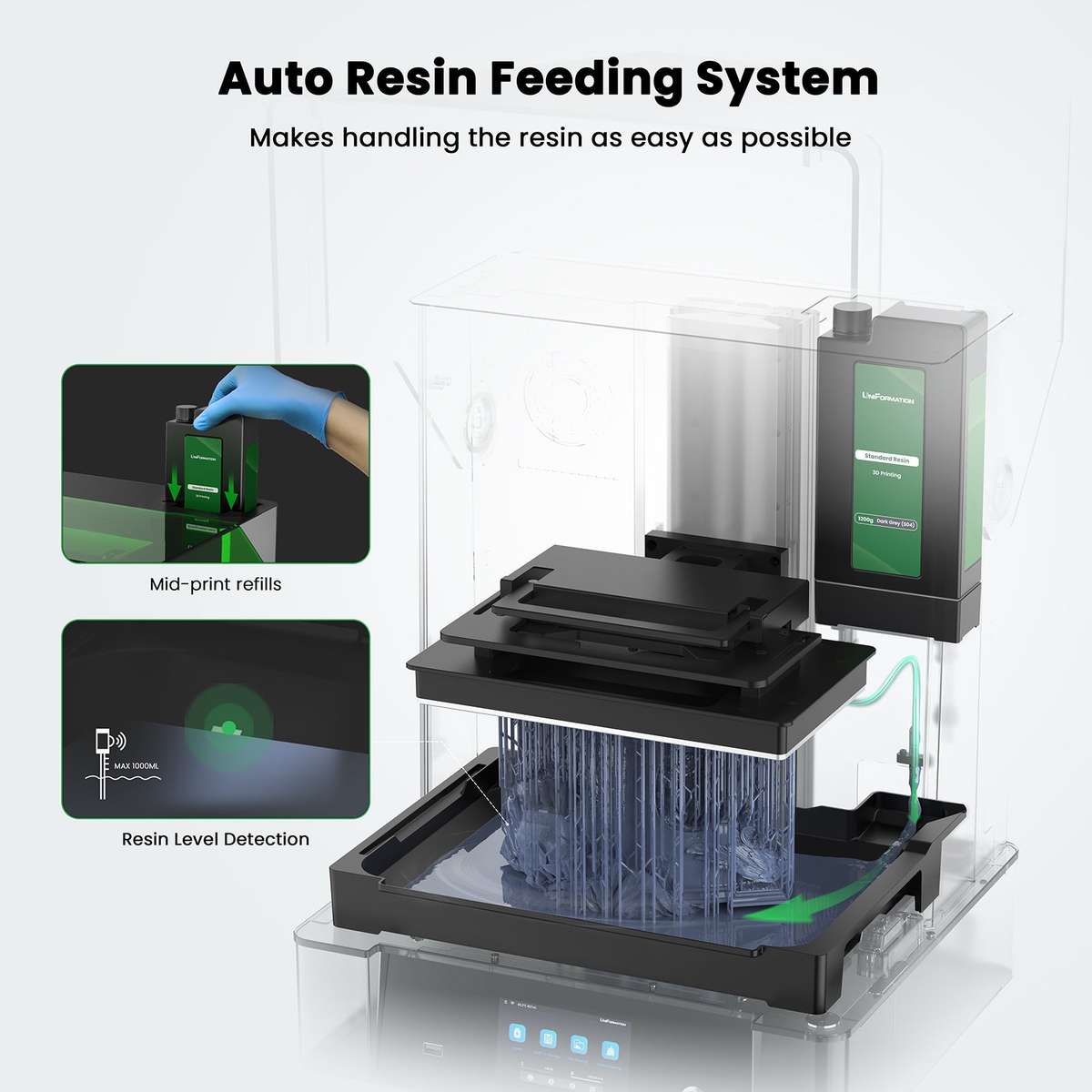

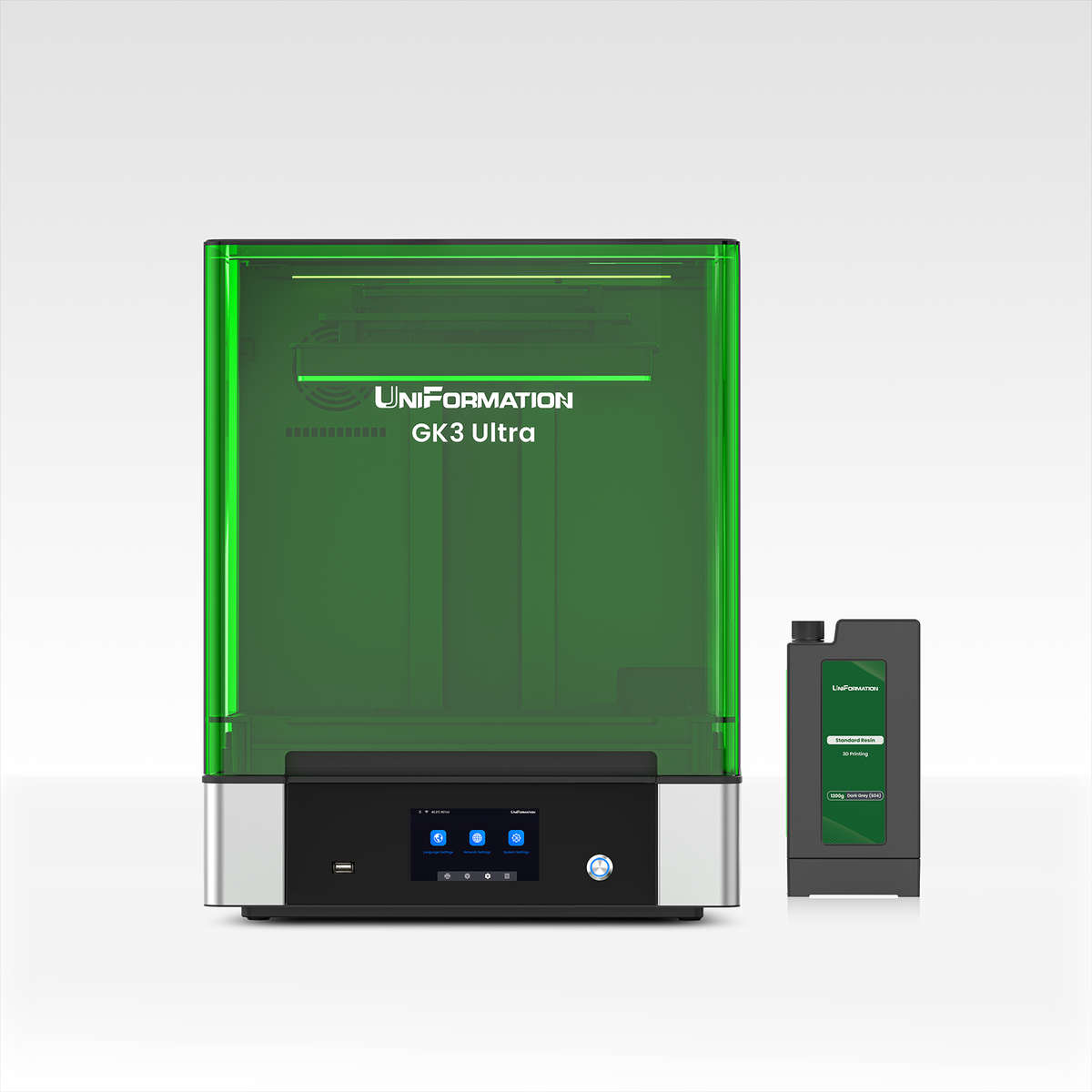

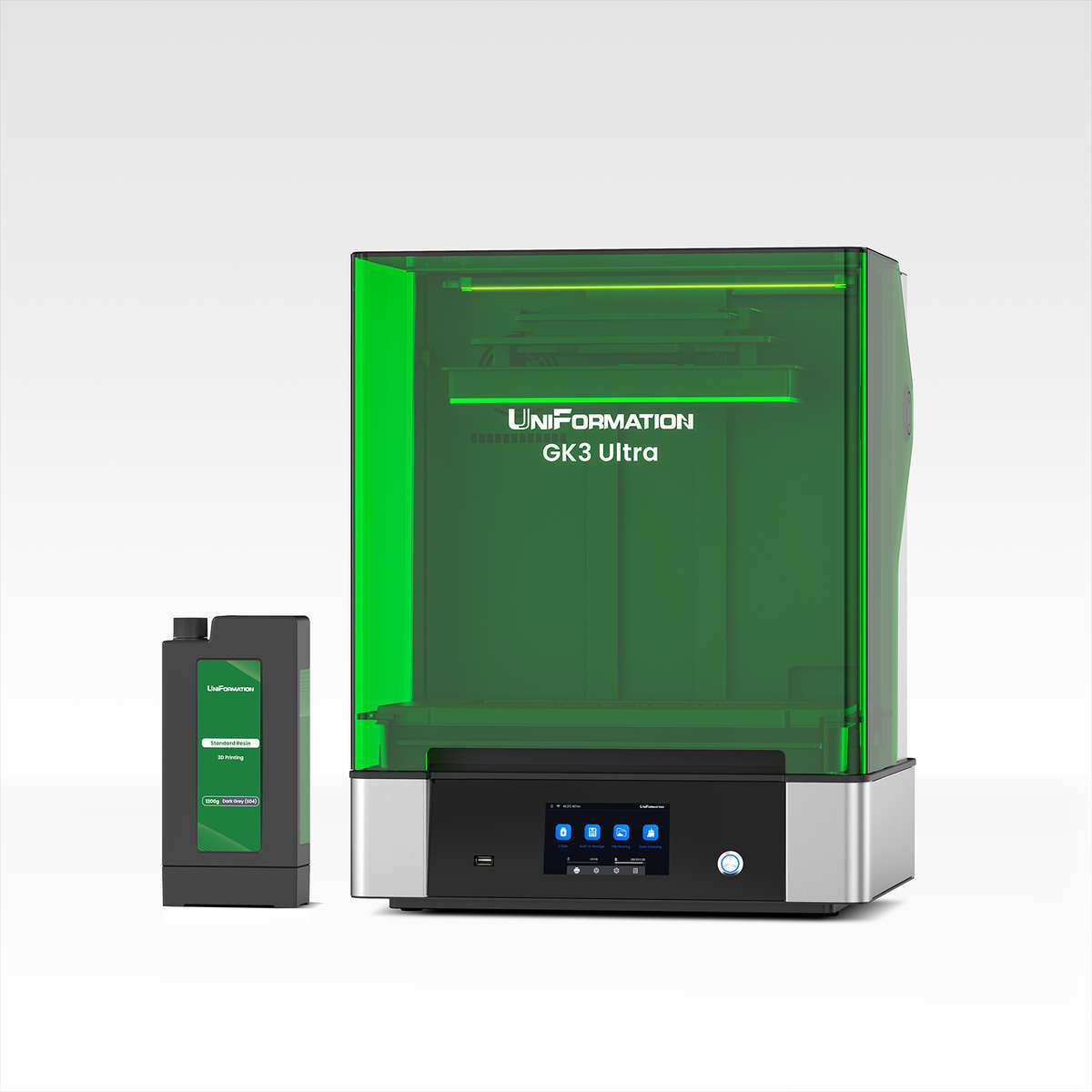

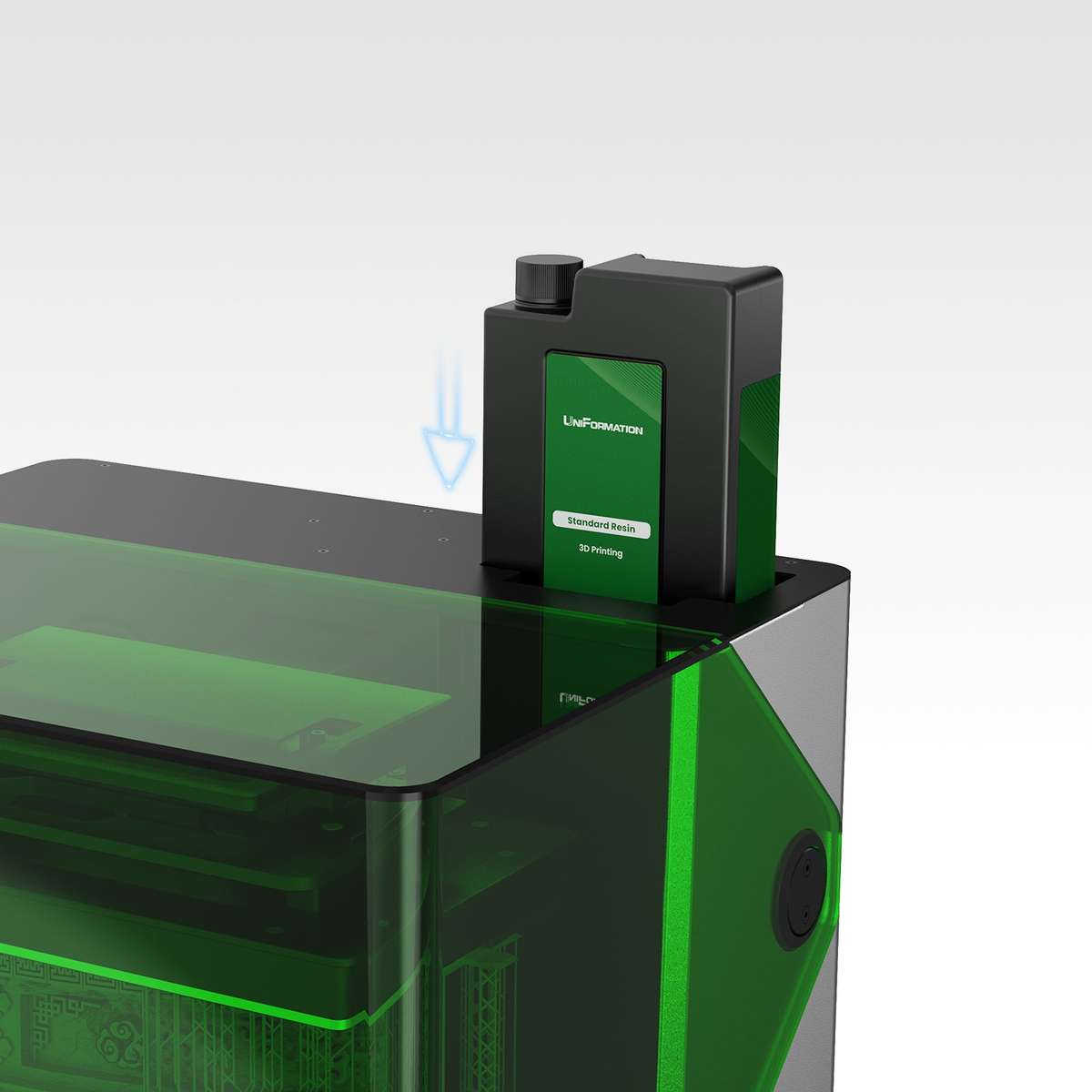

Auto resin Feeding System

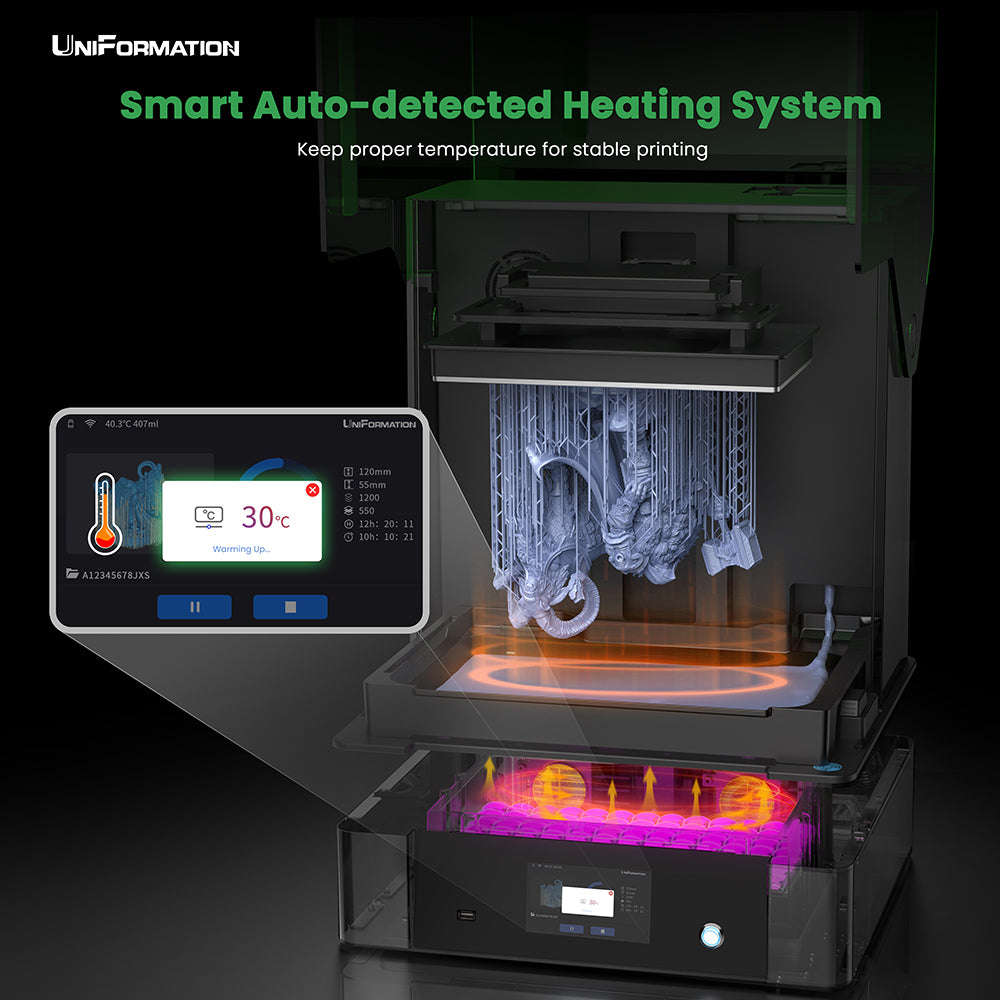

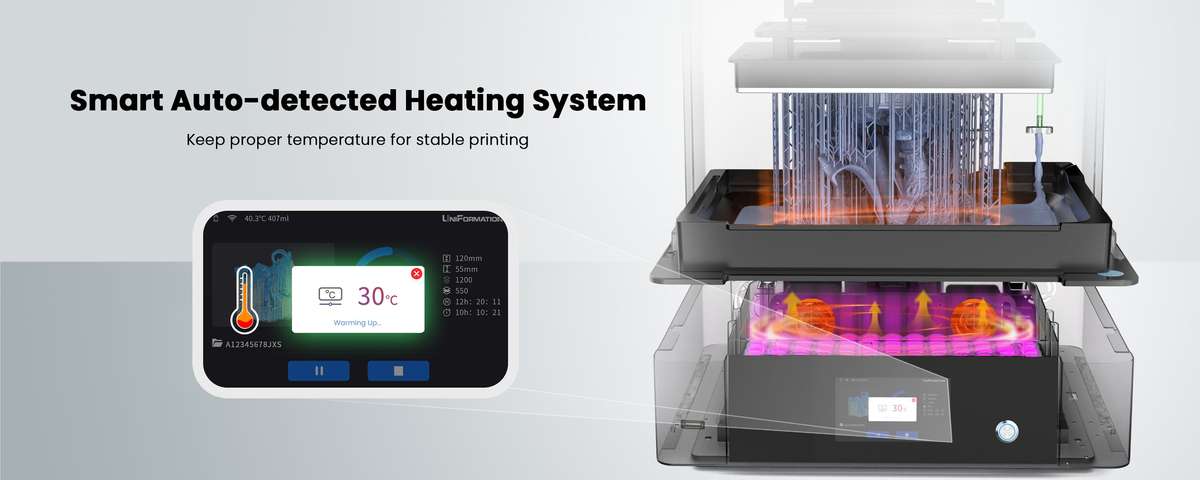

Smart Auto-detected Heating System
Integrated Z-axis module for stable construction

Technical Parameters

Product name	GK3 Ultra
Touch screen	5-inch capacitive touch screen
Slicing software	UniFormation Slicer, Chitubox, Lychee
Connection	USB stick, Wi-Fi file sharing, Ethernet
Technology	Masked SLA (M-SLA) LCD Screen Curing
Screen size	302.4 x 161.98mm (16K, 13.5")
XY resolution	15120 x 6230
Maximum heating temperature	25°C, 30°C
Product weight	30 kg
Layer thickness	0.03 - 0.05 mm
Exposure speed	2-3s/layer (0.05mm)
Pixel size	20 x 26 um (AVC 26 um)
Product dimensions	455 x 400 x 575 mm
Maximum print volume	300 x 160 x 300 mm
Official resin compatibility	Standard Resin, ABS Resin, Flexible Resin
Resin box capacity	1.2kg
Resin vat capacity	1100ml
Printing power consumption	200W

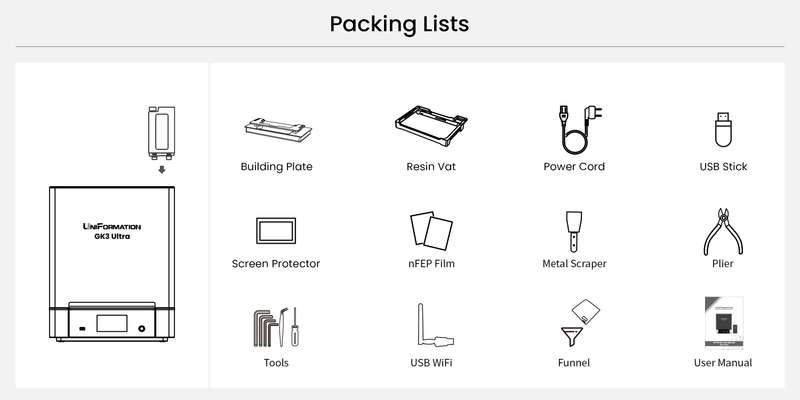

Package includes:

Uniformation GK3 Ultra resin printer
Build plate
Resin vat
Power cord
Screen protector
nFEP Film
Metal Scraper
USB stick
Tools
USB Wi-Fi
Funnel
User Manual

Product Comparison:

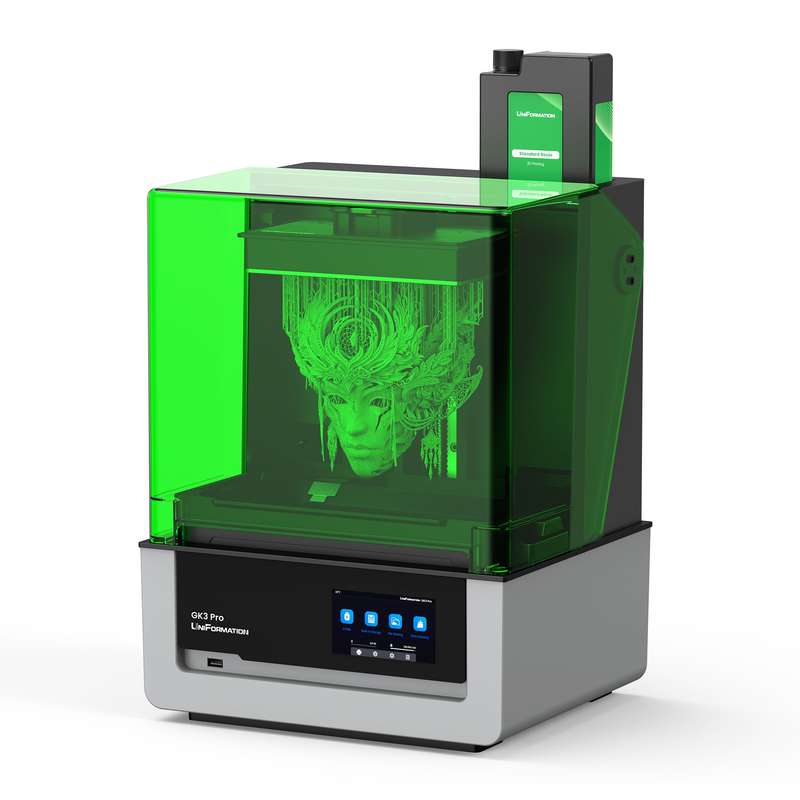

Product name	GK3	GK3 pro	GK3 Ultra

Build Volume	211 x 118 x H240 mm	211 x 118 x H240 mm	300 x 160 x H300(mm)
LCD Screen	16K 9.6-Inch Mono LCD Screen	16K 9.6-Inch High Transmittance Screen	13.6-inch Mono LCD
LCD Resolution	15120 x 6230	15120 x 6230	15120 x 6230
X/Y Axis Resolution	14 x 19 m	14 x 19 m	14 x 19 m
Release Film	nFEP Film	CPFA Film	ACF/nfep Film
Light Source	405 nm COB Light Source + Fresnel Collimating Lens	385 nm COB Light Source + Fresnel Collimating Lens	UV-LED 405nm
Printing Power Consumption	120W	Resin vat capacity	1100ml
Input Voltage	110/220V	Printing power consumption	200W
Slicing Software	UniFormation Slicer, Chitubox, Lychee Slicer	UniFormation Slicer, Chitubox, Lychee Slicer	UniFormation Slicer, Chitubox, Lychee Slicer
Display Screen	5-inch rotating capacitive touch screen ( 90° rotation)	5-inch rotating capacitive touch screen ( 90° rotation)	5-inch capacitive touch screen
Printing Speed	Precision Mode: 22 mm/h for 0.05 mm layer 42 mm/h for 0.l mm layer Speed Mode: 30 mm/h for 0.05 mm layer 55 mm/h for 0.l mm layer Ultra Speed: 108 mm/h for l mm layer thickness (requires custom settings)	Precision Mode: 22 mm/h for 0.05 mm layer 42 mm/h for 0.l mm layer Speed Mode: 30 mm/h for 0.05 mm layer 55 mm/h for 0.l mm layer Ultra Speed: 108 mm/h for l mm layer thickness (requires custom sett...
