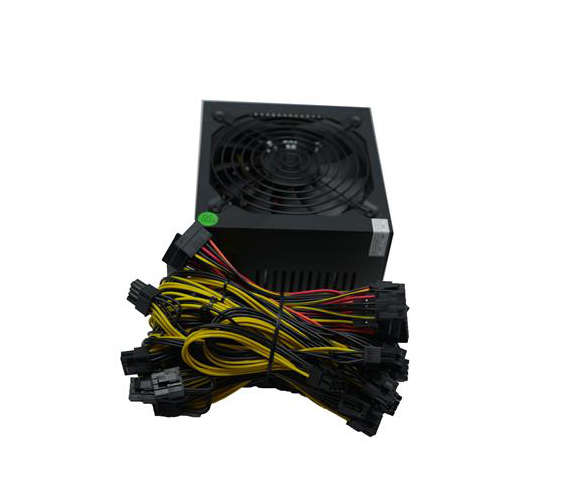

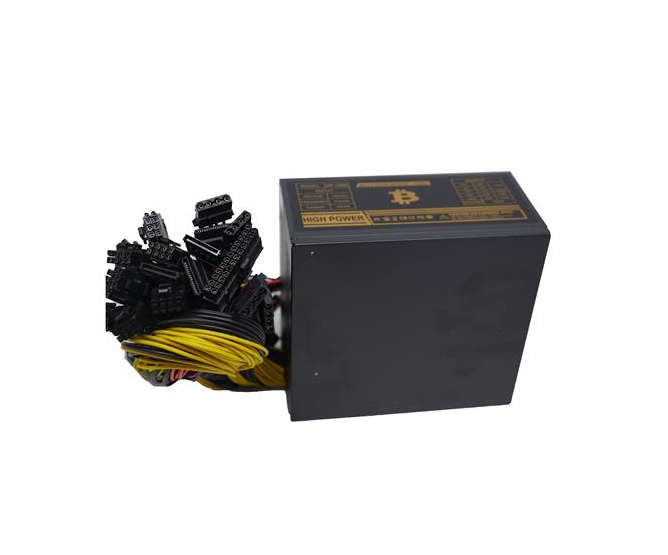

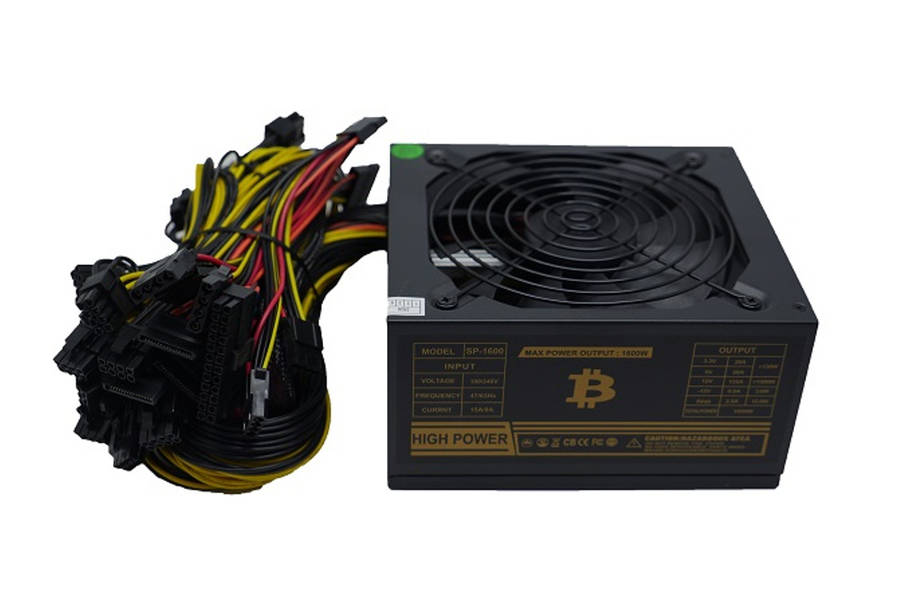

UniQue 1600 Watt Power Supply Unit, Retail Box , 3 months
Highlights
Intel ATX 12V v 2.4 and EPS 2.92 compliant
Universal AC input from 180-240V
Full-bridge topology along with an LLC resonant converter design
Conductive Polymer Aluminum Solid Electrolytic Capacitors
High Reliability 105C Japanese Capacitors
Active Power Factor Correction 99% PF Typical
Massive Single 12V Rail for Maximum and efficient power distribution
Complete Protections: Over Current, Over Voltage, Over Power, Under Voltage & Short Circuit
Intelligent Fan Speed controller allows fan speed to adapt to any environment
13.5cm extremely silent fan with highly reliable ball bearing fan
High Current Terminals to decrease conduction loss and tight voltage regulation
Multi-GPU Technologies supported
Connectors
M/B 24Pin: 1x 20+4Pin to 24Pin/580mm
EPS 8Pin: 1x 8Pin to CPU 4+4Pin/580mm
PCI-Express: 2x PCI-E 6Pin to 6+2Pin & 6+2Pin/630mm
PCI-Express: 2x PCI-E 6Pin to 6+2Pin & 6+2Pin/630mm
PCI-Express: 4x PCI-E 6Pin to 6+2Pin & 6+2Pin/630mm
5Pin to Molex: 4x 5Pin to Molex 4 / 580mm
SATA: 8x 5Pin to SATA x 8 / 580
Specifications
Model: SP-1600W
Stock Code: PSU1600W
Description: UniQue 1600 Watt Power Supply Unit
Type: Intel Form Factor ATX 12V 2.4 & EPS 2.92
PFC: Active Power Factor Correction 99% PF Typical
Modular: Multiple Straight Out Power Supply
Output Power(W): 1600W
Input Voltage: 180-240 Vac
Input Range: Univoltage
Input Frequency: 47-63Hz
Input Current: 15-8A
Dimensions: 165mmx150mmx85mm
Fan Type: 135mm Long Life Dual Ball fan
Power Good SIgnal: 100-500ms
Efficiency: 92%@Typical Load
Protection: OVP / UVP / OPP / OCP / SCP
Regulatory: CE / FCC
Capacitors: Full Japanese Capacitors
Layout: LLC+Dc to Dc
