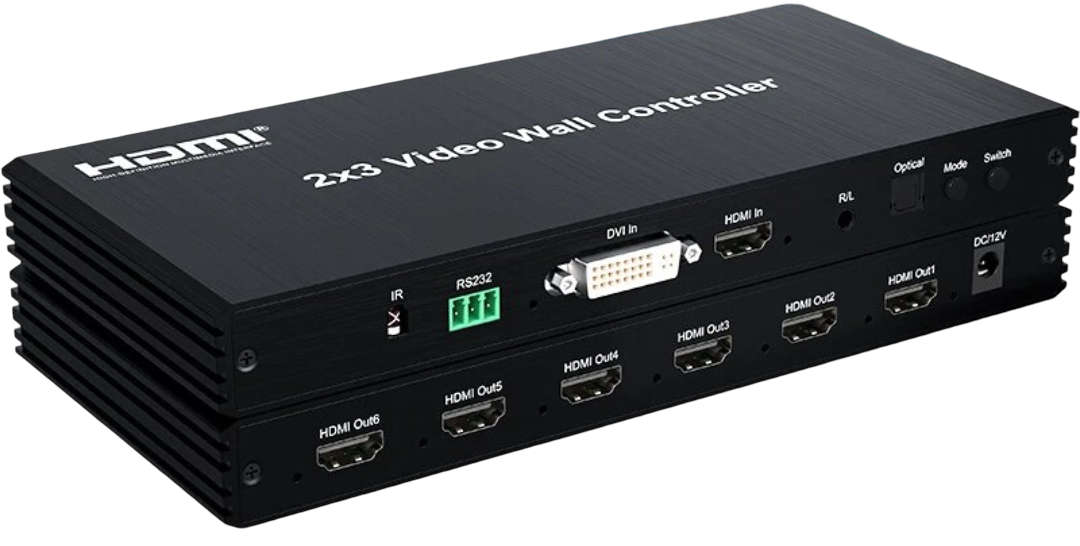

UniQue 2x3 HDMI Video Wall Controller

UniQue 2x3 Video Wall Controller - 6 HDMI Outputs, 1 HDMI Input, 1 DVI Input, Support RS232 And IR Control, 1920x1080 Output Resolution, 60Hz Refresh Rate, 1080P/720P/576P Input Resolution, 4.95Gbits/s Max Bandwidth, 3.96Gbit/s Transfer Rate, Retail Box, 6 Months Warranty

Product Overview

The UniQue 2x3 Video Wall Controller supports HDMI/DVI input and six HDMI outputs with full HD 1080P resolution at 60Hz. It offers multiple splicing modes, power-off memory, and easy plug-and-play operation with RS232/IR control. Designed for efficient video distribution, it handles audio in stereo and supports cable lengths up to 15 meters.

Features

-Support HDMI/DVI video source input;
-Support 6-ways HDMI output;
-With power off memory function;
-Support multiple splicing modes, easy to handle, plug and play;
-Support RS232/IR control.

Specifications

-Product Code: UQ-HVWC2X3
-Description: UniQue 2x3 HDMI Video Wall Controller
-HDMI input resolution: 1080P/720P/576p/576i/480P
-HDMI output resolution: support 1920x1080/60Hz
-Support video formats: RGB,YCbCr444,YCbCr442,YCbCr440
-Support audio formats: Stereo
-Max bandwidth: 4.95Gbit/s(1080P)
-Maximum Transfer Rate: 3.96Gbit/s(1080P)
-Input/output cable length: less than 15M,AWG26 HDMI standard cable
-Max working current: 280mA
-Power adapter specifications: input AC (50Hz, 60Hz) 100V-240V Output 12V DC/1A
-Operating temperature range: (-10 degC～ +45 degC)
