UniQue HDMI Extender 60 MTR CAT5 CAT6 - allows you to extend high-definition HDMI signals up to 60 meters over a single Cat5e or Cat6 cable. Supporting resolutions up to 4K@30Hz and Full HD 1080p, it features IR remote control pass-back, RS232 serial control, and dual audio transmission.
Product Overview

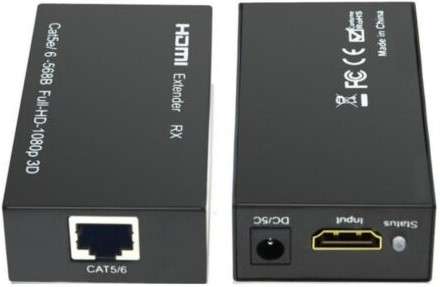

The UniQue HDMI Extender 60 MTR (model ZA-EXTHDMI-60M) allows you to extend high-definition HDMI signals up to 60 meters over a single Cat5e or Cat6 cable. Supporting resolutions up to 4K@30Hz and Full HD 1080p, it features IR remote control pass-back, RS232 serial control, and dual audio transmission. Ideal for digital signage, home theaters, and professional AV setups, this compact and easy-to-install extender ensures reliable, high-quality video and audio transmission over long distances.
Key Features
- Supports HDMI 1.4 and HDCP 1.4 protocols.
- Maximum resolution up to 3840x2160 at 30Hz (4K) and backward compatible with lower resolutions.
- Supports 1080p Full HD and 3D video.
- Supports H.265 video compression technology.
- IR (38 kHz) signal pass-back for remote control extension.
- RS232 pass-through support for serial control.
- Dual-way individual audio transmission.
- Receiver unit supports both HDMI and VGA outputs.
- Includes local HDMI output on the sender unit.
- Maximum transmission distance: up to 120 meters over Cat6 cable, 70 meters over Cat5e cable.
- Power supply: DC 5V/2A adapter.
- Compact dimensions: 134 x 93 x 24 mm.
- Operating temperature range: -5°C to +70°C, humidity 5% to 90%.
Specifications
- Product Code : ZA-EXTHDMI-60M
- Product Overview : UniQue HDMI Extender 60 MTR CAT5 CAT6
- HDMI connector type: HDMI-A with 100 impedance.
- Maximum pixel clock: 225 MHz.
- Maximum data rate: 10.2 Gbps.
- Baud rate for RS232: 115200 bps (configurable).
- Audio formats supported: 44.1KHz to 192KHz stereo digital audio.
- RJ45 port for LAN cable connection (568B wiring standard).
- Includes reset function on receiver for signal adjustment based on cable length.
