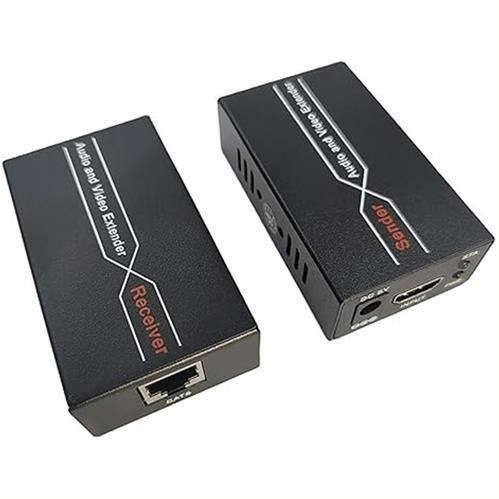

UniQue HDMI Extender 60m ZA-EXTHDMI-60M
The HDMI Extender lets you extend HDMI audio/video signal by up to 60 meters (196 feet) over single Lan cable. The extender kit includes both the local transmitter and remote receiver units, perfect for point-to-point digital signage applications that require high quality HDMI video. It also works to extend Infrared IR signals from remote controls, ideal for controlling your video source from your video destination. For perfect performance, the extender comes with a reset function on the receiver, which enables user to adjust the signal to best match the cable length.
Features
- Support H.265 Technology
- Distance up to 120m over a CAT6 cable over UTP CAT6
- Support IR(38khz) signal pass back control
- Support R$232 pass-through
- Support dual way individual audio transmission
- HDMI1.4 and HDCP1,4 protocol
- Receiver supports both 1 HDMl and 1 VGA output
Specifications
Product code: ZA-EXTHDMI-60M
Product: UniQue 60M HDMI Extender 1080p 3D HDMI Transmitter Receiver over Cat5e/6 with IR Control Loop Out 3D EDID Function
Protocol: HDMI 1.4; HDCP 1.4
Maximum pixel clock: 225MHz, digital
Maximum data rate: 10.2Gbps
Highest resolution: 3840X2160-30Hz and backward compatible
Connector: HDMI-A
HDMI Impedance: 100
Type: HDMI cable; less than 5meters; 24AWG
Port: DB9
Signal direction: Two-way transmission
Baud rate: 115200bps (Other baud rates need to be set on the web)
Data bit: 8 bits
Port: 3.5mm Stereo audio socket
Audio format: 44.1K, 48K, 96K, 176K, 192K
Signal type: Stereo audio
Interface: 3.5mm earphone seat
Signal direction: Unidirectional pass-back
Signal type: Digital
IR frequency: 38 kHz
Connector: RJ45 portï¼568Bï¼
Longest distance: 120metres via cat6; 70m via cat5e
Power supply: Adapter：DC 5V/2A
Power dissipation: MAX 6W
Temperature: -5⃠~ +70âƒ
Humidity: 5% ~ 90%
Dimension: 134 x 93 x 24mm
