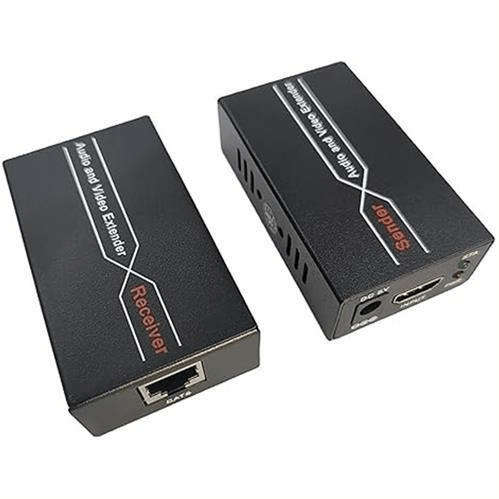

UniQue HDMI Extender 60m ZA-EXTHDMI-60M

The HDMI Extender lets you extend HDMI audio/video signal by up to 60 meters (196 feet) over single Lan cable. The extender kit includes both the local transmitter and remote receiver units, perfect for point-to-point digital signage applications that require high quality HDMI video. It also works to extend Infrared IR signals from remote controls, ideal for controlling your video source from your video destination. For perfect performance, the extender comes with a reset function on the receiver, which enables user to adjust the signal to best match the cable length.

Features

• Support H.265 Technology
• Distance up to 120m over a CAT6 cable over UTP CAT6
• Support IR(38khz) signal pass back control
• Support RS-232 pass-through
• Support dual way individual audio transmission
• HDMI1.4 and HDCP1,4 protocol
• Receiver supports both 1 HDMl and 1 VGA output

Specifications:

Product code: ZA-EXTHDMI-60M

Product: UniQue 60M HDMI Extender 1080p 3D HDMI Transmitter Receiver over Cat5e/6 with IR Control Loop Out 3D EDID Function

Protocol: HDMI 1.4; HDCP 1.4

Maximum pixel clock: 225MHz, digital

Maximum data rate: 10.2Gbps

Highest resolution: 3840X2160-30Hz and backward compatible

Connector: HDMI-A

HDMI Impedance: 100

Type: HDMI cable; less than 5meters; 24AWG

Port: DB9

Signal direction: Two-way transmission

Baud rate: 115200bps (Other baud rates need to be set on the web)

Data bit: 8 bits

Port: 3.5mm Stereo audio socket

Audio format: 44.1K, 48K, 96K, 176K, 192K

Signal type: Stereo audio

Interface: 3.5mm earphone seat

Signal direction: Unidirectional pass-back

Signal type: Digital

IR frequency: 38 kHz

Connector: RJ45 port (568B)

Longest distance: 120metres via cat6; 70m via cat5e

Power supply: Adapter: DC 5V/2A (Sold Separately)

Power dissipation: MAX 6W

Humidity: 5% ~ 90%

Dimension: 134 x 93 x 24mm
