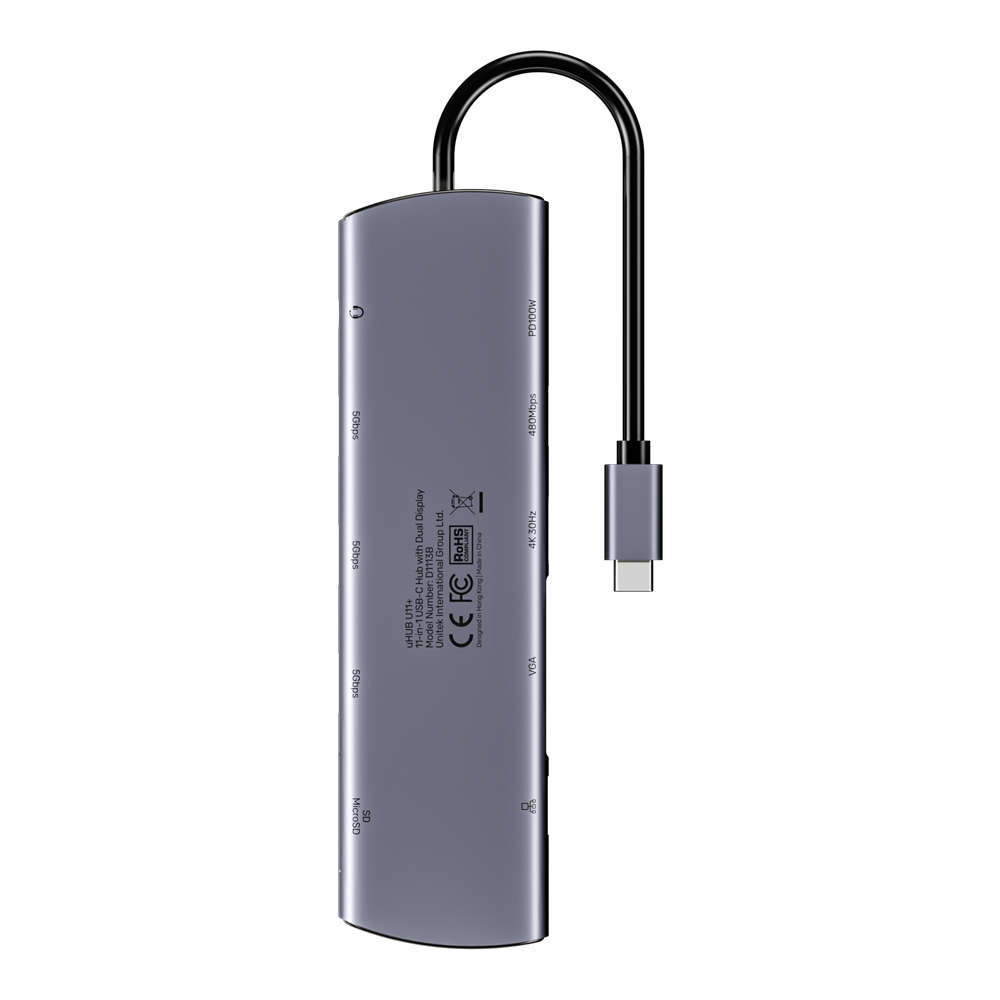

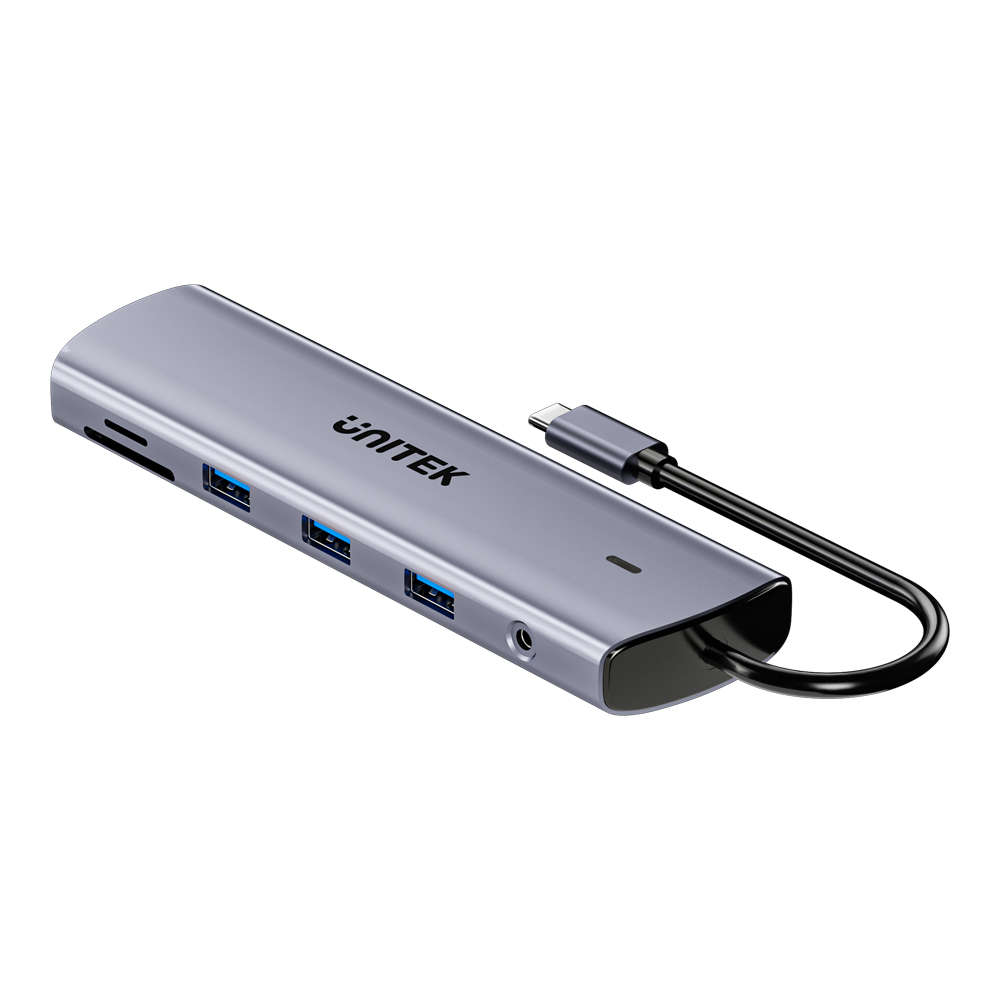

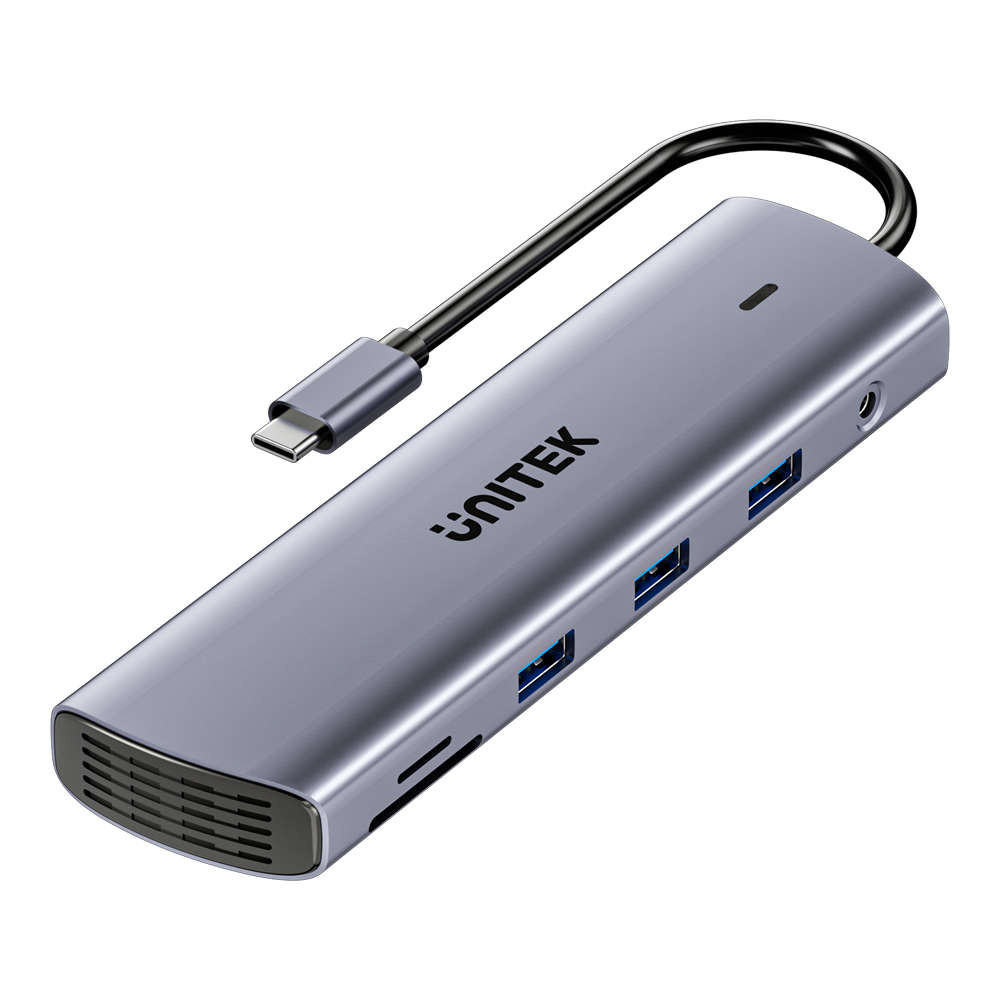

UNITEK D1113B 11-in-1 USB Type-C Port Replicator with Dual Display and 100W PD
One Compact Hub for Displays, Data, Charging and Connectivity.
The UNITEK D1113B uHUB U11+ 11-in-1 USB Type-C Port Replicator expands a USB Type-C laptop or tablet into a practical workstation. It combines HDMI and VGA display output, 100W USB Type-C Power Delivery, Gigabit Ethernet, USB data ports, SD and microSD card readers and a 3.5mm audio/mic jack in a slim aluminium design. With plug-and-play setup and broad Windows and macOS compatibility, it is ideal for office desks, hybrid work, presentations and everyday productivity.
FEATURES
11-in-1 Expansion - Adds display, network, USB, card reader, charging and audio connectivity from one USB Type-C port
Dual Display Output - Supports HDMI and VGA output for flexible multi-screen setups
4K HDMI Output - Supports single HDMI display output up to 4K @30Hz
Full HD VGA Output - Supports single VGA display output up to 1080p @60Hz
Dual Monitor Mode - Supports HDMI and VGA together at up to 1080p @60Hz in SST mode
100W USB Type-C PD Charging - Powers compatible laptops while the hub remains connected
Fast USB Data Transfer - Includes 3× USB Type-A 5Gbps ports for flash drives, peripherals and storage
USB Type-A Charging - Supports charging up to 5V 1.5A from a single USB Type-A port
Gigabit Ethernet - Provides stable wired network speeds up to 1000Mbps
Dual Card Reader - Supports SD and microSD cards up to 2TB with single-card reading
Audio and Mic Support - Includes a 3.5mm audio/microphone jack for headsets and speakers
SPECIFICATIONS
Upstream: 1× USB Type-C Connector, 5Gbps
Downstream USB Ports: 3× USB Type-A 5Gbps, 1× USB Type-A 480Mbps
Video Output: 1× HDMI, 1× VGA
HDMI Output: Up to 4K @30Hz
VGA Output: Up to 1080p @60Hz
Dual Display Output: Up to 1080p @60Hz via HDMI and VGA
Power Delivery: 1× USB Type-C PD 100W, 20V 5A
Network Port: RJ45 Gigabit Ethernet, up to 1000Mbps
Card Reader: SD and microSD, supports up to 2TB
Audio Port: 3.5mm Audio/Mic Jack
Cable Length: 20cm
Dimensions: 159.76 × 44.18 × 17.12mm
Material: Aluminium-Alloy
Colour: Space Grey
System Compatibility: Windows 10/11 and macOS 10.6 or later
NOTES
USB Type-C PD charging requires a compatible USB Power Delivery or Thunderbolt 3 host device
HDMI and VGA output require DisplayPort Alternate Mode or Thunderbolt 3 support from the host device
Dual display output supports SST mode only
