Unitek USB to RJ45 Console Cable 1.8m CNV-USB-CONSOLE-1.8M

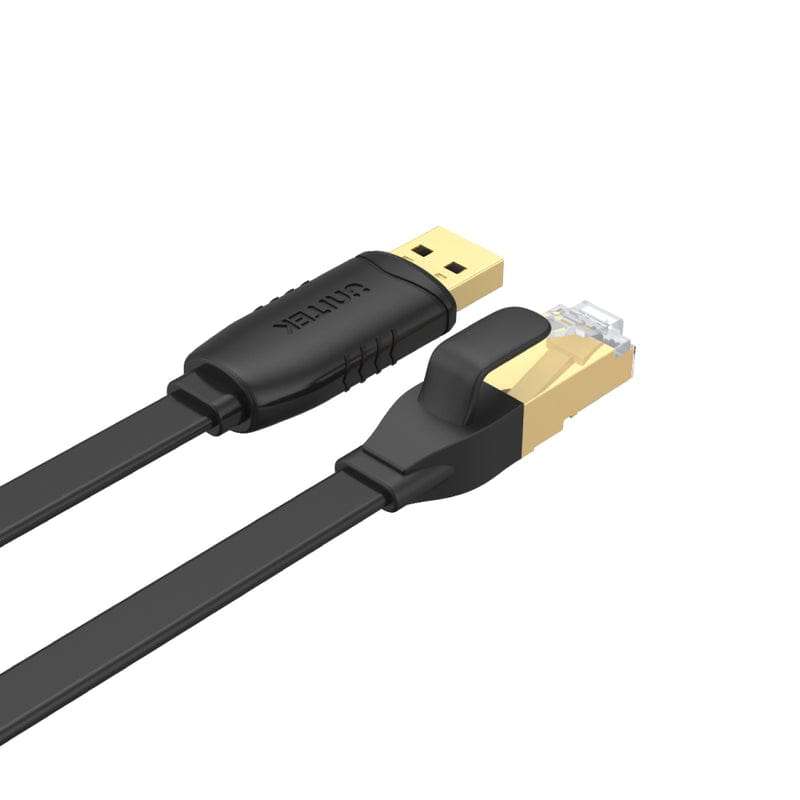

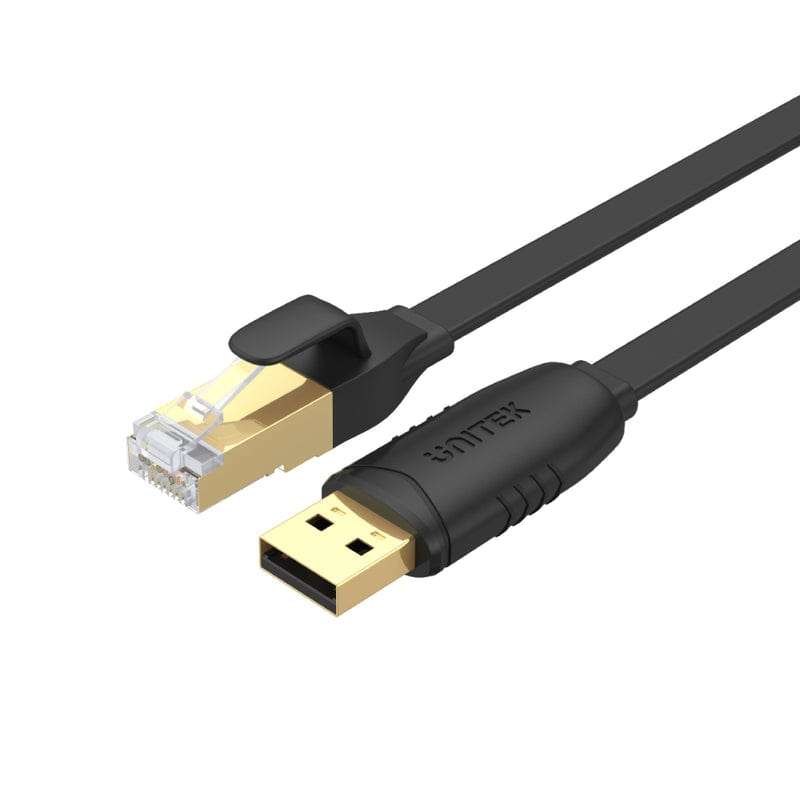

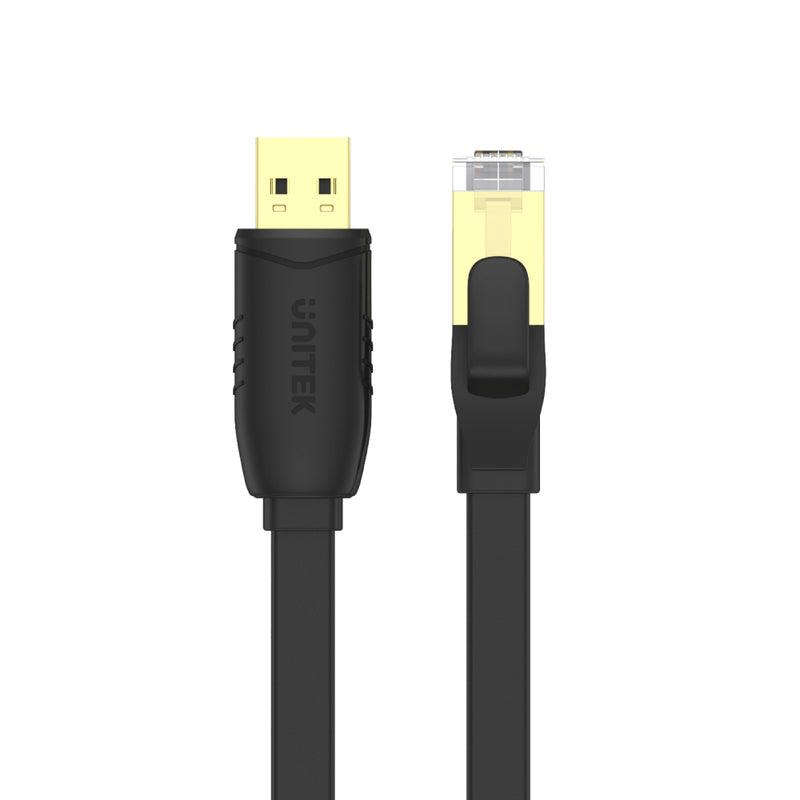

Unitek USB to RJ45 Console Cable 1.8m

This USB 2.0 adapter is useful to directly connect with Cisco-standard serial console, ideal to replace RS232 (DB-25/DB-9) serial port adapter cable.

Features:

• Designed for debugging and configuring network equipment, connecting to the console port on a modem, router, server, switch or other Serial based devices, from your PC and laptop directly over the USB2.0 specification. Note: This is not a USB Ethernet cable.

• Integrated with FTDI-FT232 chip handles the USB signaling and protocol functions including an RS-232 level shifter, and with high compatibility and stability.
• Support hardware handshaking and software flow control including CTS/ RTS/ XON/ XOFF.
• Full support for 32-bit and 64-bit Windows, Mac OS and Linux.
• Flat cable design, helpful on the installation which aiming for an indiscernible and harmonious purpose, or for convenient storage purpose.
• Made with 26AWG bare copper conductors, offers higher efficiency with lesser electrical resistance, gold-plated shielded RJ45 connector against EMI and other interferences, and gold-plated contacts help boost up the efficiency of data transmission.
• With ESD protection system, occurs automatically when a charge is exchanged between two devices of unequal charge potential.
• Notice: This product comes with a driver installation. Please download the drive at www.unitek-products.com during the first time use.

Specifications:

• Colour: Black
• Dimension: Cable Outside Diameter (OD): 9mm x 2.5mm
• Materials: Connectors with Gold-Plated Contacts & 3 Shielding, PVC Flat Cable Jacket, 26AWG Bare Copper Conductors
• Chip: FTDI-FT232
• Upstream: USB
• Downstream: RJ45 (8P8C)
• Power Input: N/A
• Power Output: N/A
• Cable Length: 180cm

Package:

• 1 x USB 2.0 Console Rollover Flat Cable
