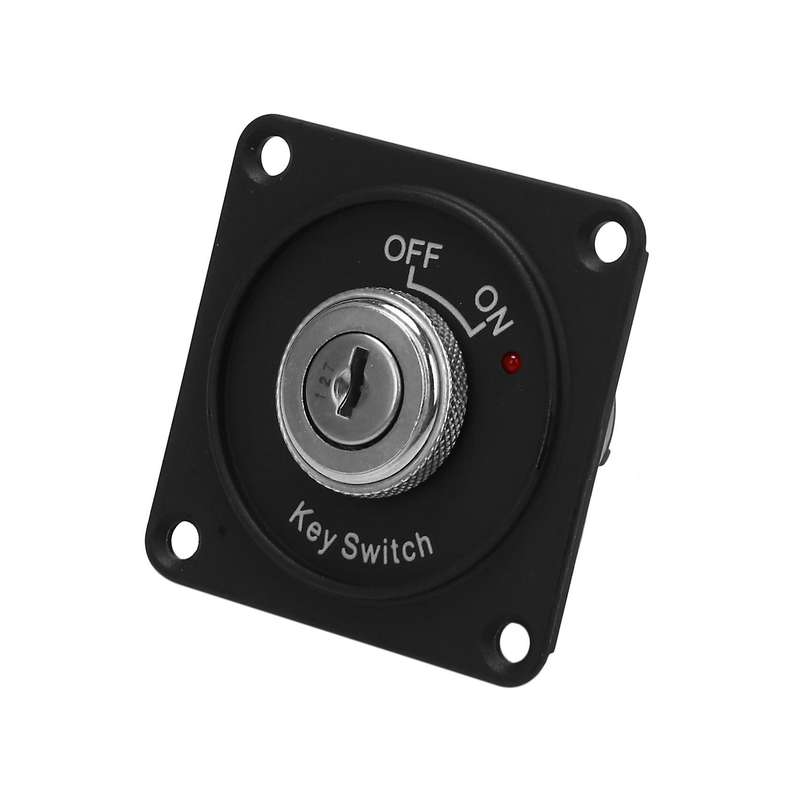

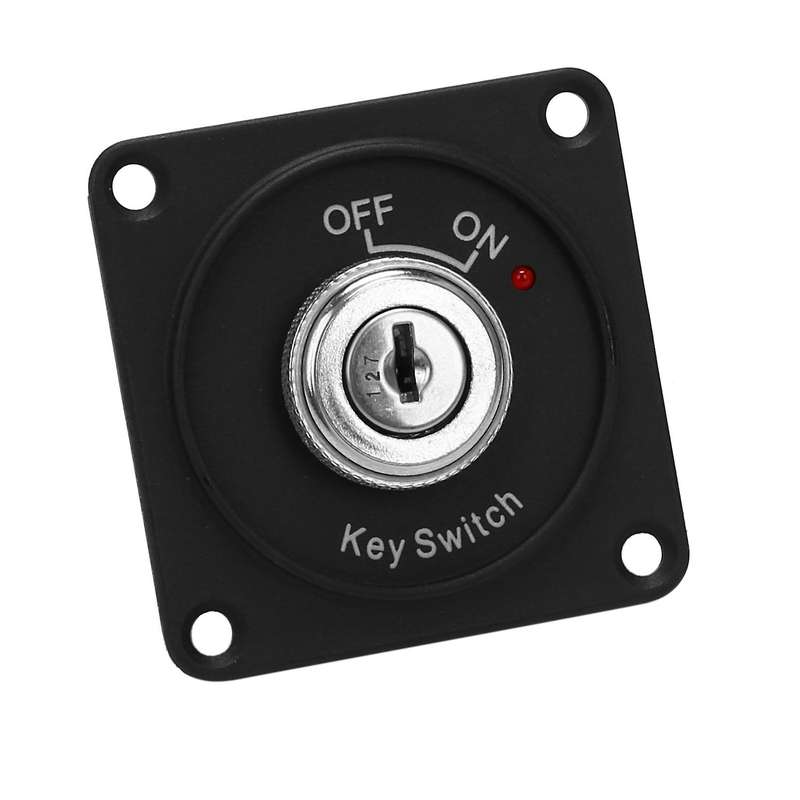

Universal 12V Car Boat Motorcycle Ignition Key Ignition Switch Panel 2Position with 2

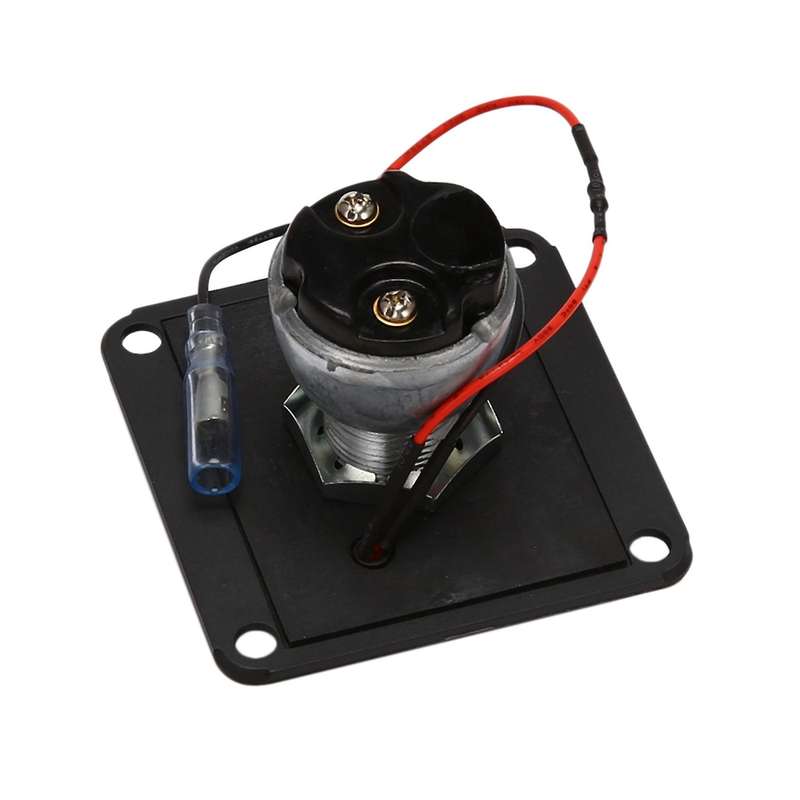

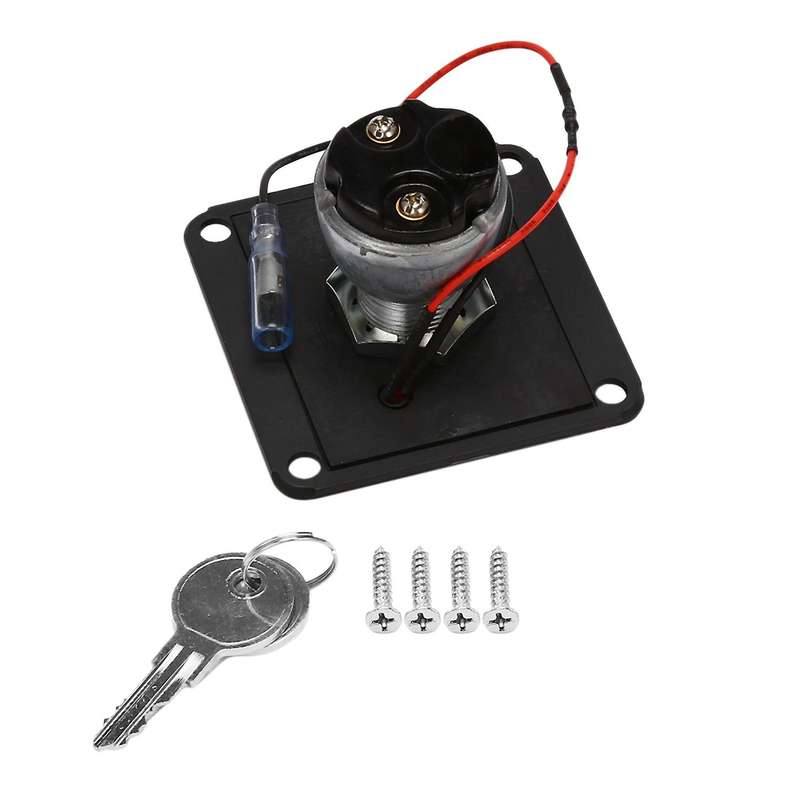

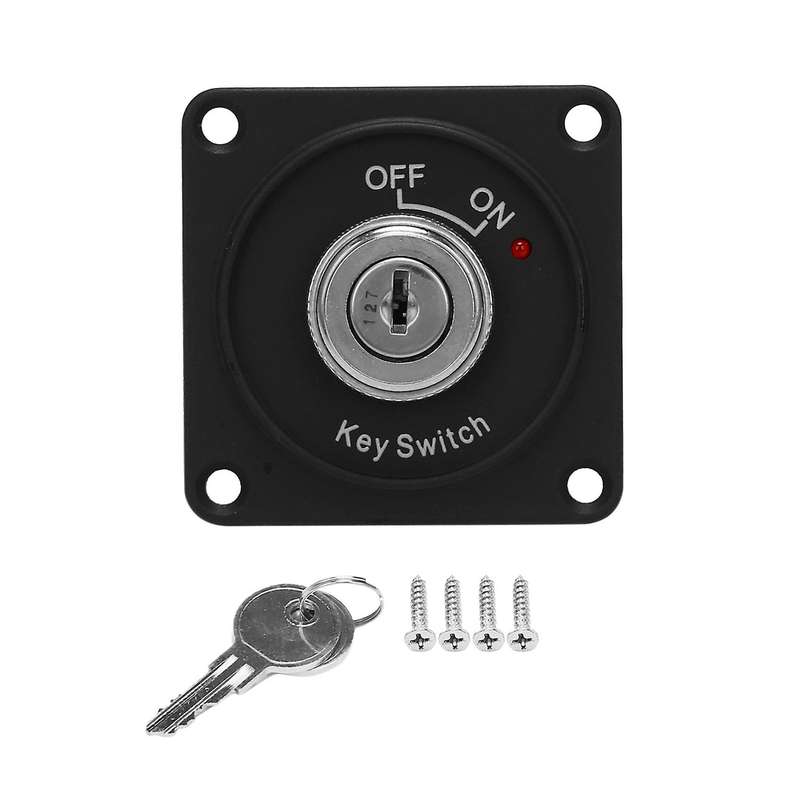

1. Disconnect all power(AC& DC)Disconnect cables from all batteries and AC.shore power cord from the yacht.2. Cut opening for mounting location.Using the mounting dimensions provided to measure and cut out the mounting hole in the.surface where the panel is to be mounted.3. Connect and Lamp negative feed wire.Connect the DC.power source(the batteries) to the screw terminal from the LED. Then connect the LED negative wire (black) to a DC negative busbar.4. Connect the LED wire and devices.Connect the LED wire (red) to screw terminal near the LED. Connect the device or distribution panels to the same screw terminal.5. Mount the switch panel.Clean the surface where the panel is to be mounted carefully. Place the panel and screw down the panel to the mounting surface as as possible with -tapping screws.6. and Test. all the AC& DC powers to supply power to the panel. Turn all branch circuits to check if the panel works normally.Switch Ratings: DC 12VPanel Rating: 10 AProduct Dimensions: (W x H) 69 x 69mmColour: BlackMaterial: nylon + metalPackage Contents: 1* Ignition Switch Panel2* keyOnly the above package content, other are not included.Note: Light and different displays may cause the color of the item in the a little different from the real thing. The measurement allowed error is +\/- 1-3cm.
