Universal 7 Keys V29 V56 V59 TV Switch Keypad Board With Interface

New 12 were available
R366.00
Shipping
R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate
The seller has indicated that they will usually have this item ready to ship within 12 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery
Main centres:  1-3 business days
Regional areas: 3-4 business days
Remote areas: 3-5 business days
Buyer protection
Returns
Replacement Guarantee: 7 Days: We stand by this guarantee
Get it now, pay later

Product details

Condition
New
Location
International
Bob Shop ID
617566897

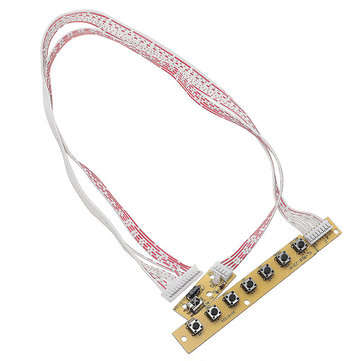

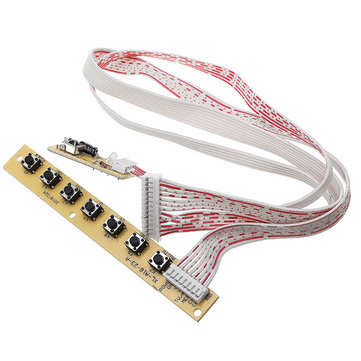

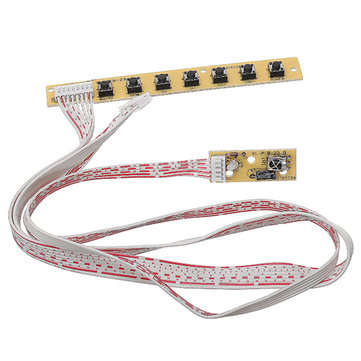

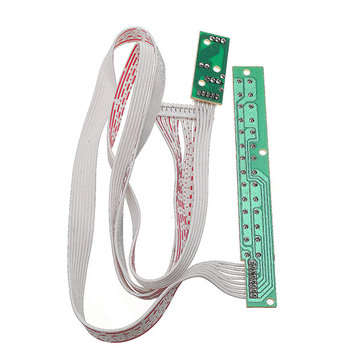

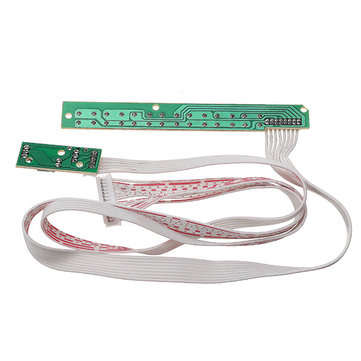

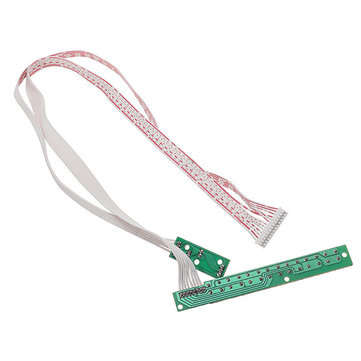

Universal 7 Keys V29 V56 V59 TV Switch Keypad Board With Interface

Description:

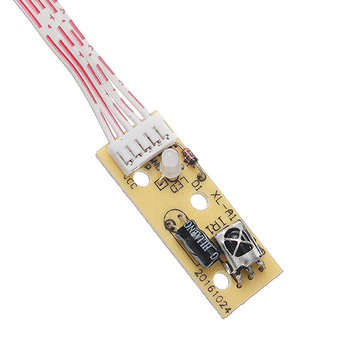

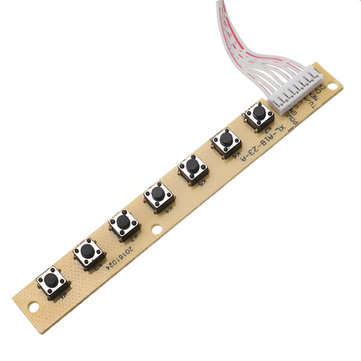

7 Keys Keypad Board, can be directly used in V29 V56 V59 TV driver board , with interface, can be welding infrared receiving head

PIN Symbol Description
1 + 5 V + 5 V POWER SUPPLY FOR IR
2 IR - IN IR INPUT
3 GND GROUND
4 K0 POWER
5 LEDR RED LED
6 LEDG GREEN LED
7 GND GROUND
8 K1 MANU
9 K2 INPUT SOUR
10 K3 VOL+
11 K4 VOL-
12 K5 CH+
13 K6 CH-
14 K7 RESERVED

Package included:

1 x?7 Keys?Keypad Board
