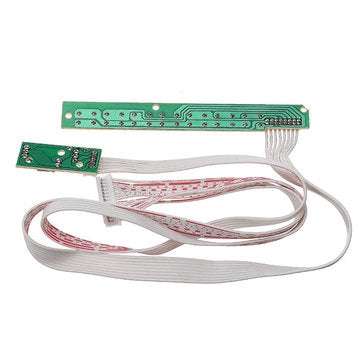

Universal 7 Keys V29 V56 V59 TV Switch Keypad Board With Interface

Description:


7 Keys Keypad Board, can be directly used in V29 V56 V59 TV driver board , with interface, can be welding infrared receiving head

PIN Symbol Description
1 + 5 V + 5 V POWER SUPPLY FOR IR
2 IR - IN IR INPUT
3 GND GROUND
4 K0 POWER
5 LEDR RED LED
6 LEDG GREEN LED
7 GND GROUND
8 K1 MANU
9 K2 INPUT SOUR
10 K3 VOL+
11 K4 VOL-
12 K5 CH+
13 K6 CH-
14 K7 RESERVED

Package included:

1 x7 KeysKeypad Board
