Universal AN6 Push-on Straight Reusable Hose End Fittings

Universal AN6 Push-on Straight Reusable Hose End Fittings for Fuel and Oil Coolers - BLACK (10005282)

Application:

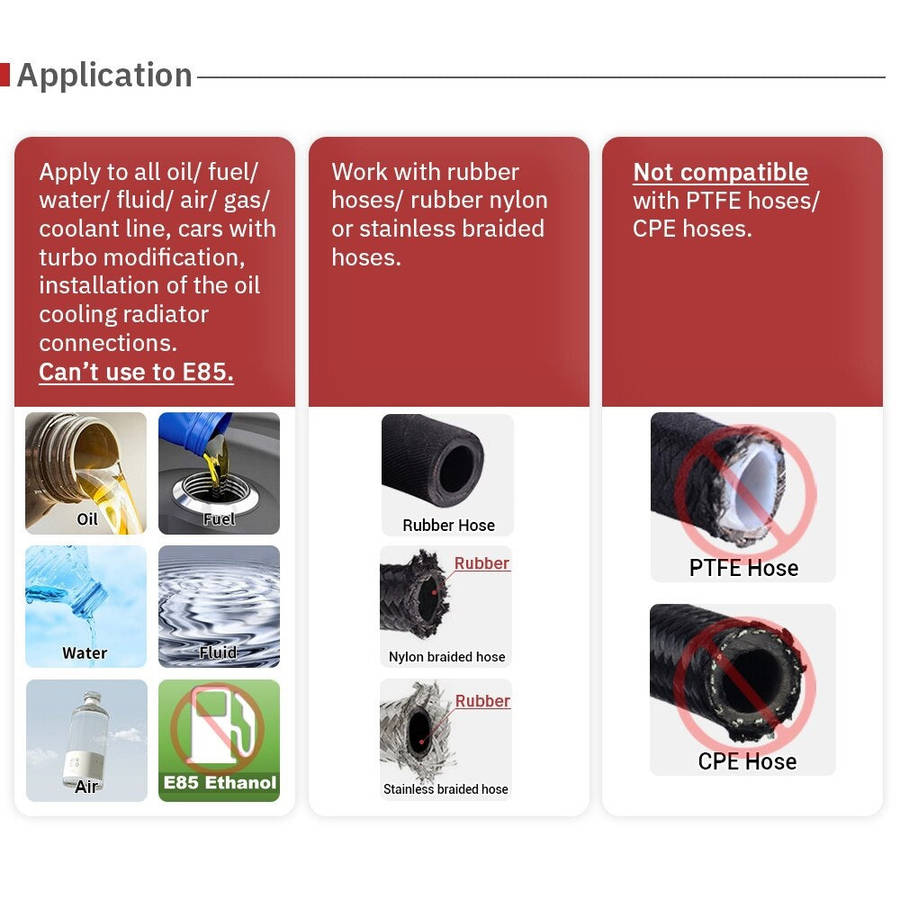

• Apply to all oil/ fuel/ water/ fluid/ air/gas/coolant line, cars with turbo modification, installation of the oil cooling radiator connections. Can't use to E85.

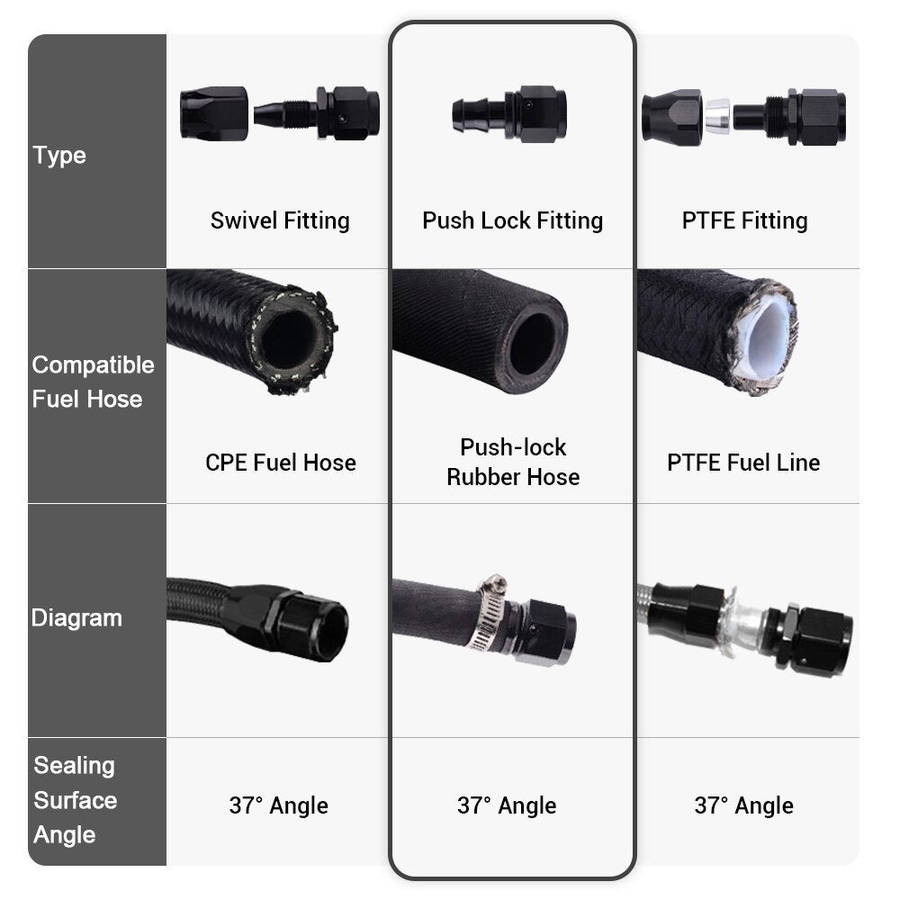

• Work with rubber hoses/ rubber nylon or stainless braided hoses.
• Not compatible with PTFE hoses/ CPE hoses.

Specification:

• 100% quality assurance tested, more responsive, less expensive, easier to install.

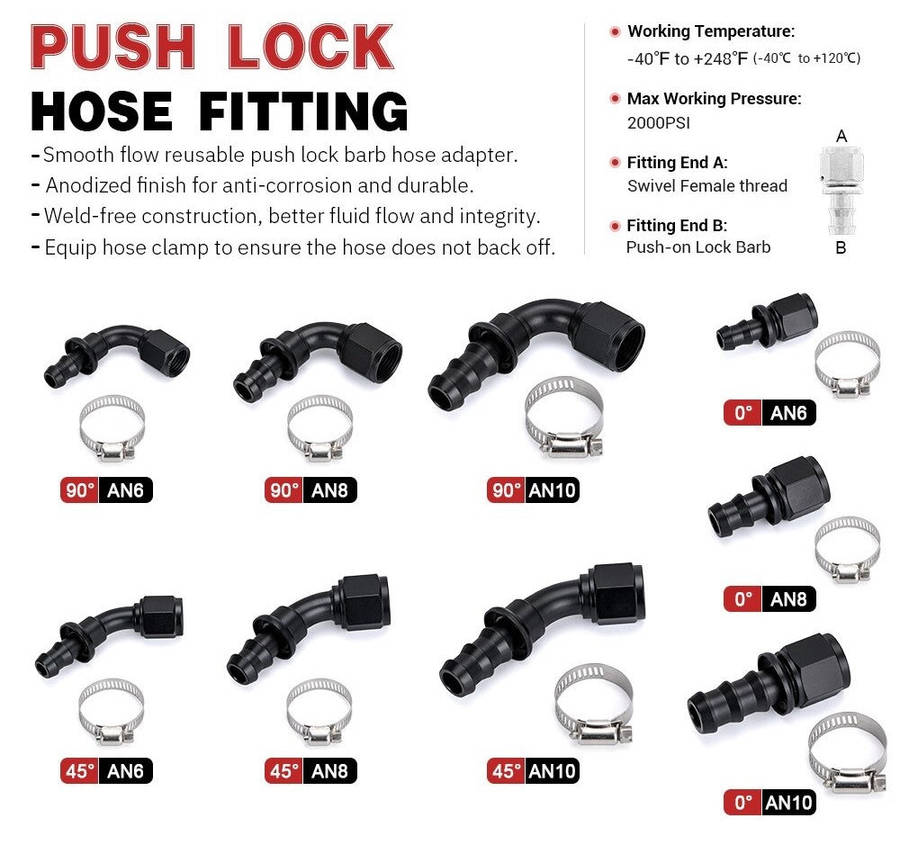

• Smooth flow reusable push lock barb hose adapter.
• Equip hose clamp to ensure the hose does not back off.
• Anodized finish for anti-corrosion and durable.

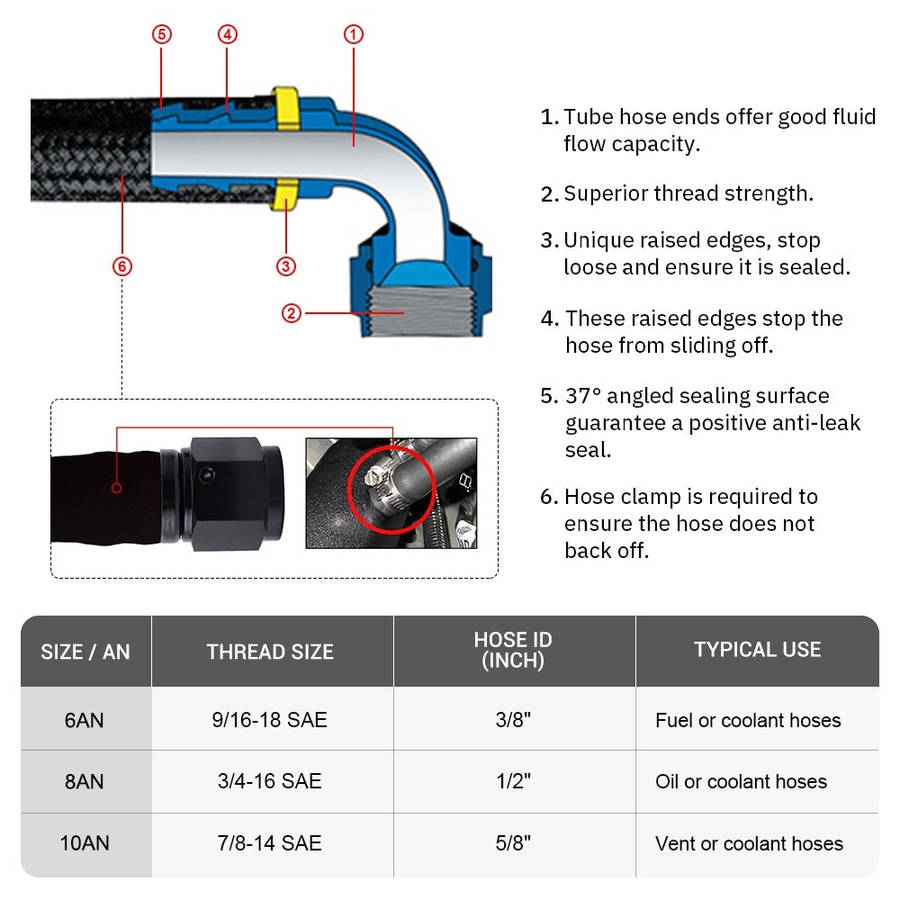

• Unique raised edges design stops the hose from working loose or coming off and ensures it is sealed.
• Superior thread strength, 37° angled sealing surface guarantee a positive anti-leak seal.
• Weld-free construction gives better fluid flow and integrity over the normal ends.
• Fitting End A: Swivel Female thread
• Fitting End B:  Push-on Lock Barb
• Working Temperature: -40to+248(-40 to+120)
• Max Working Pressure: 2000PSI

Material & Color:

Package Contents:

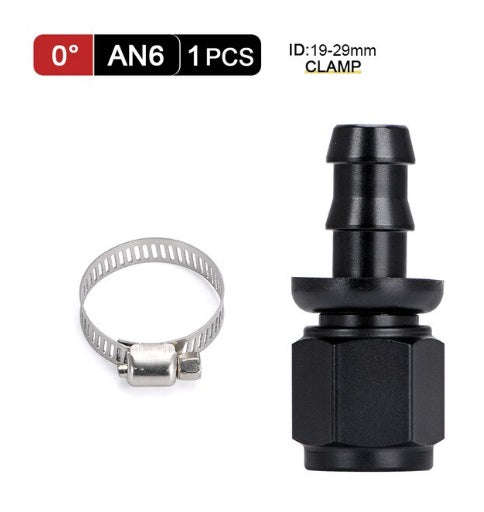

• 1x Push Lock Hose End;
• 1x Hose Clamp.

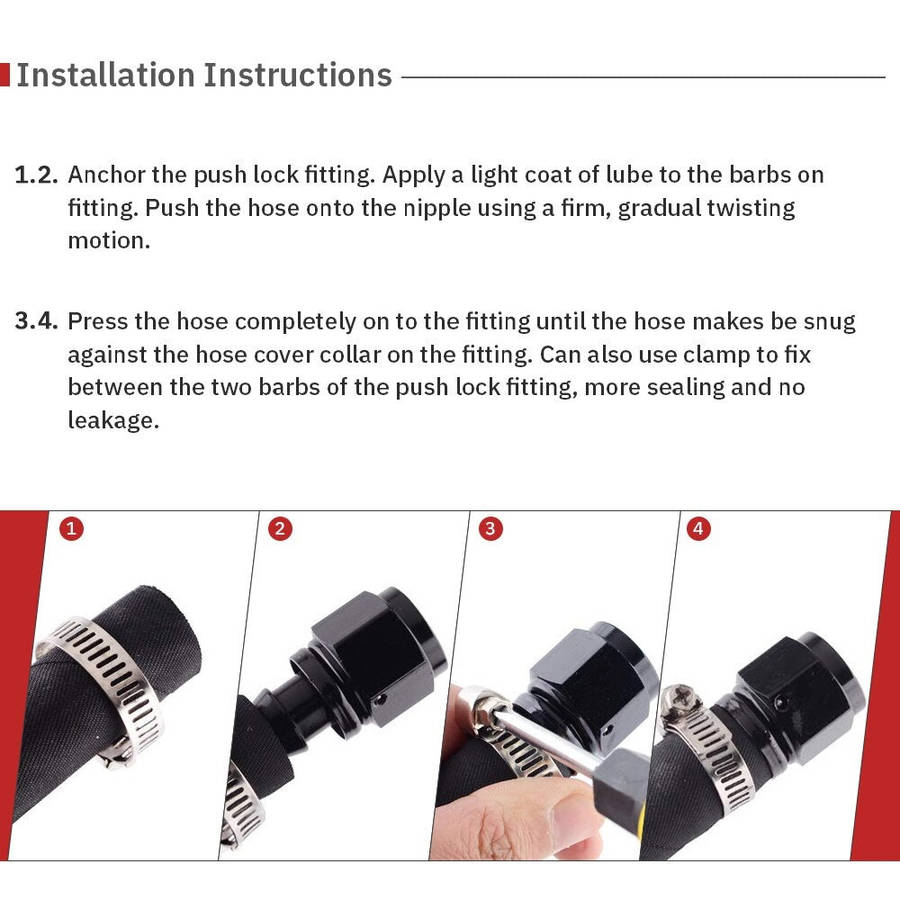

Installation Steps:

• Anchor the push lock fitting. Apply a light coat of lube to the barbs on fitting. Push the hose onto the nipple using a firm, gradual twisting motion.
• Press the hose completely on to the fitting until the hose makes be snug against the hose cover collar on the fitting. Can also use clamp to fix between the two barbs of the push lock fitting, more sealing and no leakage.
