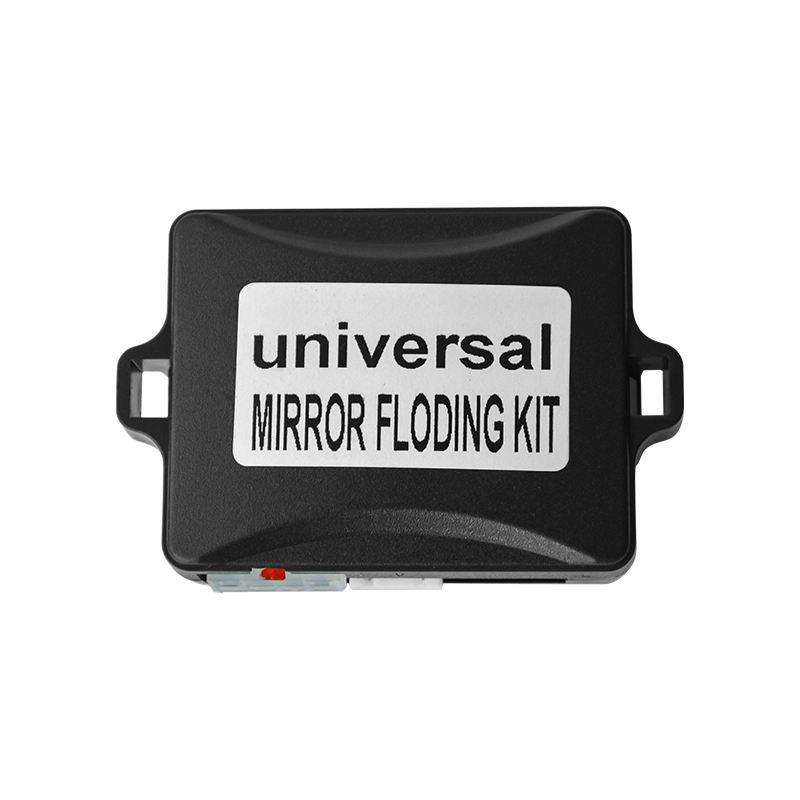

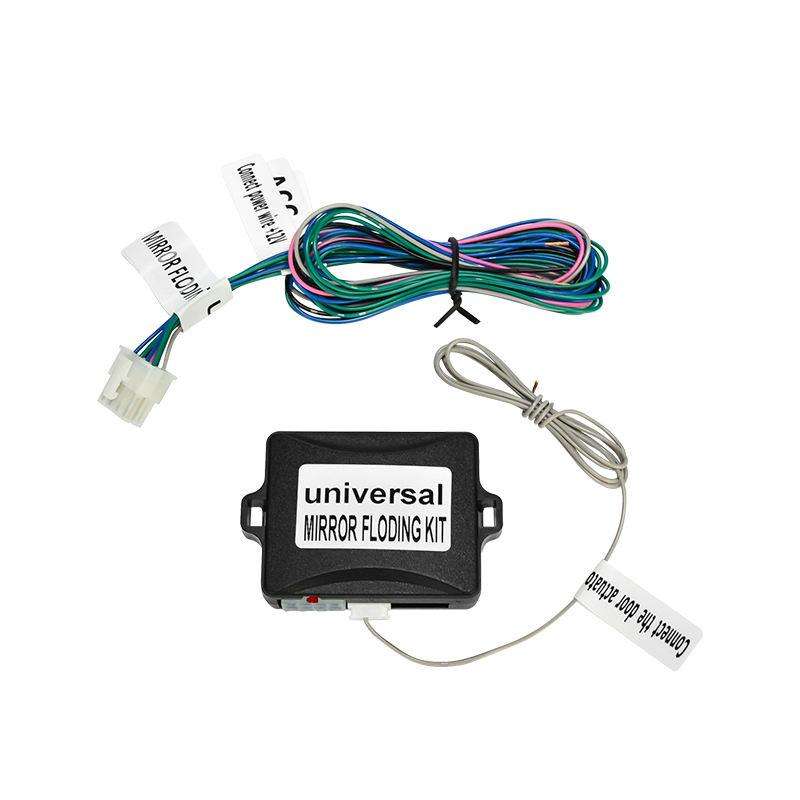

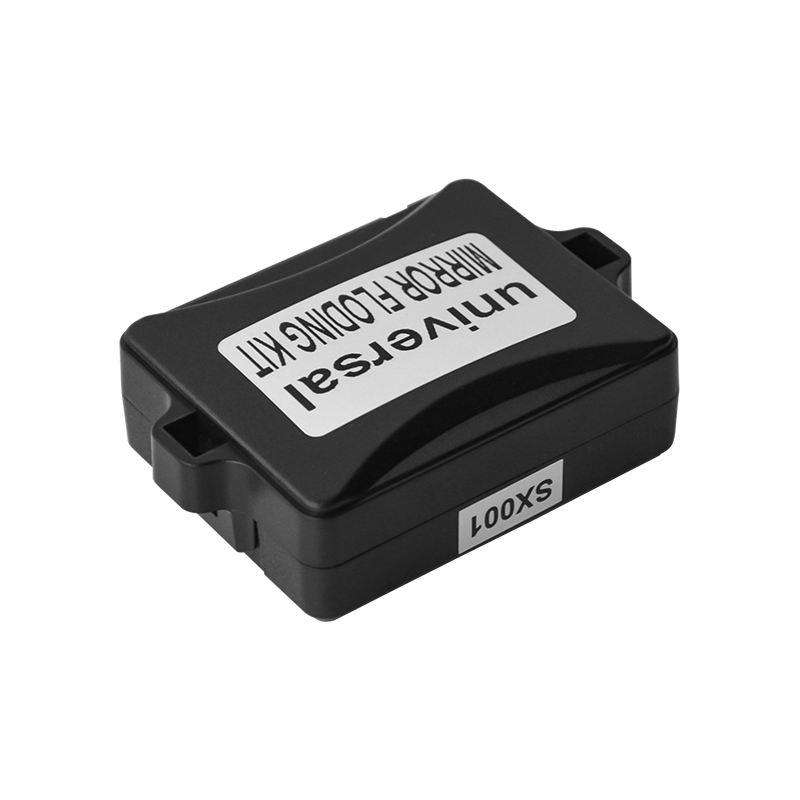

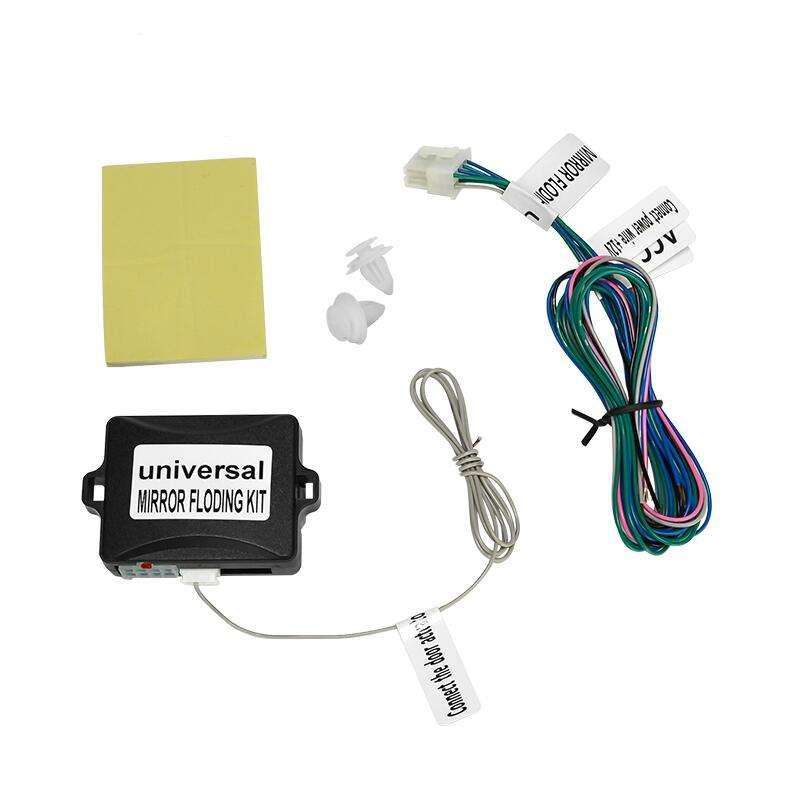

Universal Auto Side Mirror Folding System Car Side Mirror Folding Controller

CMS6392
System main function:
1. Automatically fold the car side mirror: please press remote LOCK button when you ACC off and then the car side mirror will be folded automatically.
2. Automatically open the car side mirror: When you put the key into ACC ON, then the car side mirror will be open automatically.
3. Easy installation, no need to change any original car lines and setting
4. Suitable for Japanese brand cars or the cars with dual folded return lines.

Installation steps:
1. Please check the system is same as the relative car type or not before you instal this system.
2. Please put the Key into ACC ON position, to test the original car rear mirror can be folded by hand normally or not.
3. Take off the interior panel of the left front door.
4. Take out the rear mirror control switch plus, and put the original car rear mirror folding kits plus relatively.
5. Find out the car power and connect with the window closer power cable. Find out the central locking output signal cable(when you connect it from the motor and press the remote LOCK button, at that moment positive 12V output.) and connect the folding kits reservation signal cable with the special clip.( based on different car type, some cars only need to connect one cable of the central locking signal).
6. Please fix the main unit socket side face down in the right position of the interior panel.
7. Please check the rear mirror can work normally or not by hand and by automatically.
8. Please recover the interior panel position as the original.
